◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#31791) — 66 parça

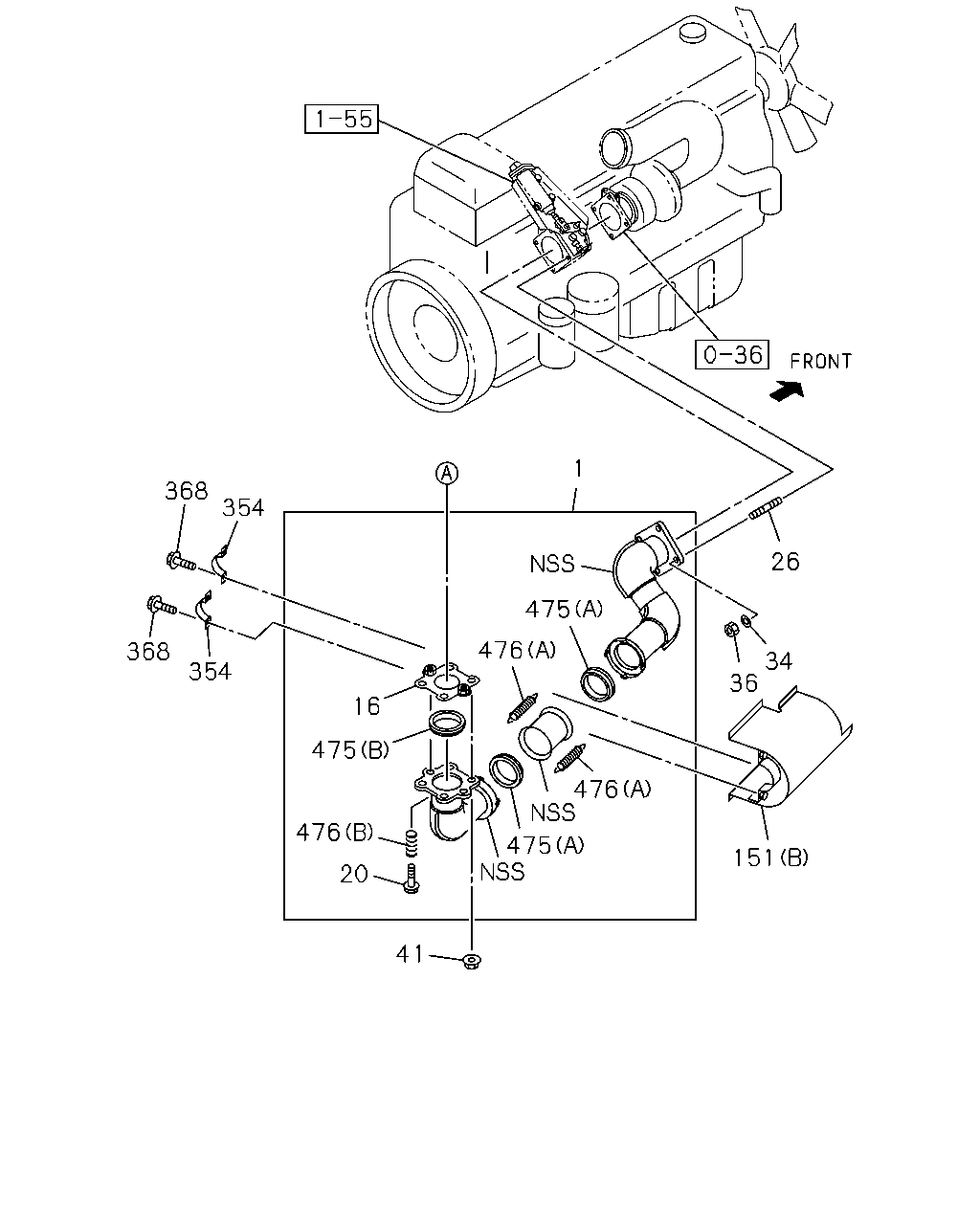

çizim 89963
1 368 354 26 475 476 368 34 36 354 16 475 476 476 475 151 20 41
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
SILENCER SINGLE VERTICAL<N28> 		8-98038-594-1 01 1 0604-
16 FLANGE; EXH PIPE
SILENCER SINGLE VERTICAL<N28> 		1-22115-148-1 01 1 0604-
20 BOLT; FLANGE,EXH PIPE
SILENCER SINGLE VERTICAL<N28> M10X51.4 		1-09009-167-0 02 1 0604-
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 04 1 0604-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0604-
36 NUT; EXH PIPE
M12 		1-09400-131-0 04 1 0604-
41 NUT; EXH PIPE TO EXH SILENCER
M12 		0-91110-512-0 04 1 0604-0710
41 NUT; EXH PIPE TO EXH SILENCER
SILENCER SINGLE VERTICAL<N28> M12 		0-91110-512-0 04 1 0711-
151 PROTECTOR; HEAT,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (B) 		1-22119-635-0 01 1 0604-
151 PROTECTOR; HEAT,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (A) 		1-22159-334-0 01 1 0604-
354 CLAMP; HEAT PROTECTOR
SILENCER SINGLE VERTICAL<N28> 		1-22119-445-0 02 1 0604-
368 BOLT; CLAMP
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28650-830-0 04 1 0604-
475 BEARING; SEAL,VIBNON,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (B) OD=112 		1-22119-294-1 01 1 0604-
475 BEARING; SEAL,VIBNON,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (A) OD=122 		1-22119-297-1 02 1 0604-
476 SPRING; VIBNON,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (A) 		1-09583-298-0 04 1 0604-
476 SPRING; VIBNON,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (B) 		8-94141-851-0 02 1 0604-

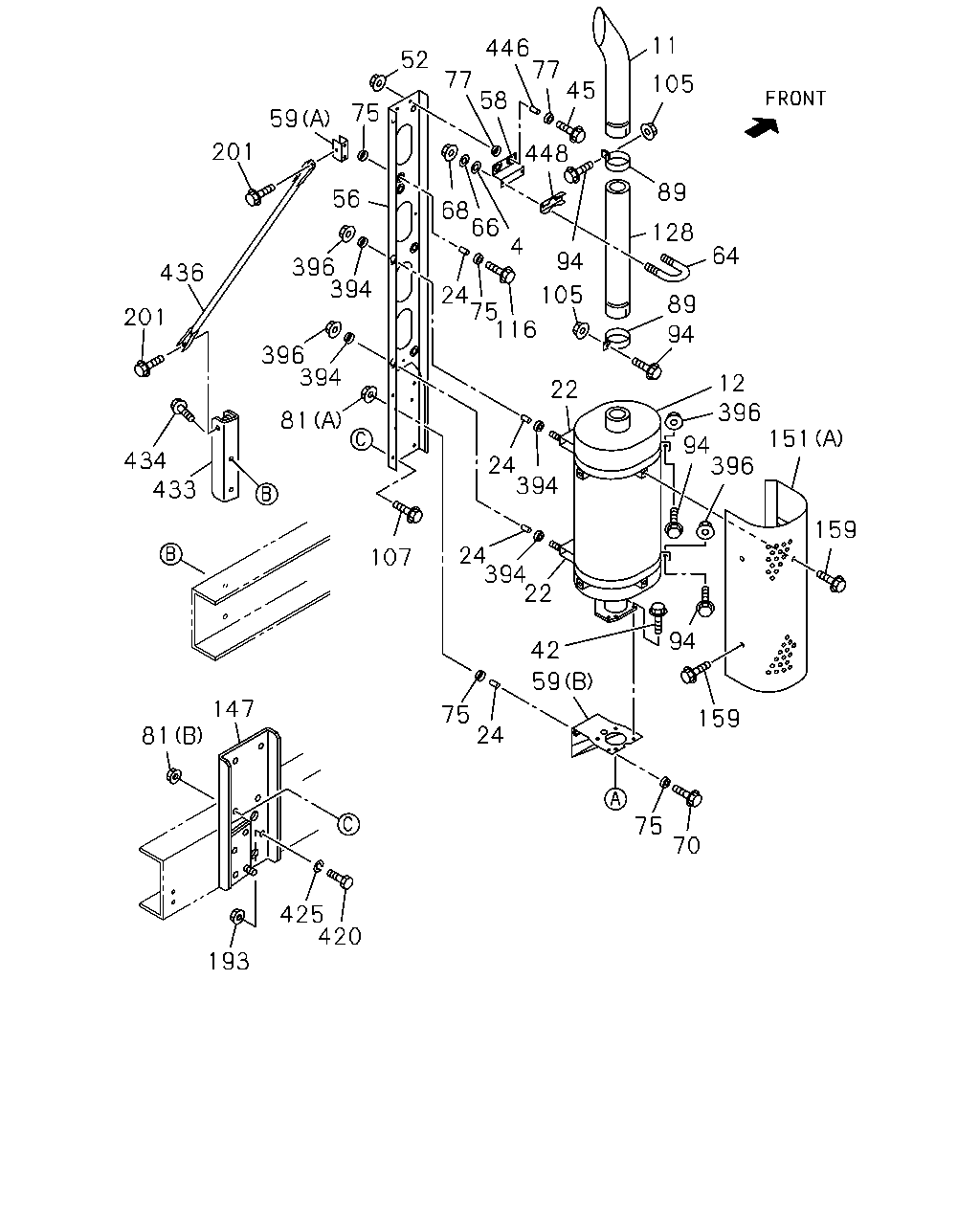

çizim 105328
11 446 77 45 52 77 58 105 75 59 201 448 89 56 68 66 128 4 64 94 396 394 436 105 24 75 116 89 201 94 396 394 12 396 151 22 81 94 396 434 433 24 394 159 24 394 22 107 94 42 59 147 75 24 159 81 75 70 425 420 193
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22 		9-09160-708-0 02 1 0604-0605
4 WASHER; PL,U BOLT
SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIPE; EXH,RR
SILENCER SINGLE VERTICAL<N28> 		1-22123-086-1 01 1 0604-
12 SILENCER ASM; EXH
SILENCER SINGLE VERTICAL<N28> 		1-22140-925-2 01 1 0604-
22 CLAMP; EXH PIPE
SILENCER SINGLE VERTICAL<N28> 		1-22133-270-0 02 1 0604-
24 COLLAR; DIST,CLAMP
SILENCER SINGLE VERTICAL<N28> L=25 		1-14234-083-0 10 1 0604-
42 BOLT; EXH PIPE TO EXH SILENCER
SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE 		1-09000-653-0 04 1 0604-
45 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE 		0-28051-050-0 02 1 0604-
52 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M10 FLANGE 		0-91180-210-0 02 1 0604-
56 BRACKET; CLAMP,EXH PIPE
SILENCER SINGLE VERTICAL<N28> 		1-22152-402-0 01 1 0604-0706
56 BRACKET; CLAMP,EXH PIPE
SILENCER SINGLE VERTICAL<N28> 		8-97623-078-0 01 1 0707-
58 BRACKET; EXH PIPE,RR
SILENCER SINGLE VERTICAL<N28> 		1-22131-799-0 01 1 0604-
59 BRACKET; EXH SILENCER,FRT
SILENCER SINGLE VERTICAL<N28> (A) 		1-22119-252-1 01 1 0604-
59 BRACKET; EXH SILENCER,FRT
SILENCER SINGLE VERTICAL<N28> (B) 		1-22151-768-1 01 1 0604-
64 U-BOLT; EXH PIPE,RR
SILENCER SINGLE VERTICAL<N28> 		1-22113-097-0 01 1 0604-
66 WASHER; LK,U BOLT
SILENCER SINGLE VERTICAL<N28> ID=8.2 		9-09150-508-0 02 1 0604-0604
66 WASHER; LK,U BOLT
SILENCER SINGLE VERTICAL<N28> ID=8.2 		0-91510-508-0 02 1 0604-
68 NUT; U BOLT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 0604-
70 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE 		0-28051-060-0 04 1 0604-
75 RUBBER; SUPPORT,BRKT
SILENCER SINGLE VERTICAL<N28> OD=40 		1-22159-094-0 04 1 0604-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 0604-
77 RUBBER; CUSHION,BRKT
SILENCER SINGLE VERTICAL<N28> OD=40 		1-22159-094-0 04 1 0604-
81 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE 		0-91180-210-0 04 1 0604-
81 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> (B) M12 FLANGE 		0-91180-212-0 02 1 0604-
89 CLAMP; EXH SILENCER,RR
SILENCER SINGLE VERTICAL<N28> 		1-22133-266-1 02 1 0604-
94 BOLT; CLAMP
SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE 		0-28651-040-0 04 1 0604-
105 NUT; CLAMP
SILENCER SINGLE VERTICAL<N28> M10 FLANGE 		0-91180-210-0 02 1 0604-
107 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE 		0-28051-240-0 04 1 0604-0706
107 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M12X50 FLANGE 		0-28051-250-0 04 1 0707-
116 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE 		0-28051-050-0 02 1 0604-
128 PIPE; EXH,RR
SILENCER SINGLE VERTICAL<N28> 		1-22123-087-1 01 1 0604-
147 BRACKET; VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> 		1-22152-401-1 01 1 0604-0706
147 BRACKET; VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> 		8-97623-012-0 01 1 0707-
151 PROTECTOR; HEAT,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (B) 		1-22119-635-0 01 1 0604-
151 PROTECTOR; HEAT,EXH PIPE
SILENCER SINGLE VERTICAL<N28> (A) 		1-22159-334-0 01 1 0604-
159 BOLT; HEAT PROTECTOR
SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER 		1-09030-027-0 06 1 0604-
193 NUT; BRKT,VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> M14 		1-09440-072-0 01 1 0604-0706
201 BOLT; STAY
SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE 		0-28651-025-0 04 1 0604-
394 RUBBER; SUPPORT,CLAMP
SILENCER SINGLE VERTICAL<N28> OD=40 		1-22159-094-0 08 1 0604-
396 NUT; CLAMP
SILENCER SINGLE VERTICAL<N28> M10 FLANGE 		0-91180-210-0 06 1 0604-
420 BOLT; BRKT,VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> M14X45 		1-09000-764-0 03 1 0604-0706
420 BOLT; BRKT,VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE 		0-28061-235-0 02 1 0707-
425 WASHER; LK,BRKT,VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> ID=14.2 		9-09150-514-0 04 1 0604-0604
425 WASHER; LK,BRKT,VERTICAL PIPE
SILENCER SINGLE VERTICAL<N28> ID=14.2 		0-91510-514-0 04 1 0604-0706
433 BRACKET; STAY,EXH PIPE
SILENCER SINGLE VERTICAL<N28> 		1-22151-813-0 01 1 0604-
434 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE 		0-28651-030-0 02 1 0604-0704
434 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE 		0-28051-030-0 02 1 0705-
436 STAY; SUPPORT,EXH
SILENCER SINGLE VERTICAL<N28> 		1-22131-798-2 02 1 0604-
446 PIECE; DIST,EXH PIPE,RR
SILENCER SINGLE VERTICAL<N28> L=25 		1-14234-083-0 02 1 0604-
448 PIECE; DIST,U-BOLT
SILENCER SINGLE VERTICAL<N28> 		1-22113-095-0 01 1 0604-
