◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶

3-20 — AIR TANK (#3179) — 186 parça

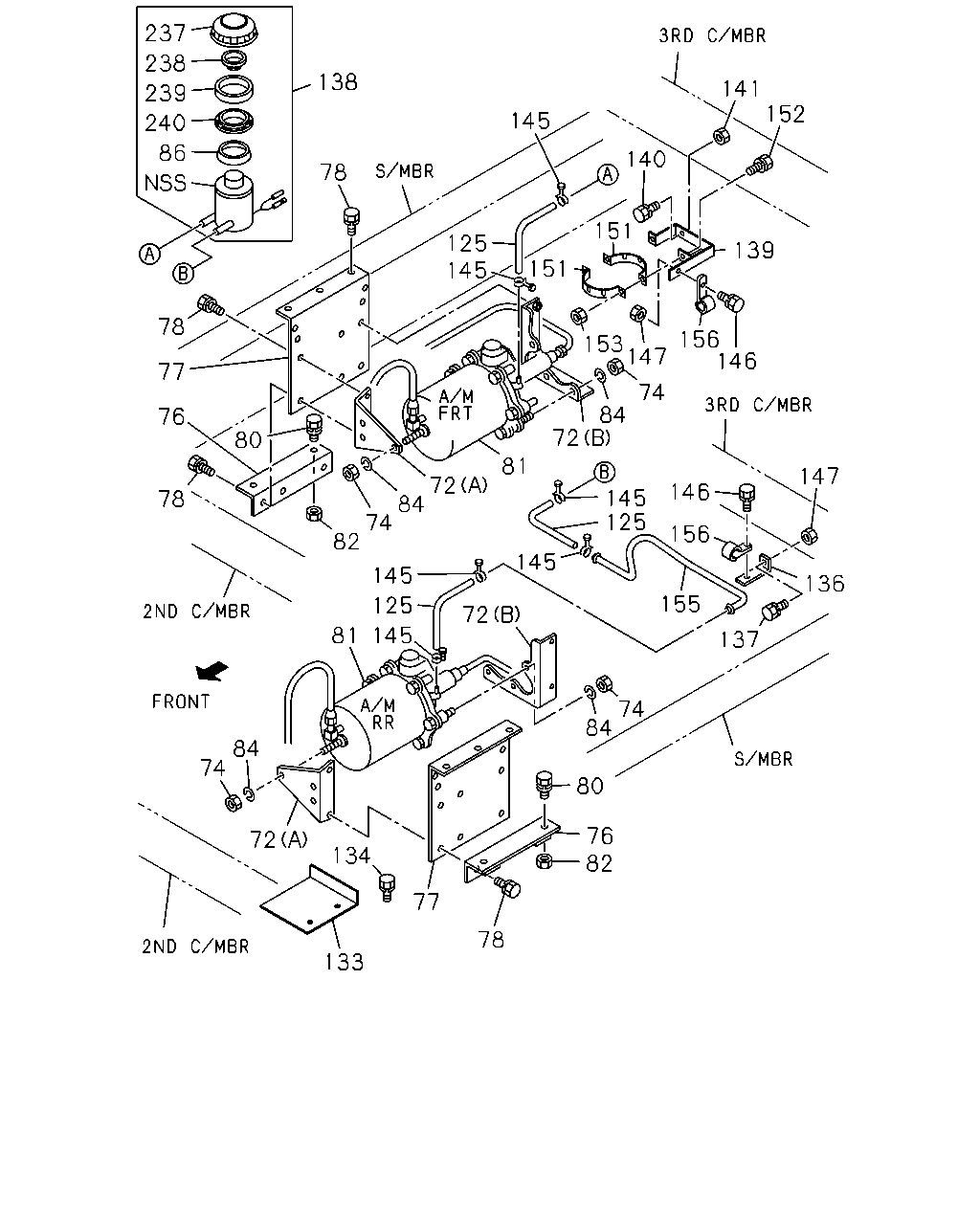

237 238 138 141 239 152 145 240 86 140 78 151 125 145 139 151 78 156 146 153 147 77 74 84 72 76 80 81 145 125 147 72 84 74 82 146 78 156 145 145 136 155 125 72 81 145 137 74 84 84 74 80 76 82 72 134 77 78 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	BRACKET; AIR MASTER (A)	1-53318-229-0	02	1	9104-
72	BRACKET; AIR MASTER (B)	1-53318-230-1	02	1	9104-
74	NUT; STAY AIR MASTER M10	9-09110-510-0	08	1	9104-
76	STAY; AIR MASTER LWR	1-53318-291-0	02	1	9104-0107
76	STAY; AIR MASTER LWR	1-53318-291-0	02	1	0108-
77	STAY; AIR MASTER UPR	1-53153-889-2	02	1	9104-0107
77	STAY; AIR MASTER UPR	1-53153-889-2	02	1	0108-
78	BOLT; STAY AIR MASTER M10X30 W/LK WASHER	0-50041-030-0	22	1	9104-
80	BOLT; BRKT M10X30 W/LK&PL WASHER	0-50141-030-0	06	1	9104-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-401-2	02	1	9104-
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-510-0	12	1	9104-
84	WASHER; LK,AIR MASTER ID=10.2	9-09150-510-0	08	1	9104-
86	SEAL; DUST	1-47529-019-0	01	1	9104-0107
86	SEAL; DUST	1-47529-019-0	01	1	0108-
93	BOLT; FIX M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9104-
125	HOSE; OIL TANK TO AIR MASTER L=185 SERVICED BY L=1800	1-09360-320-0	03	1	9104-
133	COVER; AIR MASTER	1-48317-452-0	02	1	9104-
134	BOLT; COVER FIX M8X20 W/LK WASHER	0-50040-820-0	04	1	9104-
136	BRACKET; CLIP	1-47475-519-0	01	1	9104-
137	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9104-9204
137	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9104-0107
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	0108-
139	BRACKET; OIL TANK	1-47537-104-1	01	1	9104-
140	BOLT; OIL TANK TO BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9104-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9104-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	06	1	9104-9307
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	06	1	9308-
146	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9104-9204
146	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-
147	NUT; CLIP M4	9-99111-404-0	04	1	9104-
147	NUT; CLIP M8	9-09110-408-0	02	1	9104-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9104-
152	BOLT; OIL TANK TO BAND M8X16 W/LK WASHER	9-01900-816-0	02	1	9104-9204
152	BOLT; OIL TANK TO BAND M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9104-
155	PIPE; OIL,HOSE TO AIR MASTER L=576 SERVICED BY L=600	1-47434-473-0	01	1	9104-
156	CLIP; OIL PIPE ID=11 L=20	9-09525-035-0	02	1	9104-
203	NUT M6	9-09110-406-0	04	1	9104-
237	CAP; OIL TANK	1-47525-026-1	01	1	9104-0107
237	CAP; OIL TANK	1-47525-026-1	01	1	0108-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9104-0107
238	PLATE; BAFFLE	1-47529-022-0	01	1	0108-
239	FILTER; DUST	1-47529-017-0	01	1	9104-0107
239	FILTER; DUST	1-47529-017-0	01	1	0108-
240	HOLDER; FILTER	1-47529-018-0	01	1	9104-0107
240	HOLDER; FILTER	1-47529-018-0	01	1	0108-
245	CLIP; VINYL PIPE ID=23 W/SCREW	9-09915-656-0	04	1	9104-
295	SCREW; CLIP,VINYL PIPE	9-93430-425-0	04	1	9104-

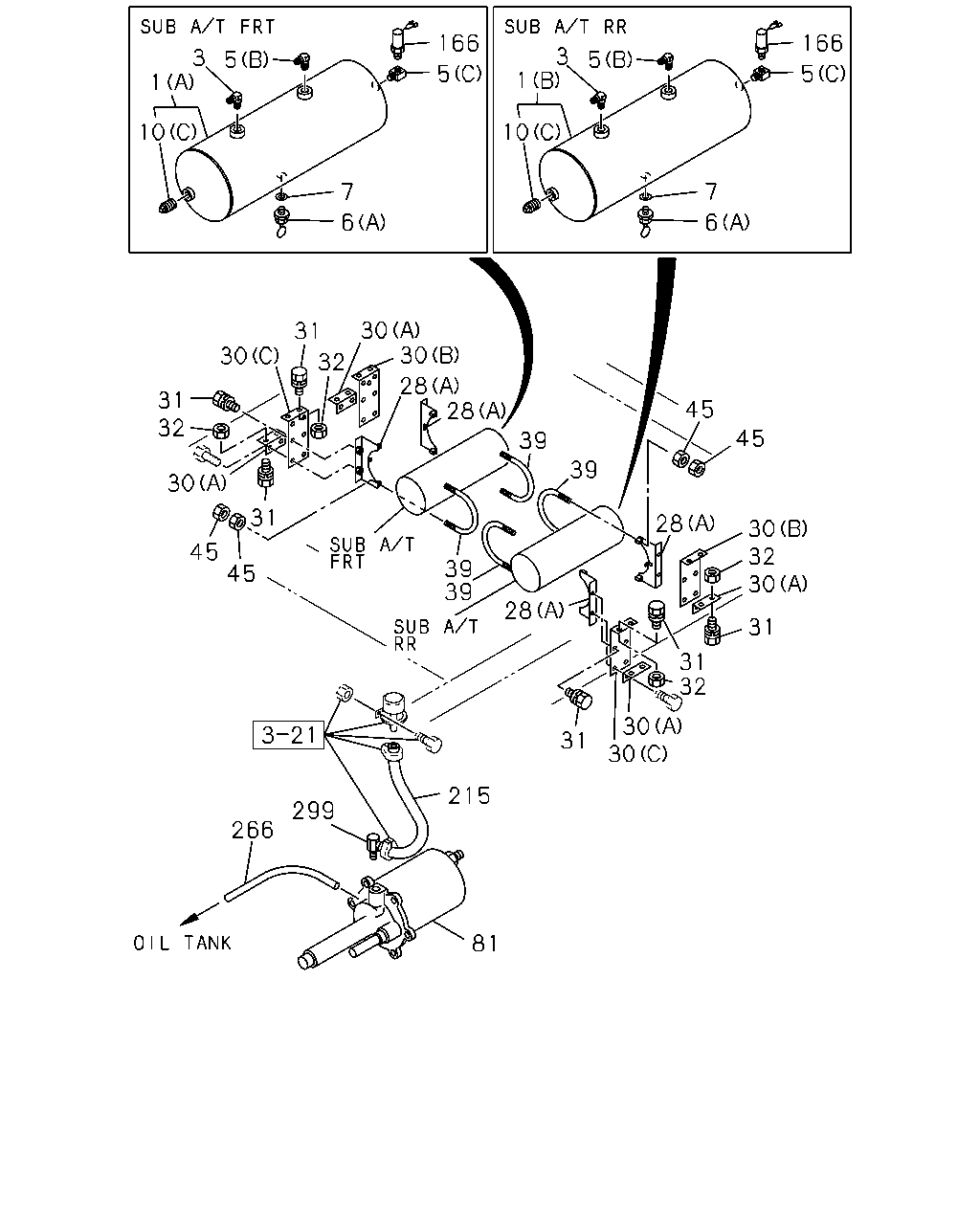

166 166 3 1 3 5 5 5 5 1 10 10 7 7 6 6 30 30 31 30 32 28 28 31 32 45 45 39 39 30 31 28 30 32 30 45 45 39 39 28 31 31 32 30 30 31 215 299 266 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48330-161-0	01	1	9104-0107
1	TANK ASM; AIR	1-48330-161-0	01	1	0108-
1	TANK ASM; AIR (A)	1-48330-163-1	01	1	9104-0107
1	TANK ASM; AIR	1-48330-163-1	01	1	0108-
1	TANK ASM; AIR (B)	1-48330-222-2	01	1	9104-0107
1	TANK ASM; AIR	1-48330-222-2	01	1	0108-
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0108-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	03	1	9104-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-0107
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0108-
5	UNION; AIR TANK PT1/4	9-09903-738-0	01	1	0108-0202
5	UNION; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0203-
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	03	1	9104-0107
5	UNION; AIR TANK PT1/4	9-09903-738-0	02	1	0108-0202
5	UNION; AIR TANK PT1/4 2WAY	1-09660-693-0	02	1	0203-
5	UNION; AIR TANK (A) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9104-9302
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-0107
5	UNION; AIR TANK M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0108-
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	9-09234-312-1	04	1	9104-9302
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	04	1	9303-0107
5	UNION; AIR TANK M20 & PT3/8 ELBOW	1-09650-439-0	02	1	0108-
6	COCK; DRAIN,AIR TANK (A)	1-48312-004-1	02	1	9104-9604
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-004-1	02	1	9104-9604
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	9605-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	9605-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-004-1	01	1	9104-9604
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9605-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9104-
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	9609-
7	GASKET; DRAIN COCK EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	9609-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9104-9608
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9104-0107
10	PLUG; AIR TANK PT3/8	9-09204-517-0	01	1	0108-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9104-0107
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0108-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	9104-0107
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	0108-
28	BRACKET; AIR TANK	1-48317-401-2	02	1	0108-
28	BRACKET; AIR TANK (A)	1-48317-401-2	06	1	9104-0107
28	BRACKET; AIR TANK	1-48317-401-2	04	1	0108-
28	BRACKET; AIR TANK (B)	1-53318-248-3	02	1	9104-
30	BRACKET; AIR TANK,SUB (B)	1-53318-247-3	02	1	9104-
30	BRACKET; AIR TANK,SUB (C)	1-53318-248-3	02	1	9104-
30	BRACKET; AIR TANK,SUB (A)	1-53318-292-0	04	1	9104-0107
30	BRACKET; AIR TANK,SUB	1-53318-292-0	04	1	0108-
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	20	1	9104-9112
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	24	1	9104-9112
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9201-0107
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	0108-
32	NUT; BRKT TO FRAME M10	9-09110-510-0	30	1	9104-
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	0108-
39	U-BOLT; AIR TANK L=210	1-48317-458-1	06	1	9104-0107
39	U-BOLT; AIR TANK L=210	1-48317-458-1	04	1	0108-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	08	1	0108-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	24	1	9104-0107
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	0108-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-401-2	02	1	9104-
93	BOLT; FIX M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9104-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-035-0	02	1	9104-9411
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-052-0	02	1	9412-
203	NUT M6	9-09110-406-0	04	1	9104-
215	PIPE; VINYL L=950 SERVICED BY L=1000	9-09912-776-0	02	1	9104-0107
215	PIPE; VINYL L=950 SERVICED BY L=1000	9-09912-776-0	02	1	0108-
245	CLIP; VINYL PIPE ID=23 W/SCREW	9-09915-656-0	04	1	9104-
266	HOSE; RUBBER,ACL L=950 SERVICED BY L=1800	1-09360-320-0	02	1	9104-0107
266	HOSE; RUBBER,ACL L=950 SERVICED BY L=1800	1-09360-320-0	02	1	0108-
295	SCREW; CLIP,VINYL PIPE	9-93430-425-0	04	1	9104-
299	CONNECTOR; ACL	8-94241-962-0	02	1	9104-0107
299	CONNECTOR; ACL	8-94241-962-0	02	1	0108-

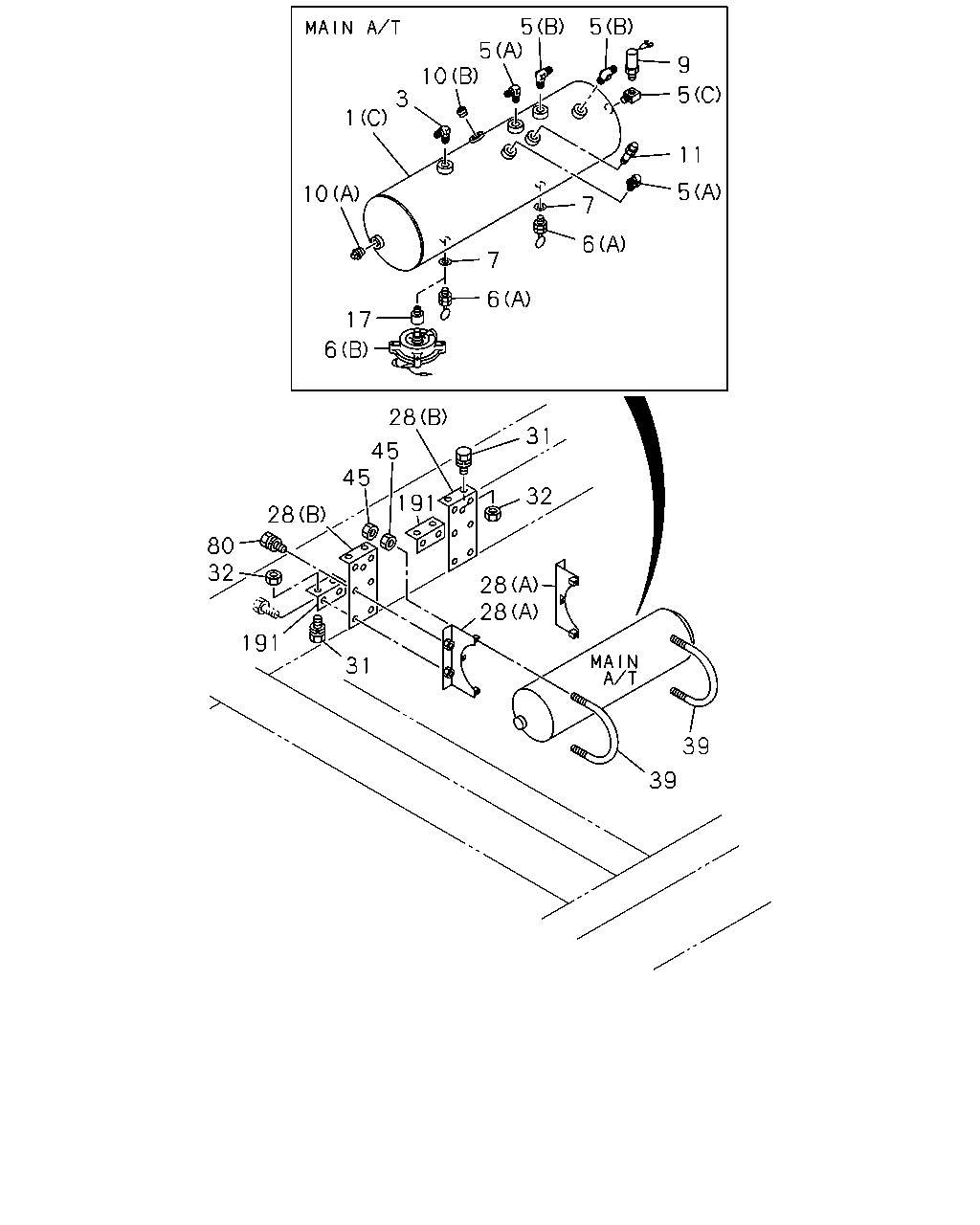

5 5 5 10 9 5 3 1 11 5 10 7 6 7 6 17 6 28 31 45 45 191 32 28 80 32 28 28 191 31 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48330-161-0	01	1	9104-0107
1	TANK ASM; AIR	1-48330-161-0	01	1	0108-
1	TANK ASM; AIR (A)	1-48330-163-1	01	1	9104-0107
1	TANK ASM; AIR	1-48330-163-1	01	1	0108-
1	TANK ASM; AIR (B)	1-48330-222-2	01	1	9104-0107
1	TANK ASM; AIR	1-48330-222-2	01	1	0108-
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0108-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	03	1	9104-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-0107
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0108-
5	UNION; AIR TANK PT1/4	9-09903-738-0	01	1	0108-0202
5	UNION; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0203-
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	03	1	9104-0107
5	UNION; AIR TANK PT1/4	9-09903-738-0	02	1	0108-0202
5	UNION; AIR TANK PT1/4 2WAY	1-09660-693-0	02	1	0203-
5	UNION; AIR TANK (A) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9104-9302
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-0107
5	UNION; AIR TANK M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0108-
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	9-09234-312-1	04	1	9104-9302
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	04	1	9303-0107
5	UNION; AIR TANK M20 & PT3/8 ELBOW	1-09650-439-0	02	1	0108-
6	COCK; DRAIN,AIR TANK (A)	1-48312-004-1	02	1	9104-9604
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-004-1	02	1	9104-9604
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	9605-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	9605-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-004-1	01	1	9104-9604
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9605-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9104-
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	9609-
7	GASKET; DRAIN COCK EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	9609-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9104-9608
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-035-0	01	1	9104-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-052-0	01	1	9412-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9104-0107
10	PLUG; AIR TANK PT3/8	9-09204-517-0	01	1	0108-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9104-0107
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0108-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	9104-0107
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	0108-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9104-0107
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	0108-
17	ADAPTER; AUTO DRAIN AUTO DRAIN<J78>	1-48319-031-0	01	1	9104-
28	BRACKET; AIR TANK	1-48317-401-2	02	1	0108-
28	BRACKET; AIR TANK (A)	1-48317-401-2	06	1	9104-0107
28	BRACKET; AIR TANK	1-48317-401-2	04	1	0108-
28	BRACKET; AIR TANK (B)	1-53318-248-3	02	1	9104-
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	20	1	9104-9112
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	24	1	9104-9112
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9201-0107
31	BOLT; BRKT TO FRAME M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	0108-
32	NUT; BRKT TO FRAME M10	9-09110-510-0	30	1	9104-
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	0108-
39	U-BOLT; AIR TANK L=210	1-48317-458-1	06	1	9104-0107
39	U-BOLT; AIR TANK L=210	1-48317-458-1	04	1	0108-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	08	1	0108-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	24	1	9104-0107
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	0108-
80	BOLT; BRKT M10X30 W/LK&PL WASHER	0-50141-030-0	06	1	9104-
93	BOLT; FIX M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9104-
191	BRACKET; STOPPER,AIR TANK	1-53318-292-0	02	1	9104-0107
191	BRACKET; STOPPER,AIR TANK	1-53318-292-0	02	1	0108-
203	NUT M6	9-09110-406-0	04	1	9104-
245	CLIP; VINYL PIPE ID=23 W/SCREW	9-09915-656-0	04	1	9104-
295	SCREW; CLIP,VINYL PIPE	9-93430-425-0	04	1	9104-
