1-40 — FUEL TANK (#31788) — 153 parça

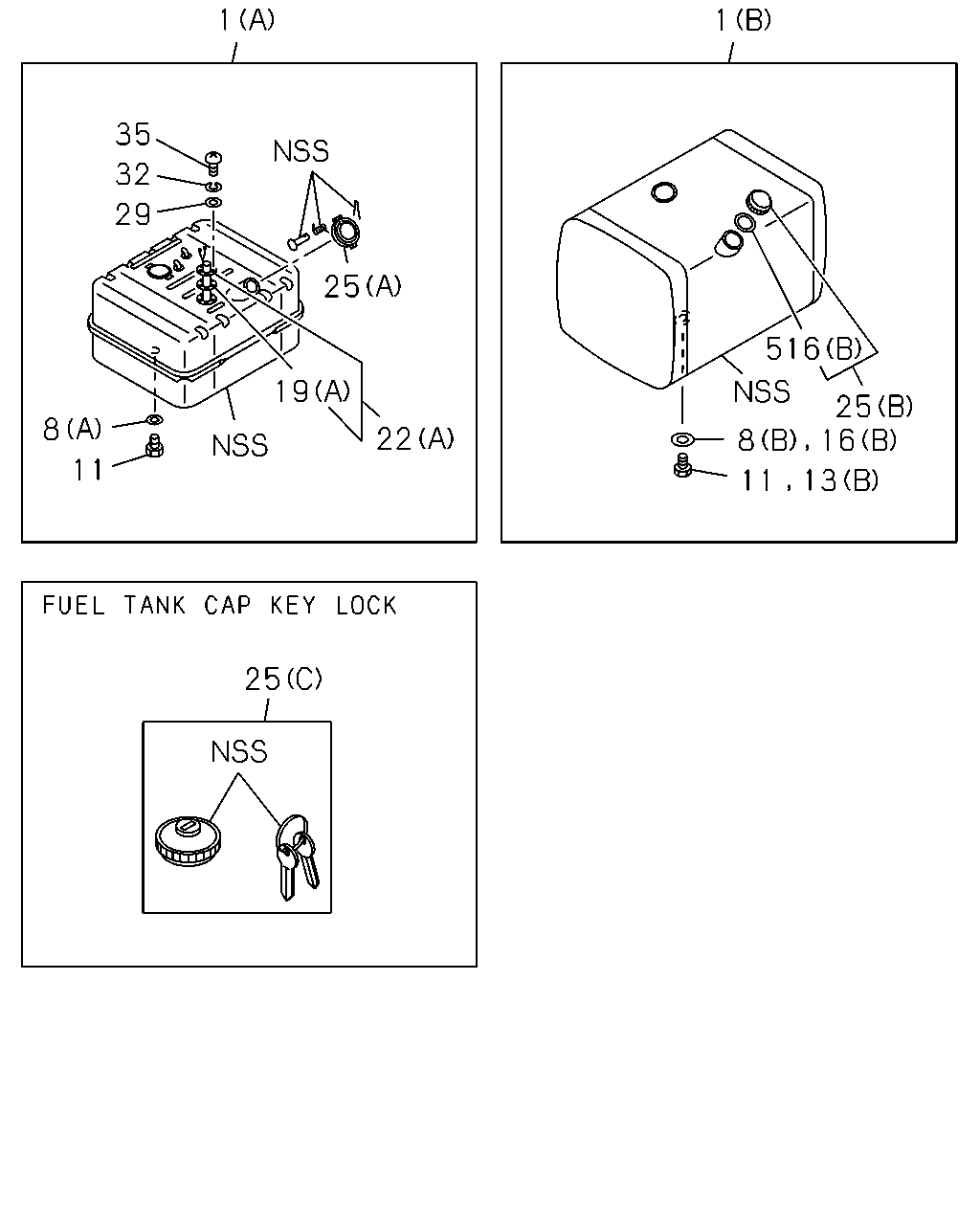

1 1 35 32 29 25 19 22 8 11 25 516 16 25 13 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (B) 745X650X480 200L	1-87411-169-0	02	1	0604-
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0604-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-2	01	1	0604-1505
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	8-98298-797-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6	8-98030-453-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (C)	8-98030-605-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0604-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	1211-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0604-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0604-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	9-99202-318-0	01	1	0604-0606
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0607-1210
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0604-
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0604-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0604-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0604-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=54.5	8-98299-580-0	01	1	1211-
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B)	1-83141-131-0	01	1	0604-1210
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0604-1505
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98296-671-0	01	1	1506-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (C)	1-22440-057-2	02	1	0808-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (C)	1-22440-057-2	02	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (C)	1-22440-057-2	02	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (C)	1-22440-057-2	02	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	0808-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (B)	1-22440-056-0	02	1	0604-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0604-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-056-0	01	1	0604-
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0604-0605
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-1505
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0604-0604
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0604-0604
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER	0-36220-512-0	05	1	1506-
516	GASKET; CAP FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=78	8-98259-383-0	01	1	1312-
516	GASKET; CAP FUEL TANK 200L+200L<NF7> (A) ID=58	1-83149-005-0	01	1	0604-1212

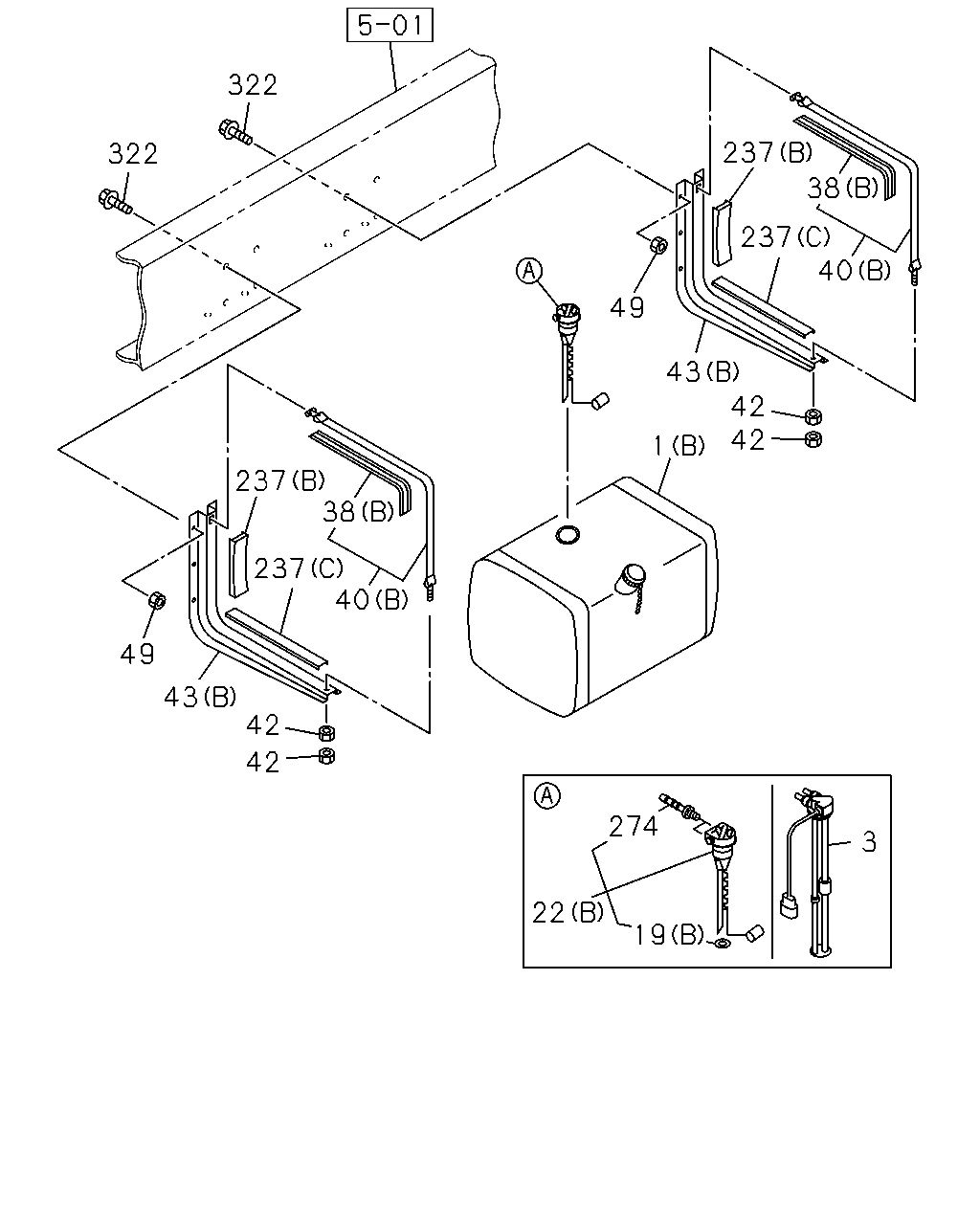

322 322 237 237 38 40 43 49 42 42 1 38 237 237 49 43 42 42 40 274 22 19 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (B) 745X650X480 200L	1-87411-169-0	02	1	0604-
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0604-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-2	01	1	0604-1505
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	8-98298-797-0	01	1	1506-
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1211-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0604-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0604-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=54.5	8-98299-580-0	01	1	1211-
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B)	1-83141-131-0	01	1	0604-1210
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0604-1505
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98296-671-0	01	1	1506-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=960	1-22553-044-0	04	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=1045	1-22550-262-0	04	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1045	1-22550-262-0	02	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (B)	1-53461-543-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (B)	1-53461-543-0	02	1	0604-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	16	1	0604-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12	0-91110-512-0	08	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=340	1-22553-043-2	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (C) L=540	1-22553-064-1	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0604-
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0604-1210
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0604-
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0604-

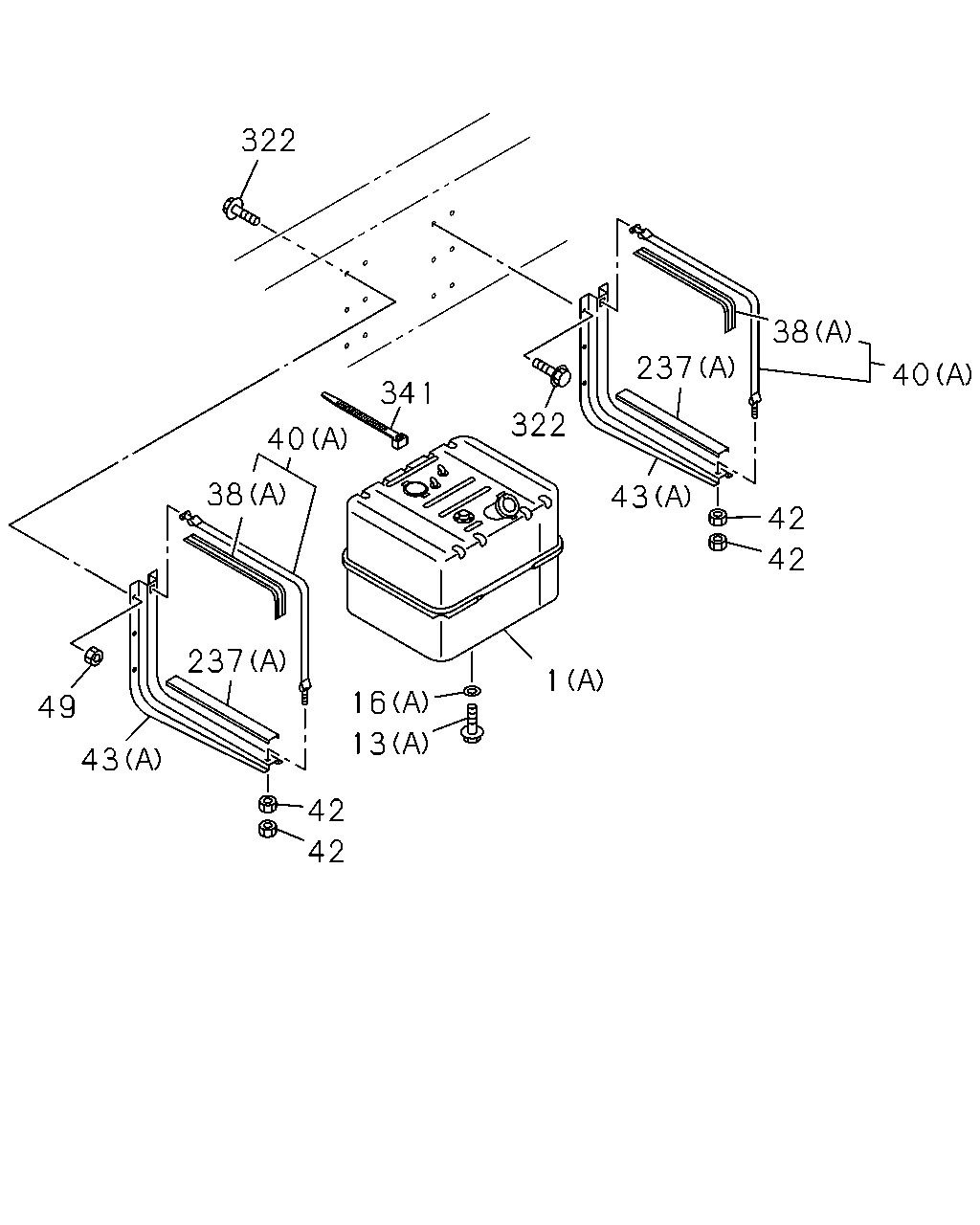

322 38 237 40 341 322 40 38 43 42 42 237 1 16 49 13 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (B) 745X650X480 200L	1-87411-169-0	02	1	0604-
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0604-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-2	01	1	0604-1505
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	8-98298-797-0	01	1	1506-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0604-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	9-99202-318-0	01	1	0604-0606
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0607-1210
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0604-
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0604-1210
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=960	1-22553-044-0	04	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=1045	1-22550-262-0	04	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1045	1-22550-262-0	02	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (B)	1-53461-543-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (B)	1-53461-543-0	02	1	0604-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	16	1	0604-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12	0-91110-512-0	08	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=340	1-22553-043-2	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (C) L=540	1-22553-064-1	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0604-
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0604-
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0604-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0604-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0604-

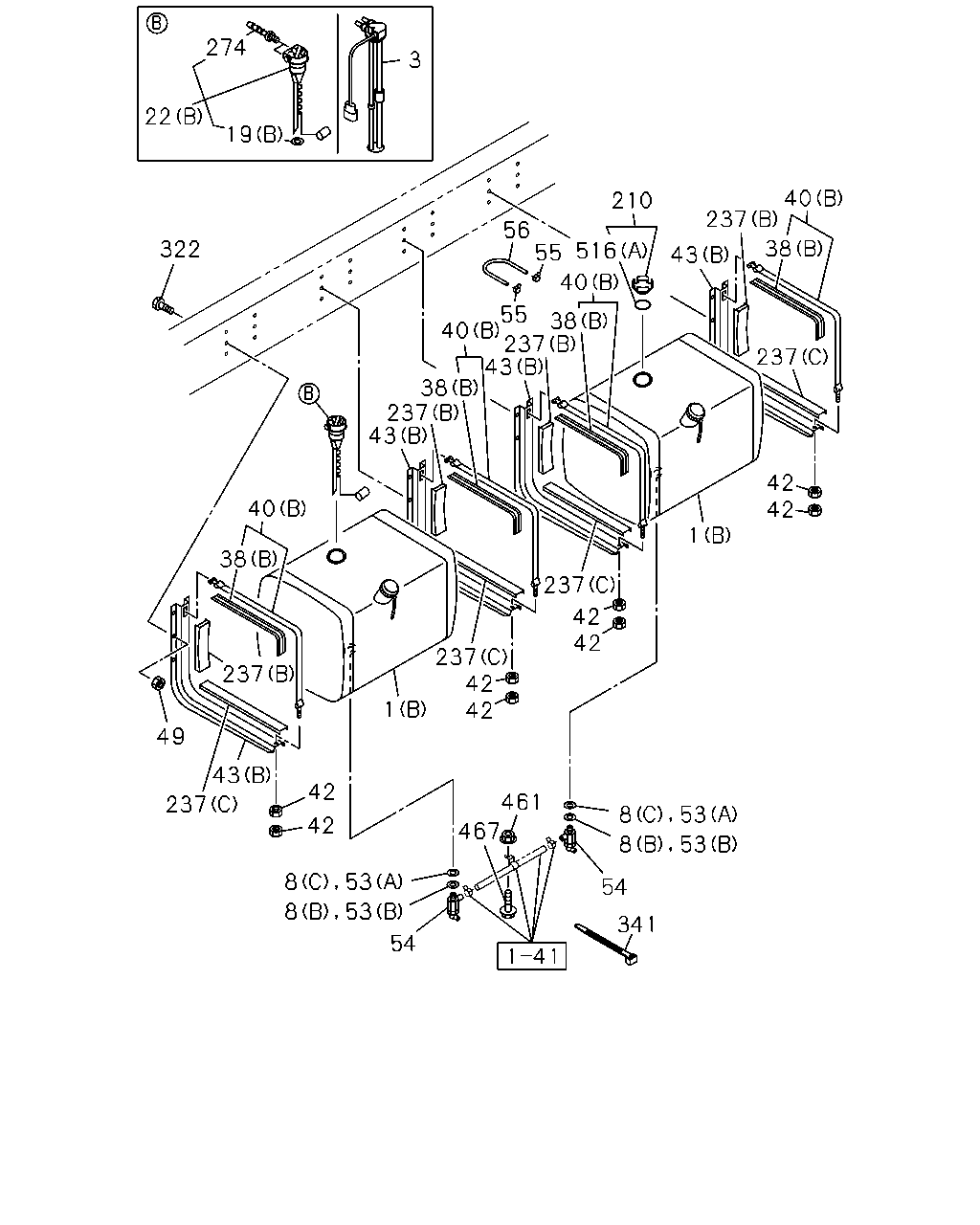

3 274 19 22 322 49 237 42 42 8 8 53 53 54 461 467 54 341 8 8 53 53 1 42 42 237 237 43 38 40 210 56 55 516 40 38 237 55 40 38 237 43 43 40 237 43 38 237 42 42 1 237 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (B) 745X650X480 200L	1-87411-169-0	02	1	0604-
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0604-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-2	01	1	0604-1505
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	8-98298-797-0	01	1	1506-
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6	8-98030-453-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (C)	8-98030-605-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0604-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0604-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0604-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=54.5	8-98299-580-0	01	1	1211-
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B)	1-83141-131-0	01	1	0604-1210
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0604-1505
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98296-671-0	01	1	1506-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=960	1-22553-044-0	04	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0604-
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=1045	1-22550-262-0	04	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0604-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1045	1-22550-262-0	02	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0604-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (B)	1-53461-543-0	04	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0604-
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (B)	1-53461-543-0	02	1	0604-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	16	1	0604-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12	0-91110-512-0	08	1	0604-
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6	8-98030-453-0	02	1	0604-1210
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	8-98030-605-0	02	1	0604-1210
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0604-1210
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0604-
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0604-
210	CAP; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22411-076-0	01	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=340	1-22553-043-2	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (C) L=540	1-22553-064-1	04	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0604-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0604-
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0604-1210
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0604-
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0604-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0604-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0604-
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0604-
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0604-
516	GASKET; CAP FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF> (B) ID=78	8-98259-383-0	01	1	1312-
516	GASKET; CAP FUEL TANK 200L+200L<NF7> (A) ID=58	1-83149-005-0	01	1	0604-1212

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
