◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#31785) — 25 parça

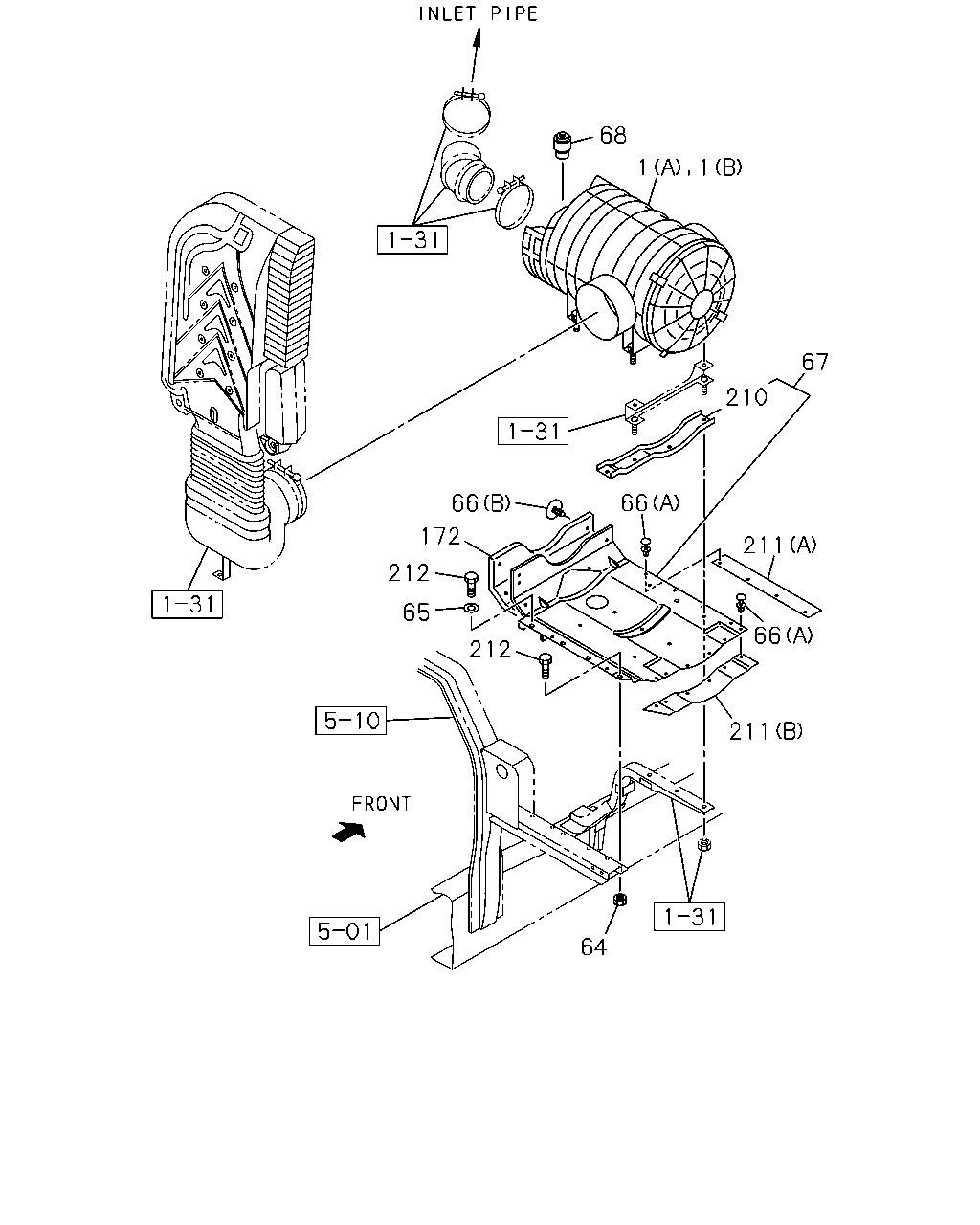

çizim 89852
68 1 1 67 210 66 66 172 211 212 212 65 66 211 64
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-832-0 01 1 0604-
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-740-0 01 1 0604-
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0604-
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0604-1204
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205-
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0604-
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0604-
67 COVER; ACL 1-53419-388-0 01 1 0604-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0604-
172 INSULATOR; NOISE 1-53449-105-0 01 1 0604-
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0604-
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0604-
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0604-
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0604-

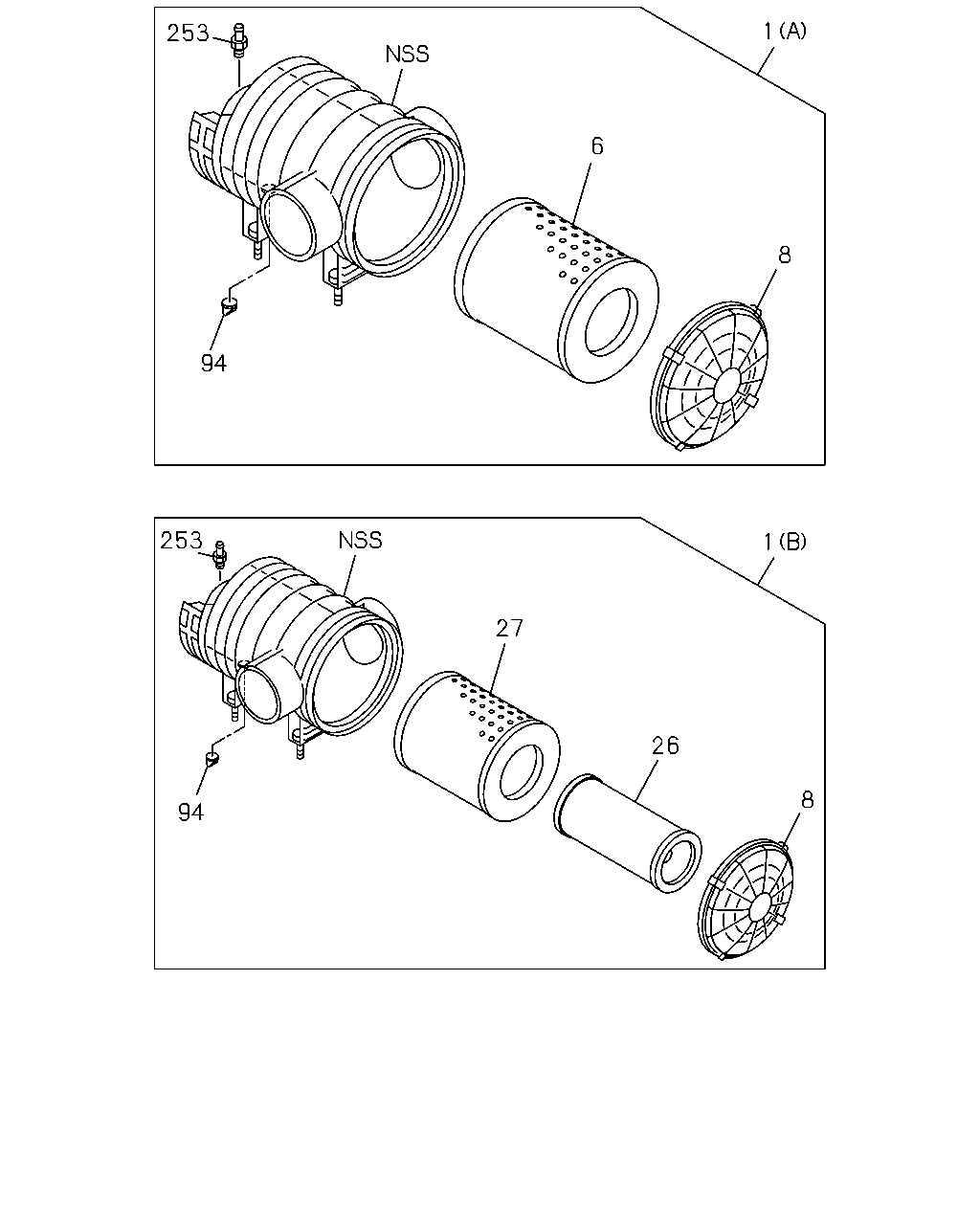

çizim 89891
1 253 6 8 94 253 1 27 26 8 94
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-832-0 01 1 0604-
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-740-0 01 1 0604-
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0604-
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0604-
8 COVER ASM; ACL 1-14212-129-0 01 1 0604-
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-112-1 01 1 0604-
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0604-
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0604-
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0604-
94 VALVE; VACUATOR 1-14219-251-0 01 1 0604-
253 NIPPLE 1-14219-252-0 01 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
