0-66 — GENERATOR (#31778) — 24 parça

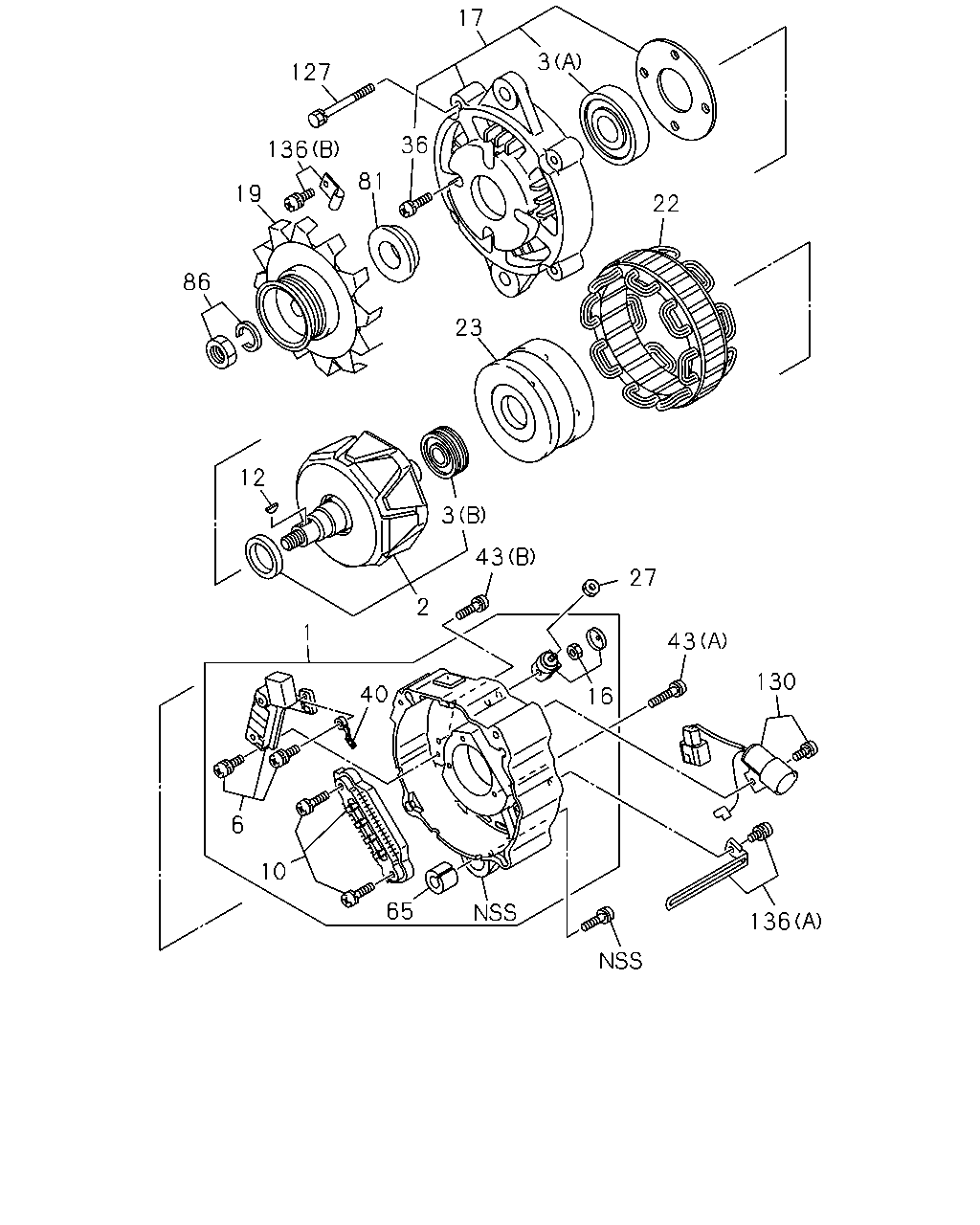

çizim 89844
17 3 127 36 136 81 19 22 86 23 12 3 43 27 2 1 43 130 40 16 6 10 65 136
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-572-8 		8-98024-557-3 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81221-105-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-572-8 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-572-8 		1-81260-019-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 1-81200-572-8 		1-81219-141-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-890-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-572-8 		1-81213-116-1 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-572-8 		1-81222-139-1 01 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-572-8 		1-81211-135-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-572-8 		1-81212-031-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-772-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 1-81200-572-8 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 1-81200-572-8 		1-81222-164-1 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-572-8 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-572-8 		1-81229-817-0 01 1 -
65 CONDENSER; GEN
ASM PART: A = 1-81200-572-8 		1-84132-016-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-572-8 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 1-81200-572-8 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81229-894-0 01 1 -
136 CLAMP; GENERATOR
(A) ASM PART: A = 1-81200-572-8 		1-81229-775-0 01 1 -
136 CLAMP; GENERATOR
(B) ASM PART: A = 1-81200-572-8 		1-81229-897-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
