1 |

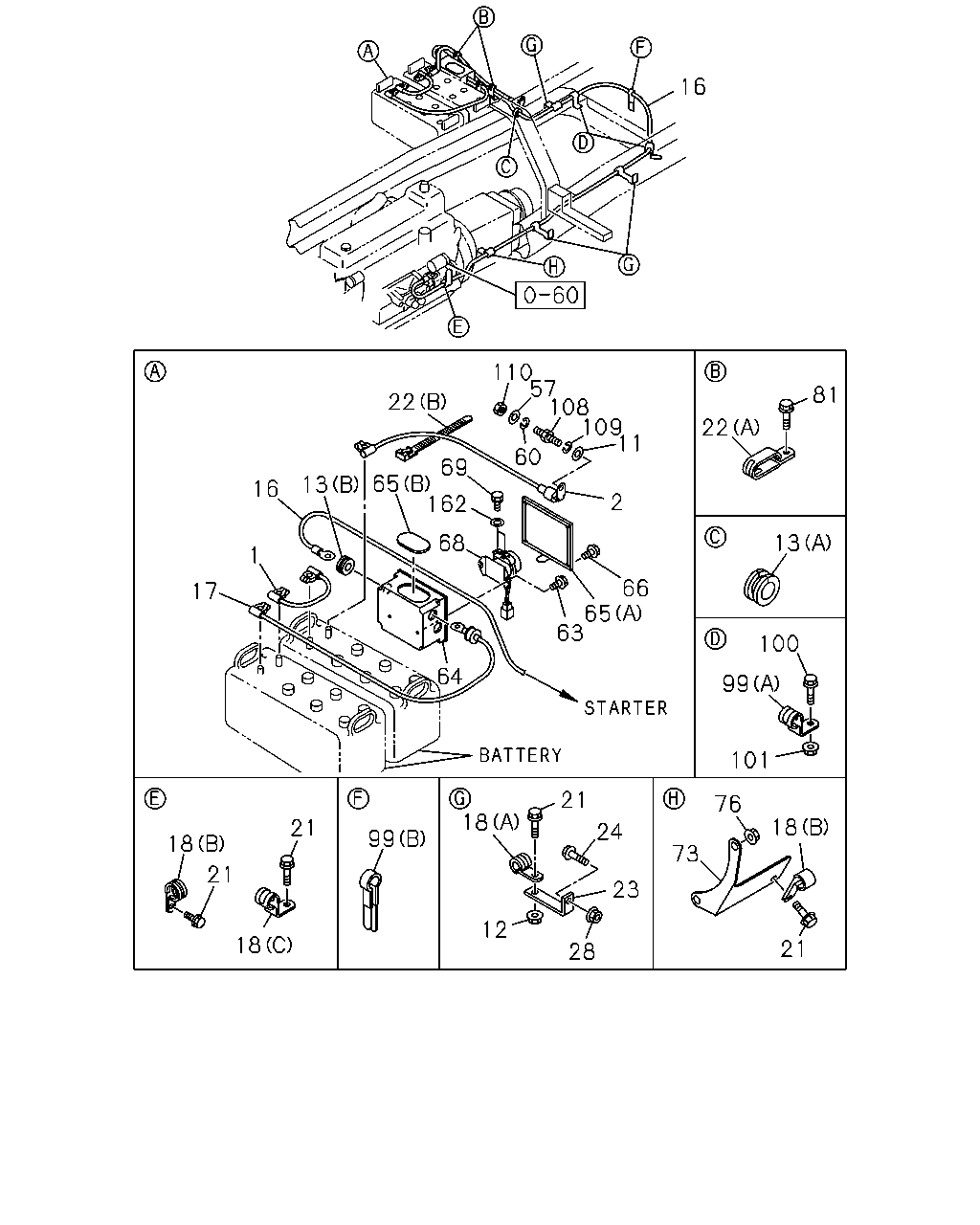

CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
<+> TO <->
L=450
|
1-82650-389-1 |
01 |
1 |
0603- |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51
NS200<SQ4>
<+> TO <->
L=265
|
1-82650-388-1 |
01 |
1 |
0603- |
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=920
|
1-82650-418-0 |
01 |
1 |
0603- |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22
|
9-09164-708-0 |
01 |
1 |
0603-0605 |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22
|
0-91614-708-0 |
01 |
1 |
0606- |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
| |
13 |
GROMMET; BATTERY CABLE
(A)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0603- |
| |
13 |
GROMMET; BATTERY CABLE
(B)
ID=26
|
1-09333-140-0 |
01 |
1 |
0603- |
| |
16 |
CABLE; STARTER TO RELAY
L=4150
|
1-82652-746-4 |
01 |
1 |
0603- |
| |
17 |
CABLE; BATTERY (+) TO RELAY
L=930
|
1-82652-943-0 |
01 |
1 |
0603- |
| |
18 |
CLIP; BATTERY CABLE
(C)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
0607- |
| |
18 |
CLIP; BATTERY CABLE
(A)
ID=18 L=28
|
1-09701-067-0 |
02 |
1 |
0603- |
| |
18 |
CLIP; BATTERY CABLE
(B)
ID=19 L=28
|
9-09525-856-0 |
02 |
1 |
0603-0606 |
| |
18 |
CLIP; BATTERY CABLE
(B)
ID=19 L=28
|
0-95235-856-0 |
02 |
1 |
0607-0607 |
| |
18 |
CLIP; BATTERY CABLE
(B)
ID=19 L=20
|
0-95235-836-0 |
01 |
1 |
0607- |
| |
21 |
BOLT; CLIP CABLE
M8X20 FLANGE
|
0-28650-820-0 |
05 |
1 |
0603- |
| |
22 |
CLIP; BATTERY CABLE
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0603- |
| |
22 |
CLIP; BATTERY CABLE
(B)
L=250
|
5-09707-030-1 |
03 |
1 |
0603- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
L=95
|
1-82699-085-0 |
03 |
1 |
0603- |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0603- |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
| |
57 |
WASHER; PL,BATTERY CABLE
ID=6.4
|
9-09164-506-0 |
01 |
1 |
0603- |
| |
60 |
WASHER; LK,BATTERY CABLE
ID=6.1
|
9-09150-606-0 |
01 |
1 |
0603-0603 |
| |
60 |
WASHER; LK,BATTERY CABLE
ID=6.1
|
0-91510-606-0 |
01 |
1 |
0604- |
| |
63 |
BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER
|
1-09030-025-0 |
02 |
1 |
0603- |
| |
64 |
BOX; BATTERY RELAY
|
1-82699-947-0 |
01 |
1 |
0603- |
| |
65 |
COVER; BATTERY RELAY
(A)
|
1-82699-353-1 |
01 |
1 |
0603- |
| |
65 |
COVER; BATTERY RELAY
(B)
|
1-82699-980-0 |
01 |
1 |
0603- |
| |
66 |
BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER
|
0-50640-616-0 |
04 |
1 |
0603- |
| |
68 |
RELAY; BATTERY
|
1-82550-282-0 |
01 |
1 |
0603- |
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50640-820-0 |
02 |
1 |
0603- |
| |
73 |
BRACKET; BATTERY CABLE
|
1-82699-104-0 |
01 |
1 |
0603- |
| |
76 |
NUT; BATTERY CABLE
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0603- |
| |
81 |
BOLT; BATTERY CABLE
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0603- |
| |
99 |
CLIP; BATTERY CABLE
(A)
ID=18 H=23 L=28
|
1-09701-070-0 |
02 |
1 |
0603- |
| |
99 |
CLIP; BATTERY CABLE
(B)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0603- |
| |
100 |
BOLT; BATTERY CABLE CLIP
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0603- |
| |
101 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
108 |
STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42
|
5-09309-006-1 |
01 |
1 |
0603- |
| |
109 |
WASHER; LK,EARTH BATTERY CABLE
ID=8.2
|
9-09150-808-0 |
01 |
1 |
0603-0603 |
| |
109 |
WASHER; LK,EARTH BATTERY CABLE
ID=8.2
|
0-91510-808-0 |
01 |
1 |
0604- |
| |
110 |
NUT; HARNESS TO BATTERY EARTH
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
0603- |
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
9-09164-608-0 |
02 |
1 |
0603-0605 |
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
0-91614-608-0 |
02 |
1 |
0606- |
