0-57 — EMISSION PIPING (#31774) — 28 parça

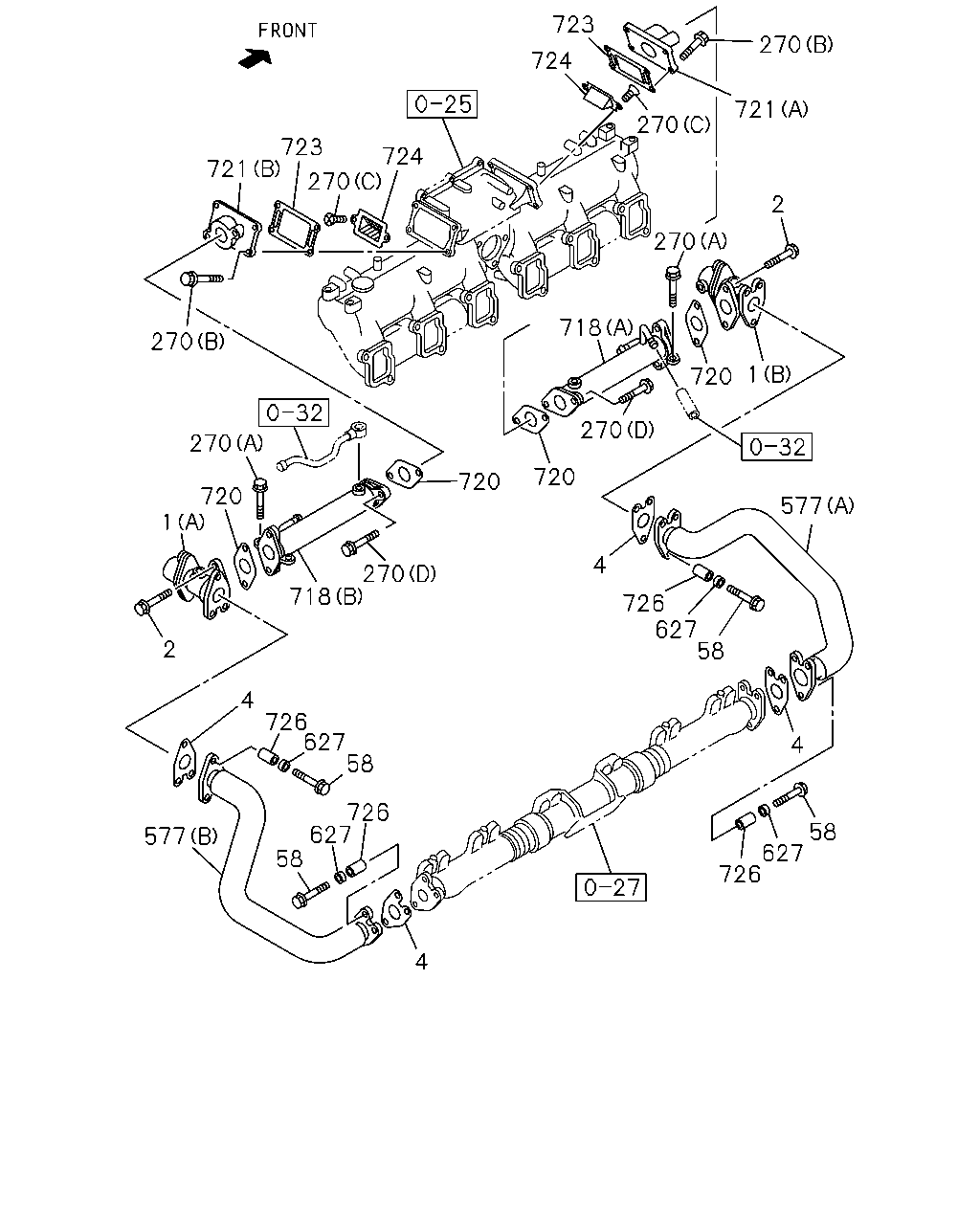

çizim 89879
723 270 724 721 270 723 721 724 270 2 270 718 270 1 720 270 270 720 720 720 577 1 4 270 718 726 627 58 2 4 726 627 58 4 726 627 58 58 627 726 577 4
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR
(B) 		1-16110-015-3 01 1 0603-
1 VALVE; EGR
(A) 		1-16110-016-3 01 1 0603-
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0603-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0603-
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0603-0805
58 BOLT; PIPE
M10X55 FLANGE 		8-97365-449-0 12 1 0806-
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0603-
270 BOLT
(D) M10X30 FLANGE 		0-28151-030-0 04 1 0603-
270 BOLT
(B) M10X35 FLANGE 		0-28151-035-0 08 1 0603-
270 BOLT
(C) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0603-1502
270 BOLT
(C) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503-
577 PIPE; AIR,EGR
(A) 		1-16181-083-2 01 1 0603-
577 PIPE; AIR,EGR
(B) 		1-16181-084-2 01 1 0603-
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0603-
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0603-
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0603-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0603-
721 DUCT; COOLER
(A) 		1-16183-064-0 01 1 0603-1502
721 DUCT; COOLER
(A) 		8-98276-293-0 01 1 1503-
721 DUCT; COOLER
(B) 		1-16183-065-1 01 1 0603-1502
721 DUCT; COOLER
(B) 		8-98276-296-0 01 1 1503-
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0603-1502
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97648-198-0 02 1 1503-
724 VALVE; REED 8-98186-738-0 02 1 0603-1502
724 VALVE; REED 8-98272-702-0 02 1 1503-1503
724 VALVE; REED 8-98291-639-0 02 1 1503-
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0603-
çizim 105802
49
BalonParca AdiParca NoAdetTipApplied Date
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 02 1 0603-
