0-35 — ENGINE CONTROL VALVE AND LEVER (#31763) — 13 parça

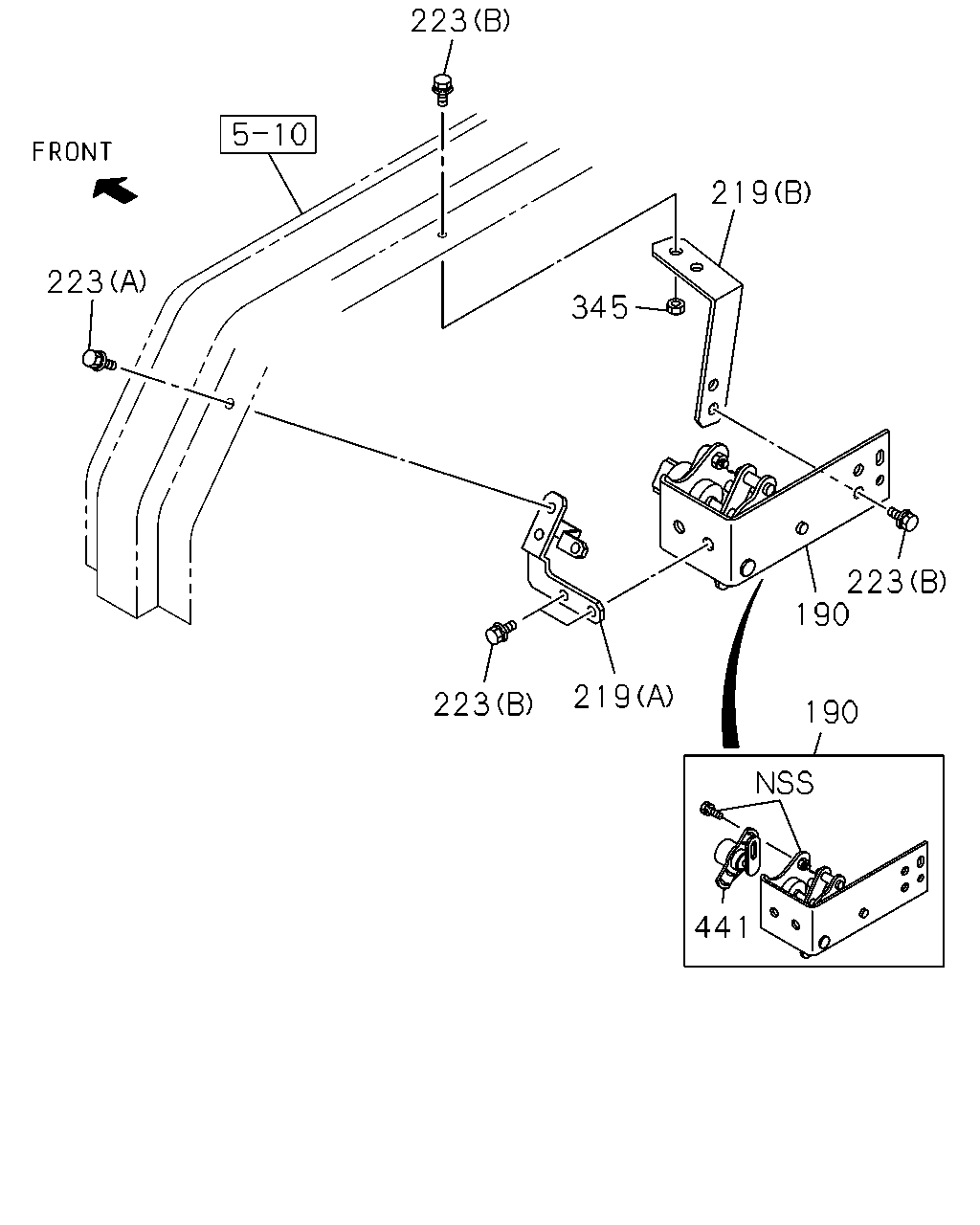

çizim 89944

223 219 223 345 223 190 219 223 190 441

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	8-97219-466-4	01	1	0603-
	219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-580-0	01	1	0603-
	219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-582-0	01	1	0603-
	223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	06	1	0603-
	223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0603-
	345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	02	1	0603-
	441	SENSOR; THROTTLE POSITION PTO CONTROL OPERATION CAB BACK<TBZ>	8-97200-308-0	01	1	0603-

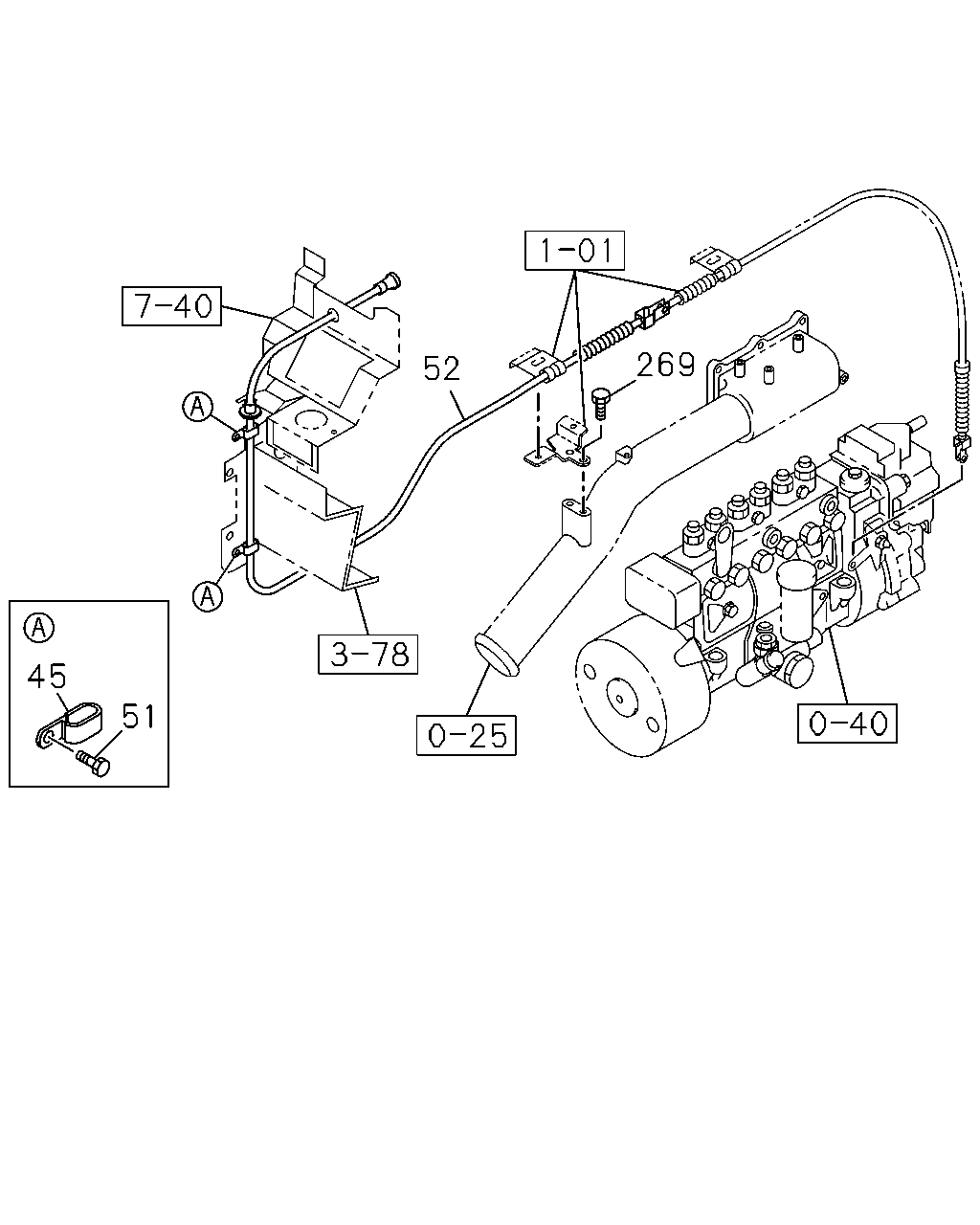

çizim 105796

269 52 45 51

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	45	CLIP; FUEL CUT CABLE ID=11 L=20	9-09525-035-0	02	1	0603-0606
	45	CLIP; FUEL CUT CABLE ID=11 L=20	0-95235-035-0	02	1	0607-
	51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904
	51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
	52	CABLE; FUEL CUT	1-73907-721-0	01	1	0603-
	269	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0603-
