Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#31756) — 35 parça
◀

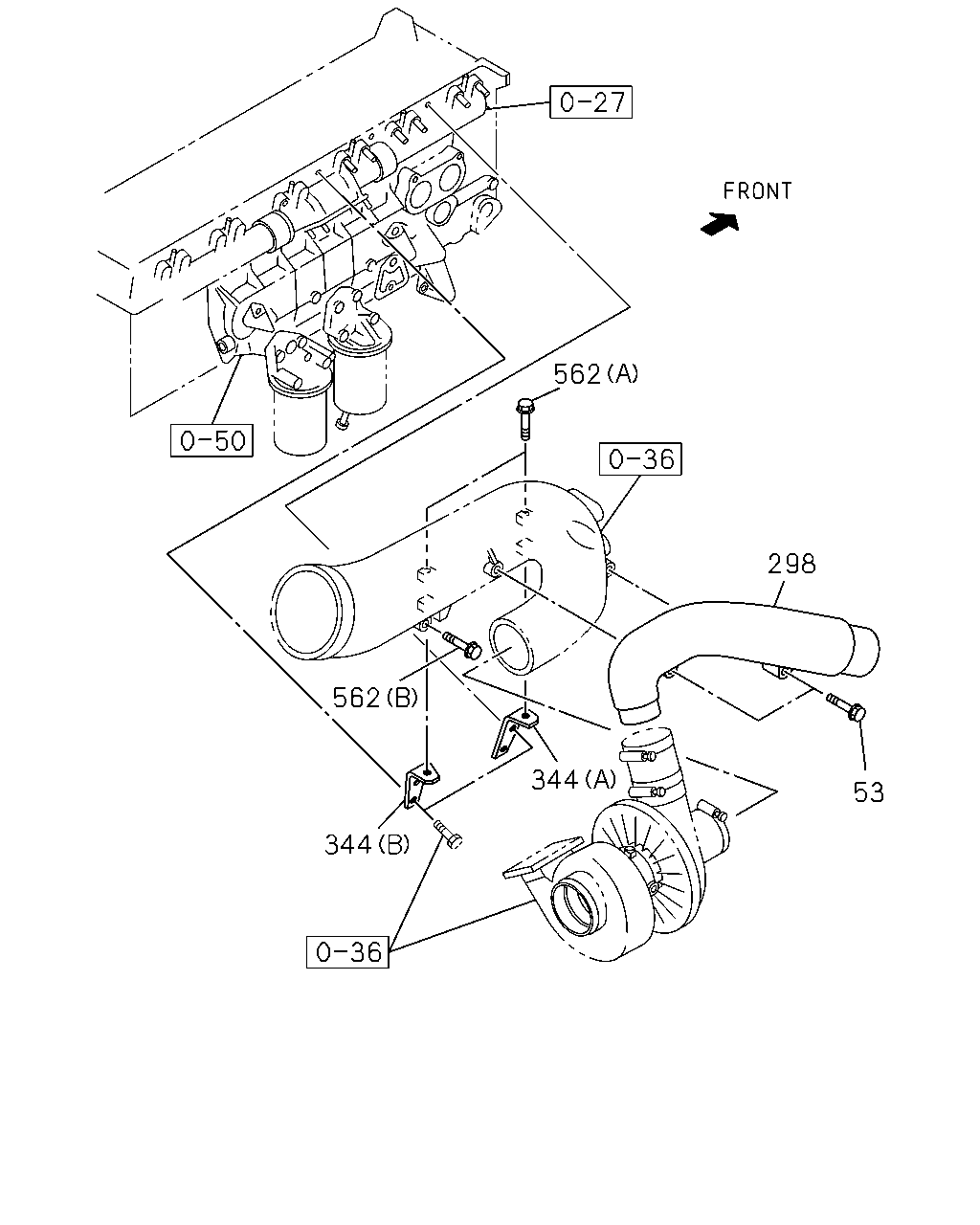

[025A] INL TO TURBOCHAGER (6 parça)

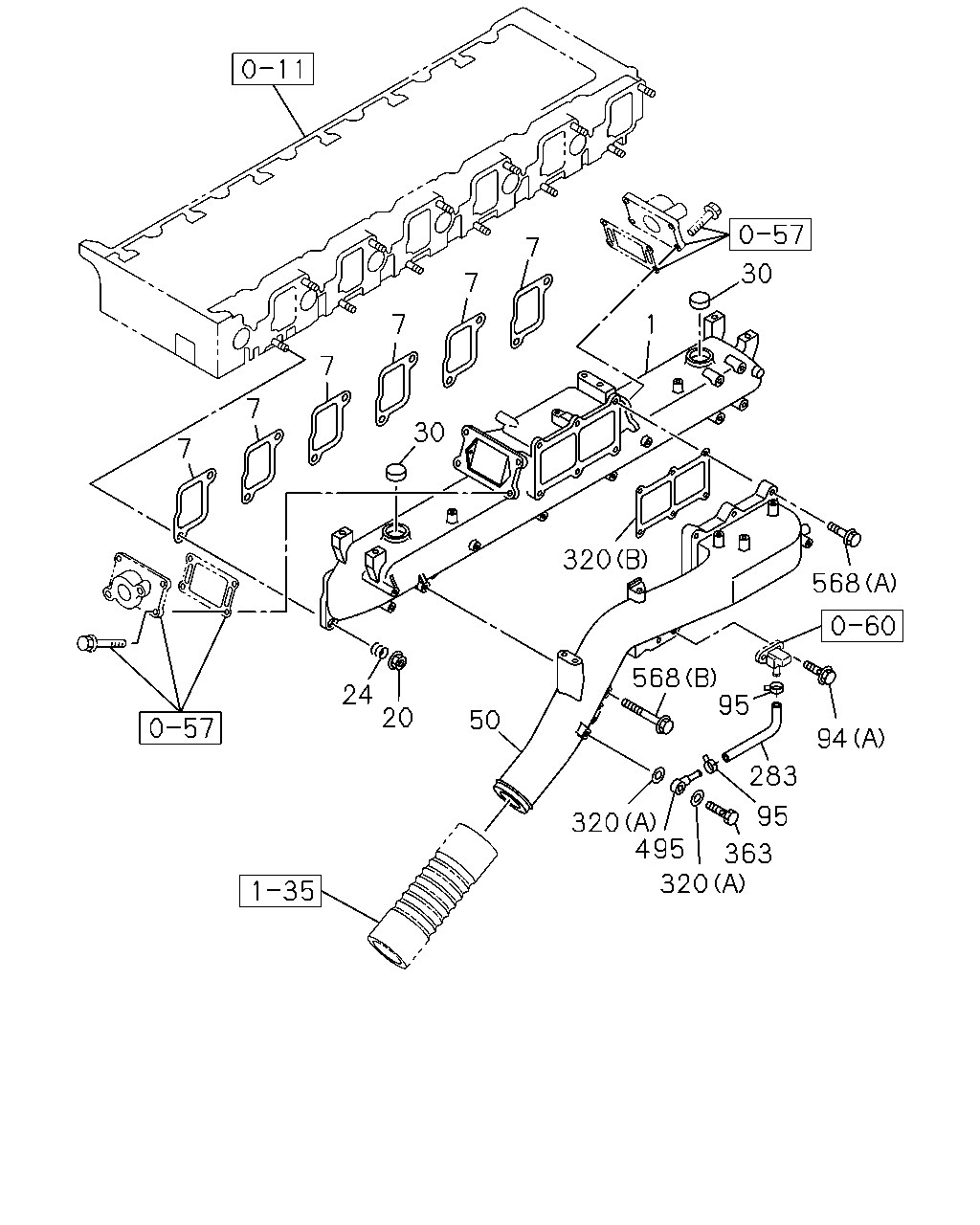

[025A] MANIFOLD ASM AND INL PIPE (18 parça)
[025A] PIPE;AIR MAG VLV (11 parça)
▶
562
298
562
344
53
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
BOLT; INL PIPE
M10X60 FLANGE
0-28151-060-0
02
1
0603-
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-709-0
01
1
0603-
344
BRACKET; INL PIPE
(A)
1-14119-417-1
01
1
0603-
344
BRACKET; INL PIPE
(B)
1-14119-418-1
01
1
0603-
562
BOLT; INL DUCT
(A) M10X100 FLANGE
0-28051-000-0
02
1
0603-
562
BOLT; INL DUCT
(B) M10X40 FLANGE
0-28151-040-0
01
1
0603-
7
30
7
7
1
7
7
30
7
320
568
568
95
24
20
50
94
283
95
320
495
363
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; INL
1-14112-714-5
01
1
0603-0610
1
MANIFOLD; INL
1-14110-618-0
01
1
0611-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-096-1
06
1
0603-
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
0603-
24
SPRING; INL MANIF
1-09580-156-0
12
1
0603-
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
0603-
50
PIPE; INL
1-14112-711-4
01
1
0603-0701
50
PIPE; INL
8-97617-049-0
01
1
0702-
94
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0603-
94
BOLT
(B) M8X20 FLANGE
0-28650-820-0
01
1
0603-
95
CLIP; RUBBER HOSE
ID=11 WHITE
5-09707-005-1
02
1
0603-
283
RUBBER
1-14119-416-0
01
1
0603-
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
02
1
0603-
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-14115-094-1
01
1
0603-
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
0603-
495
PIPE; BOOST SENSOR
8-94428-807-0
01
1
0603-
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
0603-
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
0603-
692
376
365
378
94
354
354
361
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0603-
94
BOLT
(B) M8X20 FLANGE
0-28650-820-0
01
1
0603-
354
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0603-
354
CLIP; AIR PIPE
(B) ID=7 L=20
9-09524-635-0
02
1
0603-0606
354
CLIP; AIR PIPE
(B) ID=7 L=20
0-95234-635-0
02
1
0607-
361
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0603-
365
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
376
PIPE ASM; AIR UNION TO MAG VLV
L=879 SERVICED BY L=900
1-47428-813-0
01
1
0603-
378
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
692
PIPE; AIR,MAG VLV
L=1241
1-49122-505-0
01
1
0603-0605
692
PIPE; AIR,MAG VLV
L=1263 SERVICED BY L=1370
1-47428-818-0
01
1
0606-
