Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#31754) — 76 parça
◀

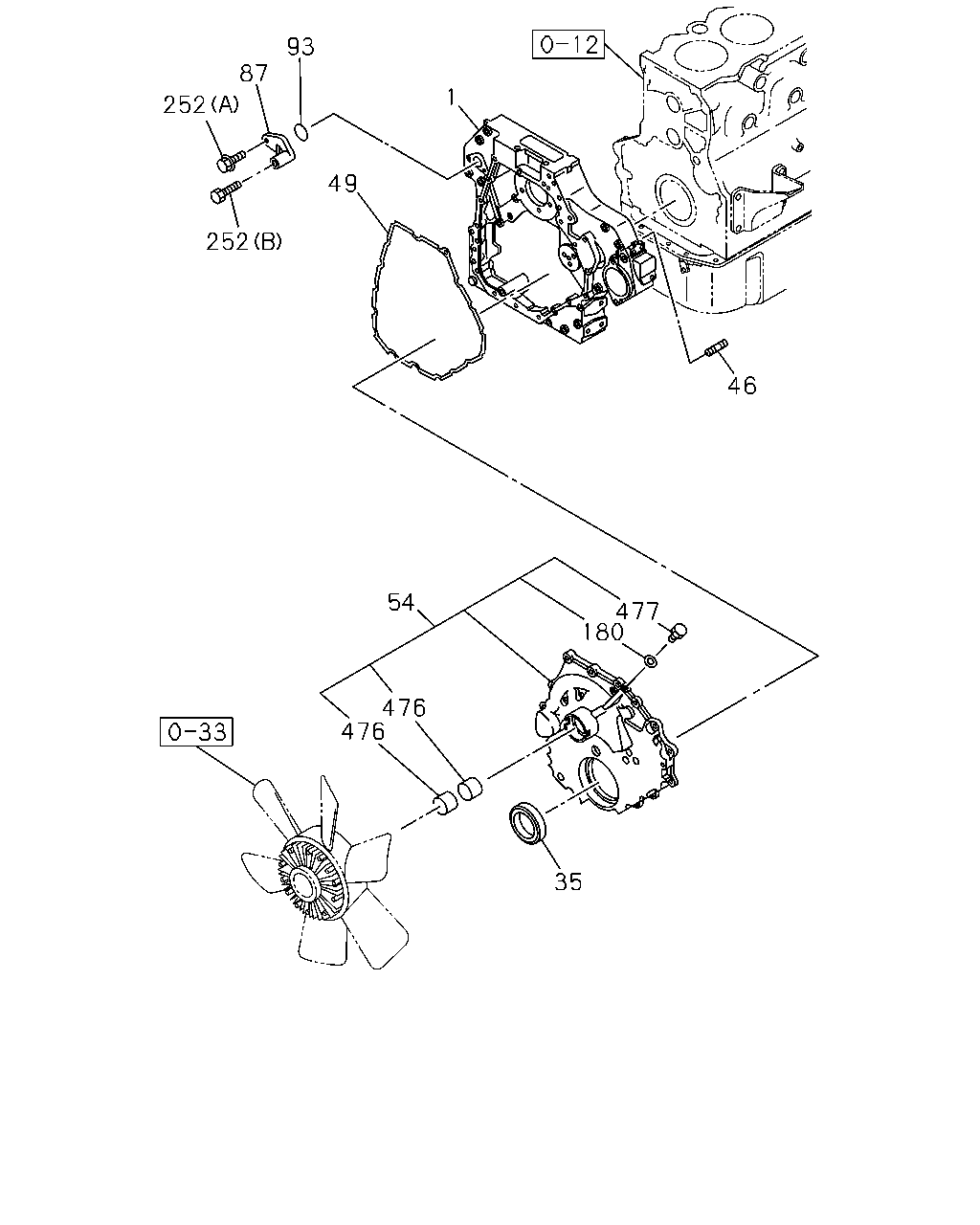

[020A] TIMING GEAR CASE AND COVER (20 parça)
[020A] FIXING;CASE AND COVER (20 parça)

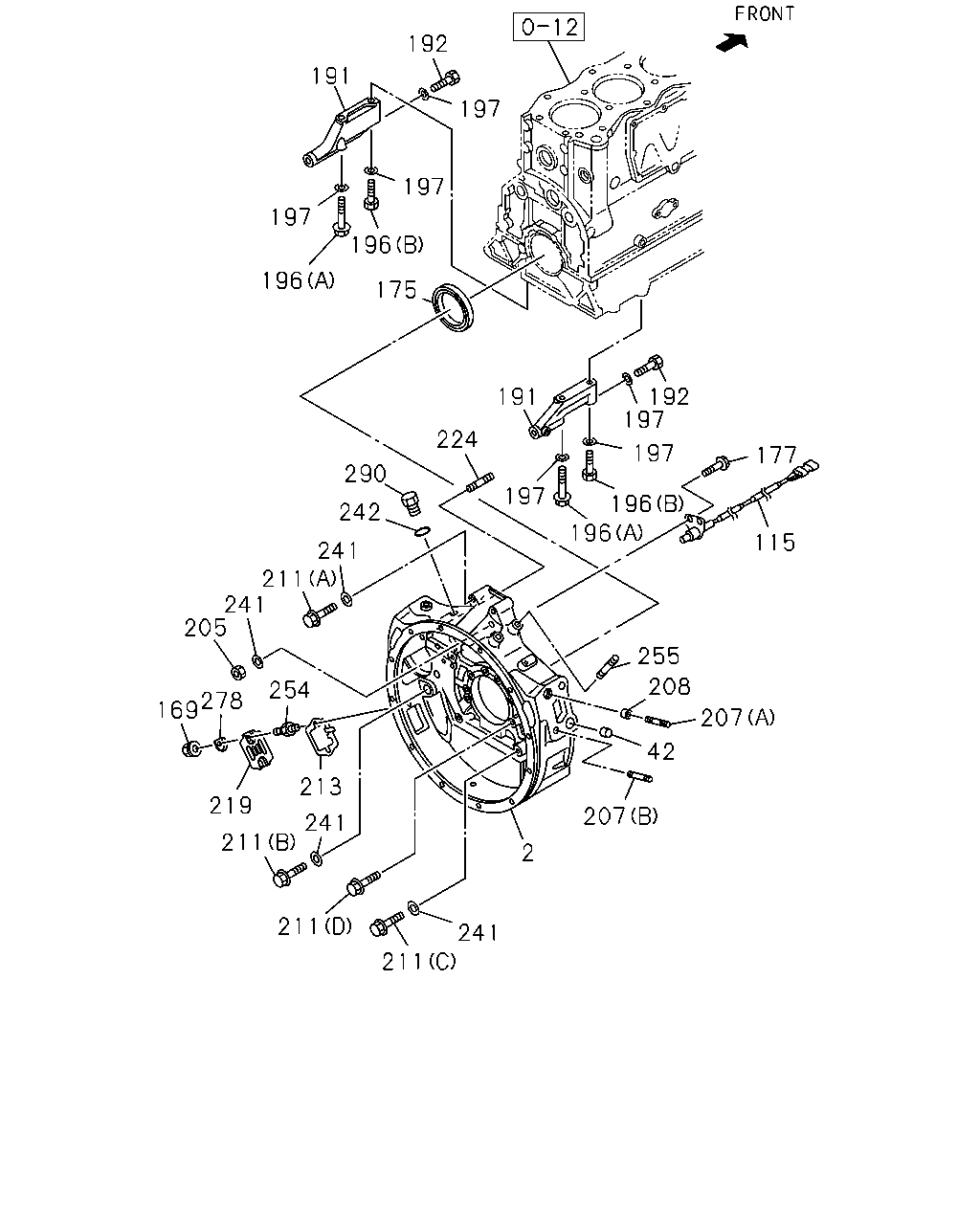

[020A] HSG,STAY AND SENSOR (36 parça)
▶
93
87
1
252
49
252
46
54
477
180
476
476
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-98030-095-0
01
1
0603-0608
1
CASE; TIMING GEAR
8-98032-286-4
01
1
0609-1001
1
CASE; TIMING GEAR
8-98152-249-0
01
1
1002-1309
1
CASE; TIMING GEAR
8-98249-370-0
01
1
1310-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER
1-09625-556-2
01
1
0603-0611
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER
8-97617-308-0
01
1
0612-
46
STUD; BRG COVER,RR
M14X45 L=66
9-04411-445-0
01
1
0603-0604
46
STUD; BRG COVER,RR
M14X45 L=66
0-44011-445-0
01
1
0605-
49
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11322-044-1
01
1
0603-0701
49
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98061-423-0
01
1
0702-
54
COVER; GEAR CASE
1-11320-096-8
01
1
0603-1502
54
COVER; GEAR CASE
8-98269-504-0
01
1
1503-
87
COVER; TACHOMETER DRIVE
1-11349-151-2
01
1
0603-
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7
1-09623-416-0
01
1
0603-
180
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
0603-
252
BOLT; GEAR BOX
(A) M8X20 FLANGE
0-28050-820-0
01
1
0603-
252
BOLT; GEAR BOX
(B) M8X60 FLANGE
0-28050-860-0
01
1
0603-0907
252
BOLT; GEAR BOX
(B) M8X65 FLANGE
1-09044-072-1
01
1
0908-
476
BUSHING; COVER
1-09330-096-0
02
1
0603-
477
PLUG; OIL HOLE
M10X7
9-09202-310-0
01
1
0603-
37
36
1
36
36
36
37
36
37
37
36
36
36
37
36
51
54
51
51
83
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-98030-095-0
01
1
0603-0608
1
CASE; TIMING GEAR
8-98032-286-4
01
1
0609-1001
1
CASE; TIMING GEAR
8-98152-249-0
01
1
1002-1309
1
CASE; TIMING GEAR
8-98249-370-0
01
1
1310-
36
BOLT; GEAR CASE
HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M14X110
1-09020-007-0
10
1
0603-
36
BOLT; GEAR CASE
(B) M10X100 FLANGE
0-28151-000-0
03
1
0603-
36
BOLT; GEAR CASE
(C) M10X25 FLANGE
0-28151-025-0
04
1
0603-
36
BOLT; GEAR CASE
(D) M10X35 FLANGE
0-28151-035-0
01
1
0603-
36
BOLT; GEAR CASE
(E) M14X60
1-09020-146-0
01
1
0603-
36
BOLT; GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110
1-09020-007-0
08
1
0603-
37
WASHER; PL,GEAR CASE
HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=15 OD=26
9-09164-514-0
11
1
0603-1301
37
WASHER; PL,GEAR CASE
HEATER & DEFROSTER(C41) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=15 OD=26
0-91614-514-0
11
1
1302-
37
WASHER; PL,GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26
9-09164-514-0
09
1
0603-1301
37
WASHER; PL,GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26
0-91614-514-0
09
1
1302-
51
BOLT; GEAR CASE COVER
(C) M8X40
0-10955-840-0
03
1
0603-
51
BOLT; GEAR CASE COVER
(A) M10X30 FLANGE
0-28151-030-0
17
1
0603-
51
BOLT; GEAR CASE COVER
(B) M10X90
8-97603-482-0
02
1
0603-
54
COVER; GEAR CASE
1-11320-096-8
01
1
0603-1502
54
COVER; GEAR CASE
8-98269-504-0
01
1
1503-
83
WASHER; PL,COVER
ID=8.5 OD=20
5-09503-111-0
03
1
0603-
192
191
197
197
197
196
196
175
192
197
191
224
197
177
290
197
196
242
196
115
241
211
241
205
255
254
208
278
169
207
42
213
219
207
241
211
2
211
241
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
1-11340-271-9
01
1
0603-
42
DOWEL; GEAR CASE COVER
1-13119-004-0
01
1
0603-
115
SENSOR; REVOLUTION,ENG SPD
1-81510-426-6
01
1
0603-
169
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
0603-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY
1-09625-557-1
01
1
0603-0611
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY
8-97617-309-0
01
1
0612-
177
BOLT; SENSOR
M8X16 FLANGE
0-28050-816-0
02
1
0603-
191
STAY; FLYWHEEL HSG
1-11349-195-1
01
1
0603-
191
STAY; FLYWHEEL HSG
1-11349-196-1
01
1
0603-
192
BOLT; STAY TO HSG
M14X135
1-09020-055-0
02
1
0603-
196
BOLT; STAY TO C/BL
(A) M14X100
0-16956-400-0
02
1
0603-
196
BOLT; STAY TO C/BL
(B) M14X70
9-91666-470-0
02
1
0603-
197
WASHER; PL,STAY
ID=15 OD=26
9-09164-514-0
06
1
0603-
205
NUT; HSG
M14
0-91110-514-0
01
1
0603-
207
STUD; ENG FOOT
(B) M18X60 L=96
9-04321-860-0
04
1
0603-0604
207
STUD; ENG FOOT
(B) M18X60 L=96
0-43211-860-0
04
1
0605-
207
STUD; ENG FOOT
(A) M18X80 L=116
9-04321-880-0
04
1
0603-0604
207
STUD; ENG FOOT
(A) M18X80 L=116
0-43211-880-0
04
1
0605-
208
DOWEL; ENG FOOT
1-43249-001-0
04
1
0603-
211
BOLT; HSG
(C) M14X50
0-16956-450-0
02
1
0603-
211
BOLT; HSG
(D) M8X35 FLANGE
0-28050-835-0
08
1
0603-
211
BOLT; HSG
(A) M14X70
9-91666-470-0
02
1
0603-
211
BOLT; HSG
(B) M14X45
9-92361-445-0
10
1
0603-
213
POINTER; FLYWHEEL HSG
1-11327-045-1
01
1
0603-
219
COVER; POINTER
1-11349-131-0
01
1
0603-
224
STUD; STARTER
M14X35 L=56
9-04411-435-0
03
1
0603-0604
224
STUD; STARTER
M14X35 L=56
0-44011-435-0
03
1
0605-
241
WASHER; PL,HSG
ID=15 OD=26
9-09164-514-0
15
1
0603-
242
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
01
1
0603-
254
STUD; POINTER & COVER
M8X14,M8X14 L=33
1-09300-058-1
02
1
0603-
255
STUD; RELAY LEVER BRKT
M12X30 L=48
9-94411-230-0
03
1
0603-0604
255
STUD; RELAY LEVER BRKT
M12X30 L=48
0-44011-230-0
03
1
0605-0609
255
STUD; RELAY LEVER BRKT
M12X30 L=48
8-98059-951-0
03
1
0610-
278
WASHER; COVER FIX
1-11349-127-0
01
1
0603-
290
PLUG; SENSOR HOLE
M20X10.5
9-09662-005-0
01
1
0603-0805
290
PLUG; SENSOR HOLE
M20X10.5
8-98009-333-0
01
1
0806-
