Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

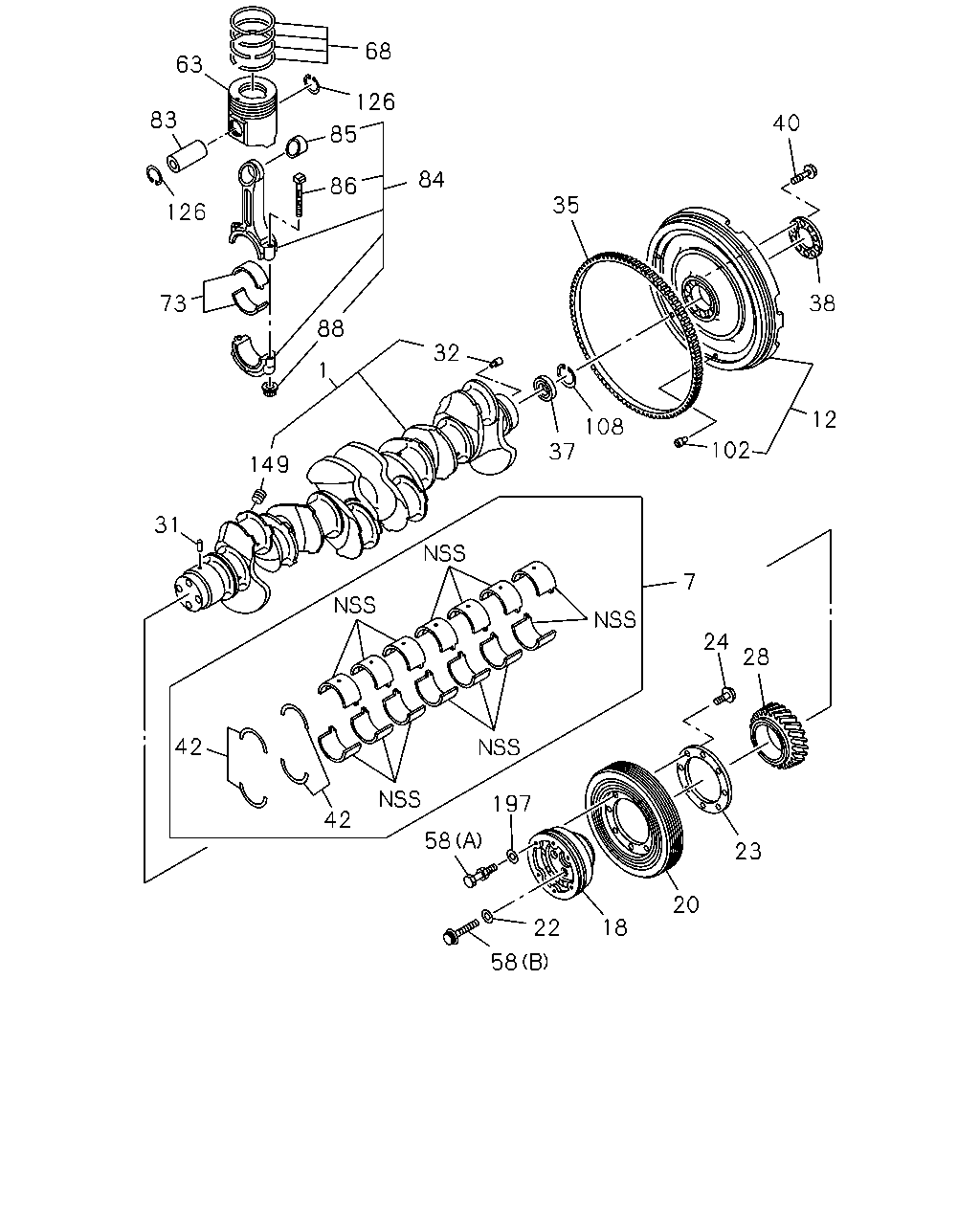

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#31753) — 34 parça
63
83
126
73
88
1
149
31
42
42
58
197
58
22
18
20
23
28
24
7
37
32
84
86
85
126
68
35
40
38
12
102
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
0603-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-093-5
01
1
0603-
12
FLYWHEEL
1-12330-480-0
01
1
0603-
18
PULLEY; CR/SHF
1-GROOVE
1-12371-420-3
01
1
0603-
20
DAMPER; CR/SHF
1-12375-214-2
01
1
0603-
22
PLATE; PULLEY
ID=18
9-09851-862-0
04
1
0603-
23
WASHER; DAMPER
1-12379-039-1
01
1
1003-
23
WASHER; DAMPER
1-12379-039-1
01
1
0603-0912
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
0603-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
0603-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
0603-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0603-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
0603-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
0603-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
0603-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
0603-
42
WASHER; THRUST,CR/SHF
1-11599-009-0
02
1
0603-1006
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1007-
58
BOLT; CR/SHF PULLEY
(A)
1-09029-073-0
06
1
0603-
58
BOLT; CR/SHF PULLEY
(B)
1-09070-017-1
04
1
0603-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-999-2
06
1
0603-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
0603-
73
METAL SET; CONN ROD,STANDARD
1-12271-072-1
06
1
0603-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
0603-
84
ROD ASM; CONN
1-12230-185-2
06
1
0603-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-037-4
06
1
0603-1004
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1005-
86
BOLT; CONNROD
1-12235-036-3
12
1
0603-
88
NUT; CONNROD
1-12239-005-1
12
1
0603-
102
PIN; TIMING SENSOR
1-12339-013-0
06
1
0603-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
0603-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
0603-
149
PLUG
PT1
1-09605-021-1
06
1
0603-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
0603-
