3-05 — REAR WHEEL BRAKE (#3175) — 96 parça

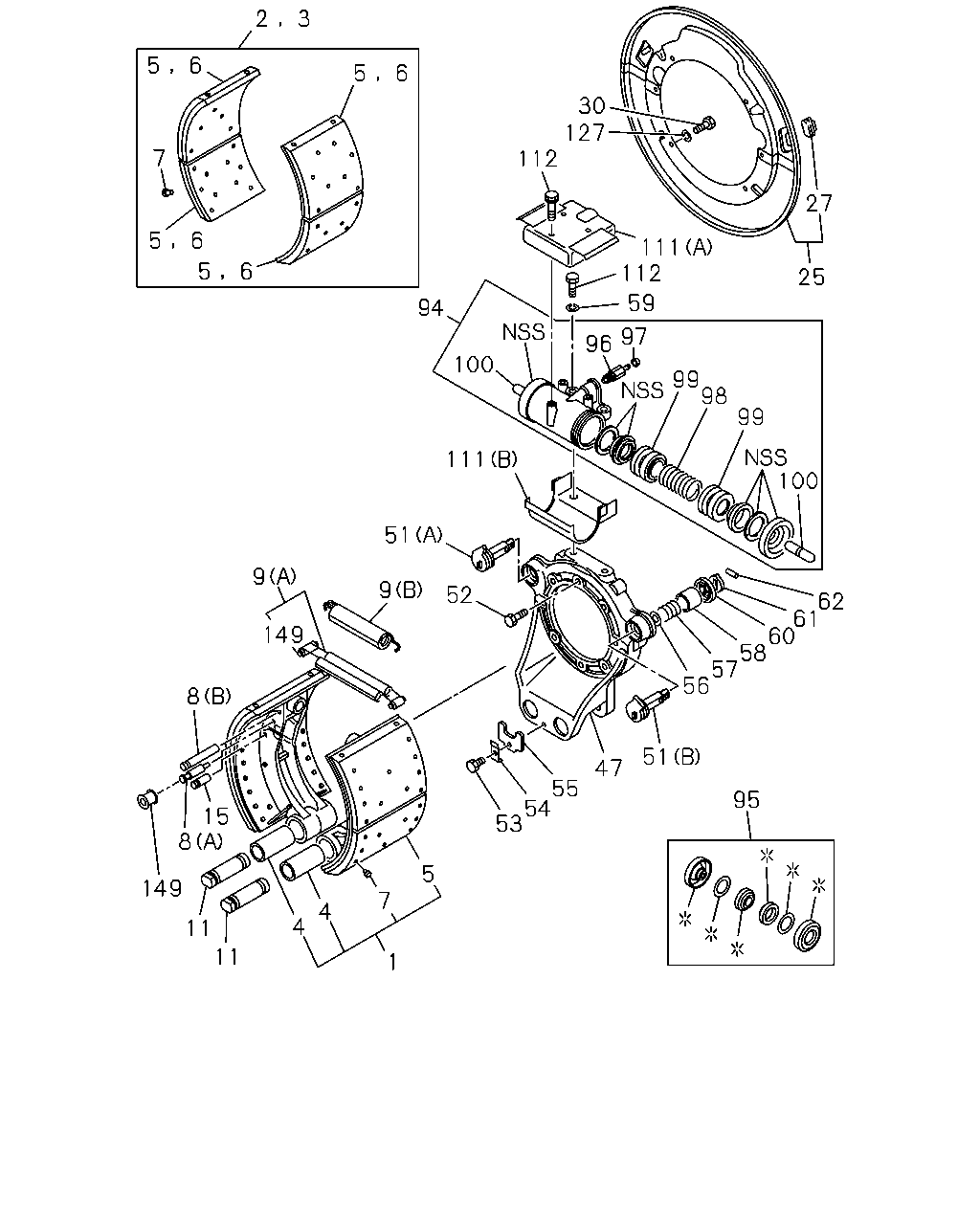

çizim 3903
2 3 5 6 5 6 30 127 112 7 27 5 6 111 112 5 6 25 59 94 97 96 100 99 98 99 100 111 51 9 9 52 62 61 60 58 57 56 149 8 51 47 55 54 53 95 15 8 5 149 7 4 4 11 11 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47110-857-0 04 1 0108-
1 SHOE; BRK,RR 1-47120-708-0 04 1 0108-
2 LINING SET; RR BRK,STANDARD 1-88310-529-0 02 1 0108-
2 LINING SET; RR BRK,STANDARD 1-88310-529-0 02 1 0108-
2 LINING SET; RR BRK,STANDARD 1-88302-865-0 02 1 9104-0107
2 LINING SET; RR BRK,STANDARD 1-88302-879-0 02 1 0108-
2 LINING SET; RR BRK,STANDARD 1-88302-879-0 02 1 0108-
3 LINING SET; RR BRK,OVER SIZE 1-88302-866-0 02 1 9104-0107
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-0 02 1 0108-
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-0 02 1 0108-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0108-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0108-
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47115-688-0 08 1 0108-
5 LINING; RR BRK SHOE,STANDARD 1-47125-813-0 08 1 0108-
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47115-689-0 08 1 0108-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-814-0 08 1 0108-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 9104-9507
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 9508-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0108-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 9104-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 9104-
8 PIN; RETURN SPRING,RR BRK SHOE 1-09744-051-0 04 1 0108-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-025-0 04 1 0108-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 9104-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 04 1 9104-
9 SPRING; RETURN,BRK SHOE 1-09583-175-0 02 1 0108-
9 SPRING; RETURN,BRK SHOE 1-09583-210-0 04 1 0108-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 9104-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0108-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 9104-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0108-
25 COVER SET; RR BRK DRUM 1-47151-460-0 02 1 9104-9407
25 COVER SET; RR BRK DRUM 1-47151-526-1 02 1 9408-9604
25 COVER SET; RR BRK DRUM 1-47151-460-1 02 1 9605-
25 COVER SET; RR BRK DRUM 1-47151-526-1 02 1 0108-
25 COVER SET; RR BRK DRUM 1-47151-460-1 02 1 0108-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-095-0 04 1 9104-9501
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9502-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0108-
30 BOLT; DRUM COVER
M10X16 		9-02041-016-0 12 1 9104-9108
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		9-01901-016-0 12 1 9109-9204
30 BOLT; DRUM COVER
M10X16 FLANGE 		0-28081-016-0 12 1 9205-9409
30 BOLT; DRUM COVER
'941031- M10X16 W/LK WASHER 		0-50041-016-0 12 1 9410-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0108-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 9104-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 9104-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 9104-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK 1-47165-058-1 02 1 0108-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK 1-47165-059-1 02 1 0108-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 9104-
53 BOLT; LOCK PLATE
M10X16 		9-02041-016-0 02 1 9104-9204
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 9205-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0108-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-007-0 02 1 9104-9109
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 9110-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0108-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 9104-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 9104-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0108-
57 SPRING; ADJ CAM,RR WHEEL BRK 9-09941-293-0 04 1 9104-9506
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 9507-
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0105-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 9104-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0108-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 9104-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 9104-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0108-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 9104-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0108-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 9104-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0108-
94 CYLINDER; WHEEL,RR BRK 1-47600-676-0 02 1 9104-
94 CYLINDER; WHEEL,RR BRK 1-47600-676-0 02 1 0108-
95 CUP SET; RR WHEEL CYL 1-87830-522-0 04 1 9104-0107
95 CUP SET; RR WHEEL CYL 1-87830-522-0 02 1 0108-
95 CUP SET; RR WHEEL CYL 1-87830-522-0 02 1 0108-
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 9104-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 9104-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0108-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 9104-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0108-
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 0108-
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 0108-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 9104-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0108-
111 COVER; WHEEL CYL
(A) 		1-47159-089-0 02 1 9104-
111 COVER; WHEEL CYL
(B) 		1-47159-090-0 02 1 9104-
111 COVER; WHEEL CYL 1-47159-089-0 02 1 0108-
112 BOLT; WHEEL CYL SETTING
M14X35 		0-20801-435-0 04 1 9104-
112 BOLT; WHEEL CYL SETTING
M8X16 W/LK WASHER 		9-01900-816-0 06 1 9104-9204
112 BOLT; WHEEL CYL SETTING
M8X16 W/LK WASHER 		0-50040-816-0 06 1 9205-
112 BOLT; WHEEL CYL SETTING
M8X16 W/LK WASHER 		0-50040-816-0 06 1 0108-
127 WASHER; LK,DRUM COVER
ID=10.2 		9-09150-510-0 12 1 9104-9108
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 9104-
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 0108-
