Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#31745) — 110 parça
◀

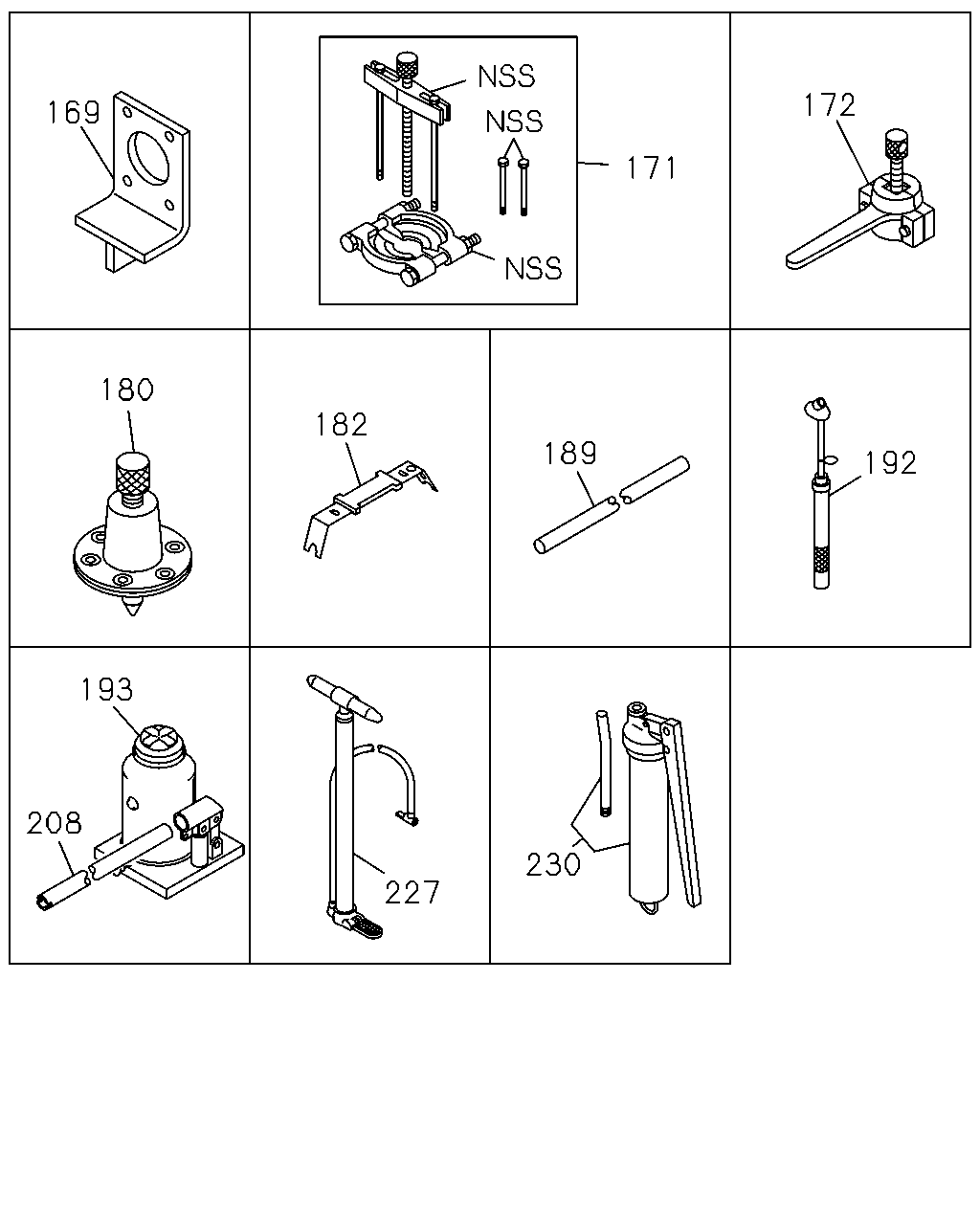

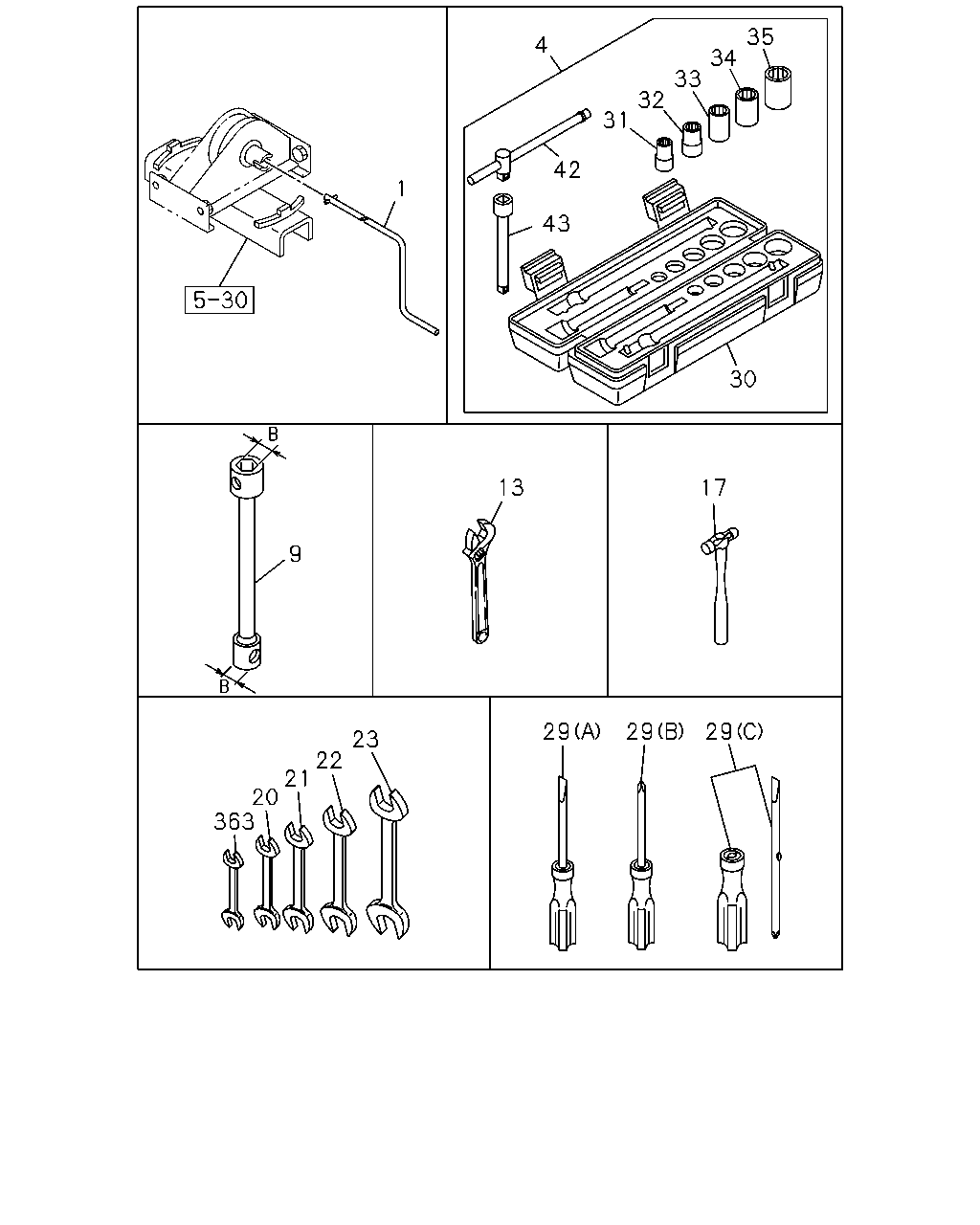

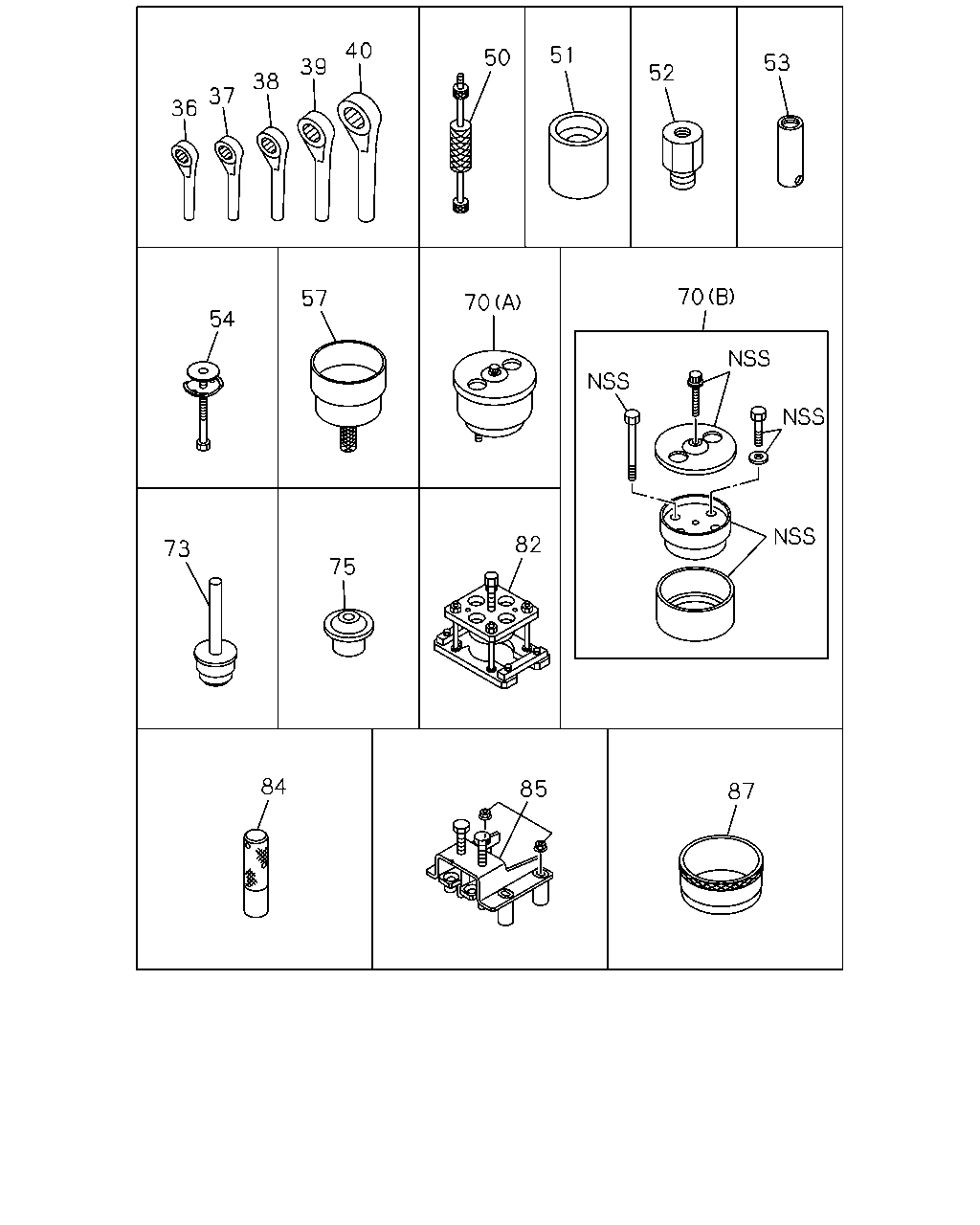

[901A] NO.5 (13 parça)
[901A] NO.2 (20 parça)
[901A] NO.1 (28 parça)
[901A] NO.4 (18 parça)
[901A] NO.3 (18 parça)
[901A] NO.6 (13 parça)
▶
172
169
171
180
182
189
192
193
208
230
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
169
BRACKET; SPLINE YOKE
1-85221-317-0
01
1
0603-
171
PULLER ASM; PINION BRG
9-85210-152-0
01
1
0603-
172
PULLER ASM; BRG DIFF PILOT
9-85210-182-0
01
1
0603-
180
PULLER; FRT & RR HUB
1-85210-002-0
01
1
0603-
182
REMOVER ASM
1-85239-008-0
01
1
0603-
189
TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460
9-85291-414-0
01
1
0603-
192
GAUGE; TIRE PRESSURE
1-85315-002-0
01
1
0603-
192
GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47>
1-85315-002-0
01
1
0603-
193
JACK ASM
TOOL B KIT<SL1> 15TON
1-85510-019-2
01
1
0603-
208
HANDLE; JACK
TOOL B KIT<SL1> L=600
1-85515-009-0
01
1
0603-1107
208
HANDLE; JACK
TOOL B KIT<SL1> L=600
8-98181-437-0
01
1
1108-
227
PUMP ASM; TIRE
9-85521-132-0
01
1
0603-
230
PUMP; GREASE
TOOL B KIT<SL1>
1-85556-007-5
01
1
0603-
40
51
50
53
39
52
38
37
36
70
57
70
54
82
73
75
84
85
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
WRENCH; 24
9-85111-377-0
01
1
0603-
37
WRENCH; 27
9-85111-375-0
01
1
0603-
38
WRENCH; 32
9-85111-358-0
01
1
0603-
39
WRENCH; 36
9-85111-374-0
01
1
0603-
40
WRENCH; 41
9-85111-356-0
01
1
0603-
50
REPLACER; NOZZLE HOLDER
L=300
1-85230-013-0
AR
1
0603-
51
PULLER ASM; WATER PUMP
1-85220-047-0
AR
1
0603-
52
REMOVER; WATER PUMP
1-85210-062-0
AR
1
0603-
53
PULLER; TAPER BUSHING
1-85210-063-0
AR
1
0603-
54
PULLER; THERMOSTAT SEAL
1-85210-067-0
AR
1
0603-
57
TOOL; SETTING CRANK GEAR
OD=162
1-85220-045-0
AR
1
0603-
70
TOOL; SETTING,OIL SEAL
(A)
1-85220-043-0
AR
1
0603-1108
70
TOOL; SETTING,OIL SEAL
(B)
8-98194-608-0
AR
1
1109-
73
TOOL; SETTING,THERMOSTAT SEAL
1-85221-034-0
AR
1
0603-
75
TOOL; SETTING,OIL SEAL
1-85220-049-0
AR
1
0603-
82
PULLER ASM; CR/SHF GEAR
1-85210-064-0
AR
1
0603-
84
REPLACER; VALVE SEAL
EXHAUST
1-85221-184-0
AR
1
0603-
84
REPLACER; VALVE SEAL
INLET
1-85221-187-0
AR
1
0603-
85
REPLACER ASM; VALVE SPR
1-85235-013-0
AR
1
0603-
87
TOOL; PISTON
1-85220-059-0
AR
1
0603-
4
1
35
34
42
31
32
33
43
30
17
13
9
363
23
22
21
20
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
9-23110-018-0
01
1
0603-
4
WRENCH KIT; SOCKET
TOOL B KIT<SL1>
1-85000-491-0
01
1
0603-
9
WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450
1-85111-033-1
01
1
0603-
13
WRENCH; MONKEY
TOOL B KIT<SL1> L=255
1-85117-002-1
01
1
0603-0907
13
WRENCH; MONKEY
TOOL B KIT<SL1> L=247
1-85117-006-0
01
1
0908-1407
13
WRENCH; MONKEY
TOOL B KIT<SL1> L=255
8-98270-303-0
01
1
1408-
17
HAMMER
TOOL B KIT<SL1>
9-85121-406-0
01
1
0603-
20
WRENCH; 10X12
TOOL B KIT<SL1> 10X12
9-09592-110-0
01
1
0603-0607
20
WRENCH; 10X12
TOOL B KIT<SL1> 10X12
0-95902-510-0
01
1
0608-
21
WRENCH; 14X17
TOOL B KIT<SL1> 14X17
9-09592-114-0
01
1
0603-0607
21
WRENCH; 14X17
TOOL B KIT<SL1> 14X17
0-95902-514-0
01
1
0608-
22
WRENCH; 19X22
TOOL B KIT<SL1> 19X22
9-99592-119-0
01
1
0603-0607
22
WRENCH; 19X22
TOOL B KIT<SL1> 19X22
0-95902-519-0
01
1
0608-
23
WRENCH; 24X27
TOOL B KIT<SL1> 24X27
9-09592-124-0
01
1
0603-0607
23
WRENCH; 24X27
TOOL B KIT<SL1> 24X27
0-95902-524-0
01
1
0608-
29
DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285
1-85151-004-0
01
1
0603-
29
DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160
8-94242-798-1
01
1
0603-
29
DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275
9-09595-023-0
01
1
0603-
30
BOX; SOCKET WRENCH
TOOL B KIT<SL1>
1-85000-492-0
01
1
0603-
31
WRENCH; 12
TOOL B KIT<SL1>
1-85000-495-0
01
1
0603-
32
WRENCH; 14
TOOL B KIT<SL1>
1-85000-496-0
01
1
0603-
33
WRENCH; 17
TOOL B KIT<SL1>
1-85000-497-0
01
1
0603-
34
WRENCH; 19
TOOL B KIT<SL1>
1-85000-498-0
01
1
0603-
35
WRENCH; 22
TOOL B KIT<SL1>
1-85000-499-0
01
1
0603-
42
HANDLE; SLIDING
TOOL B KIT<SL1>
1-85000-500-0
01
1
0603-
43
BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1>
1-85000-501-0
01
1
0603-
363
WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10
9-99592-108-0
01
1
0603-0607
363
WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10
0-95902-508-0
01
1
0608-
143
12
141
146
146
151
144
156
153
158
154
162
160
162
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480
1-85116-011-0
01
1
0603-1501
12
HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480
8-98257-407-0
01
1
1502-
141
HANDLE; WRENCH
OD=25 L=480
1-85116-011-0
01
1
0603-1501
141
HANDLE; WRENCH
OD=25 L=480
8-98257-407-0
01
1
1502-
141
HANDLE; WRENCH
OD=16 L=200
9-85111-934-0
01
1
0603-
143
GUIDE; BOOT,TIE ROD END
1-85229-013-0
01
1
0603-
144
BASE; BOOT GUIDE,TIE ROD END
1-85229-009-0
01
1
0603-
146
REPLACER KIT; LEAF SPR
(B)
1-85237-017-0
01
1
0603-
146
REPLACER KIT; LEAF SPR
(A)
9-85231-556-0
01
1
0603-
151
REMOVER; OIL BRK,FRT RETURN SPR
ID=16
1-85237-002-0
01
1
0603-
153
DRIVER; WASHER,THRUST WASHER
1-85238-002-0
01
1
0603-
154
SLEEPER; KING PIN
1-85238-003-0
01
1
0603-
156
PULLER; ANCHOR PIN
1-85210-025-0
01
1
0603-
158
SETTING TOOL; RETURN SPR
9-85221-231-0
01
1
0603-
160
REMOVER; NEEDLE BRG
L=220
1-85238-001-0
01
1
0603-
161
REMOVER; TIE ROD ARM
1-85176-001-0
01
1
0603-
162
SETTING TOOL; NEEDLE BRG
(A) L=181
1-85238-008-0
01
1
0603-
162
SETTING TOOL; NEEDLE BRG
(B) L=213
1-85238-009-0
01
1
0603-
102
89
93
95
108
115
106
124
127
125
126
128
130
135
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
TOOL; PISTON RING
1-85221-025-0
AR
1
0603-
93
SETTING KIT; VALVE GUIDE
L=260
9-85231-202-0
AR
1
0603-
95
SETTING TOOL; BRIDGE GUIDE
9-85221-324-0
AR
1
0603-
102
ADAPTER; COMP GAGE
1-85317-019-0
AR
1
0603-
106
TOOL; SETTING PILOT BRG
1-85221-057-0
AR
1
0603-
108
WRENCH; SOCKET
9-85113-132-0
01
1
0603-
115
PLIER
TOOL B KIT<SL1>
5-85171-002-0
01
1
0603-1410
115
PLIER
TOOL B KIT<SL1>
8-98282-845-0
01
1
1411-
124
PULLER ASM; BRG DIFF
9-85210-131-0
01
1
0603-
125
PULLER ASM; KING PIN
L=450
1-85210-009-0
01
1
0603-
126
WRENCH; FRT HUB BRG NUT
L=350 B=75
1-85110-002-1
01
1
0603-
127
WRENCH ASM; HUB BRG NUT
L=400 B=105
9-85113-509-0
01
1
0603-
127
WRENCH ASM; HUB BRG NUT
L=400 B=116
9-85113-524-0
01
1
0603-0808
127
WRENCH ASM; HUB BRG NUT
L=400 B=116
8-98119-000-1
01
1
0809-
128
PULLER ASM; STRG WHEEL
1-85210-078-0
01
1
0603-
129
PULLER ASM; PITMAN ARM
1-85210-011-0
01
1
0603-
130
WRENCH; BOX
B=63
9-85111-368-0
01
1
0603-
135
COVER; ENG MTG,FRT
9-85595-016-0
02
1
0603-
237
296
388
388
245
246
247
248
249
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
237
BAG; TOOL
TOOL B KIT<SL1>
8-97130-902-1
01
1
0603-
245
CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE
9-85591-254-0
AR
1
0603-
246
CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE
9-85591-239-0
AR
1
0603-
246
CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE
9-85591-259-0
AR
1
0603-
247
CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE
9-85591-255-0
AR
1
0603-
248
CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE
9-85591-240-0
AR
1
0603-
248
CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE
9-85591-260-0
AR
1
0603-
249
CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE
9-85591-256-0
AR
1
0603-
250
CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE
9-85591-241-0
AR
1
0603-
250
CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE
9-85591-261-0
AR
1
0603-
296
REPLACER; SLINGER
1-85210-027-0
AR
1
0603-
388
WRENCH; U-BOLT
(A)
9-85111-954-0
01
1
0603-
388
WRENCH; U-BOLT
(B)
9-85111-955-0
01
1
0603-
