Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#31734) — 85 parça

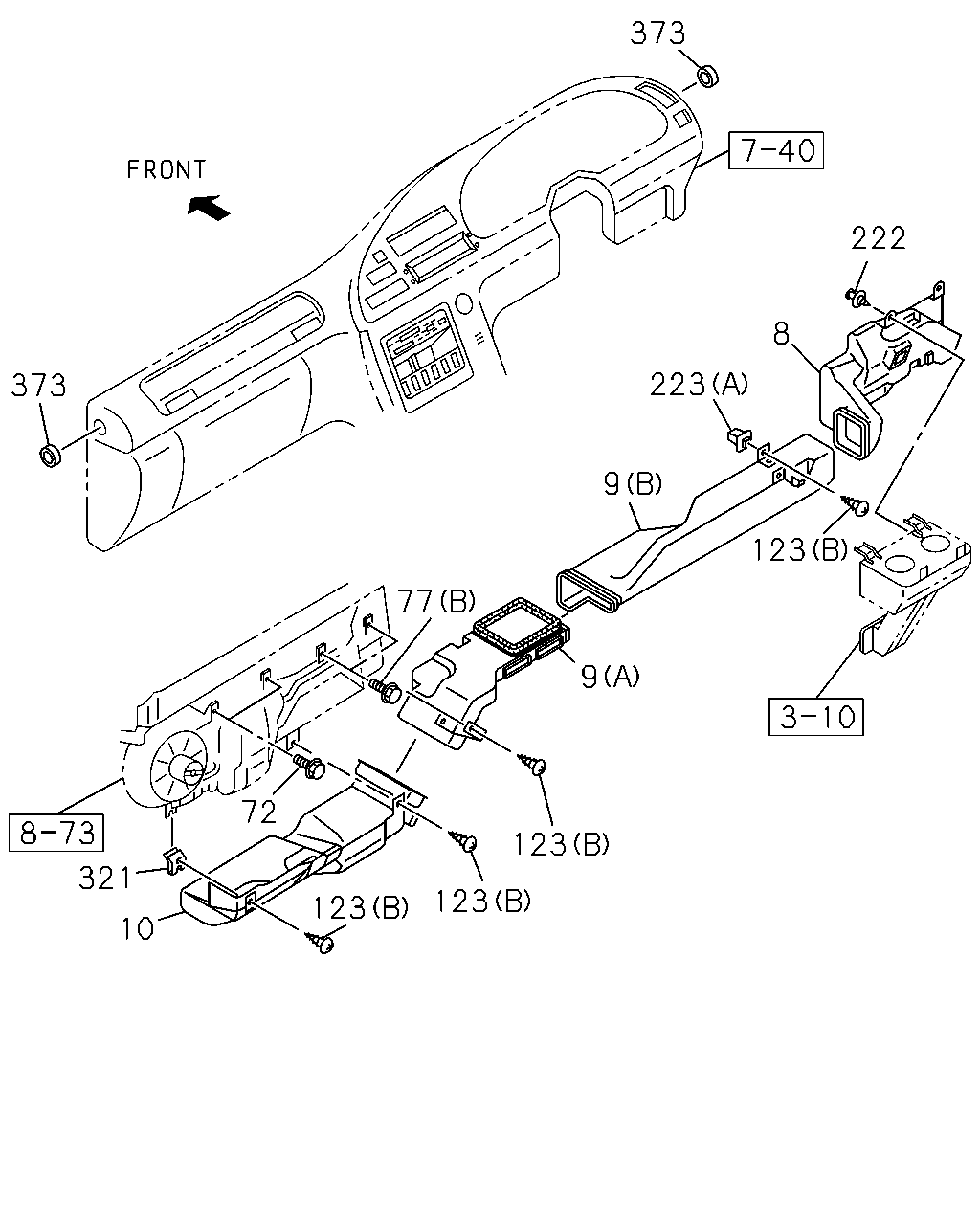

373 222 8 223 373 9 123 77 9 72 123 321 123 123 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	0603-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-210-1	01	1	0603-
9	DUCT; HTR AIR,FOOT CENTER CENTER SEAT DELETE(SP9) (A)	1-76377-227-2	01	1	0603-
9	DUCT; HTR AIR,FOOT CENTER EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-226-2	01	1	0603-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-204-2	01	1	0603-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0603-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0603-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0603-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0603-
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D6X12.5	8-94146-425-0	02	1	0603-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0603-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0603-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0603-
373	RUBBER; JOINT	1-76378-291-0	02	1	0603-

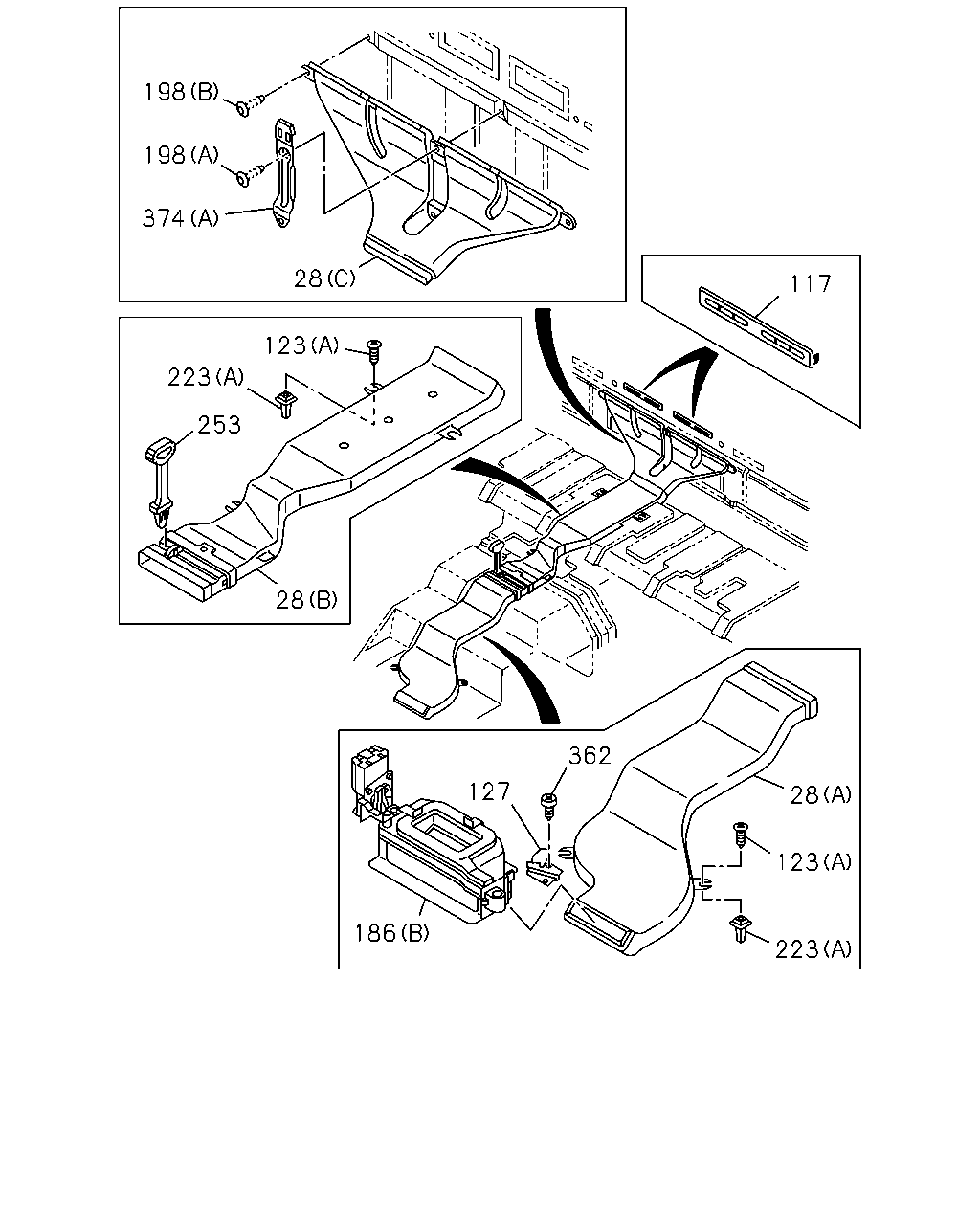

198 198 374 8 117 123 223 253 28 362 127 28 123 186 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	0603-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) (B)	1-76377-180-2	01	1	0603-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) (C)	1-76377-186-1	01	1	0603-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) (A)	1-76377-203-0	01	1	0603-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9)	1-76377-187-5	01	1	0603-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9)	1-76377-188-5	01	1	0603-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0603-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0603-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0603-
127	BRACKET; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9)	1-76397-019-0	01	1	0603-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) (B)	1-83542-107-3	01	1	0603-
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0603-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0603-0710
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) (A) D6X23 BLACK	1-09987-114-0	02	1	0603-1204
198	CLIP; DUCT CENTER SEAT DELETE(SP9) (A) D6X23 LIGHT GRAY	1-73318-629-0	02	1	1205-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	0603-1204
198	CLIP; DUCT CENTER SEAT DELETE(SP9) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1205-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0603-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0603-
253	KNOB; CONT LEVER CENTER SEAT DELETE(SP9)	1-76377-185-1	01	1	0603-
362	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) M5X14	8-94279-325-0	02	1	0603-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0603-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) (A)	1-76377-189-3	01	1	0603-

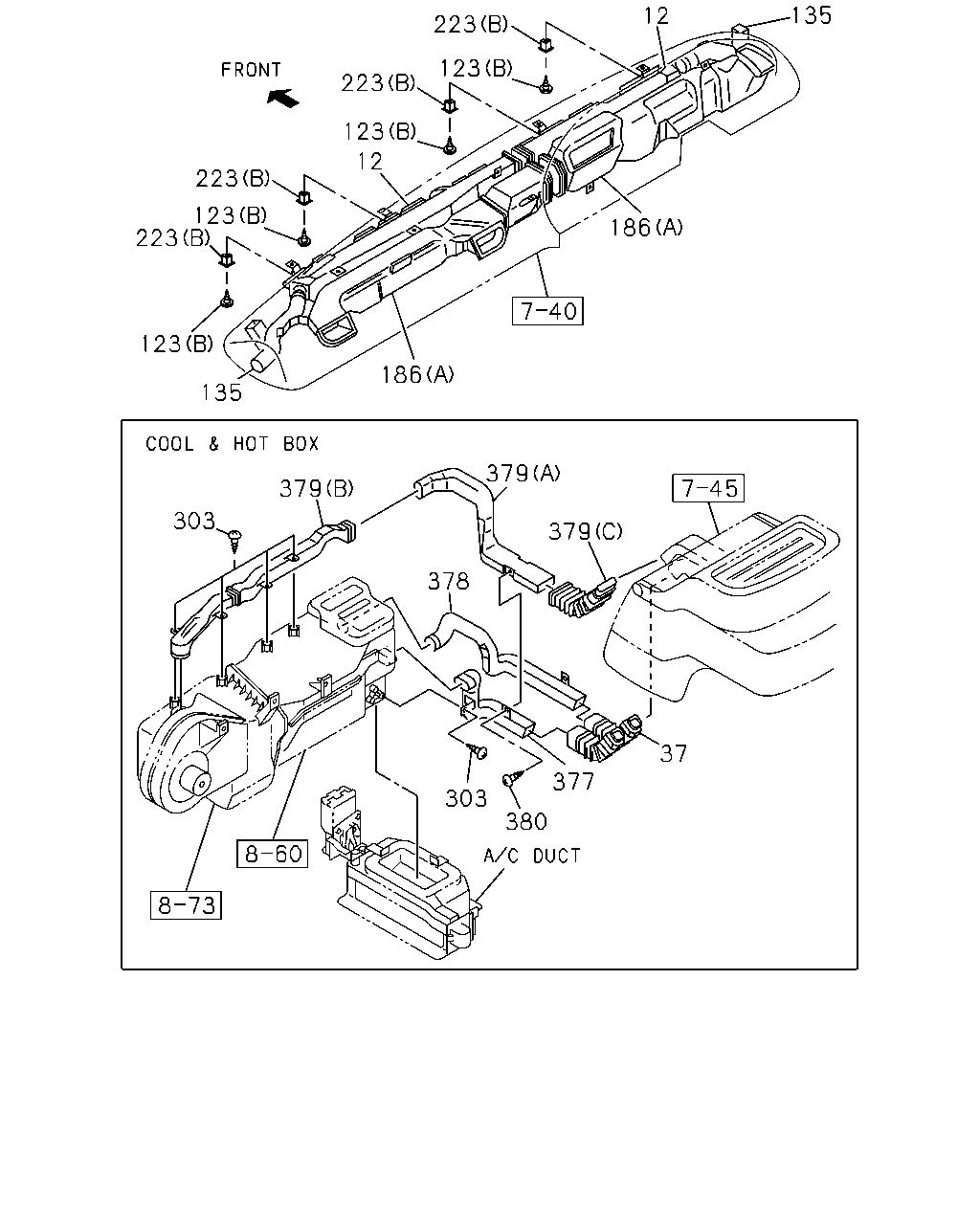

135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 377 303 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0603-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0603-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0603-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0603-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0603-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0603-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0603-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0603-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) (B)	1-83542-107-3	01	1	0603-
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0603-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0603-0710
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0603-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0603-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0603-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0603-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0603-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0603-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0603-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0603-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0603-

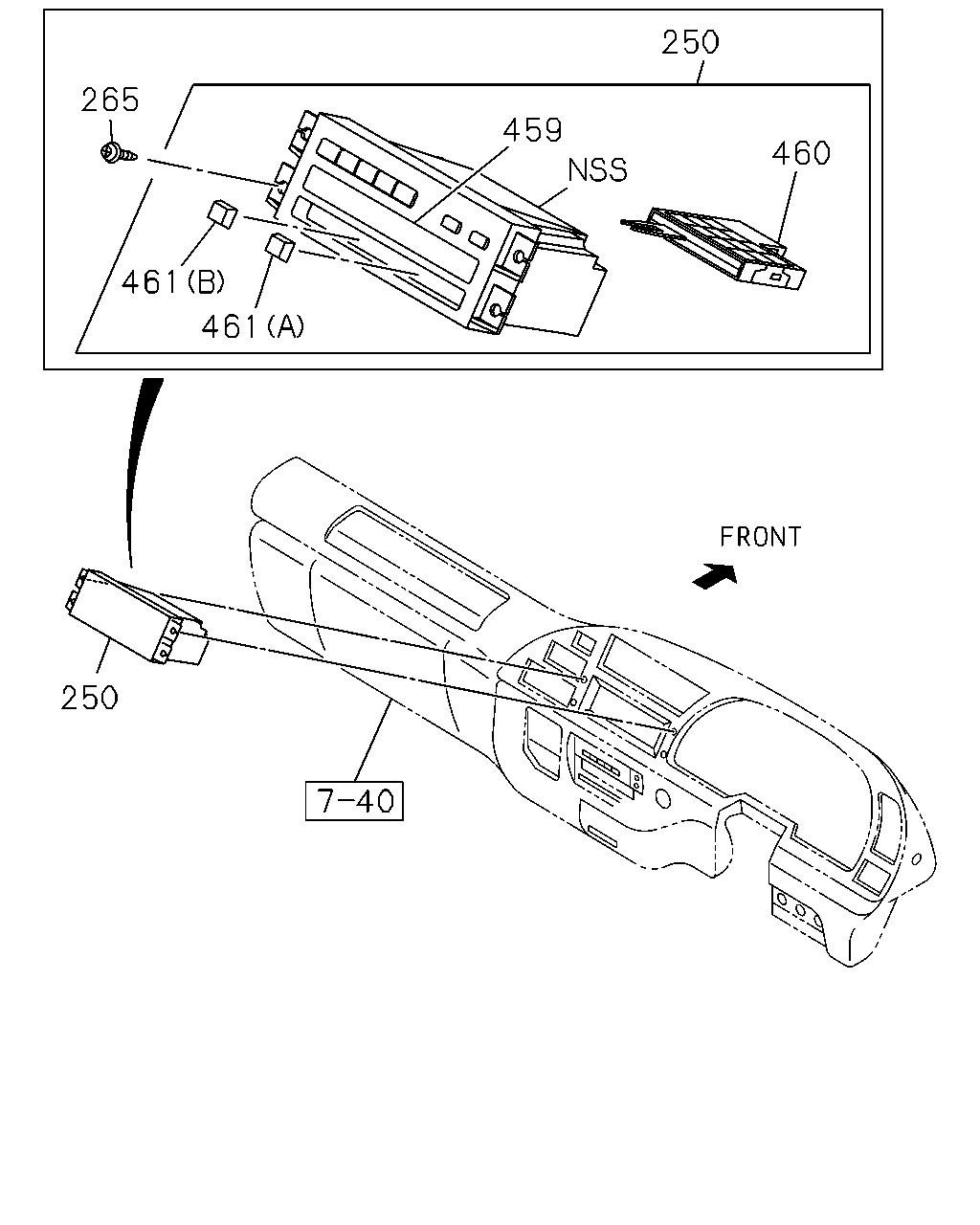

250 265 459 460 461 461 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0603-0609
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98034-326-0	01	1	0610-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0603-0604
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0603-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0603-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0603-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0603-

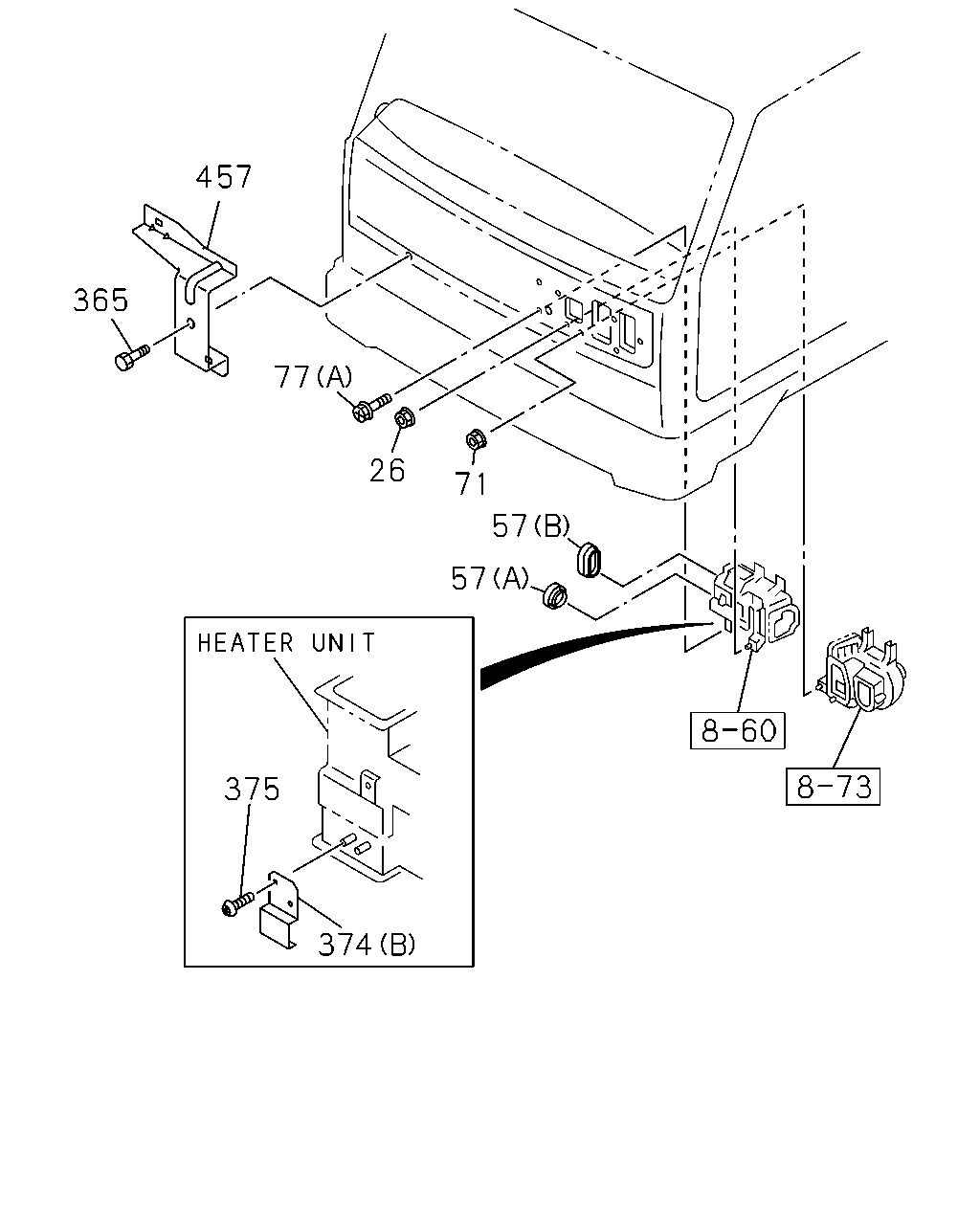

457 365 77 26 71 57 57 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0603-
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (A)	1-83579-617-0	02	1	0603-
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (B)	1-83579-618-0	01	1	0603-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0603-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0603-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0603-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0603-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) (A)	1-76377-189-3	01	1	0603-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0603-
457	BRACKET; SENSOR	1-71907-603-1	01	1	0603-
