8-28 — CHASSIS ELECTRICAL (#31733) — 163 parça

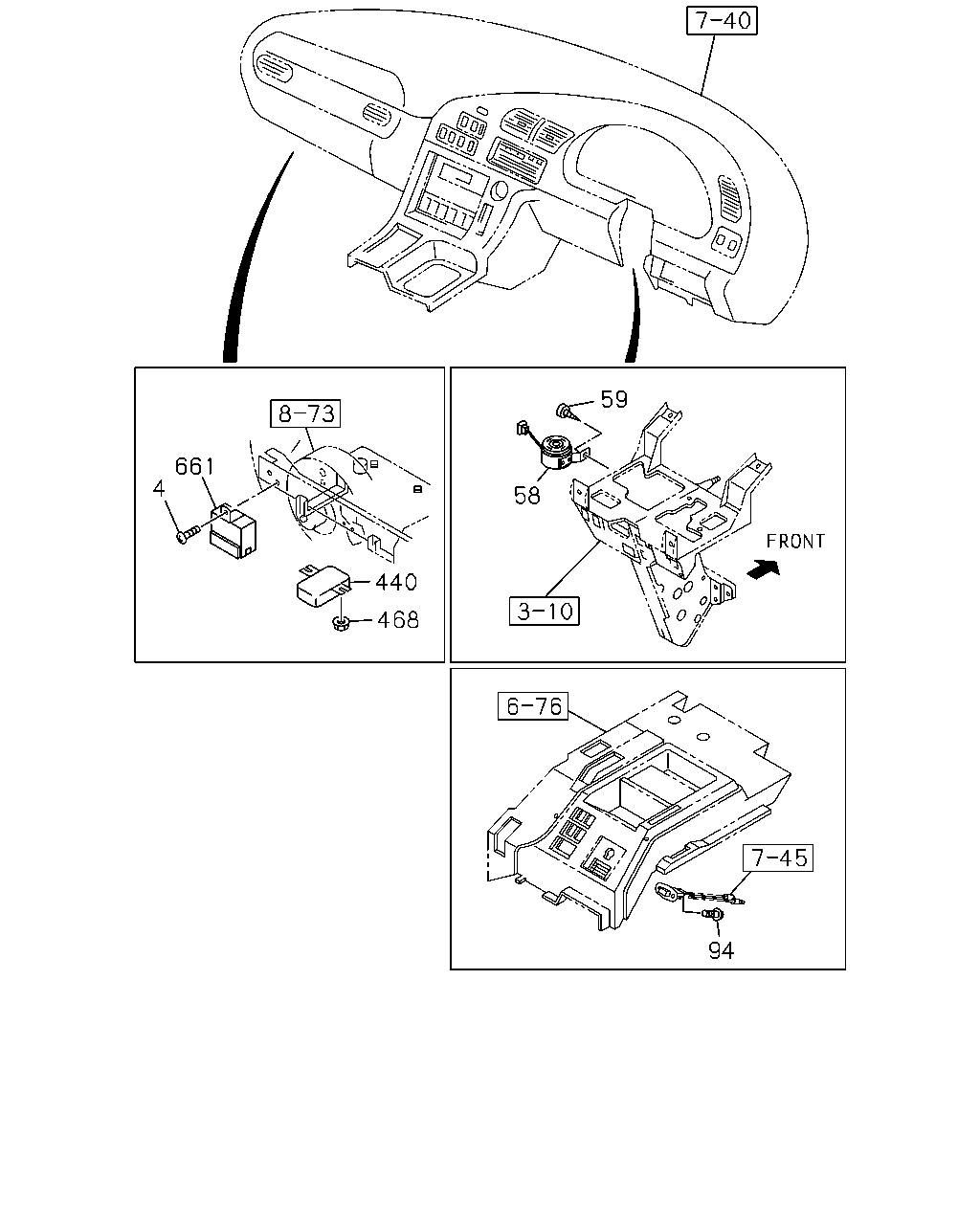

59 661 4 58 440 468 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0603-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0603-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0603-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0603-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0603-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0603-0603
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0603-

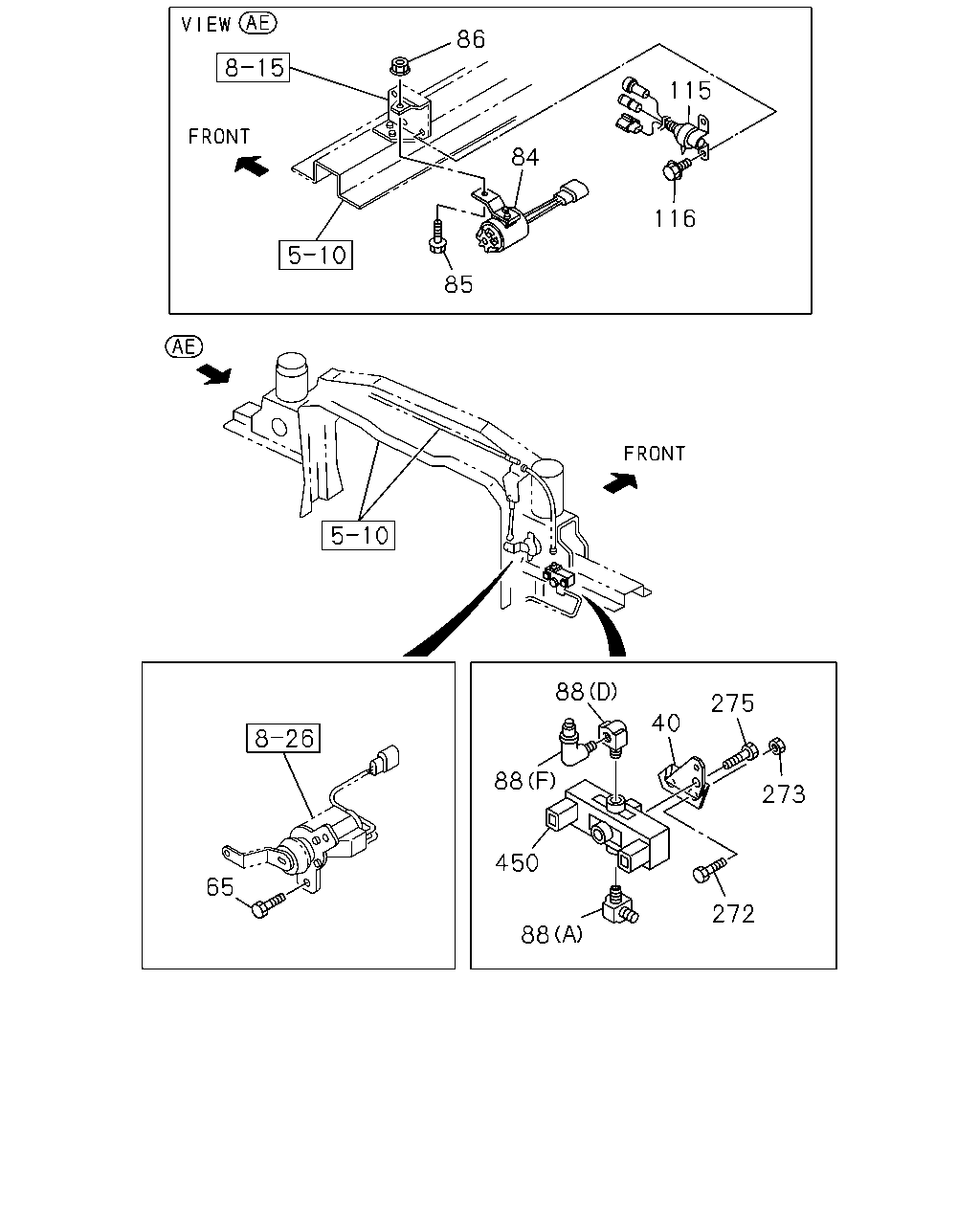

86 115 84 116 85 88 275 40 88 273 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16)	1-53458-380-0	01	1	0603-
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0603-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0603-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0603-0603
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0603-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0603-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28651-035-0	02	1	0603-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0603-0603
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	02	1	0603-
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0603-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0603-

89 284 210 34 89 284 89 210 34 602 602 210 285 210 285 261 34 424 90 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

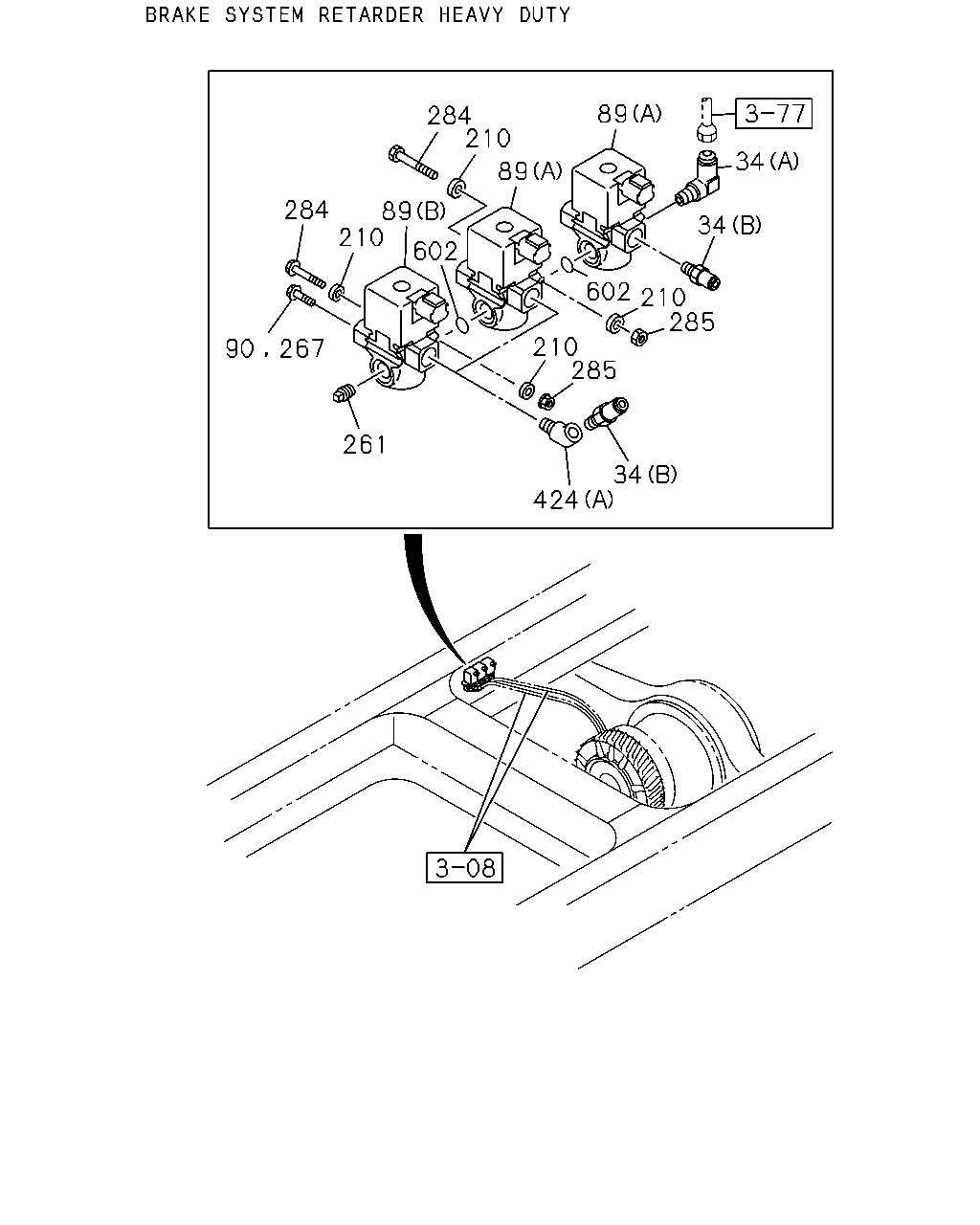

34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0603-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0603-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0603-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0603-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0603-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0603-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0603-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0603-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28050-650-0	02	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0603-0603
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) R1/4 & RC1/4	1-09664-211-0	02	1	0603-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0603-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-

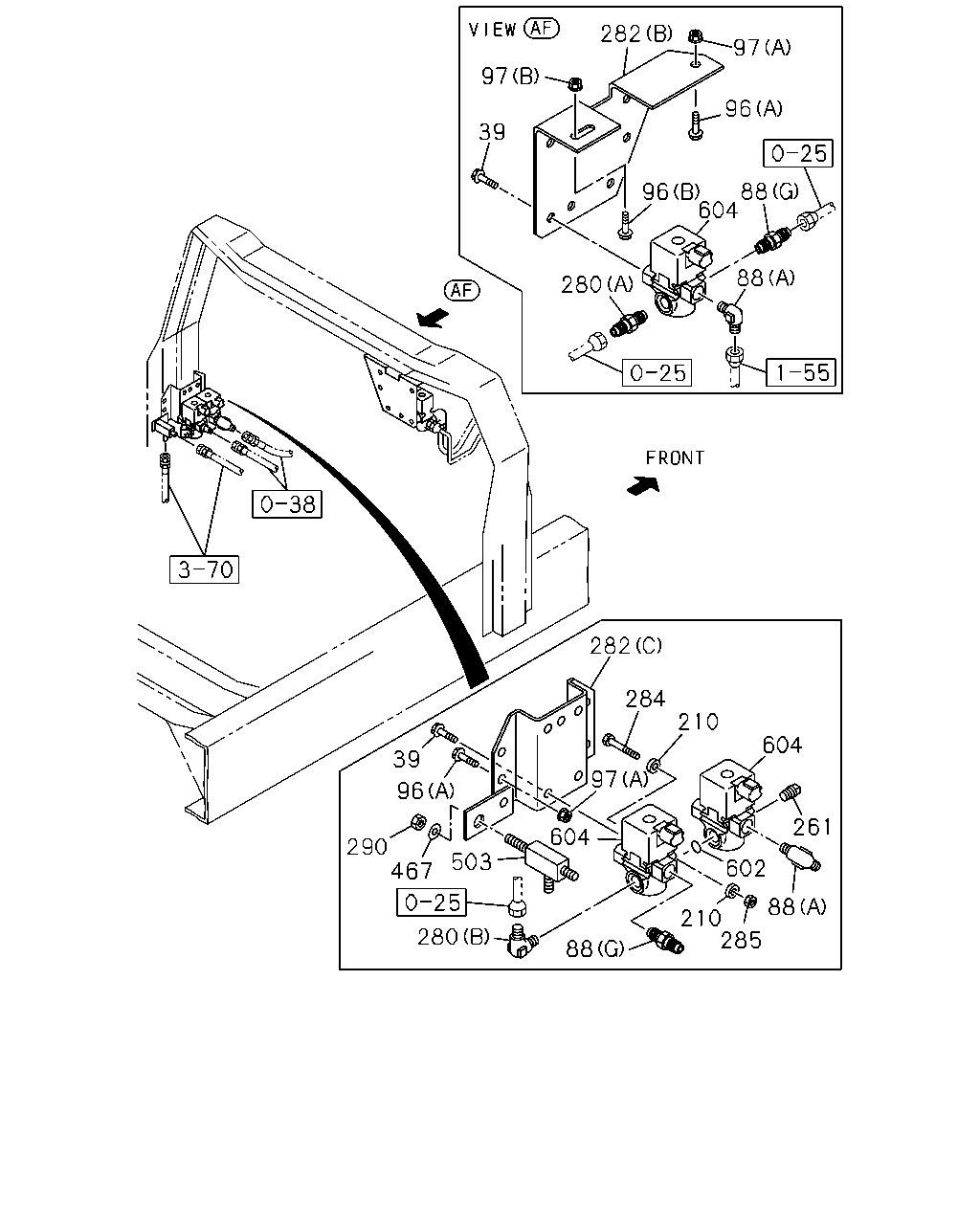

282 97 97 96 39 96 88 604 88 280 282 284 210 604 604 39 97 96 261 290 467 503 602 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0603-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0603-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0603-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0603-0603
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0603-0603
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0603-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0603-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28050-650-0	02	1	0603-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0603-0603
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0603-0603
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M12	0-91111-512-0	01	1	0603-
467	WASHER; LK,MAG VLV ID=12.2	9-09150-512-0	01	1	0603-0603
467	WASHER; LK,MAG VLV ID=12.2	0-91510-512-0	01	1	0604-
503	UNION M12 2WAY	1-09654-059-2	01	1	0603-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0603-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0603-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0603-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0603-

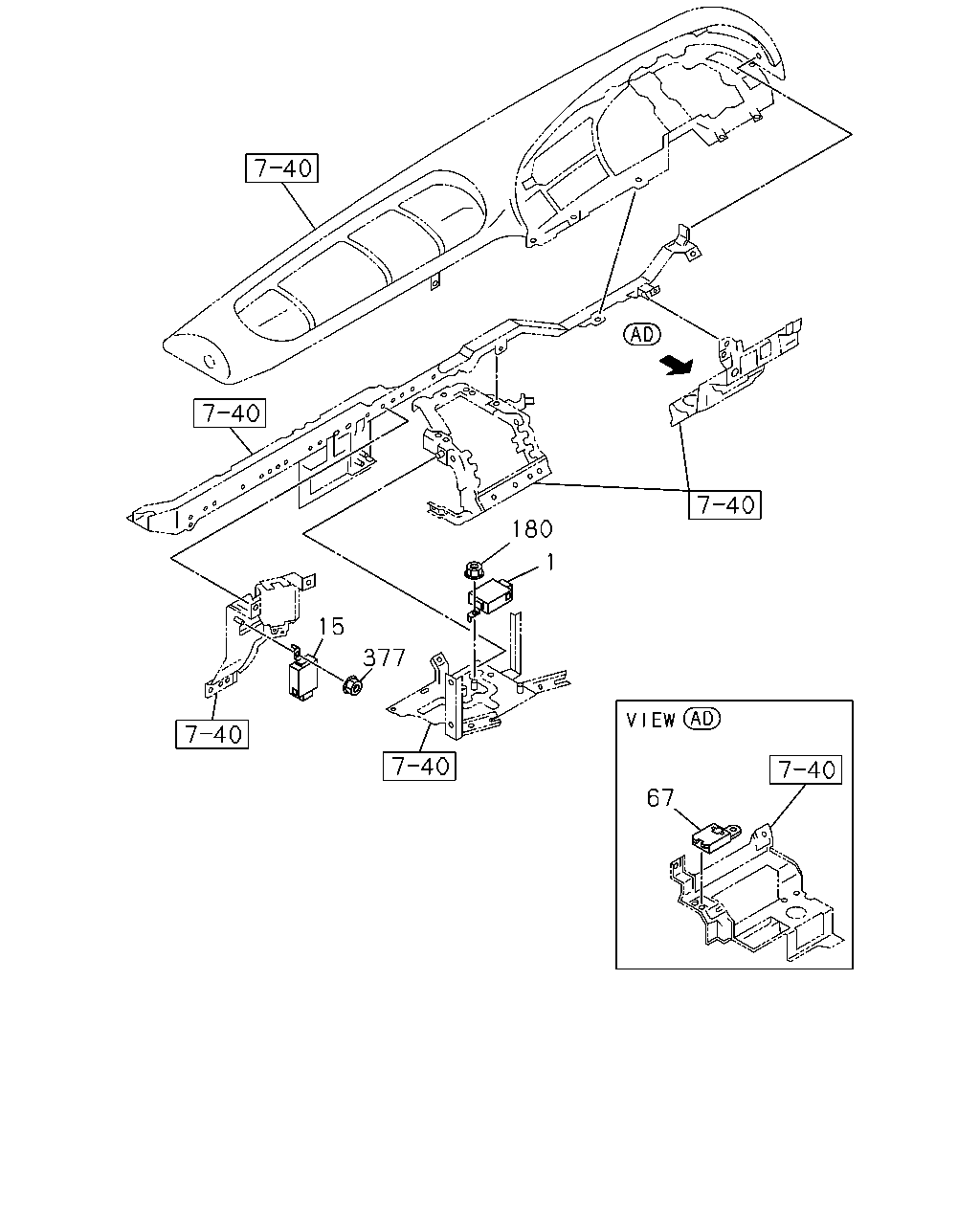

180 1 15 377 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0603-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0603-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0603-0603
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0603-0603
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

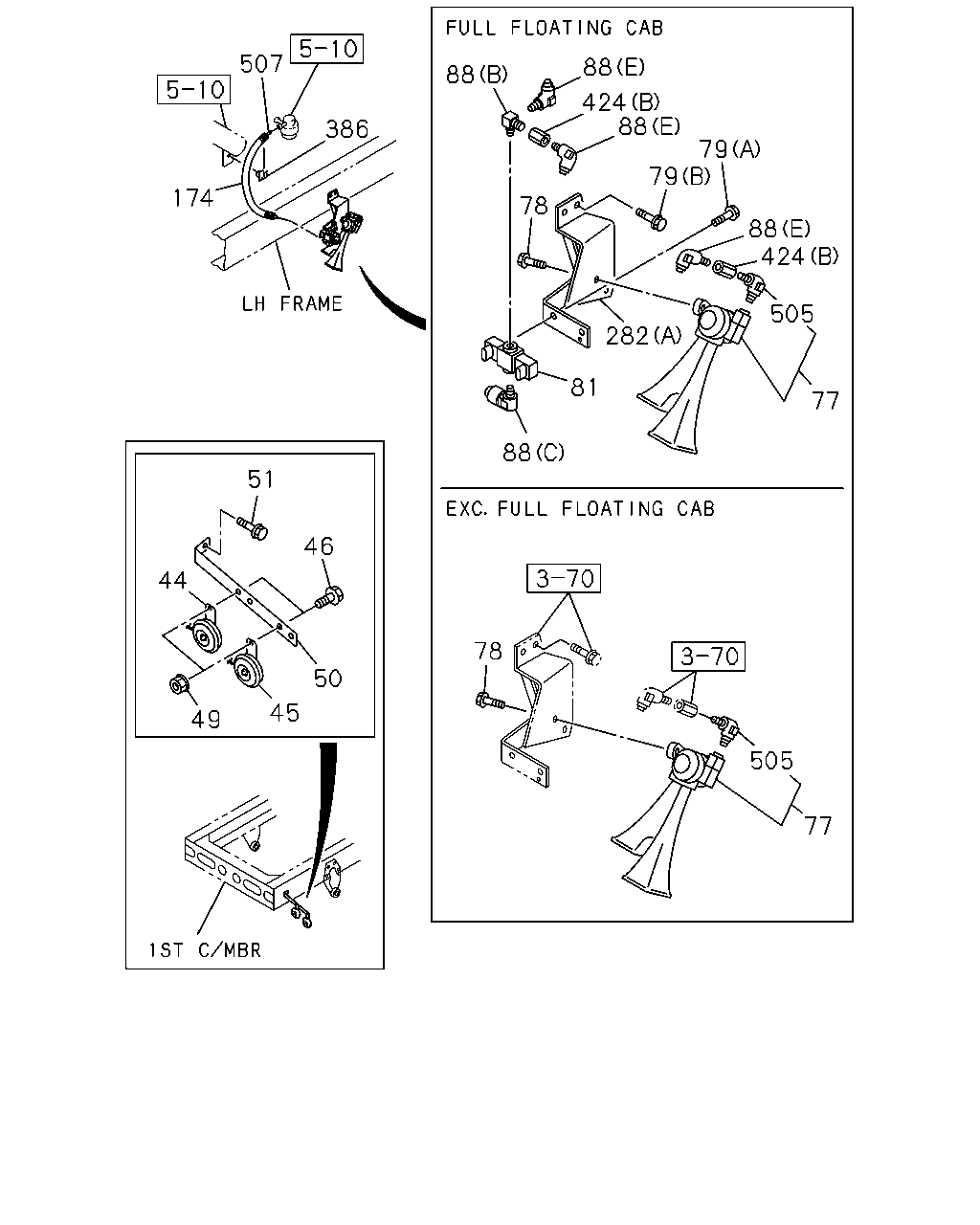

507 88 88 424 88 386 79 79 174 78 88 424 505 282 81 77 88 51 46 44 78 50 45 49 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0603-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0603-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0603-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0603-0603
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN	1-53457-196-0	01	1	0603-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
77	HORN ASM	1-83430-041-2	01	1	0603-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0603-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0603-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0603-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0603-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0603-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0603-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0603-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) R1/4 & RC1/4	1-09664-211-0	02	1	0603-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0603-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0603-
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0603-

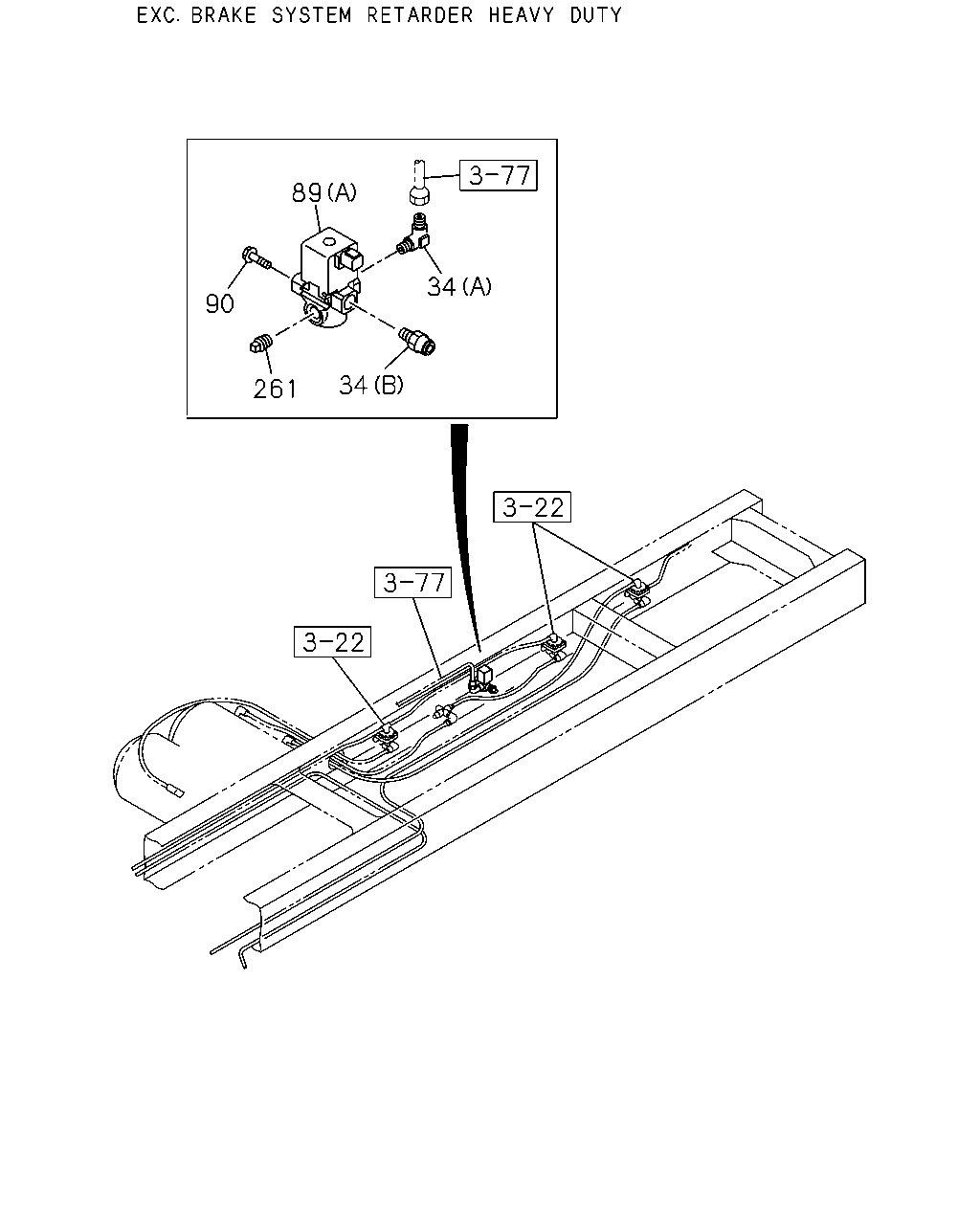

89 34 90 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0603-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0603-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0603-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0603-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0603-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0603-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0603-

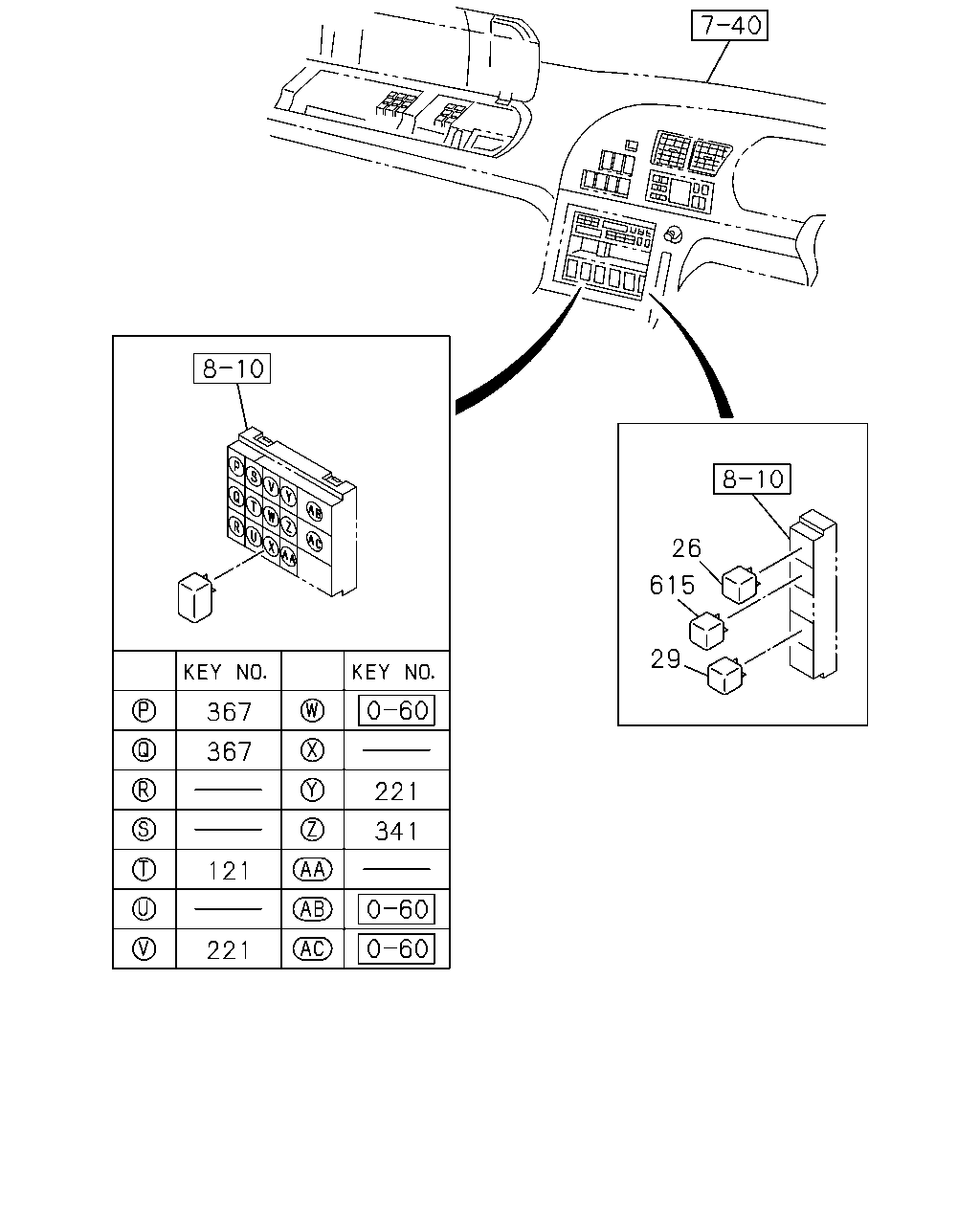

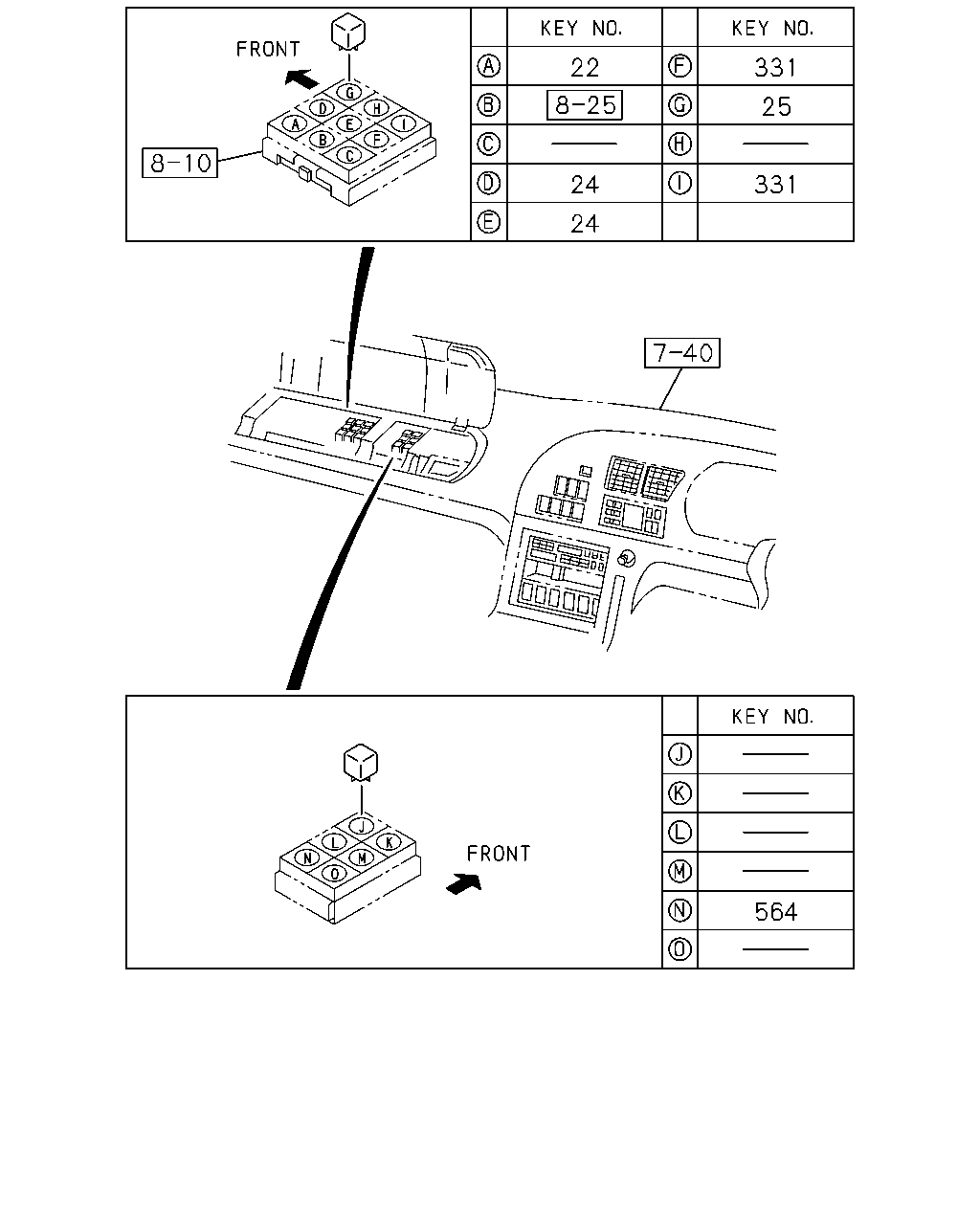

26 615 29 367 367 221 341 121 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0603-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-

22 331 25 24 331 24 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0603-
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-

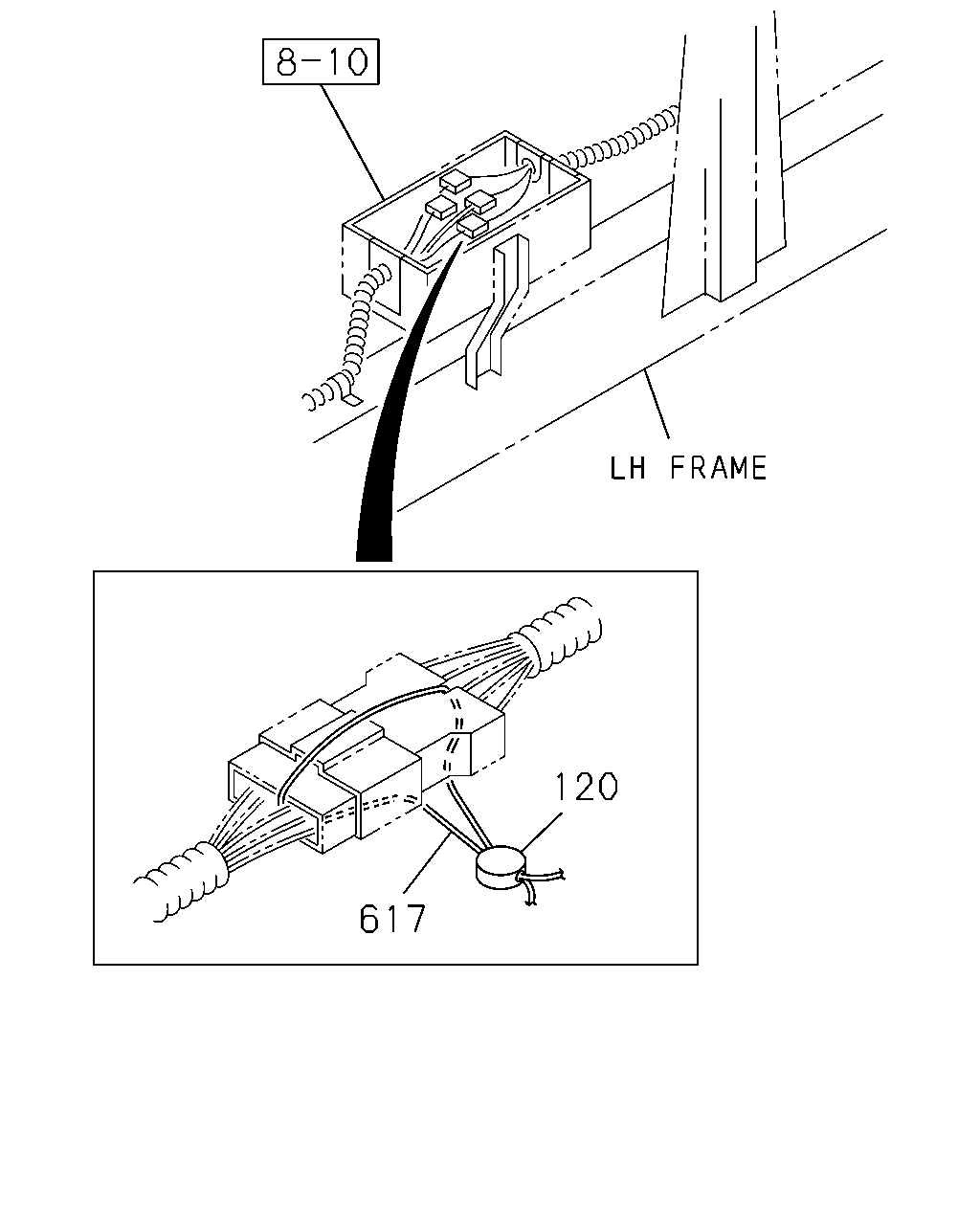

120 617

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	120	SEAL	1-15739-008-0	01	1	0603-
	617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0603-
