8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#31731) — 28 parça
◀
[825A] CAB SIDE NO.1 (12 parça)
[825A] CAB SIDE NO.3 (3 parça)
[825A] FRAME SIDE (7 parça)
[825A] CAB SIDE NO.2 (6 parça)
▶

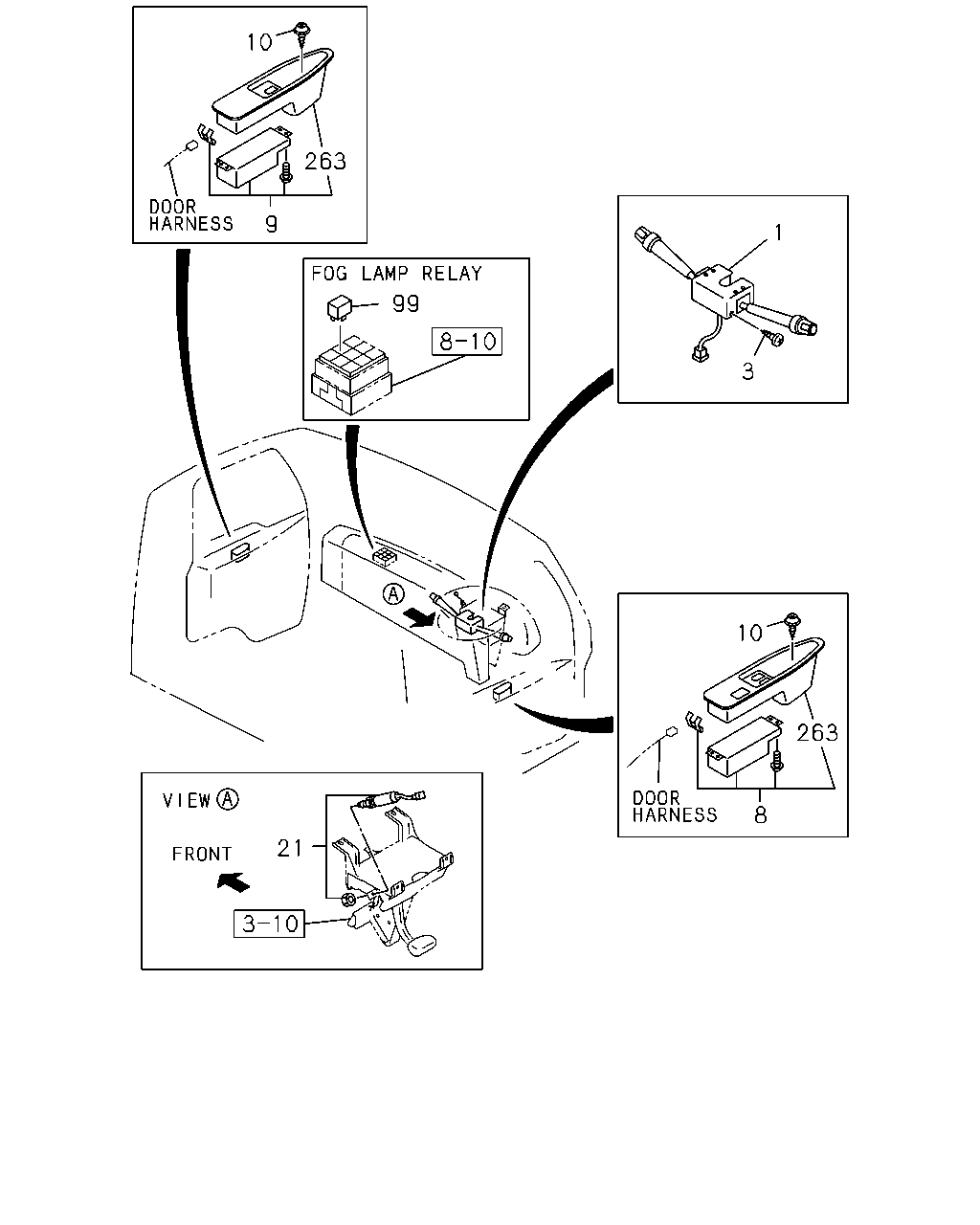

10
263
9
1
99
3
10
263
8
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-708-1
01
1
0603-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-724-1
01
1
0603-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0603-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0603-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0603-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0603-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0603-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0603-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0603-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0603-

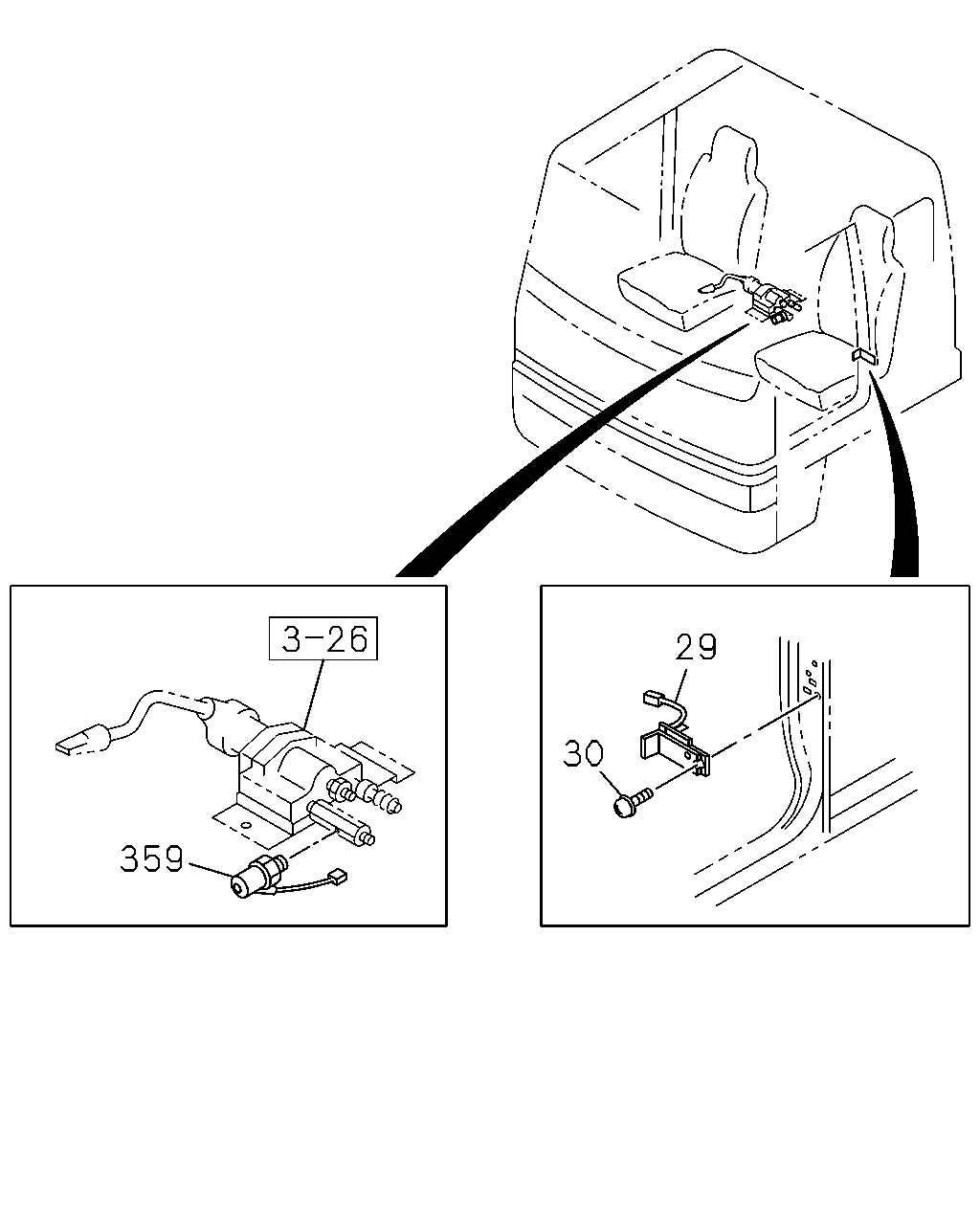

29
30
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0603-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0603-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0603-

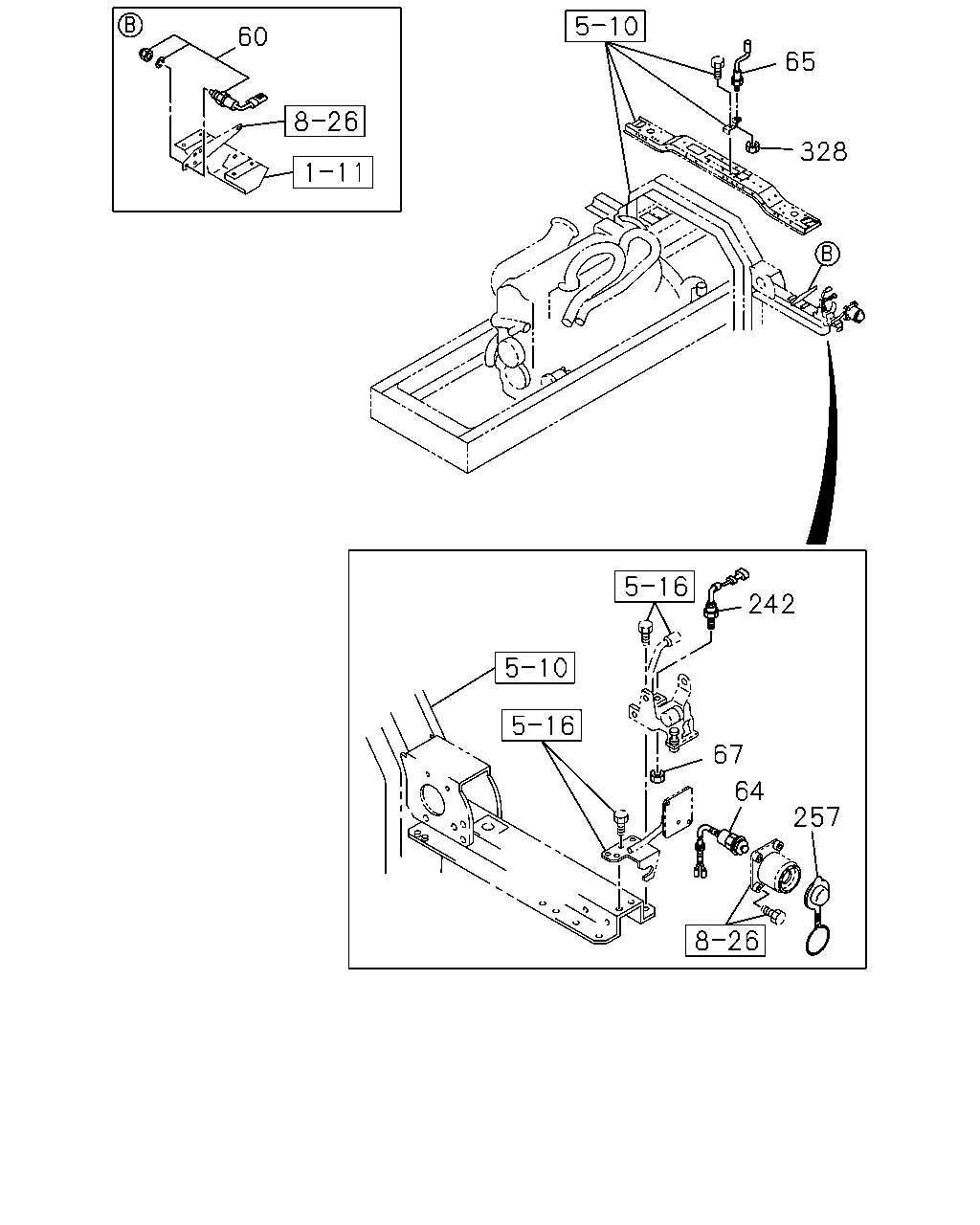

60
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
0603-
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0603-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0603-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0603-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0603-
257
COVER; HOLE,SW
1-82389-008-0
01
1
0603-
328
NUT; SW
M16
0-91110-516-0
01
1
0603-

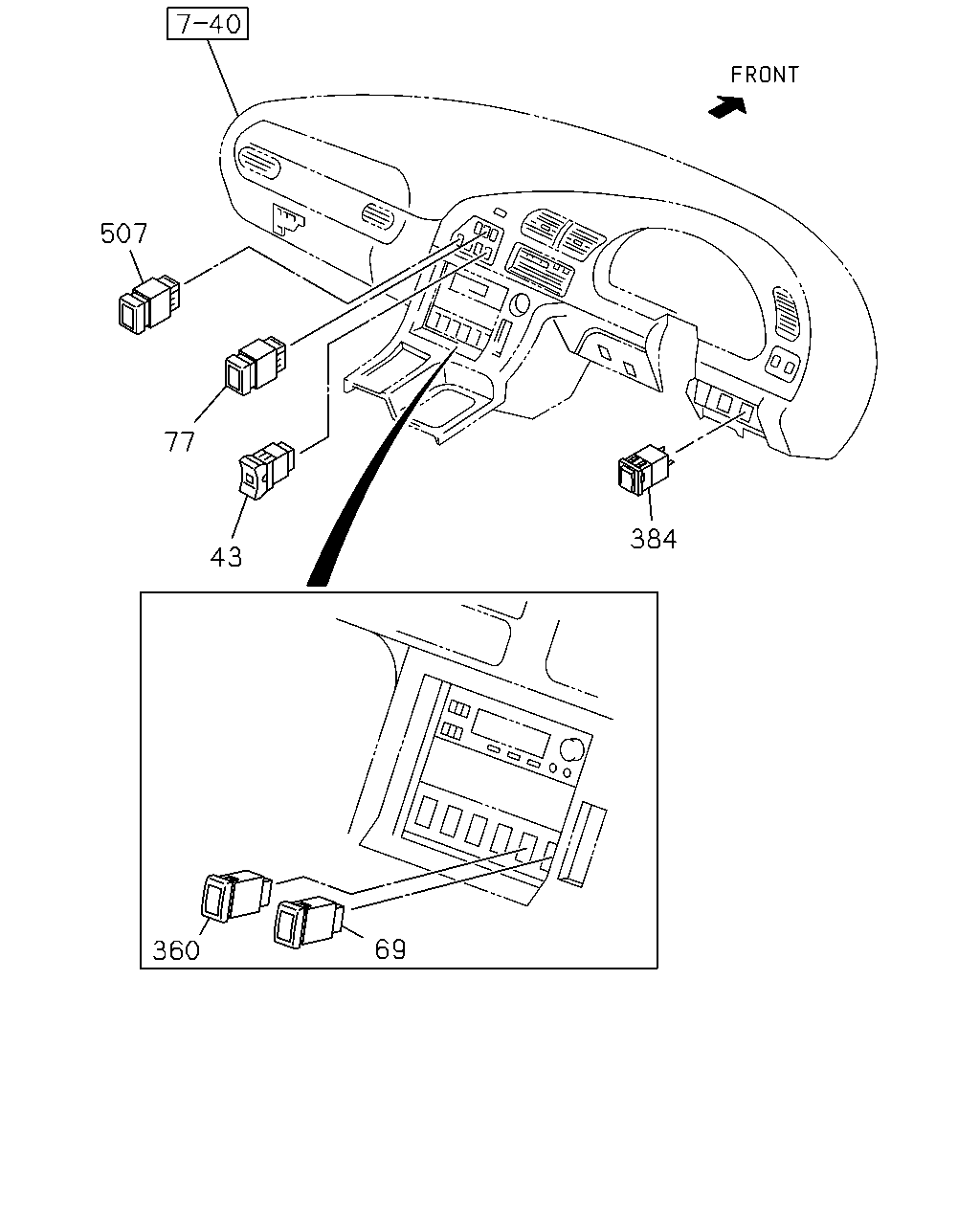

507
77
384
43
69
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
SWITCH; HORN
1-82350-332-0
01
1
0603-
69
SWITCH; AUTO CRUISE
1-82340-412-2
01
1
0603-
77
SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ>
1-82340-413-0
01
1
0603-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0603-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0603-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0603-
