7-50 — FRONT SEAT (#31722) — 90 parça

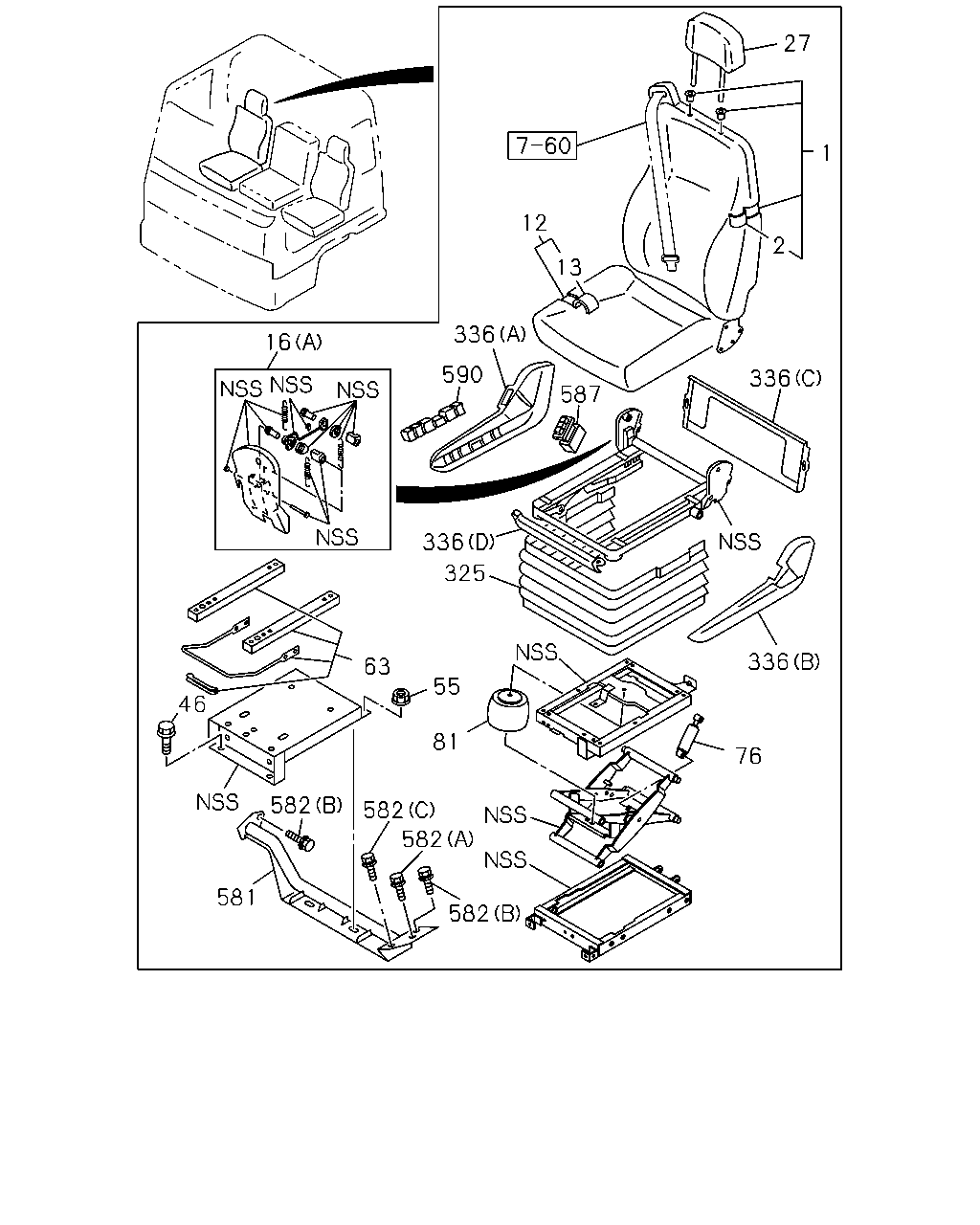

çizim 89085
27 1 12 13 2 336 16 590 336 587 336 325 336 63 55 46 81 76 582 582 582 581 582
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75027-941-0 01 1 0603-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 0603-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 0603-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 0603-
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-602-0 01 1 0603-
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-1 01 1 0603-
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 0603-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0603-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0603-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 0603-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 0603-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 0603-
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 0603-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-208-0 01 1 0603-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-210-0 01 1 0603-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-212-0 01 1 0603-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 0603-
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG) 		1-73907-573-3 01 1 0603-
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73907-605-2 01 1 0603-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 0603-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0603-
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75197-007-0 01 1 0603-
590 KNOB KIT; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75417-600-0 01 1 0603-

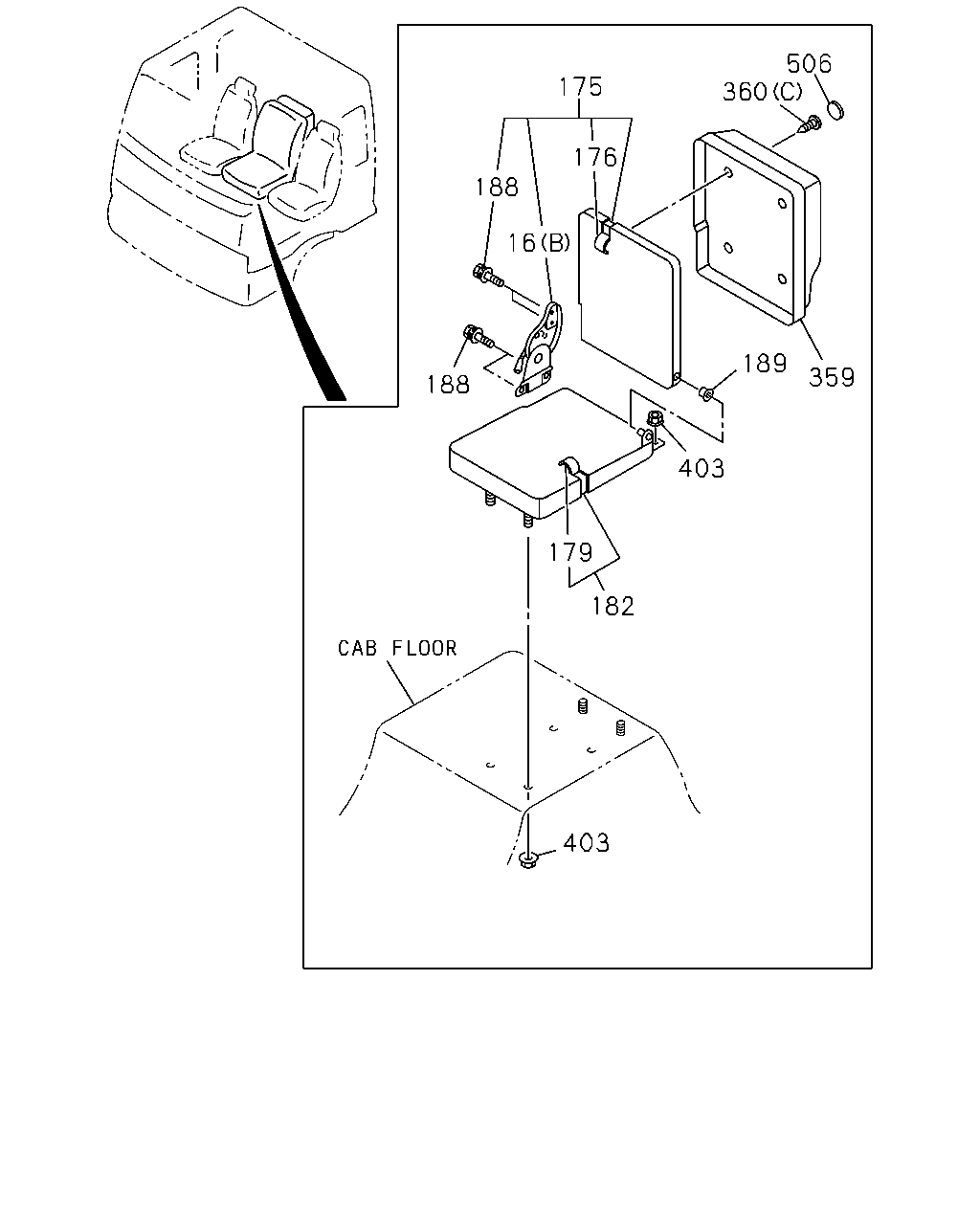

çizim 89196
506 360 175 176 188 16 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-602-0 01 1 0603-
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-1 01 1 0603-
175 BACK ASM; PASSENGER CENTER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75026-857-4 01 1 0603-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75116-711-2 01 1 0603-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75116-694-2 01 1 0603-
182 CUSHION ASM; CENTER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75026-843-4 01 1 0603-
188 BOLT; BACK TO CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0603-
189 BUSHING; HINGE,CENTER SEAT BACK
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0603-
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0603-1006
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0603-0612
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0603-0612
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0603-1006
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0603-0703
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0603-1006
506 CAP; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-

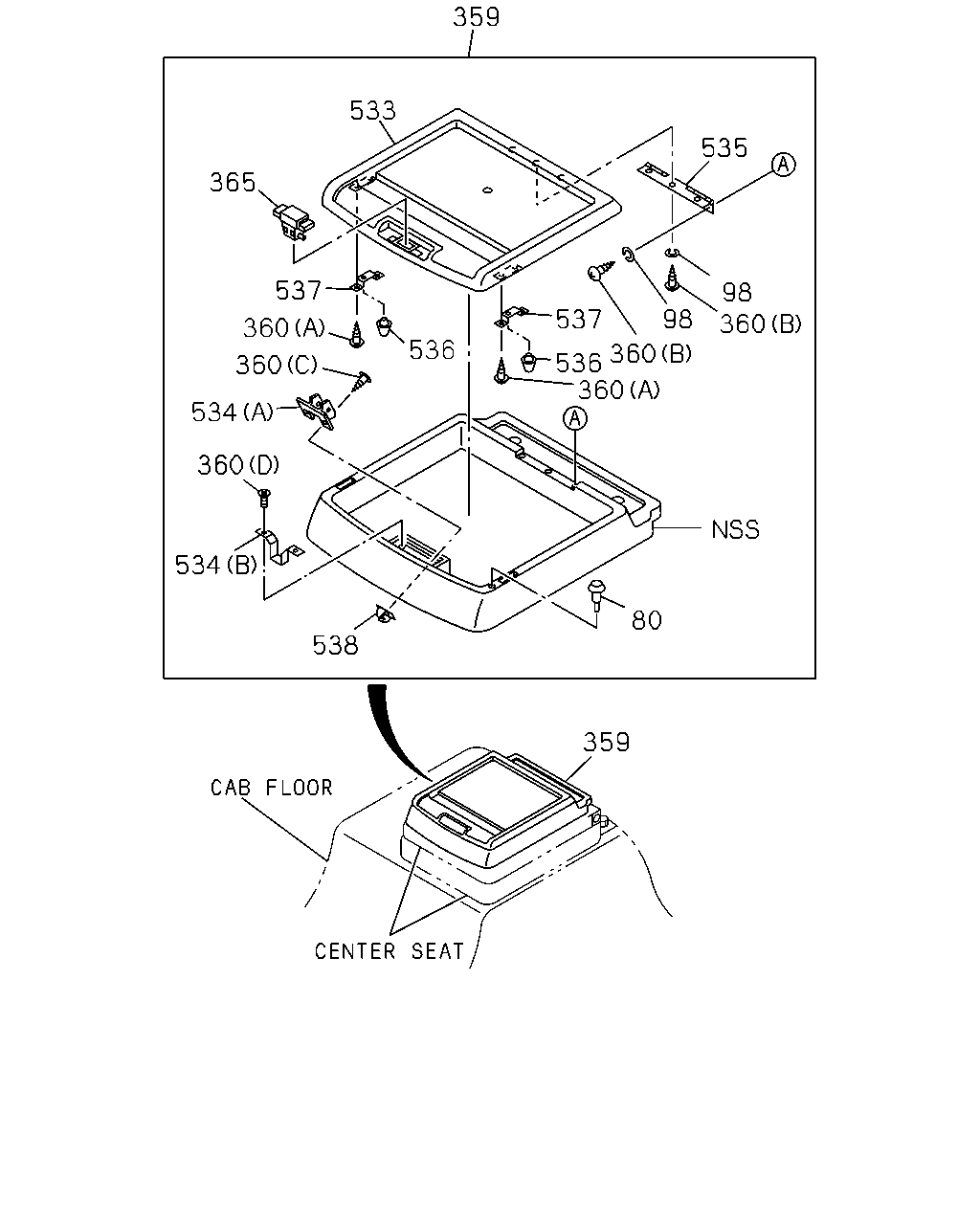

çizim 89275
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007-
98 WASHER; HINGE
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0603-
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0603-1006
359 BOX; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0603-0612
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0603-0612
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0603-1006
360 SCREW; PARCEL
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0603-
533 LID; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0603-1006
533 LID; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0603-1006
534 STRIKER; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0603-
536 RUBBER; CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0603-1006
537 BRACKET; RUBBER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0603-1006
538 GROMMET; SCREW
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0603-1006

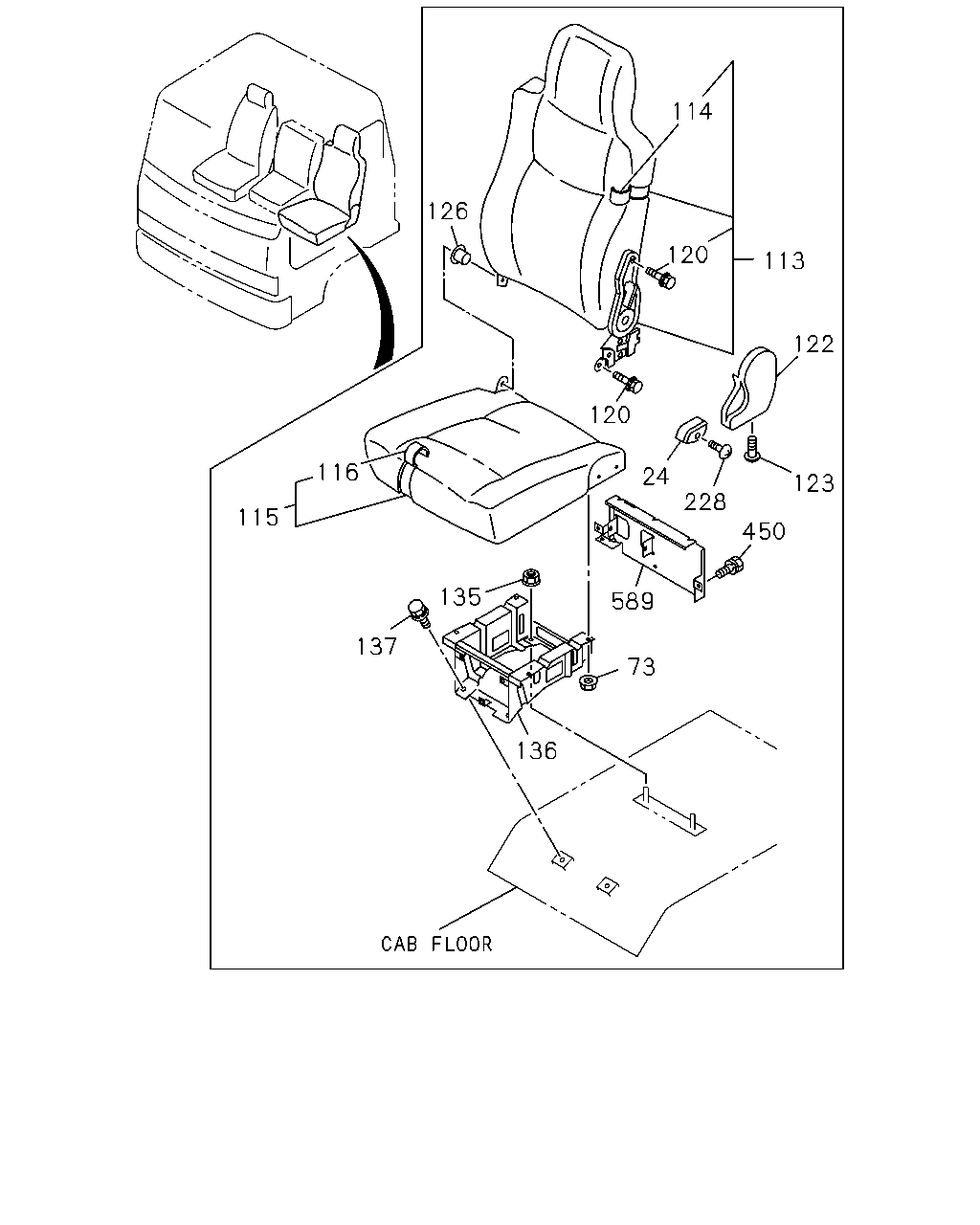

çizim 89328
114 126 120 113 122 120 116 24 123 228 115 450 135 589 137 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-019-0 01 1 0603-
73 NUT; ADJ,HEIGHT CONT
DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0603-
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75208-191-4 01 1 0603-
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75116-709-2 01 1 0603-
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75026-782-2 01 1 0603-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75116-589-2 01 1 0603-
120 BOLT; RECLINING ADJ
DRIVER ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0603-
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-018-0 01 1 0603-
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0603-
126 BUSHING; HINGE,RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0603-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0603-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75558-601-3 01 1 0603-1305
136 STAND; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98242-298-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0603-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
DRIVER ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0603-
450 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-0703
450 BOLT; BRKT
M6X16 		0-52000-616-0 03 1 0704-
589 BRACKET; SEAT STAND 1-75557-469-3 01 1 0603-
