Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#31720) — 85 parça
◀

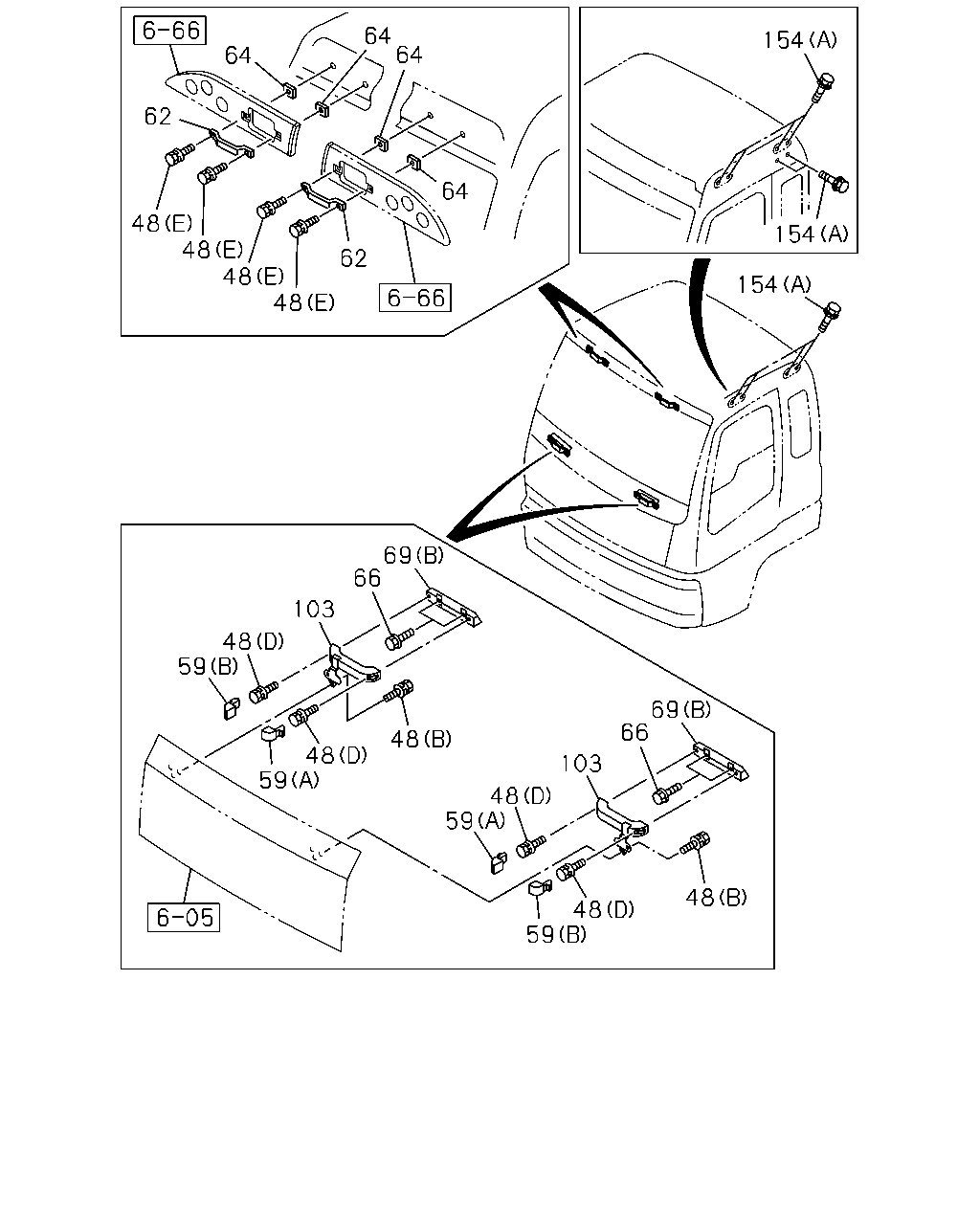

[743A] ASSIST GRIP;CAB OUTSIDE (23 parça)

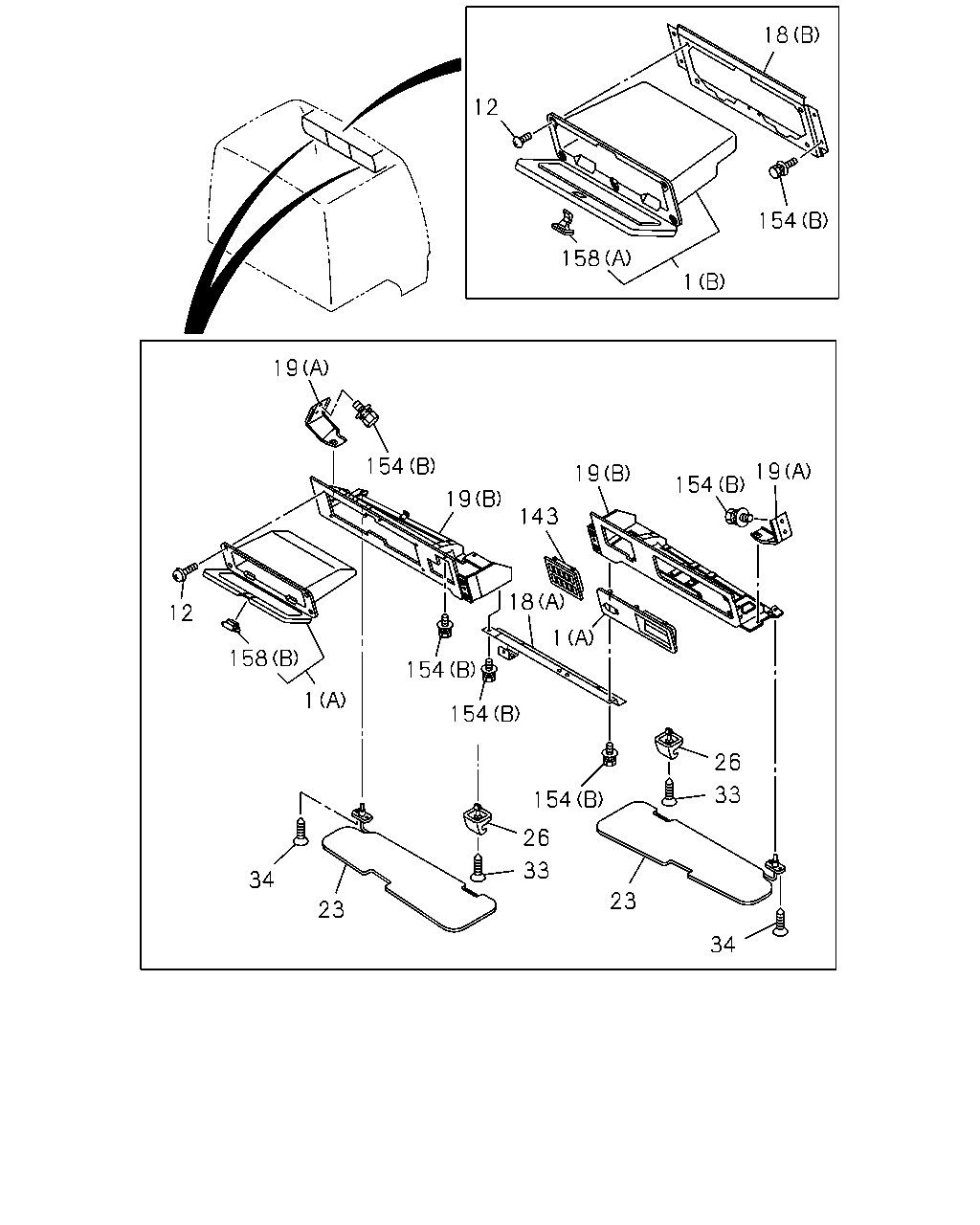

[743A] SUN VISOR AND SUPPORT ASM (28 parça)

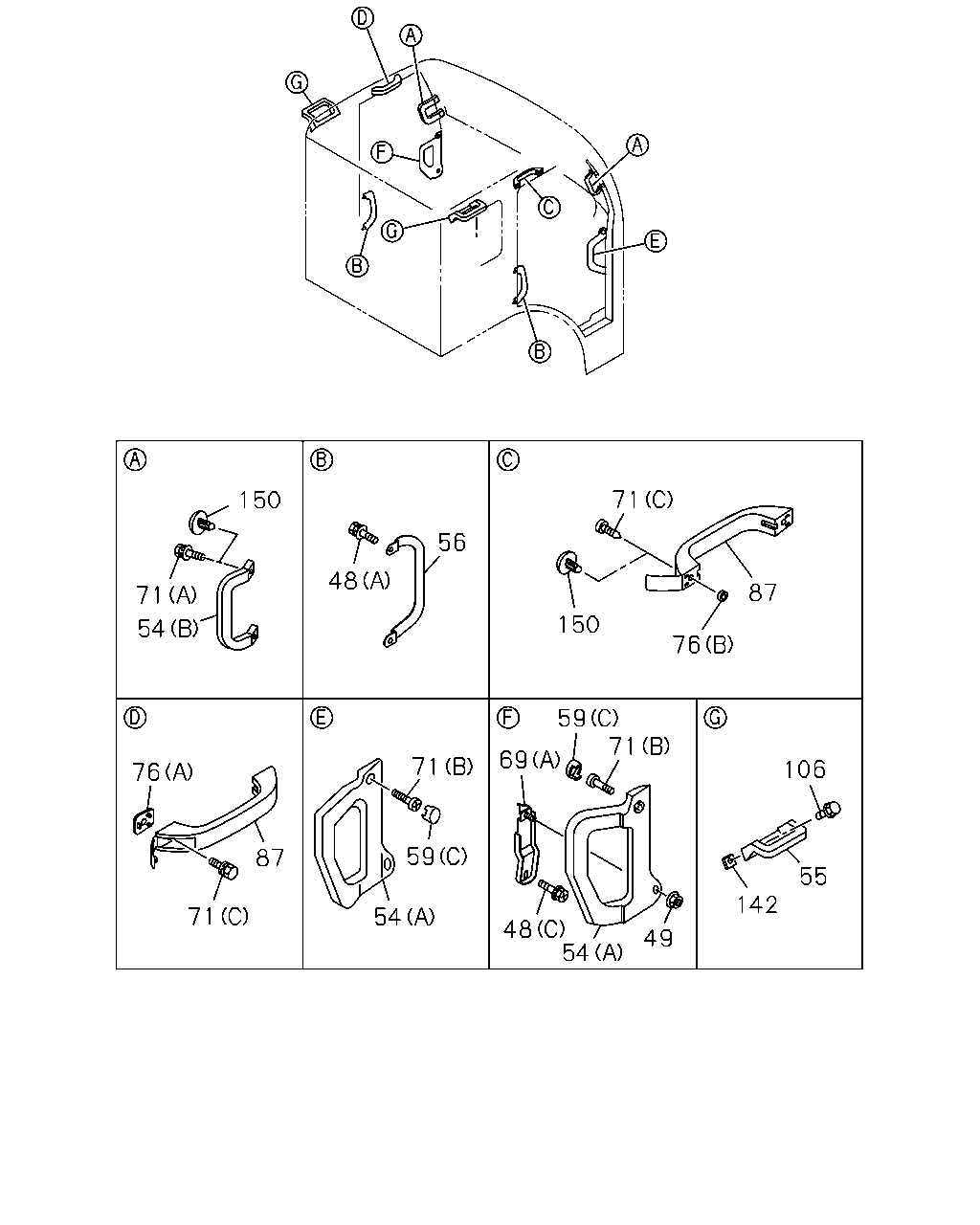

[743A] ASSIST GRIP;CAB INSIDE (34 parça)
▶
64
64
154
64
62
64
154
48
48
48
48
62
154
69
66
103
48
59
69
66
48
48
59
103
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0603-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0603-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0603-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0603-0904
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0603-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0603-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0603-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0603-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0603-0907
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
0908-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
0603-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0603-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0603-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0603-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
0603-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
0603-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
0603-
154
BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0603-
154
BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0603-
154
BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
12
1
0603-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
0603-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0603-
18
12
154
158
1
19
154
19
19
154
19
143
18
12
1
158
154
1
154
26
33
154
26
33
34
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(A)
1-72447-761-6
01
1
0603-
1
BOARD; HEADER SHELF
(A)
1-72447-876-4
01
1
0603-
1
BOARD; HEADER SHELF
(B)
1-72447-968-0
01
1
0603-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
08
1
0603-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
0603-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-877-2
01
1
0603-0909
18
SUPPORT; HEADER SHELF CENTER
(A)
8-98118-217-1
01
1
0910-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
0603-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-879-7
01
1
0603-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
0603-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
0603-
23
SUN VISOR
1-73138-156-1
01
1
0603-
23
SUN VISOR
1-73138-157-1
01
1
0603-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
0603-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
0603-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0603-0603
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0603-0603
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
0604-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
0604-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
0603-0702
143
BEZEL
1-72447-768-2
01
1
0603-
154
BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0603-
154
BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0603-
154
BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
12
1
0603-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
0603-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0603-
158
LOCK; HEADER SHELF
(B)
1-72448-376-0
01
1
0603-
158
LOCK; HEADER SHELF
(A)
1-72538-312-0
01
1
0603-
71
150
56
48
87
71
150
54
76
59
71
69
71
106
76
59
87
55
142
71
54
48
54
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0603-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0603-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0603-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0603-0904
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0603-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
0603-0603
49
NUT; ASSIST GRIP
M6 FLANGE
0-91180-106-0
01
1
0603-
54
GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
02
1
0603-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-563-1
01
1
0603-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-564-1
01
1
0603-
54
GRIP; ASSIST,QUARTER SIDE
EXC. ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
01
1
0603-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
02
1
0603-
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0603-0804
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0603-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0603-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0603-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0603-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0603-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
0603-
71
SCREW
ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER
5-09981-064-0
04
1
0603-
71
SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0603-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0603-
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER
5-09981-064-0
02
1
0603-
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
02
1
0603-
76
SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5
8-94230-464-1
02
1
0603-
76
SPACER; ASSIST GRIP
EXC. HIGH ROOF<S2F> (A)
1-73618-180-0
02
1
0603-
87
GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY
8-97098-476-2
02
1
0603-
87
GRIP; ASSIST,CANT RAIL SIDE
EXC. ASSIST GRIP A POST<NBK> DARK GRAY
8-97098-476-2
01
1
0603-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0603-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> 25X25
8-94272-533-0
04
1
0603-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0603-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
0603-
