2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#31717) — 56 parça

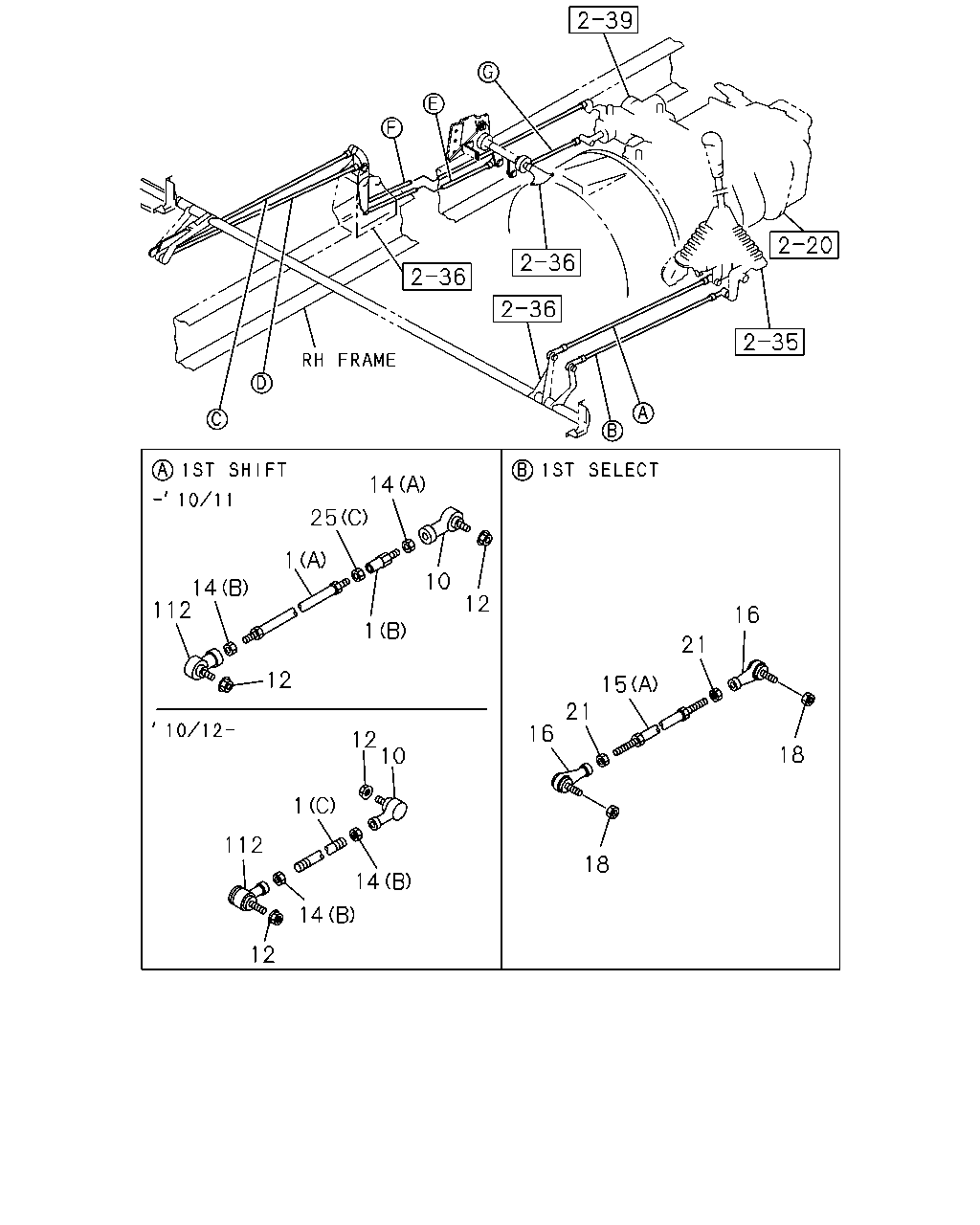

çizim 89026
14 25 1 10 14 112 12 16 1 21 12 15 21 16 12 10 18 1 112 18 14 14 12
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
(A) L=421 		1-33652-738-0 01 1 0511-1011
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 1012-
1 ROD; LINK,1ST SHIFT
(B) L=88 		1-33652-740-0 01 1 0511-1011
10 JOINT ASM; BALL,SELECT ROD 1-09760-124-0 01 1 0511-1011
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 1012-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0511-
14 NUT; LK,RIGHT SCREW,LINK ROD
(A) M10 		9-09111-410-0 01 1 0511-0512
14 NUT; LK,RIGHT SCREW,LINK ROD
(A) M10 		0-91111-510-0 01 1 0601-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 01 1 0511-0512
14 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		0-91111-512-0 01 1 0601-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		0-91111-512-0 02 1 1012-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 0511-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0511-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0511-
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 0511-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0511-
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 0511-0512
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0511-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0511-1011
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0511-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0511-
112 JOINT; RUBBER 1-33670-413-1 01 1 0511-
çizim 104217
22 25 24 112 15 25 22 15 22 28 25 28 24 36 44 35 32 5 38 38 44 36 32 35 30 30 6 45 47 49 8 47 49 45 25
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
MIXER TRUCK<RA2> L=1190 		1-33652-922-0 01 1 0511-
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2> L=1120 		1-33652-603-0 01 1 0511-
6 ROD; LINK,3RD SELECT
MIXER TRUCK<RA2> L=1722 		1-33662-003-2 01 1 0511-
6 ROD; LINK,3RD SELECT
EXC. MIXER TRUCK<RA2> L=1652 		1-33652-935-2 01 1 0511-
8 ROD; LINK,4TH SHIFT
L=370 		1-33652-654-1 01 1 0511-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 0511-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0511-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0511-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0511-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0511-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0511-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0511-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0511-1011
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0511-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0511-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0511-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0511-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0511-0512
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0511-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0511-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0511-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0511-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0511-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0511-0512
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0511-
112 JOINT; RUBBER 1-33670-413-1 01 1 0511-
