2-05 — CLUTCH PIPING (#31707) — 130 parça

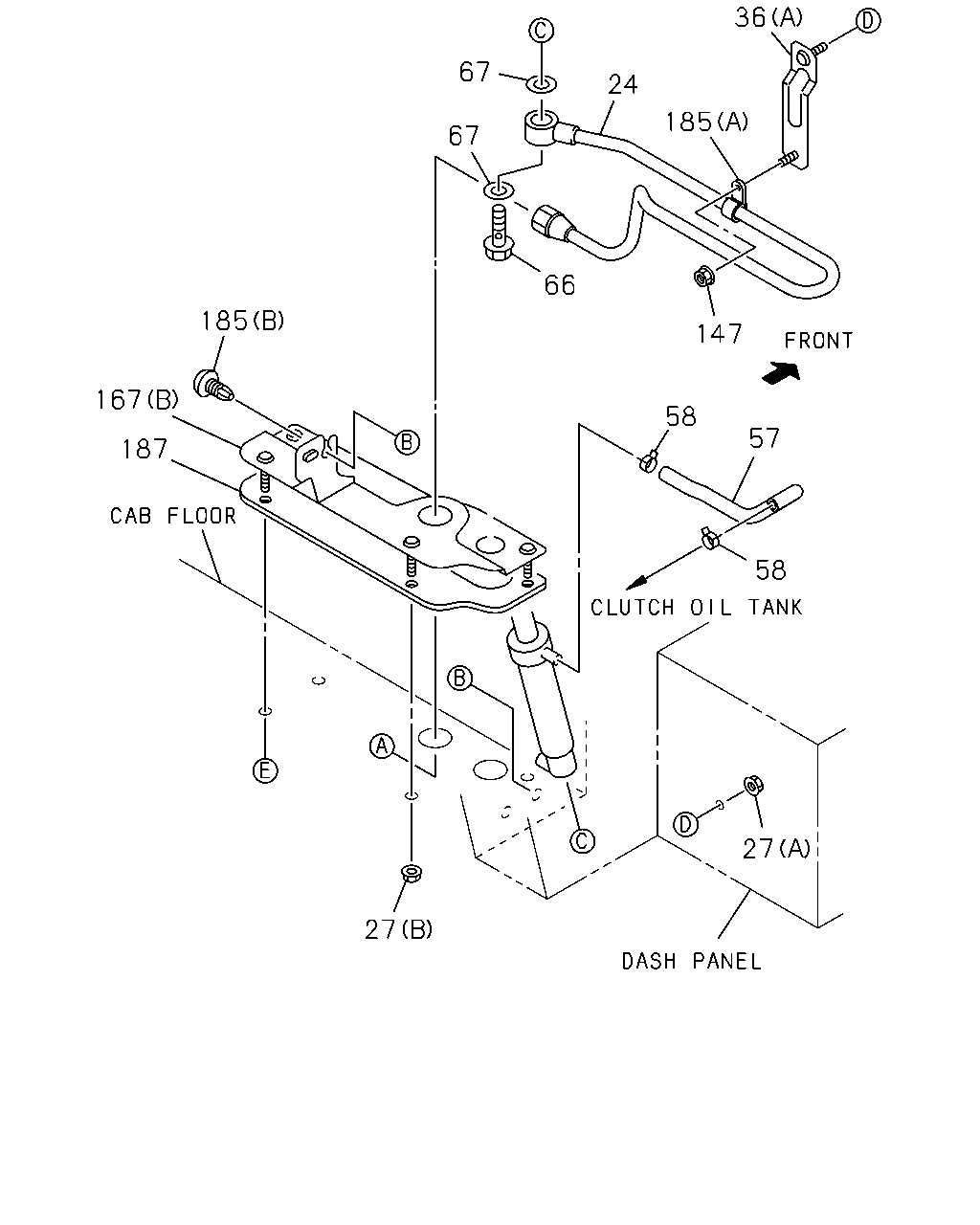

çizim 88528
36 67 24 185 67 66 185 147 167 58 57 187 58 27 27
BalonParca AdiParca NoAdetTipApplied Date
24 PIPE ASM; CLU,M/CYL TO UNION
L=621 		1-47428-362-1 01 1 0511-
27 NUT; BRKT
(D) M10 FLANGE 		0-91180-210-0 02 1 0511-
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
27 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 01 1 0603-0605
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0511-
27 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0511-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0511-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0511-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0511-
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 0511-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0511-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0511-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0511-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0511-
167 BRACKET; UNION
(B) 		1-71117-207-1 01 1 0511-
167 BRACKET; UNION
(A) 		1-71907-376-1 01 1 0511-
185 CLIP; BRKT
(B) D8X13.5 		1-09987-248-1 01 1 0511-
185 CLIP; BRKT
(A) ID=11 L=16 		9-09525-025-0 01 1 0511-0606
185 CLIP; BRKT
(A) ID=11 L=16 		0-95235-025-0 01 1 0607-
187 SEAL; BRKT 1-71117-209-2 01 1 0511-
çizim 89052
25 29 31 36 28 30 30 26 33 34 29 28 25 34 106 33 35 27 117 4 44 45 46 42 36 115 116 37 43
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 0511-
25 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 03 1 0511-
25 BRACKET; OIL PIPE
(C) 		1-71907-726-0 01 1 0511-
25 BRACKET; OIL PIPE
(B) 		1-47471-021-0 01 1 0511-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0511-0602
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603-
27 NUT; BRKT
(D) M10 FLANGE 		0-91180-210-0 02 1 0511-
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
27 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 01 1 0603-0605
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0511-
27 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0511-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 0511-
28 CLIP; OIL PIPE
(A) ID=16 & 9 L=18 & 17 		1-09700-669-0 02 1 0511-
28 CLIP; OIL PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0511-
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 0511-0512
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0511-0512
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0511-0512
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0511-0904
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
31 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0511-0602
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 06 1 0511-
33 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 0511-0606
33 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0607-
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0511-0512
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0511-0512
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0511-0602
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0511-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0511-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0511-
37 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28181-020-0 01 1 0511-0512
37 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28151-020-0 01 1 0601-
42 BRACKET; FLEX HOSE,CLU CONT 1-47471-203-0 01 1 0511-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0511-0512
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 0511-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		9-09150-512-0 01 1 0511-0603
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 0604-
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 02 1 0511-0607
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 02 1 0608-
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0511-0512
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0511-0603
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-

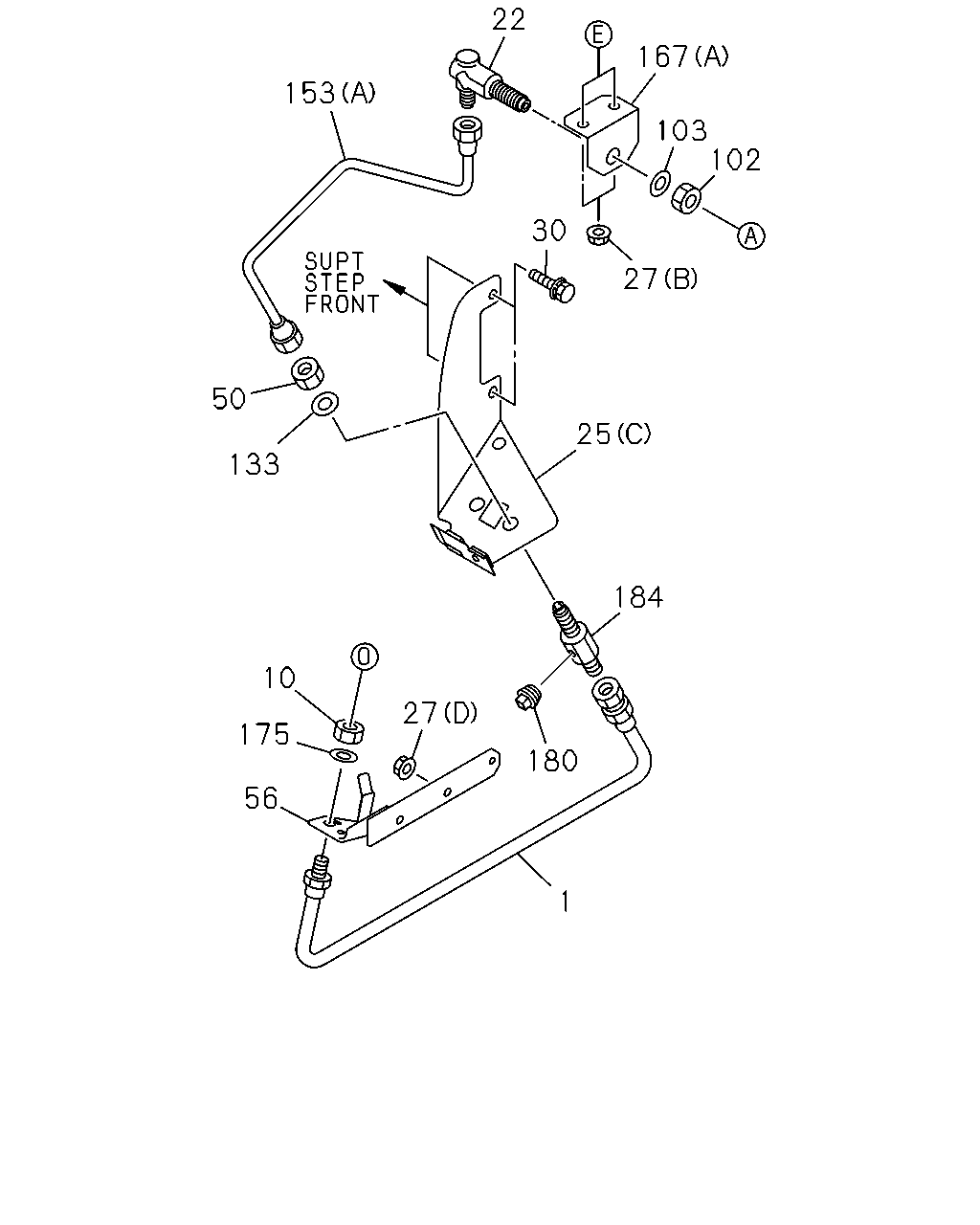

çizim 89054
153 22 167 103 102 30 27 25 184 180 1 27 56 175 10 133 50
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 0511-0703
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 0704-
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0511-0512
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 0511-0607
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 0608-
25 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 03 1 0511-
25 BRACKET; OIL PIPE
(C) 		1-71907-726-0 01 1 0511-
25 BRACKET; OIL PIPE
(B) 		1-47471-021-0 01 1 0511-
27 NUT; BRKT
(D) M10 FLANGE 		0-91180-210-0 02 1 0511-
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
27 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 01 1 0603-0605
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0511-
27 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0511-
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0511-0512
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0511-0904
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
50 NUT; UNION
M14 		9-99111-414-0 01 1 0511-0512
50 NUT; UNION
M14 		0-91111-514-0 01 1 0601-
56 BRACKET; FLEX HOSE 1-47471-378-0 01 1 0511-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0511-0512
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0511-0603
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0511-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2072 SERVICED BY L=2150 		1-47428-770-0 01 1 0511-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=395 		1-49166-204-0 01 1 0511-0606
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 0607-
167 BRACKET; UNION
(B) 		1-71117-207-1 01 1 0511-
167 BRACKET; UNION
(A) 		1-71907-376-1 01 1 0511-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0511-0603
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
180 PLUG; PIPE 9-09204-510-0 01 1 0511-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0511-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-

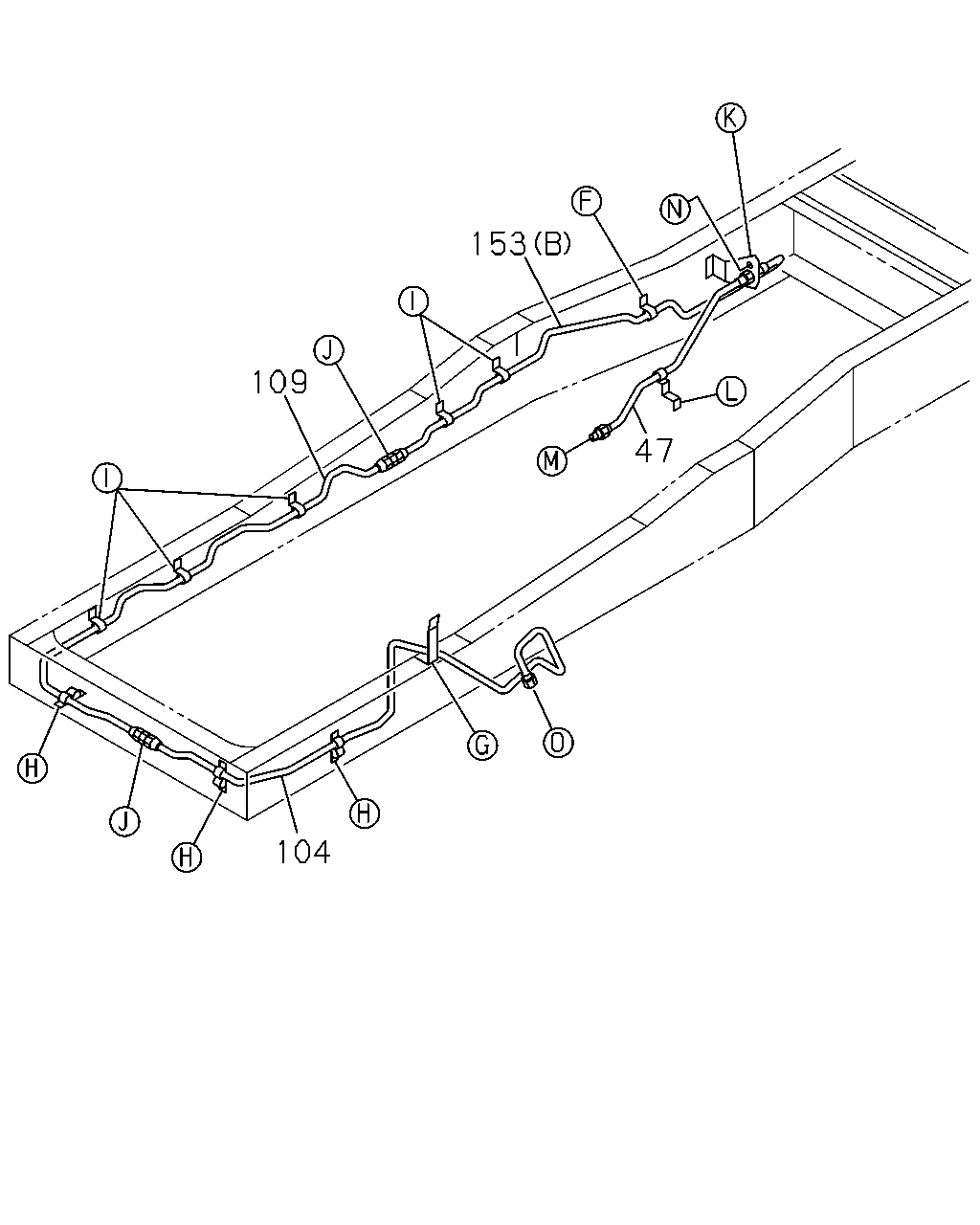

çizim 104129
153 109 47 104
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
MIXER TRUCK<RA2> L=550 		1-09364-434-0 01 1 0511-
47 HOSE; FLEX,CLU CONT
EXC. MIXER TRUCK<RA2> L=600 		1-09364-705-0 01 1 0511-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1447 SERVICED BY L=1550 		1-47428-766-0 01 1 0511-
109 PIPE; AIR,UNION TO UNION
L=1704 SERVICED BY L=1800 		1-47426-392-0 01 1 0511-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2072 SERVICED BY L=2150 		1-47428-770-0 01 1 0511-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=395 		1-49166-204-0 01 1 0511-0606
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 0607-

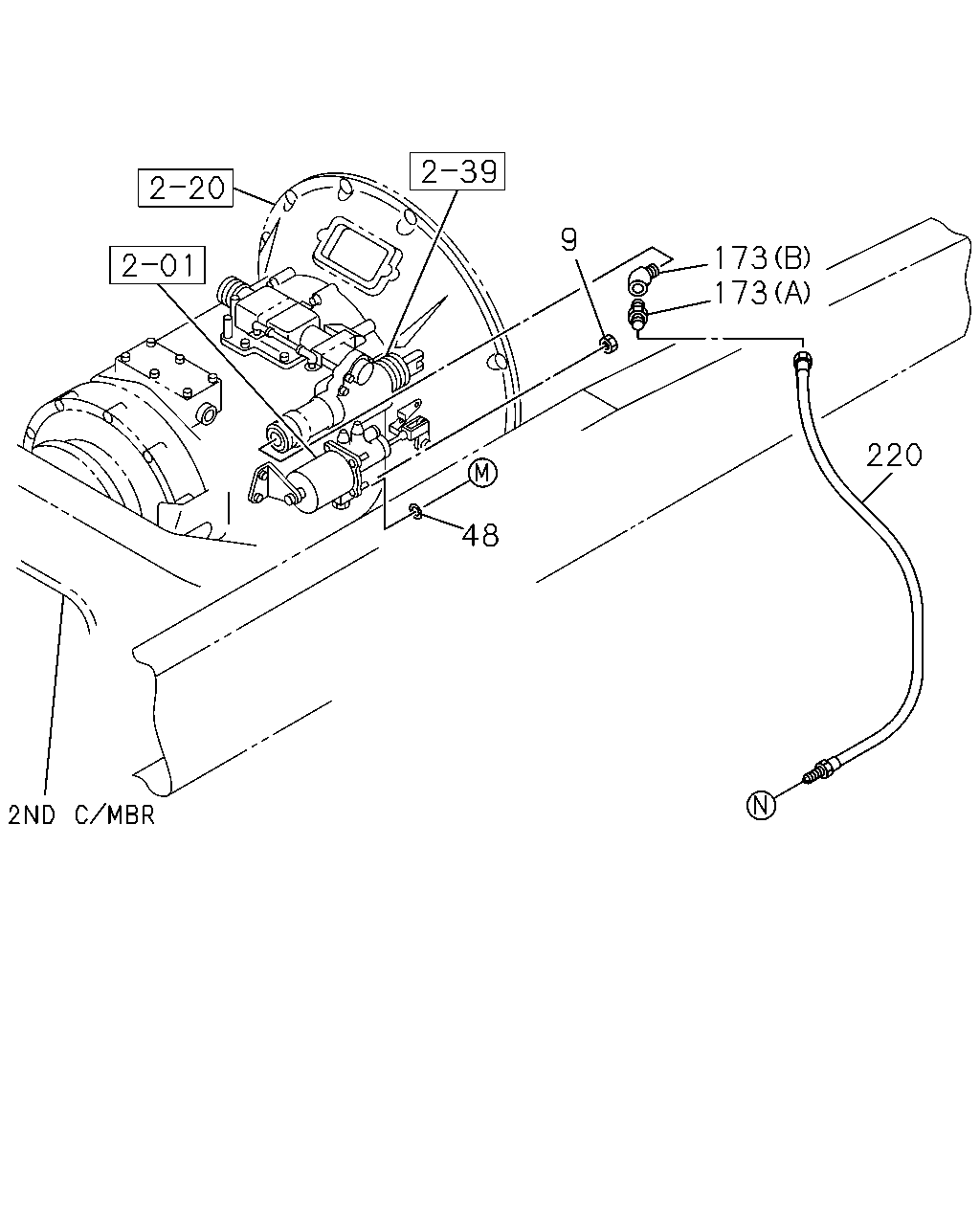

çizim 104216
173 173 220 48 9
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 0511-0602
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91180-210-0 02 1 0603-0610
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91180-210-0 02 1 0611-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0511-
173 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0511-
173 CONNECTOR
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0511-
220 HOSE; FLEX,POWER ASSIST
MIXER TRUCK<RA2> L=300 		1-09363-608-0 01 1 0511-
220 HOSE; FLEX,POWER ASSIST
EXC. MIXER TRUCK<RA2> L=350 		1-09363-624-0 01 1 0511-
