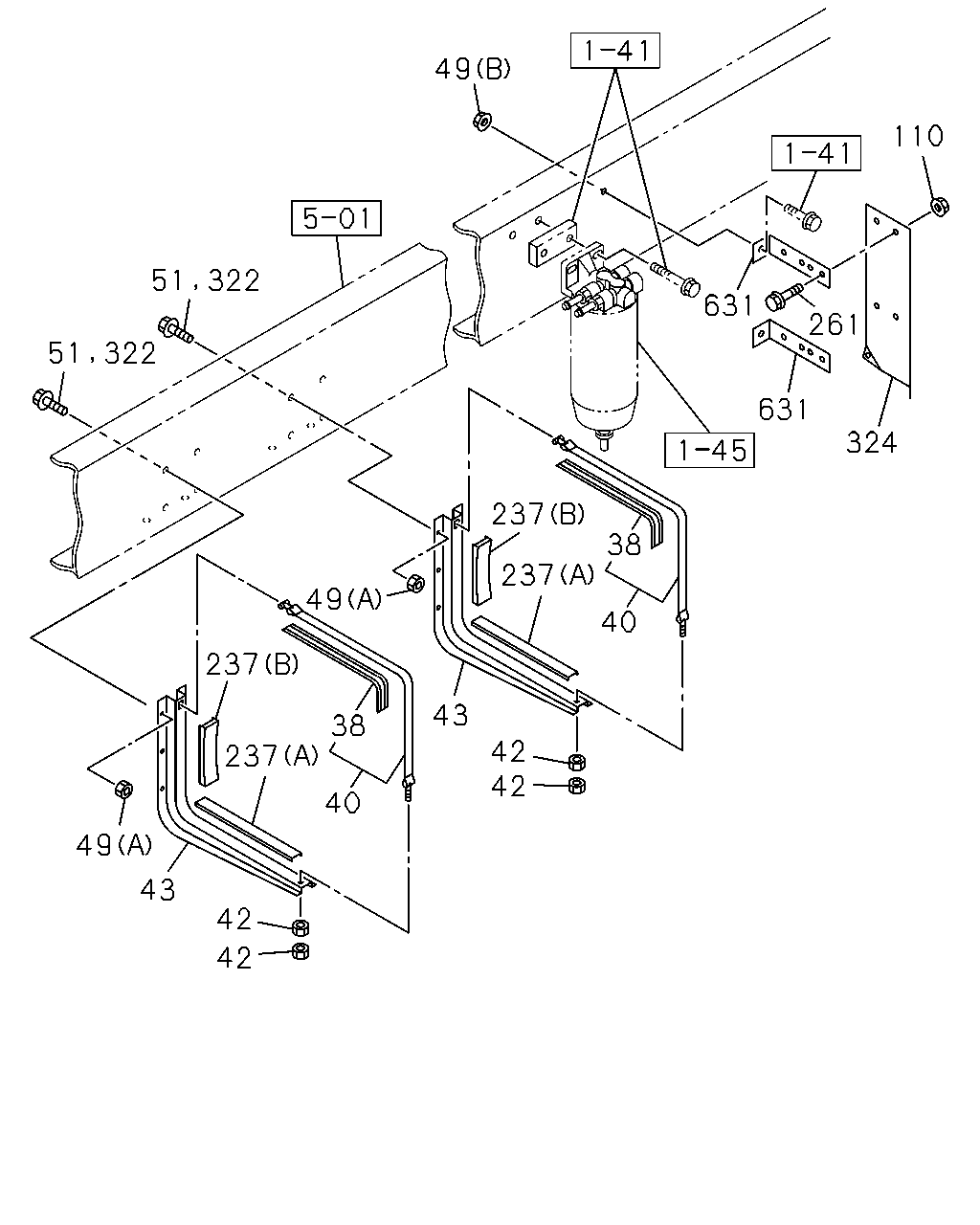

1-40 — FUEL TANK (#31700) — 72 parça

49 110 322 51 631 261 51 322 631 324 237 38 237 49 40 237 43 38 42 42 237 40 49 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=960	1-22553-044-0	04	1	0511-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=960	1-22553-044-0	02	1	0511-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1045	1-22550-262-0	04	1	0511-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1045	1-22550-262-0	02	1	0511-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0511-0512
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0511-0512
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-543-0	04	1	0511-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-543-0	02	1	0511-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	9-99110-512-0	16	1	0511-0512
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0601-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> (A) M12	9-99110-512-0	08	1	0511-0512
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> (A) M12	0-91110-512-0	08	1	0601-
49	NUT; BRKT WHEEL BASE 6300MM(63W) (B) M8 FLANGE	0-91150-108-0	02	1	0511-0602
49	NUT; BRKT WHEEL BASE 6300MM(63W) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	16	1	0511-0512
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28051-240-0	16	1	0601-
110	NUT; PROTECTOR WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	0511-0602
110	NUT; PROTECTOR WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	04	1	0603-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=340	1-22553-043-2	04	1	0511-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=540	1-22553-064-1	04	1	0511-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=340	1-22553-043-2	02	1	0511-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=540	1-22553-064-1	02	1	0511-
261	BOLT; PROTECTOR WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28680-820-0	04	1	0511-0512
261	BOLT; PROTECTOR WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	04	1	0601-
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	08	1	0511-0512
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28051-235-0	08	1	0601-
324	PROTECTOR; FUEL SEDIMENTER WHEEL BASE 6300MM(63W)	1-47471-216-0	01	1	0511-
631	BRACKET; PROTECTOR WHEEL BASE 6300MM(63W)	1-82698-358-0	02	1	0511-

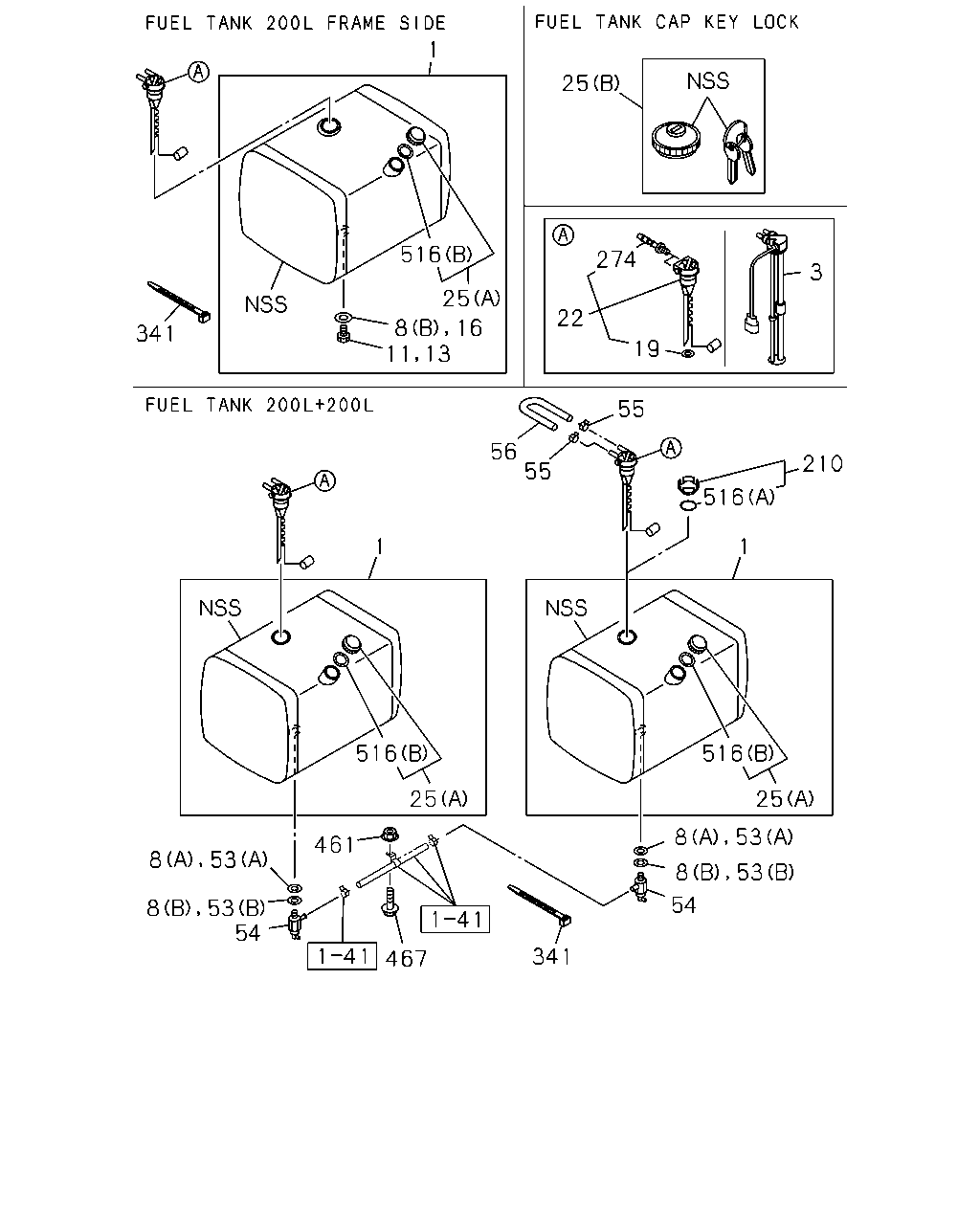

25 274 22 19 3 1 341 516 25 8 16 11 13 56 55 55 516 210 1 1 516 25 8 53 8 53 54 341 461 467 53 8 8 53 54 516 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L+200L<NF7> 745X650X480 200L	1-87411-169-0	02	1	0511-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 745X650X480 200L	1-87411-169-0	01	1	0511-
3	UNIT; FUEL TANK,SUB	8-98217-750-0	01	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6	8-98030-453-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	8-98030-605-0	02	1	1211-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	1211-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M18X12	0-92002-418-0	01	1	1211-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	9-99202-318-0	01	1	0511-0606
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	0-92002-418-0	01	1	0607-1210
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> ID=18.2 T=1.6	8-98030-453-0	01	1	0511-1210
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0511-1210
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-
22	UNIT; FUEL TANK	1-83141-131-0	01	1	0511-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (B)	1-22440-057-2	02	1	0808-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (B)	1-22440-057-2	02	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> EXC. CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	02	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	02	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> EXC. CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	02	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> (B)	1-22440-057-2	01	1	0808-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22440-057-2	01	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	01	1	1211-1212
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	01	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> CHINA EQUIPMENT(YT2) (B)	1-22440-057-2	01	1	1301-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-056-0	02	1	0511-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-056-0	01	1	0511-
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6	8-98030-453-0	02	1	0511-1210
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	8-98030-605-0	02	1	0511-1210
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0511-1210
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0511-
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0511-
210	CAP; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22411-076-0	01	1	0511-
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0511-1210
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0511-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0511-
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0511-0602
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0603-
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0511-0512
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0601-
516	GASKET; CAP (B) ID=78	8-98259-383-0	01	1	1312-
516	GASKET; CAP FUEL TANK 200L+200L<NF7> (A) ID=58	1-83149-005-0	01	1	0511-1212
516	GASKET; CAP FUEL TANK 200L+200L<NF7> CHINA EQUIPMENT(YT2) (A) ID=58	1-83149-005-0	01	1	1301-
