◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#3170) — 178 parça

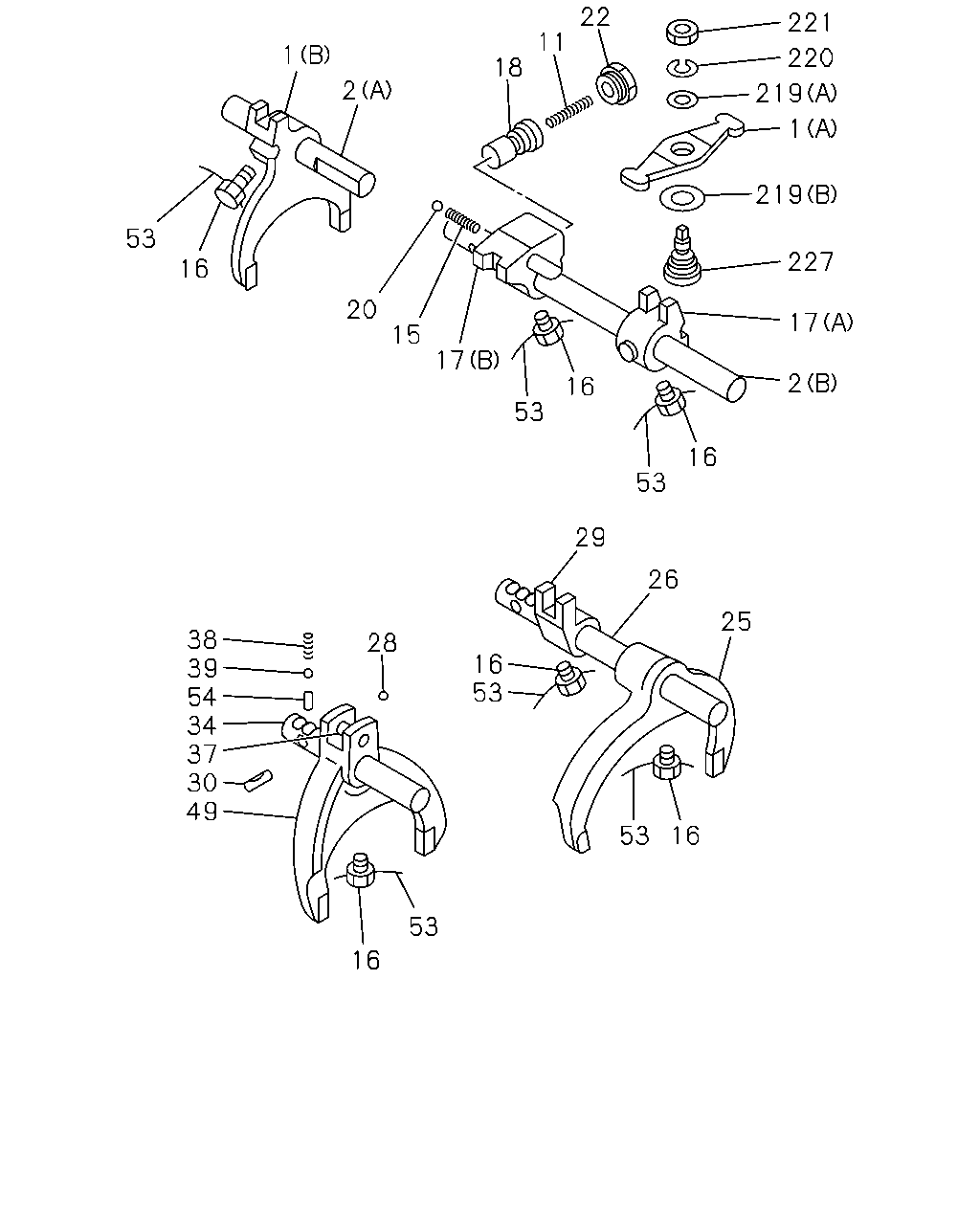

çizim 5027
22 221 11 1 220 18 2 219 1 219 53 227 16 20 17 15 17 2 16 53 16 53 29 26 25 38 39 54 34 37 30 49 28 16 53 53 16 53 16
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 9104-
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-138-1 01 1 9104-
1 ARM; SHIFT,1ST & REV 1-33511-082-0 01 1 0108-
1 ARM; SHIFT,1ST & REV 1-33511-138-1 01 1 0108-
2 ROD; SHIFT,1ST & REV
(A) L=165 		1-33531-118-2 01 1 9104-
2 ROD; SHIFT,1ST & REV
(B) L=313 		1-33531-119-2 01 1 9104-
2 ROD; SHIFT,1ST & REV
L=165 		1-33531-118-2 01 1 0108-
2 ROD; SHIFT,1ST & REV
L=313 		1-33531-119-2 01 1 0108-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9104-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0108-
15 SPRING; LK,SHIFT SLEEVE 1-09580-439-0 01 1 9104-
15 SPRING; LK,SHIFT SLEEVE 1-09580-439-0 01 1 0108-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 		1-09052-025-0 06 1 9104-9205
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 		1-09052-032-1 06 1 9206-9512
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 		1-09052-039-0 06 1 9601-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 		1-09052-039-0 06 1 0108-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-104-0 01 1 9104-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-304-2 01 1 9104-
17 BLOCK; SHIFT,1ST & REV 1-33511-104-0 01 1 0108-
17 BLOCK; SHIFT,1ST & REV 1-33511-304-2 01 1 0108-
18 SLEEVE; 1ST & REV,SHIFT BLOCK
L=49.5 		1-33516-024-0 01 1 9104-
18 SLEEVE; 1ST & REV,SHIFT BLOCK
L=49.5 		1-33516-024-0 01 1 0108-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9104-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0108-
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9104-
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0108-
25 ARM; SHIFT,2ND & 3RD 1-33511-252-1 01 1 9104-
25 ARM; SHIFT,2ND & 3RD 1-33511-252-1 01 1 0108-
26 ROD; SHIFT,2ND & 3RD 1-33531-267-0 01 1 9104-
26 ROD; SHIFT,2ND & 3RD 1-33531-267-0 01 1 0108-
28 BALL; INTER LK 9-00097-501-0 03 1 9104-
28 BALL; INTER LK 9-00097-501-0 03 1 0108-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-346-1 01 1 9104-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-346-1 01 1 0108-
30 PIN; INTER LK 9-33534-003-0 02 1 9104-
30 PIN; INTER LK 9-33534-003-0 02 1 0108-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-121-2 01 1 9104-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-121-2 01 1 0108-
37 PIN; STOPPER ARM
OD=12 L=32 		9-08161-232-0 01 1 9104-
37 PIN; STOPPER ARM
OD=12 L=32 		9-08161-232-0 01 1 0108-
38 SPRING; DETENT 1-09580-193-0 03 1 9104-
38 SPRING; DETENT 1-09580-193-0 03 1 0108-
39 BALL; DETENT 9-00097-013-0 03 1 9104-
39 BALL; DETENT 9-00097-013-0 03 1 0108-
49 ARM; SHIFT,4TH & 5TH 1-33511-250-1 01 1 9104-
49 ARM; SHIFT,4TH & 5TH 1-33511-250-1 01 1 0108-
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9104-9205
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 9104-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0108-
219 WASHER; PL,SPINDLE
(A) ID=12.5 OD=26 		9-09164-612-0 01 1 9104-9205
219 WASHER; PL,SPINDLE
(B) ID=16.5 		9-09857-042-0 01 1 9104-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0108-
220 WASHER; LK,SPINDLE
ID=12.2 		9-09150-512-0 01 1 9104-9205
221 NUT; SPINDLE
M12 		9-99110-412-0 01 1 9104-9205
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9206-
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0108-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9104-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0108-

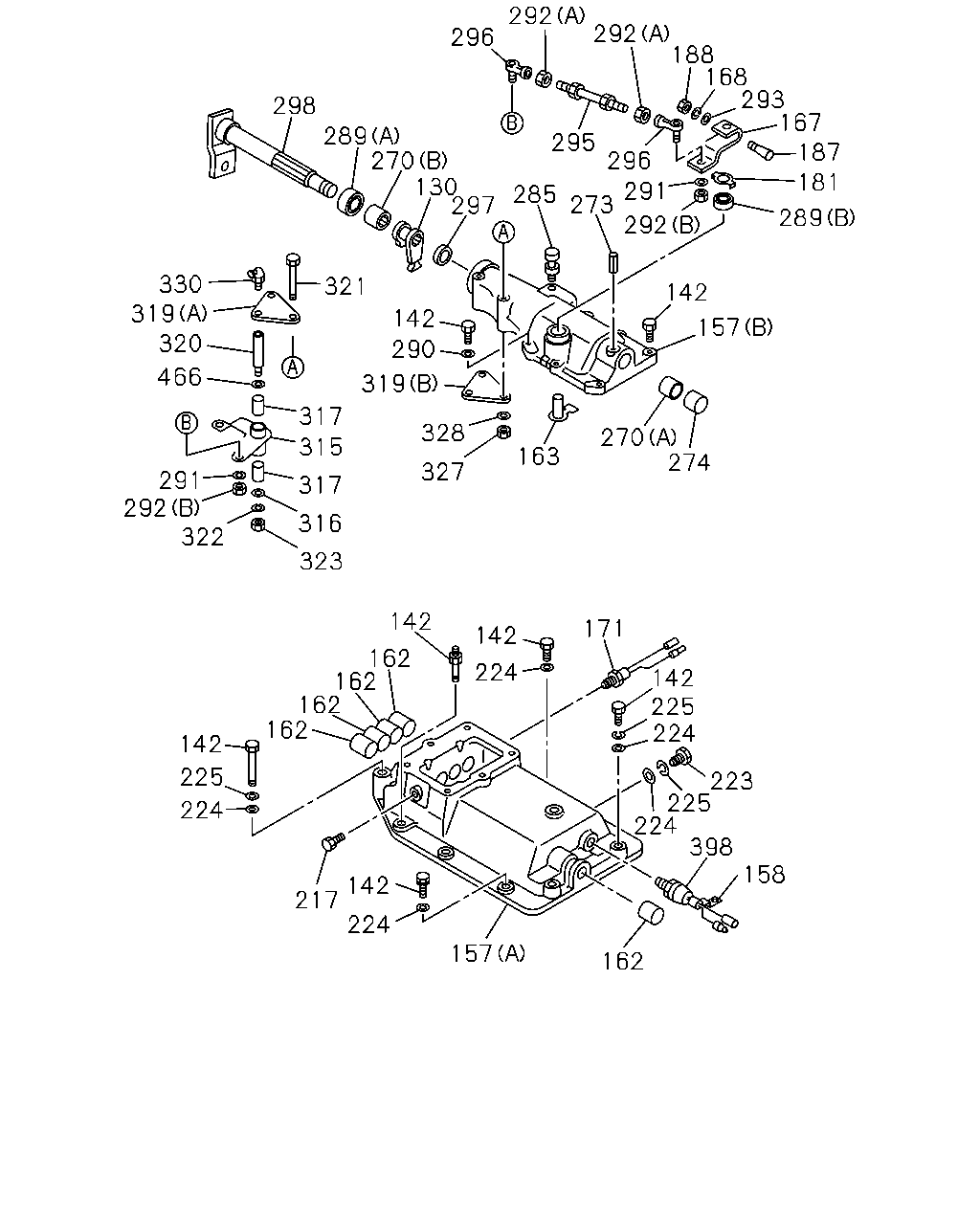

çizim 5029
292 292 188 168 293 167 187 296 298 289 270 130 297 295 296 181 291 285 273 289 292 330 319 320 321 142 142 157 290 466 319 317 328 270 274 315 163 327 291 292 322 317 316 323 142 171 142 162 162 162 162 224 142 225 224 142 225 223 225 224 224 398 158 142 217 224 157 162
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-068-3 01 1 9104-
130 LEVER; SHIFT,INTERNAL 1-33521-068-3 01 1 0108-
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9104-9205
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9104-9205
142 BOLT; QUAD BOX
M10X50 		0-16806-050-0 02 1 9104-9205
142 BOLT; QUAD BOX
M10X45 FLANGE 		0-28181-045-0 02 1 9206-
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9104-9205
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 03 1 9104-9205
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 07 1 9206-
142 BOLT; QUAD BOX
M10X33 		1-09029-040-3 02 1 9104-9205
142 BOLT; QUAD BOX
M10X20,M10X26 L=56 		1-09049-014-1 02 1 9206-
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9104-9205
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 03 1 9206-
142 BOLT; QUAD BOX
M10X45 FLANGE 		0-28181-045-0 02 1 0108-
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 0108-
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 07 1 0108-
142 BOLT; QUAD BOX
M10X20,M10X26 L=56 		1-09049-014-1 02 1 0108-
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 03 1 0108-
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9104-
157 BOX; QUAD,TRANS
(A) 		1-33541-370-0 01 1 9104-
157 BOX; QUAD,TRANS 1-33541-256-2 01 1 0108-
157 BOX; QUAD,TRANS 1-33541-370-0 01 1 0108-
158 CLIP; HARNESS
ID=11 		1-09700-415-0 01 1 9104-
158 CLIP; HARNESS
ID=11 		1-09700-415-0 01 1 0108-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 9104-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0108-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9104-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0108-
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9104-
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0108-
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9104-9205
171 SWITCH; NEUTRAL 1-82440-067-1 01 1 9104-
171 SWITCH; NEUTRAL 1-82440-067-1 01 1 0108-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9104-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0108-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9104-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0108-
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9104-9205
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9305-9804
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 9104-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0108-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9104-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0108-
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9104-9205
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9104-
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0108-
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 09 1 9104-9205
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9104-
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0108-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9104-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9104-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9104-
270 BEARING; NEEDLE,QUAD BOX
NTN 		1-09811-006-0 01 1 0108-
270 BEARING; NEEDLE,QUAD BOX
NSK 		1-09811-057-0 01 1 0108-
270 BEARING; NEEDLE,QUAD BOX
NTN 		1-09811-260-0 01 1 0108-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9104-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0108-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9104-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0108-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9104-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0108-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9104-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9104-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=41 		1-09625-334-0 01 1 0108-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=30 		1-09625-386-0 01 1 0108-
290 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9104-9205
291 WASHER; LK,LINK ROD
M8 		9-09110-408-0 02 1 9104-9205
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9104-
292 NUT; LINK ROD
(B) ID=8.2 		9-09150-508-0 02 1 9104-9205
292 NUT; LINK ROD
(B) M8 FLANGE 		0-91150-208-0 02 1 9206-9301
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9302-9804
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-
292 NUT; LINK ROD
M8 		9-09111-408-0 02 1 0108-
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0108-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9104-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0108-
295 ROD; LINK,RELAY LEVER 1-33652-275-0 01 1 9104-9402
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9403-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0108-
296 ROD END 5-09760-018-0 02 1 9104-9402
296 ROD END
L=48 		1-09760-038-1 02 1 9403-
296 ROD END
L=48 		1-09760-038-1 02 1 0108-
297 STOPPER; SELECT 1-33537-012-0 01 1 9104-
297 STOPPER; SELECT 1-33537-012-0 01 1 0108-
298 SHAFT; SHIFT LEVER 1-33522-058-1 01 1 9104-
298 SHAFT; SHIFT LEVER 1-33522-058-1 01 1 0108-
315 LEVER; SELECT 1-33651-196-0 01 1 9104-
315 LEVER; SELECT 1-33651-196-0 01 1 0108-
316 WASHER; PL,LEVER 1-09503-028-1 01 1 9104-
316 WASHER; PL,LEVER 1-09503-028-1 01 1 0108-
317 BUSHING; LEVER 1-09330-003-0 02 1 9104-
317 BUSHING; LEVER 1-09330-003-0 02 1 0108-
319 BRACKET; SELECT LEVER
(A) 		1-33657-157-0 01 1 9104-
319 BRACKET; SELECT LEVER
(B) 		1-33657-161-0 01 1 9104-
319 BRACKET; SELECT LEVER 1-33657-157-0 01 1 0108-
319 BRACKET; SELECT LEVER 1-33657-161-0 01 1 0108-
320 SHAFT; LEVER 1-33619-118-0 01 1 9104-
320 SHAFT; LEVER 1-33619-118-0 01 1 0108-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9104-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0108-
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9104-
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 0108-
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9104-
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 0108-
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 03 1 9104-9205
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9206-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9206-
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 0108-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0108-
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9104-9205
330 NIPPLE; GREASE 1-09380-003-0 01 1 9104-
330 NIPPLE; GREASE 1-09380-003-0 01 1 0108-
398 SWITCH; REV LAMP 1-82440-054-0 01 1 9104-
398 SWITCH; REV LAMP 1-82440-054-0 01 1 0108-
466 WASHER; CUP,LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 9104-
466 WASHER; CUP,LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0108-
