Isuzu WW
▶
TRUCKS
▶
FTR
▶
10626 - FTR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#317) — 26 parça
Tümü
A - 6HE1 STD NEG
B - 6HE1 N ENG
◀

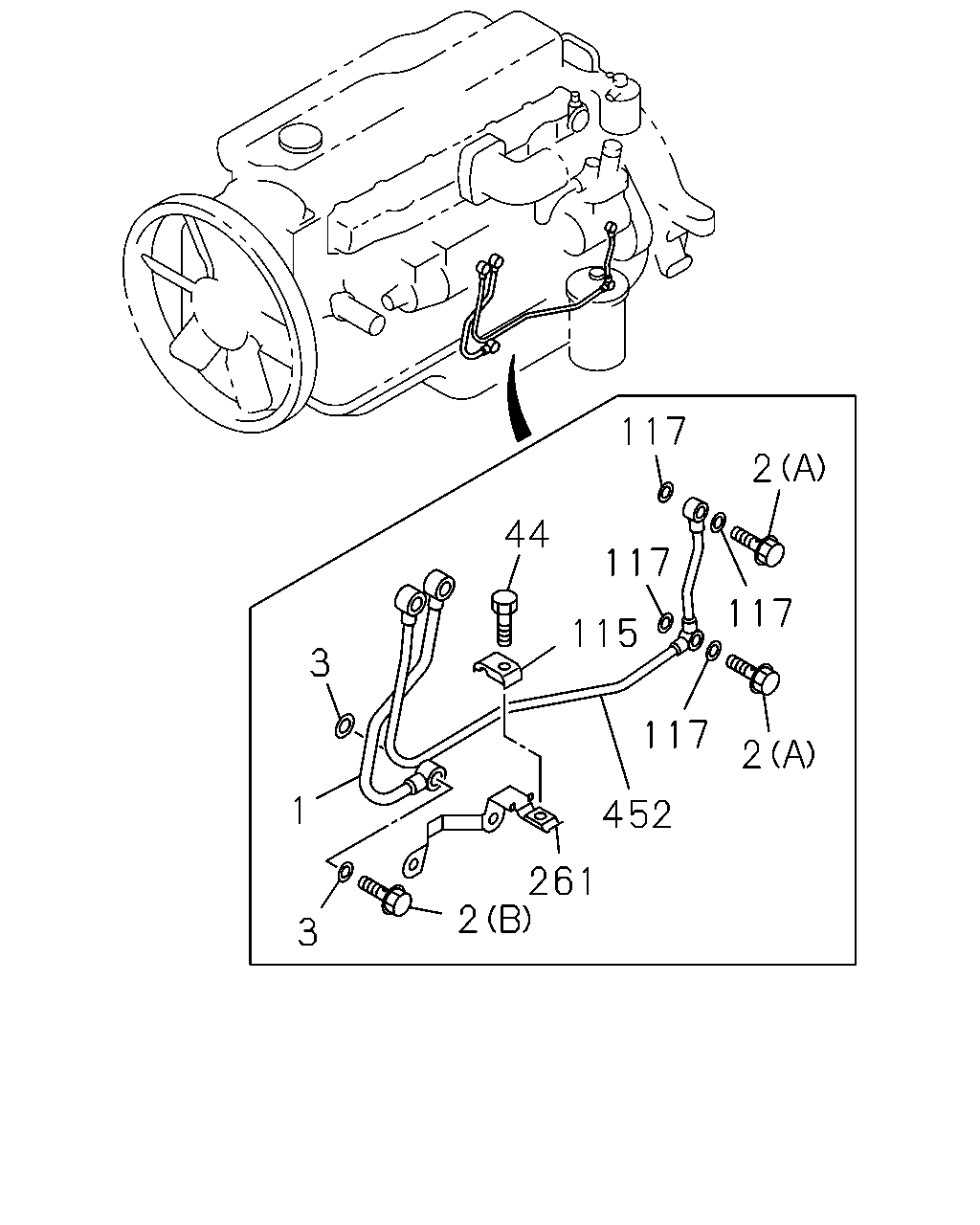

[052A] NO.1 (15 parça)
[052A] NO.2 ENGINE REAR PTO (11 parça)
▶
117
2
44
117
117
115
3
117
2
1
452
261
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; OIL,INJ PUMP TO C/BL
8-94399-415-0
01
1
9202-9307
●
●
1
PIPE; OIL,INJ PUMP TO C/BL
8-94394-276-0
01
1
9308-
●
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
02
1
9202-
●
●
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M10X21 FLANGE
1-09675-077-0
02
1
9202-
●
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-085-0
01
1
9202-
●
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
02
1
9202-
●
●
44
BOLT; CLIP,OIL PIPE
M6X22 FLANGE
0-28210-622-0
01
1
9202-9204
●
●
44
BOLT; CLIP,OIL PIPE
M6X22 FLANGE
0-28280-622-0
01
1
9205-9305
●
●
44
BOLT; CLIP,OIL PIPE
M6X22 FLANGE
0-28080-622-0
01
1
9306-
●
●
115
CLIP; PIPE,INJ PUMP
1-09701-091-0
01
1
9202-
●
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
04
1
9202-
●
●
261
BRACKET; CLIP,OIL PIPE
8-94396-695-0
01
1
9202-
●
●
452
PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>
8-94399-472-0
01
1
9202-9501
●
452
PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>
8-94390-073-0
01
1
9502-
●
452
PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1>
8-94397-462-0
01
1
9202-
●
●
156
156
153
2
146
48
156
156
100
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
02
1
9202-
●
●
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M10X21 FLANGE
1-09675-077-0
02
1
9202-
●
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-085-0
01
1
9202-
●
●
48
CLIP; OIL PIPE
ENGINE REAR PTO(SV1)
1-09701-091-0
01
1
9202-
●
100
BOLT; CLIP
ENGINE REAR PTO(SV1) M6X22 FLANGE
0-28210-622-0
01
1
9202-9204
●
100
BOLT; CLIP
ENGINE REAR PTO(SV1) M6X22 FLANGE
0-28280-622-0
01
1
9205-9305
●
100
BOLT; CLIP
ENGINE REAR PTO(SV1) M6X22 FLANGE
0-28080-622-0
01
1
9306-
●
146
BOLT; BRKT
ENGINE REAR PTO(SV1) M8X25 FLANGE
0-28080-825-0
01
1
9202-
●
153
PIPE; OIL,C/BL TO PTO
ENGINE REAR PTO(SV1)
8-94393-414-0
01
1
9202-9309
●
153
PIPE; OIL,C/BL TO PTO
ENGINE REAR PTO(SV1)
8-94395-291-1
01
1
9310-
●
156
GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) ID=10.2 OD=16.0
9-09571-410-0
04
1
9202-
●
