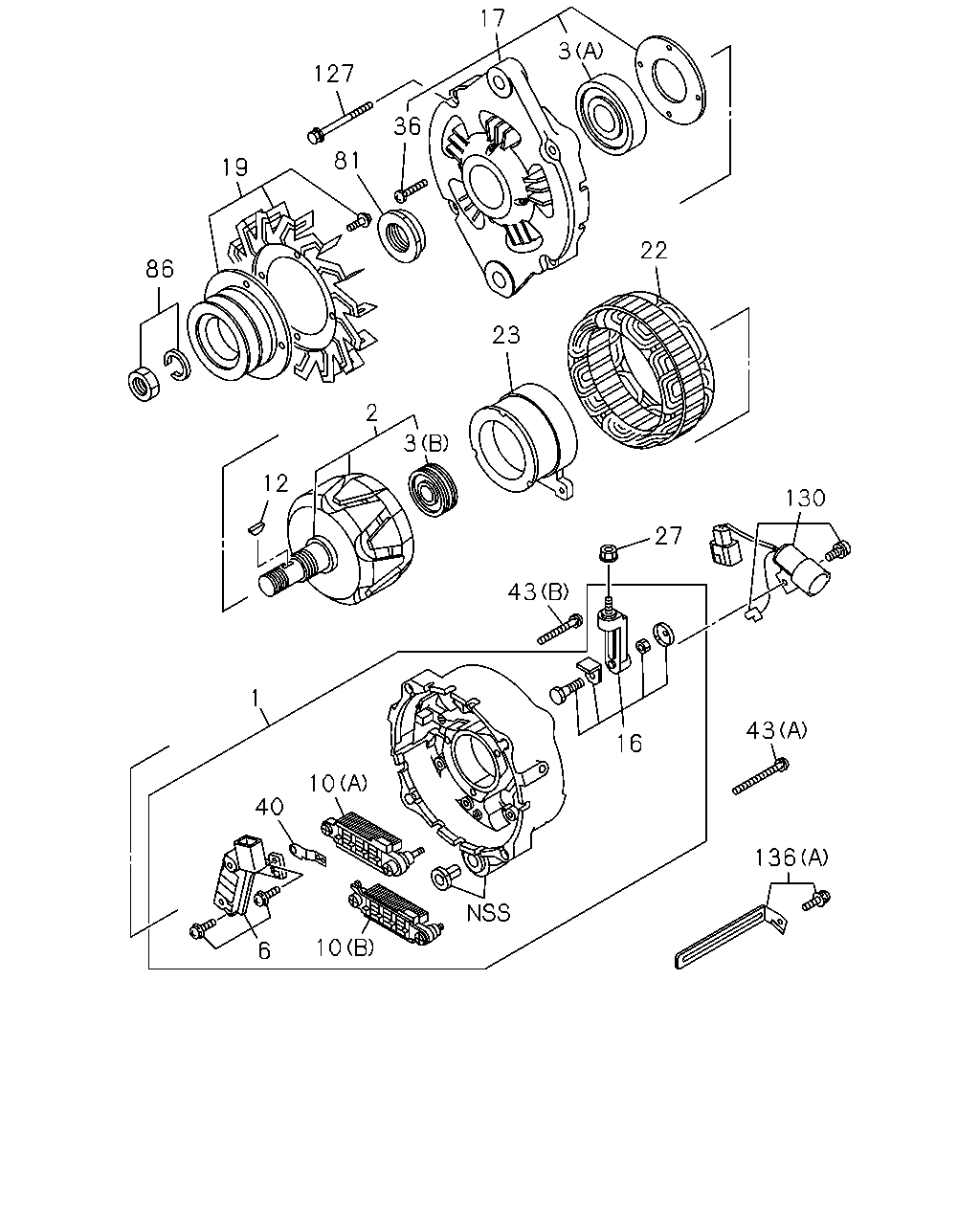

Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#31691) — 152 parça

17 3 127 36 81 19 22 86 2 2 3 12 130 27 43 1 43 16 10 40 136 10 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-647-3	1-81214-375-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81222-129-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-572-8	8-98024-557-2	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-572-8	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-647-3	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 1-81200-647-3	1-81260-018-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 1-81200-647-3	1-81219-128-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 1-81200-647-3	1-81219-140-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-572-8	1-81219-141-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-572-8	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-647-3	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-572-8	1-81213-116-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-484-8, E = 8-98200-154-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98181-466-0, F = 8-98200-156-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: C = 1-81200-647-3	1-81222-149-3	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 1-81200-647-3	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-572-8	1-81211-135-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-821-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: C = 1-81200-647-3	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 1-81200-572-8	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-817-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 1-81200-647-3	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-572-8	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, E = 8-98200-154-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 1-81200-572-8	1-81229-897-0	01	1	-

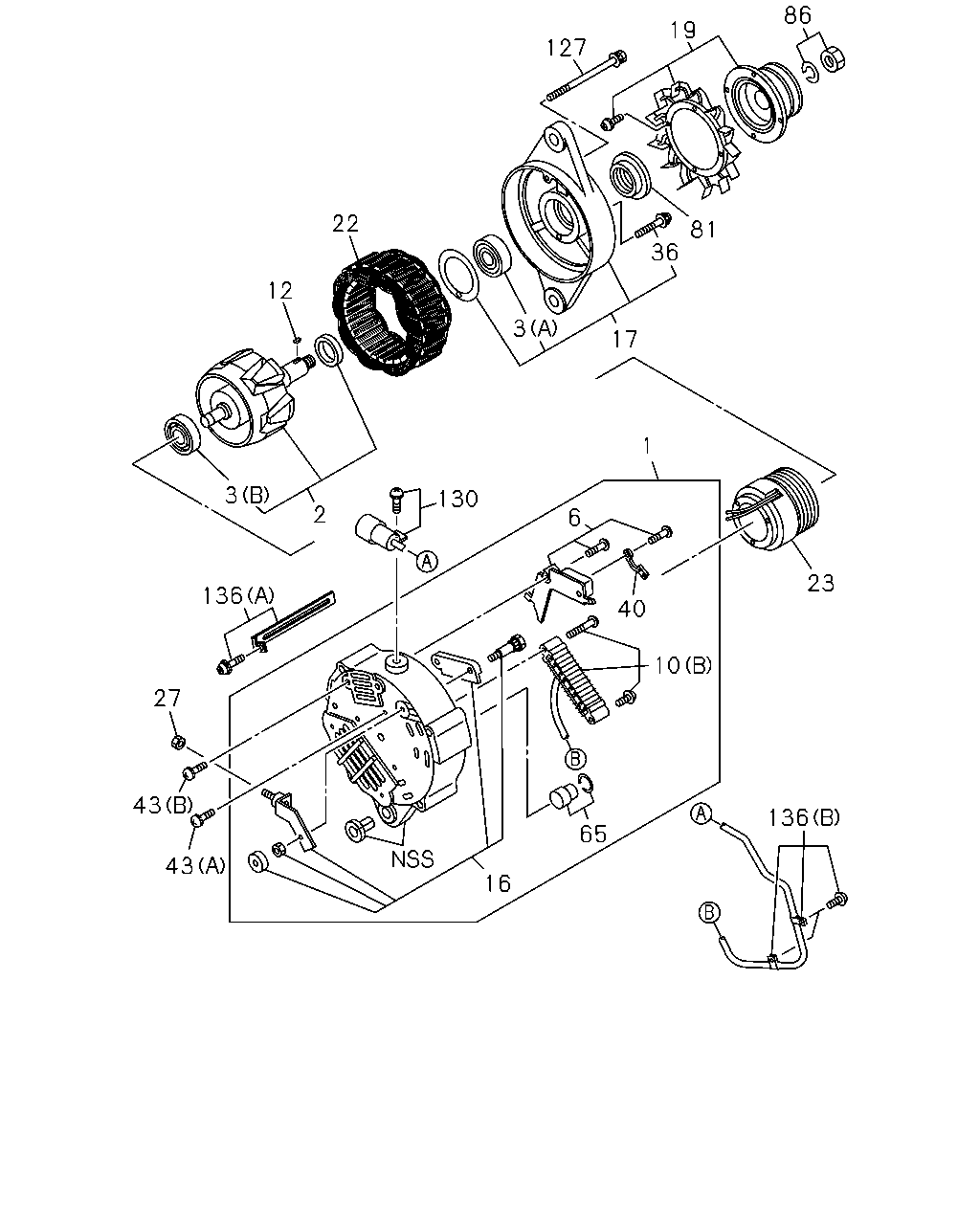

86 19 127 22 81 36 12 3 17 1 3 130 2 6 23 136 40 10 27 43 136 65 43 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-647-3	1-81214-375-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81222-129-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-572-8	8-98024-557-2	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-572-8	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-647-3	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 1-81200-647-3	1-81260-018-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 1-81200-647-3	1-81219-128-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 1-81200-647-3	1-81219-140-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-572-8	1-81219-141-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-572-8	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-647-3	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-572-8	1-81213-116-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-484-8, E = 8-98200-154-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98181-466-0, F = 8-98200-156-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: C = 1-81200-647-3	1-81222-149-3	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 1-81200-647-3	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-572-8	1-81211-135-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 1-81200-647-3	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-572-8	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: E = 8-98200-154-0, F = 8-98200-156-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-821-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: C = 1-81200-647-3	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 1-81200-572-8	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 1-81200-572-8	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 1-81200-647-3	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-572-8	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, E = 8-98200-154-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 1-81200-572-8	1-81229-897-0	01	1	-

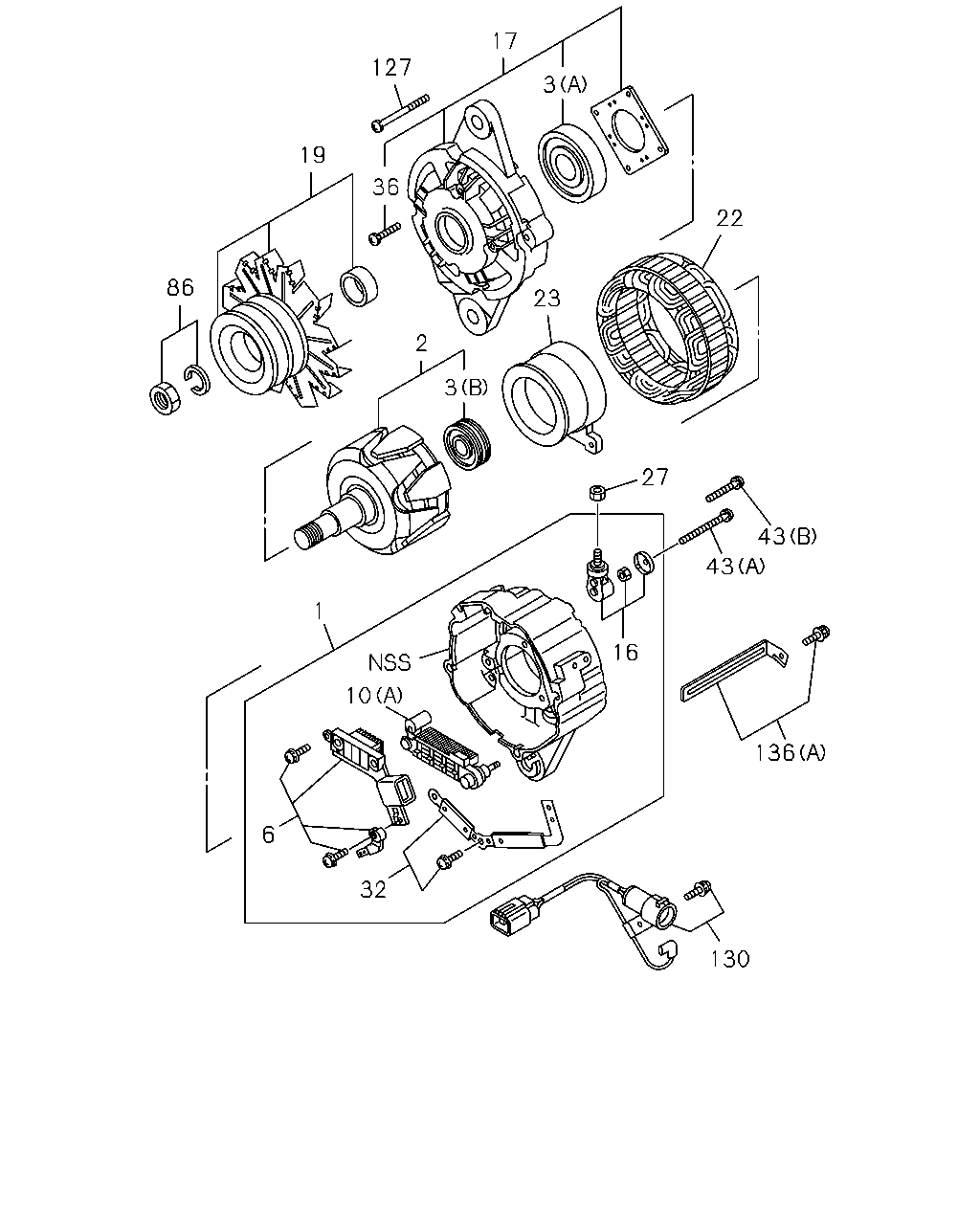

17 127 3 19 36 22 86 23 2 3 27 43 43 1 16 10 136 6 32 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-647-3	1-81214-375-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81222-129-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-572-8	8-98024-557-2	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-572-8	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-647-3	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 1-81200-647-3	1-81260-018-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81219-121-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 1-81200-647-3	1-81219-128-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 1-81200-647-3	1-81219-140-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-572-8	1-81219-141-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-572-8	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-647-3	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-572-8	1-81213-116-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-484-8, E = 8-98200-154-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98181-466-0, F = 8-98200-156-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: C = 1-81200-647-3	1-81222-149-3	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 1-81200-647-3	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-572-8	1-81211-135-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 1-81200-647-3	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-572-8	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: E = 8-98200-154-0, F = 8-98200-156-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: C = 1-81200-647-3	1-81229-821-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-814-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-817-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-572-8, C = 1-81200-647-3	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 1-81200-484-8, D = 8-98181-466-0, E = 8-98200-154-0, F = 8-98200-156-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 1-81200-647-3	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-572-8	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 1-81200-484-8, B = 1-81200-572-8, C = 1-81200-647-3, E = 8-98200-154-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 1-81200-572-8	1-81229-897-0	01	1	-
