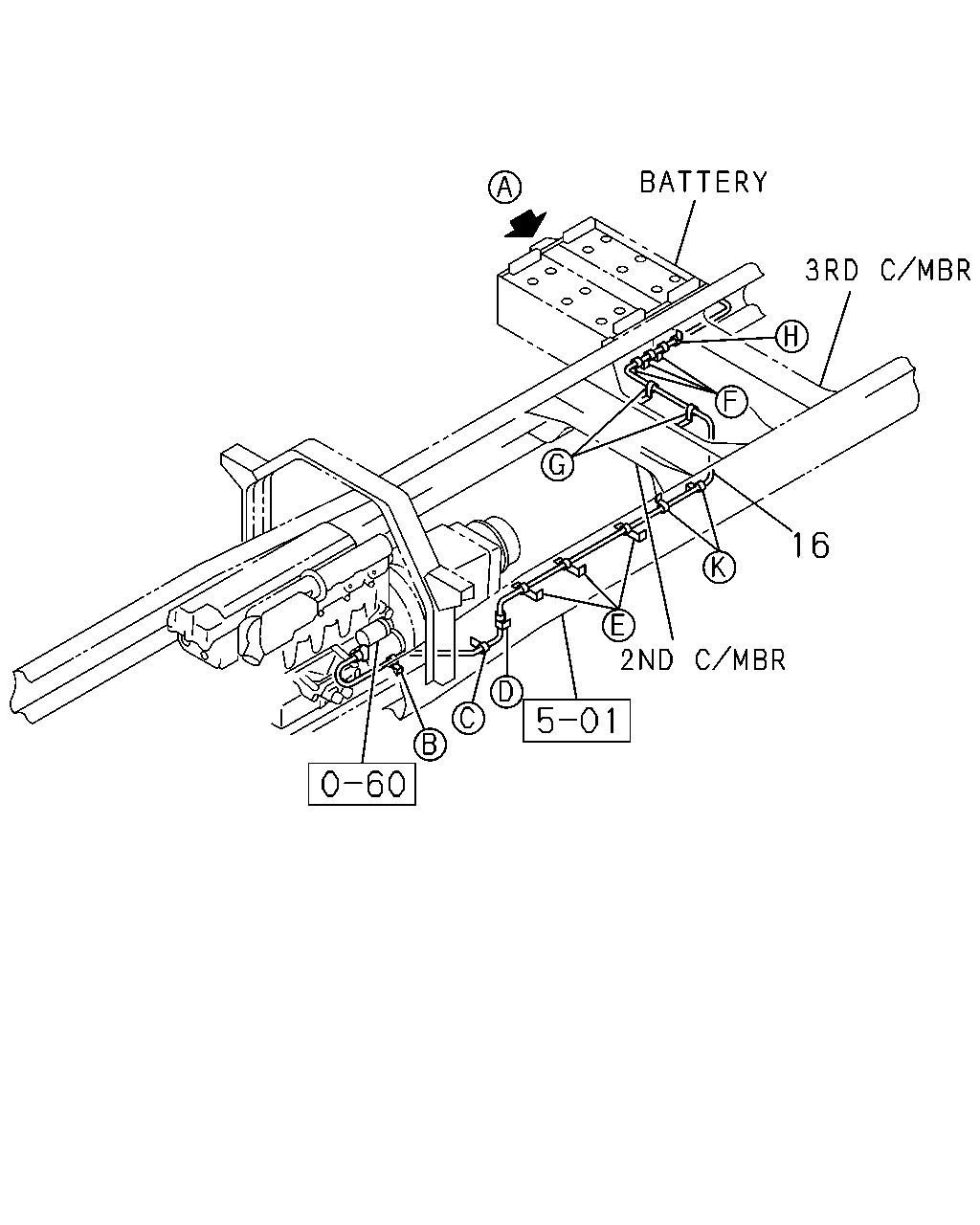

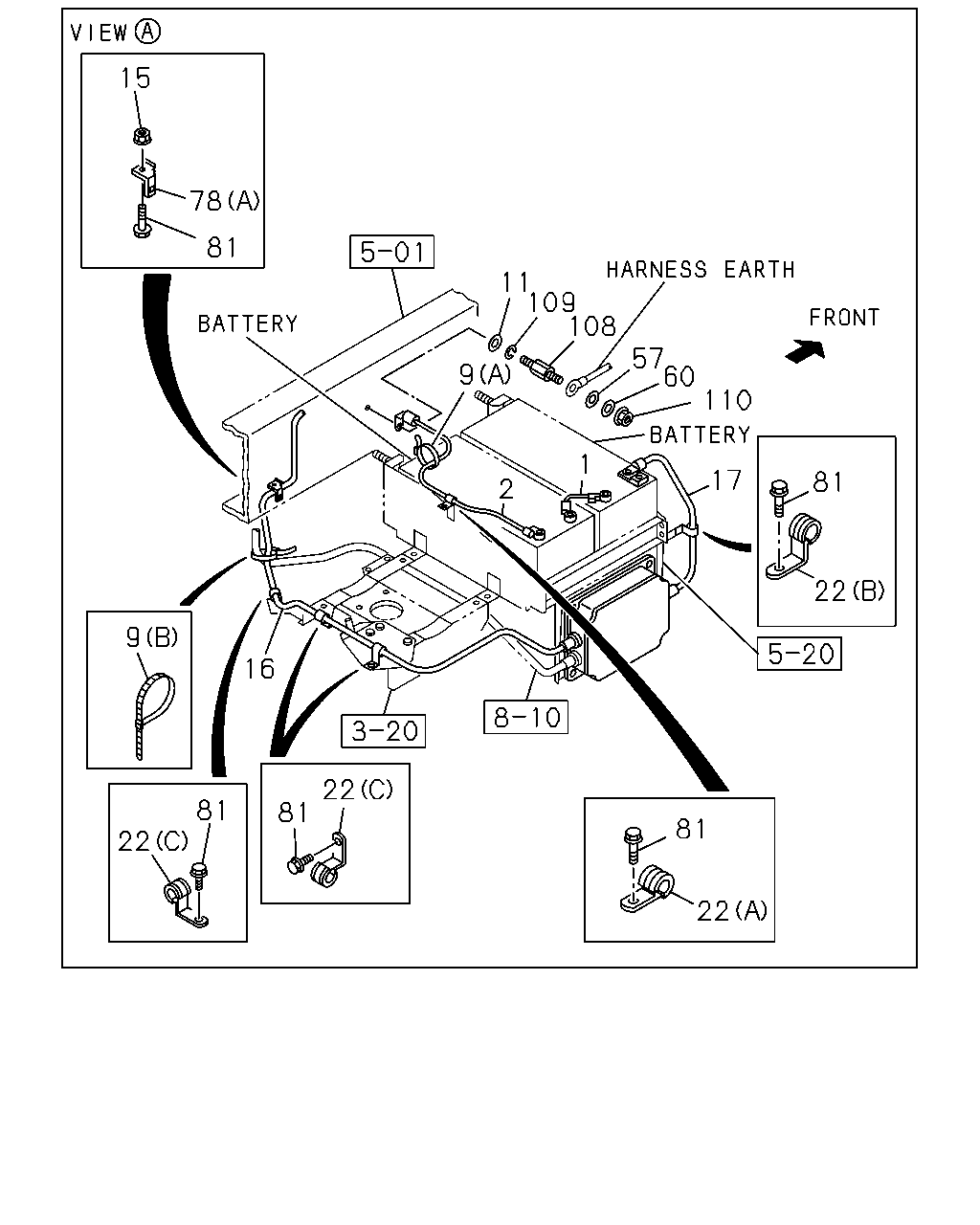

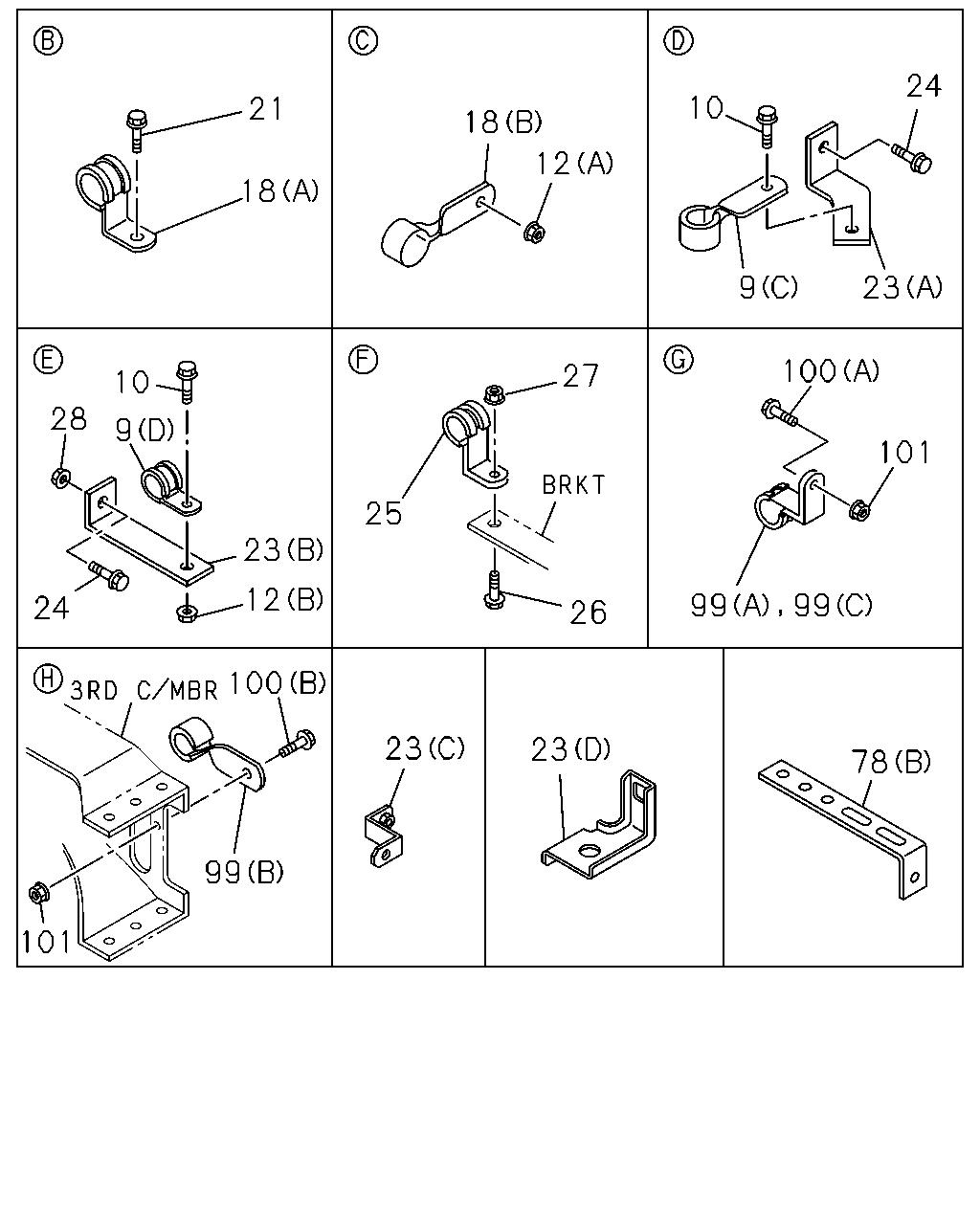

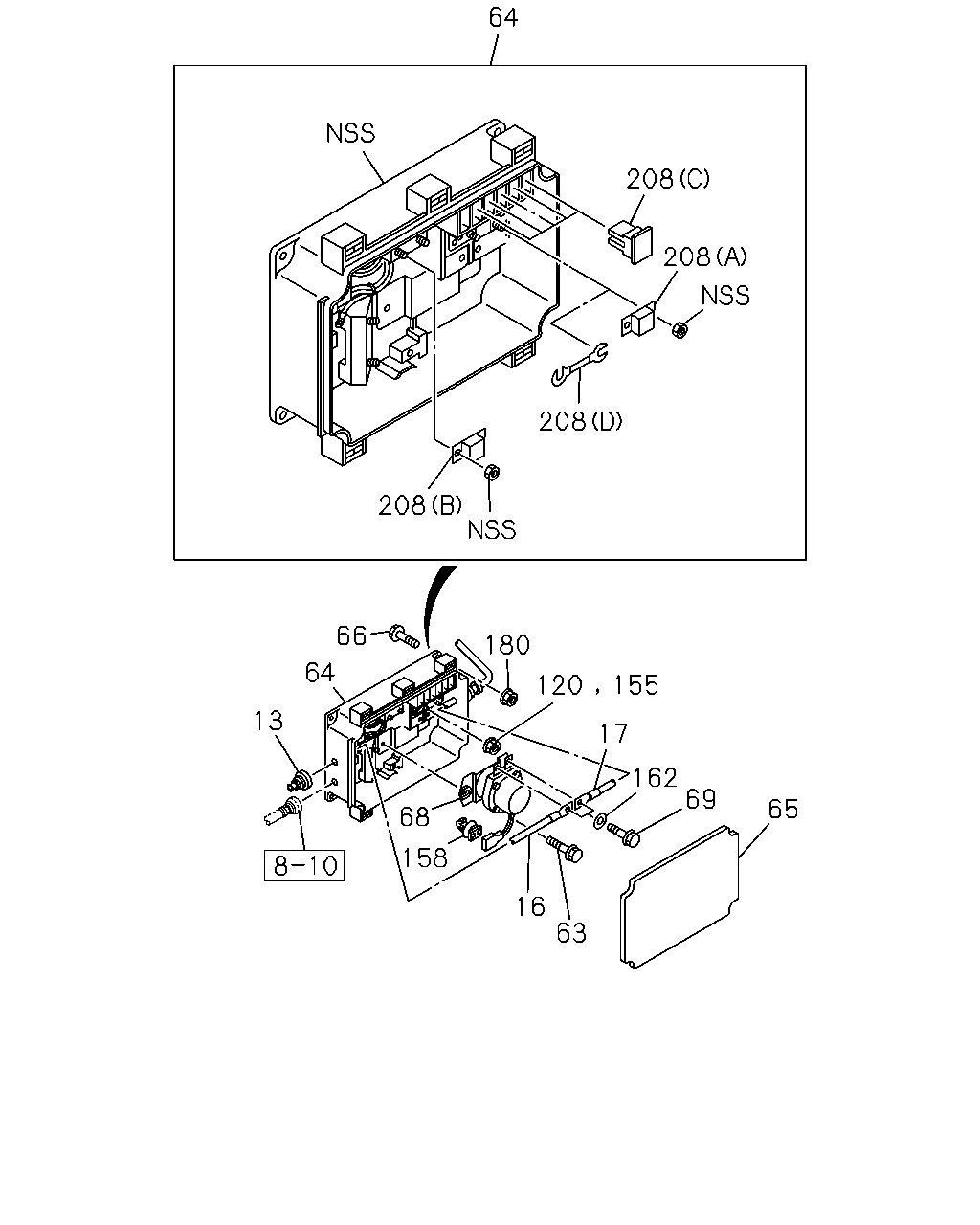

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#31689) — 104 parça

24 10 21 18 12 18 9 23 100 27 10 28 9 101 25 23 12 99 99 24 26 100 23 23 78 99 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0511-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	01	1	0511-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0511-
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0511-
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
12	NUT; BATTERY CABLE CLIP (B) M8 FLANGE	0-91150-108-0	01	1	0511-0602
12	NUT; BATTERY CABLE CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BATTERY CABLE CLIP (A) M10 FLANGE	0-91150-210-0	01	1	0511-0602
12	NUT; BATTERY CABLE CLIP (A) M10 FLANGE	0-91180-210-0	01	1	0603-
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0511-
18	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-106-0	01	1	0511-
21	BOLT; CLIP CABLE M8X16 FLANGE	0-28080-816-0	01	1	0511-0512
21	BOLT; CLIP CABLE M8X16 FLANGE	0-28050-816-0	01	1	0601-
23	BRACKET; CABLE CLIP TO FRAME (C)	1-47478-113-0	02	1	0511-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	0511-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-97304-944-0	02	1	0511-
23	BRACKET; CABLE CLIP TO FRAME (A)	1-47479-642-0	01	1	0511-
24	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28680-820-0	03	1	0511-0512
24	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	03	1	0601-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	0511-0512
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	0601-
25	CLIP; BATTERY CABLE TO BRKT ID=18 H=23 L=28	1-09701-070-0	03	1	0511-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	03	1	0511-0512
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28650-820-0	03	1	0601-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	03	1	0511-0602
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	0511-0602
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0603-
78	BRACKET; CLIP BATTERY (B) L=160 H=30	1-47479-759-0	01	1	0904-
78	BRACKET; CLIP BATTERY (A)	8-97304-944-0	02	1	0511-
99	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-068-0	01	1	0511-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	03	1	0511-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	0511-
100	BOLT; BATTERY CABLE CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
100	BOLT; BATTERY CABLE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
100	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0511-0512
100	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	05	1	0511-0602
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-

15 78 81 11 109 108 57 60 110 9 1 17 81 2 22 9 16 22 81 22 81 81 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0511-
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	0511-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0511-
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0511-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	01	1	0511-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0511-
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0511-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0511-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0511-0602
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2)	8-98209-243-0	01	1	1204-
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5440	1-82652-926-2	01	1	0511-
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5520	1-82652-925-2	01	1	0511-1203
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2>,CHINA EQUIPMENT(YT2) L=5520	1-82652-925-2	01	1	1204-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0511-
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	03	1	0511-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0511-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0511-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0511-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0511-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
78	BRACKET; CLIP BATTERY (B) L=160 H=30	1-47479-759-0	01	1	0904-
78	BRACKET; CLIP BATTERY (A)	8-97304-944-0	02	1	0511-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	03	1	0511-0512
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	0601-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0511-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0511-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0511-

64 208 208 208 208 66 180 64 120 155 13 17 162 69 65 68 158 16 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0511-
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2)	8-98209-243-0	01	1	1204-
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5440	1-82652-926-2	01	1	0511-
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5520	1-82652-925-2	01	1	0511-1203
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2>,CHINA EQUIPMENT(YT2) L=5520	1-82652-925-2	01	1	1204-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0511-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0511-0512
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-651-0	01	1	0906-
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0511-0905
64	BOX; BATTERY RELAY EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-648-0	01	1	0906-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0511-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0511-0512
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
68	RELAY; BATTERY	1-82550-313-0	01	1	0511-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0511-0512
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	0911-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0511-0602
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0511-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0511-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0511-0602
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-
208	FUSE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D) 125A	9-82941-130-1	01	1	0906-
208	FUSE (B) 80A	1-82516-031-0	01	1	0511-
208	FUSE (A) 100A	1-82516-032-0	01	1	0511-0905
208	FUSE EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 100A	1-82516-032-0	01	1	0906-
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	0511-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2)	8-98209-243-0	01	1	1204-
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5440	1-82652-926-2	01	1	0511-
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5520	1-82652-925-2	01	1	0511-1203
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2>,CHINA EQUIPMENT(YT2) L=5520	1-82652-925-2	01	1	1204-
