0-57 — EMISSION PIPING (#31687) — 58 parça

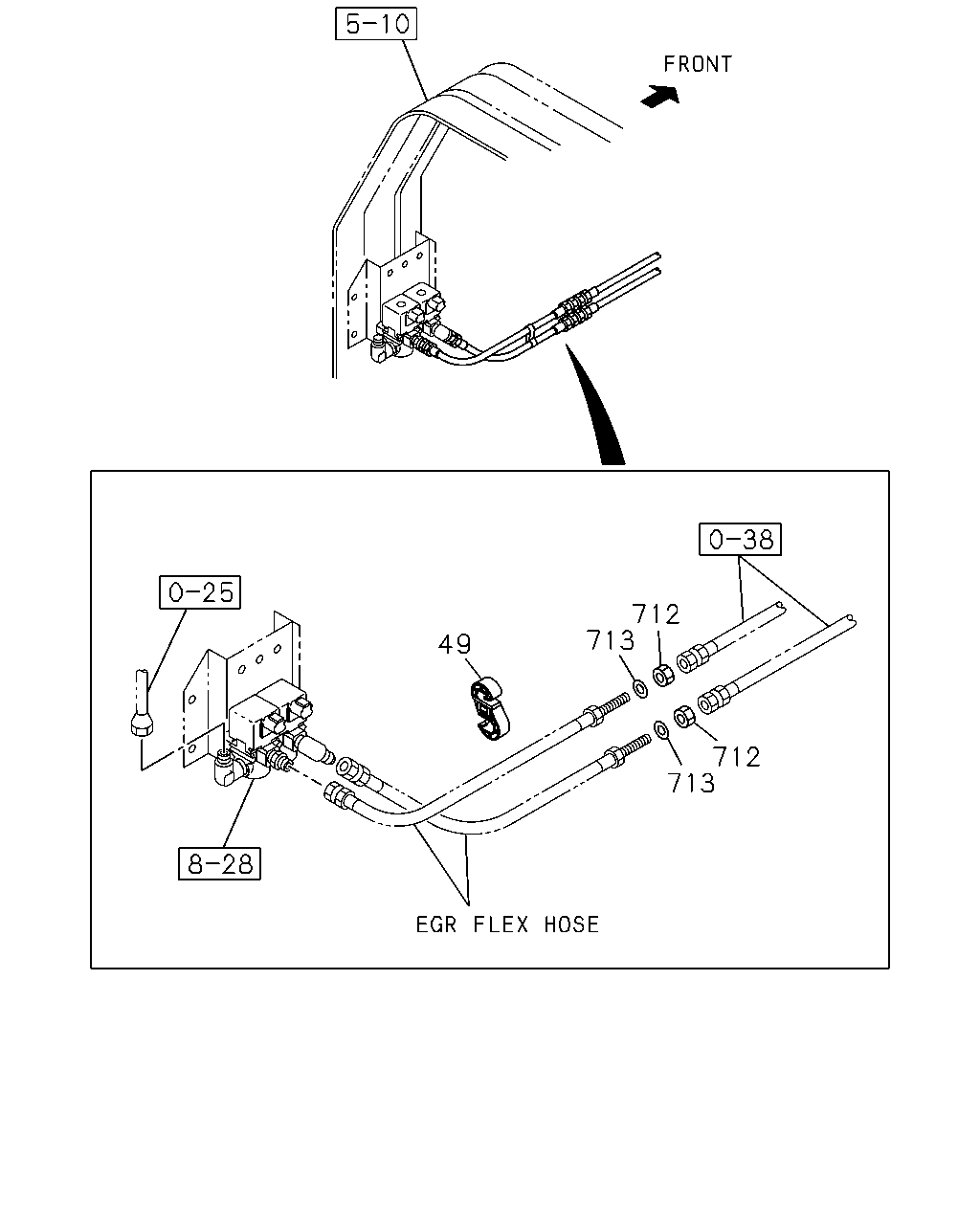

çizim 88992
712 713 49 712 713
BalonParca AdiParca NoAdetTipApplied Date
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0511-0706
49 CLIP; HOSE
EURO3 SPECIFICATION<NJX> ID=10 & 10 		1-09709-277-1 01 1 0707-
712 NUT; FLEX HOSE
M12 		9-09840-280-0 02 1 0511-0706
712 NUT; FLEX HOSE
EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 02 1 0707-
713 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0511-0603
713 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604-0706
713 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 02 1 0707-

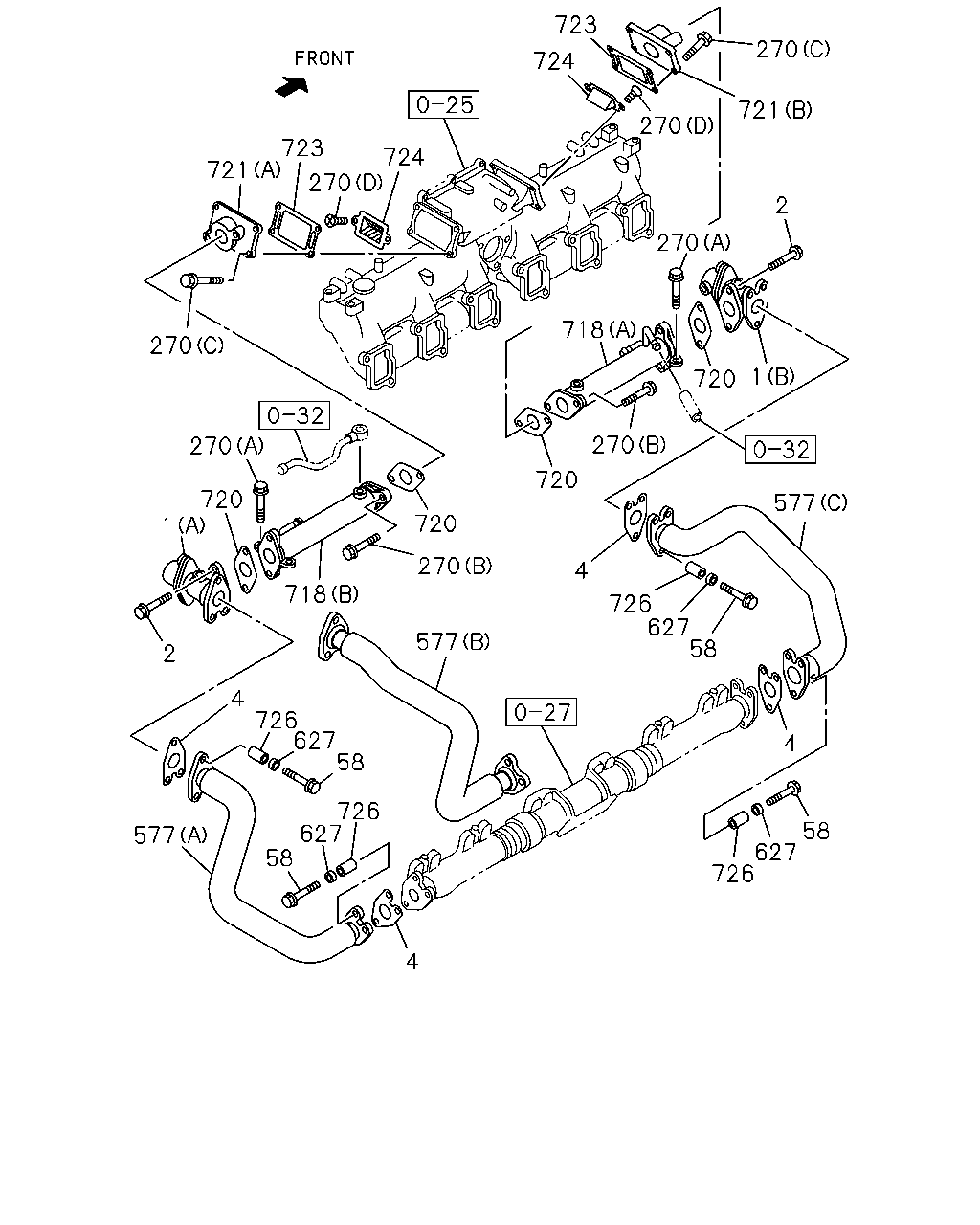

çizim 104013
723 270 724 721 270 723 724 270 721 2 270 718 270 1 720 270 270 720 720 577 720 1 270 4 718 726 627 58 577 2 4 726 627 58 4 726 627 58 58 627 726 577 4
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR
(B) 		1-16110-015-2 01 1 0511-0706
1 VALVE; EGR
EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) 		1-16110-015-3 01 1 0707-
1 VALVE; EGR
(A) 		1-16110-016-2 01 1 0511-0706
1 VALVE; EGR
EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-16110-016-3 01 1 0707-
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28181-020-0 04 1 0511-0512
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0601-0706
2 BOLT; EGR VLV
EXC. GENERAL EXPORT EQUIPMENT(TAA) M10X20 FLANGE 		0-28151-020-0 04 1 0707-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0511-0706
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) 		1-16157-015-0 04 1 0707-
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0511-0706
58 BOLT; PIPE
EXC. GENERAL EXPORT EQUIPMENT(TAA) M10X55 FLANGE 		8-94399-863-1 12 1 0707-0805
58 BOLT; PIPE
EXC. GENERAL EXPORT EQUIPMENT(TAA) M10X55 FLANGE 		8-97365-449-0 12 1 0806-
270 BOLT
(A) M10X20 FLANGE 		0-28181-020-0 04 1 0511-0512
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0601-0706
270 BOLT
EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X20 FLANGE 		0-28151-020-0 04 1 0707-
270 BOLT
(B) M10X30 FLANGE 		0-28181-030-0 04 1 0511-0512
270 BOLT
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0601-0706
270 BOLT
EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M10X30 FLANGE 		0-28151-030-0 04 1 0707-
270 BOLT
(C) M10X35 FLANGE 		0-28181-035-0 08 1 0511-0512
270 BOLT
(C) M10X35 FLANGE 		0-28151-035-0 08 1 0601-
270 BOLT
(D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0511-0706
270 BOLT
EXC. GENERAL EXPORT EQUIPMENT(TAA) (D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0707-1502
270 BOLT
EXC. GENERAL EXPORT EQUIPMENT(TAA) (D) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503-
577 PIPE; AIR,EGR
(C) 		1-16181-083-2 01 1 0511-0706
577 PIPE; AIR,EGR
EXC. GENERAL EXPORT EQUIPMENT(TAA) (C) 		1-16181-083-2 01 1 0707-
577 PIPE; AIR,EGR
ENGINE REAR PTO(SV1) (B) 		1-16181-102-3 01 1 0511-0706
577 PIPE; AIR,EGR
ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) 		1-16181-102-3 01 1 0707-
577 PIPE; AIR,EGR
EXC. ENGINE REAR PTO(SV1) (A) 		1-16181-084-2 01 1 0511-0706
577 PIPE; AIR,EGR
EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-16181-084-2 01 1 0707-
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0511-0706
627 WASHER; LK,EGR PIPE
EXC. GENERAL EXPORT EQUIPMENT(TAA) T=2.2 		1-09556-015-0 12 1 0707-
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0511-0706
718 COOLER; EGR
EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-16127-016-2 01 1 0707-
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0511-0706
718 COOLER; EGR
EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) 		1-16127-017-2 01 1 0707-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0511-0706
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) 		1-16157-016-0 04 1 0707-
721 DUCT; COOLER
(B) 		1-16183-064-0 01 1 0511-0706
721 DUCT; COOLER
EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) 		1-16183-064-0 01 1 0707-1502
721 DUCT; COOLER
EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) 		8-98276-293-0 01 1 1503-
721 DUCT; COOLER
(A) 		1-16183-065-0 01 1 0511-0706
721 DUCT; COOLER
EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-16183-065-1 01 1 0707-1502
721 DUCT; COOLER
EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) 		8-98276-296-0 01 1 1503-
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0511-1502
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97648-198-0 02 1 1503-
724 VALVE; REED
EXC. GENERAL EXPORT EQUIPMENT(TAA) 		8-98186-738-0 02 1 0707-1502
724 VALVE; REED
EXC. GENERAL EXPORT EQUIPMENT(TAA) 		8-98272-702-0 02 1 1503-1503
724 VALVE; REED
EXC. GENERAL EXPORT EQUIPMENT(TAA) 		8-98291-639-0 02 1 1503-
724 VALVE; REED 8-98186-738-0 02 1 0511-0706
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0511-0706
726 TUBE; DISTANCE
EXC. GENERAL EXPORT EQUIPMENT(TAA) L=28 		8-97250-073-1 12 1 0707-
