0-52 — OIL AND VACUUM PIPING; ENGINE (#31686) — 91 parça

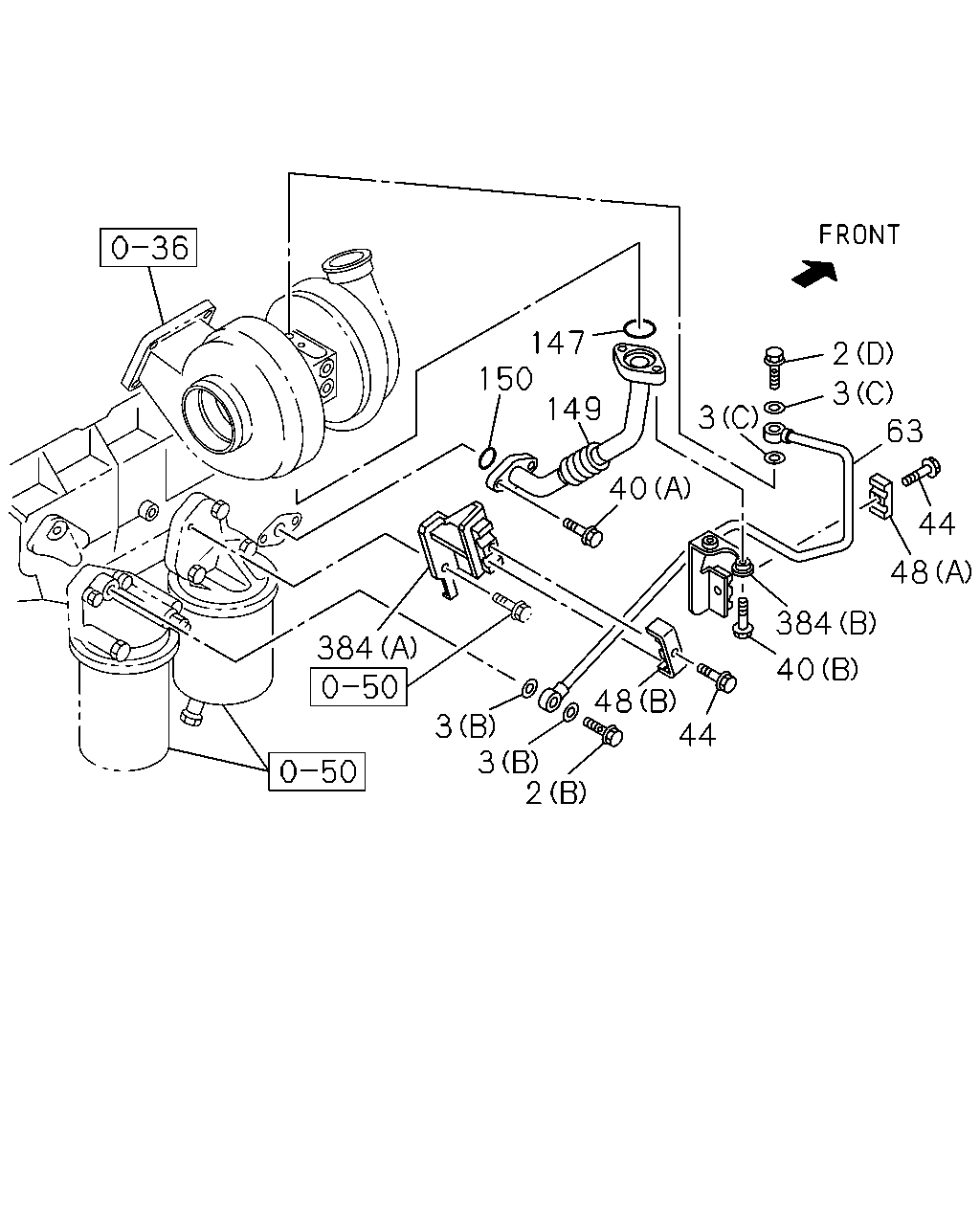

147 150 2 3 63 149 3 40 44 48 384 384 40 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0511-0710
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	0711-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	1-09675-077-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	0806-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0511-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0511-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0511-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0511-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	02	1	0511-0512
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28781-025-0	02	1	0511-0512
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	0601-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0511-0512
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0511-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	0511-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	0511-1210
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	0511-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0511-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	0511-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0511-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0511-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-201-0	01	1	0511-

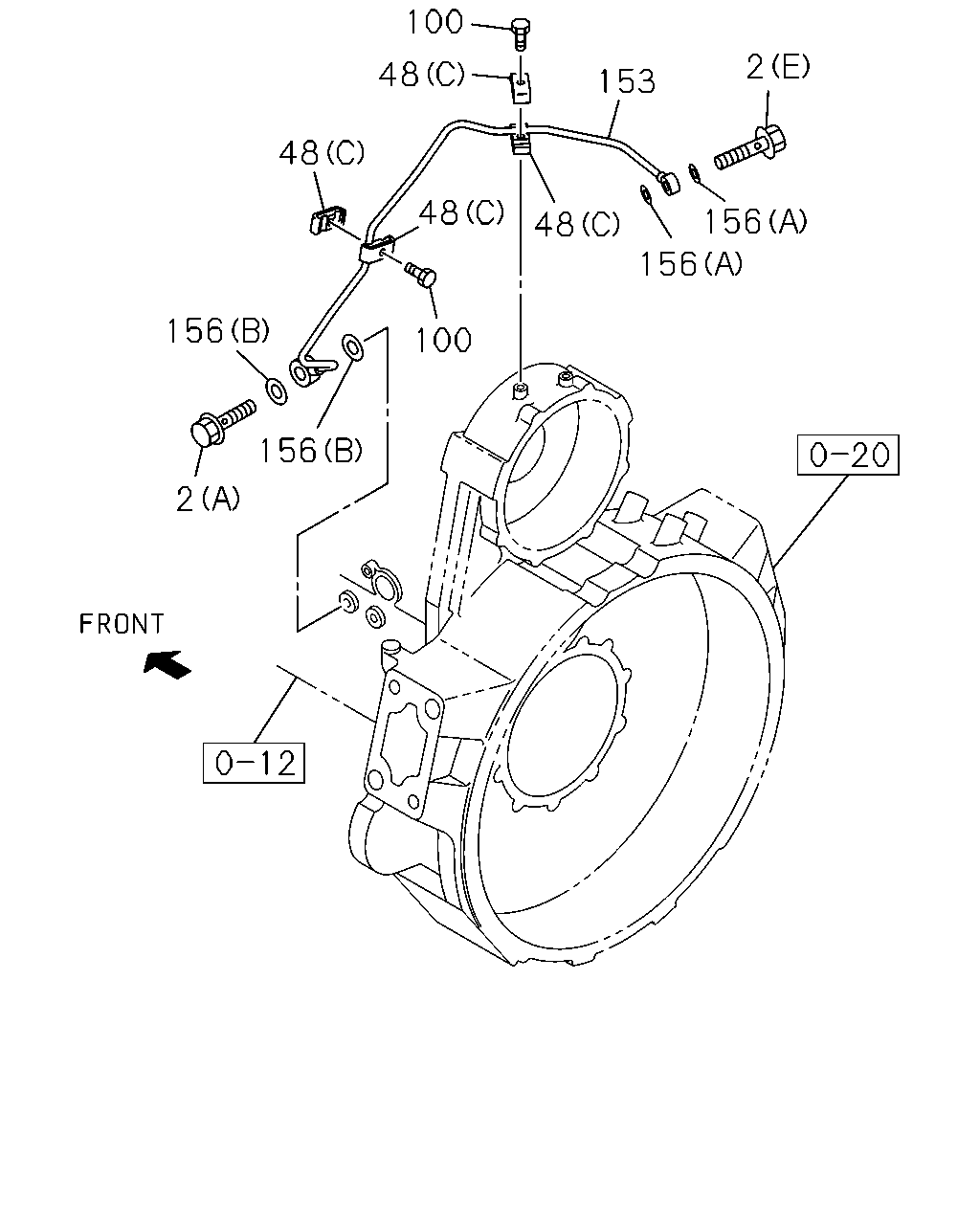

100 2 48 153 48 48 156 48 156 156 100 156 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0511-0710
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	0711-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	1-09675-077-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	0806-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0511-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	0511-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	0511-1210
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28680-630-0	02	1	0511-0512
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	0601-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97610-104-0	01	1	0511-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0511-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-

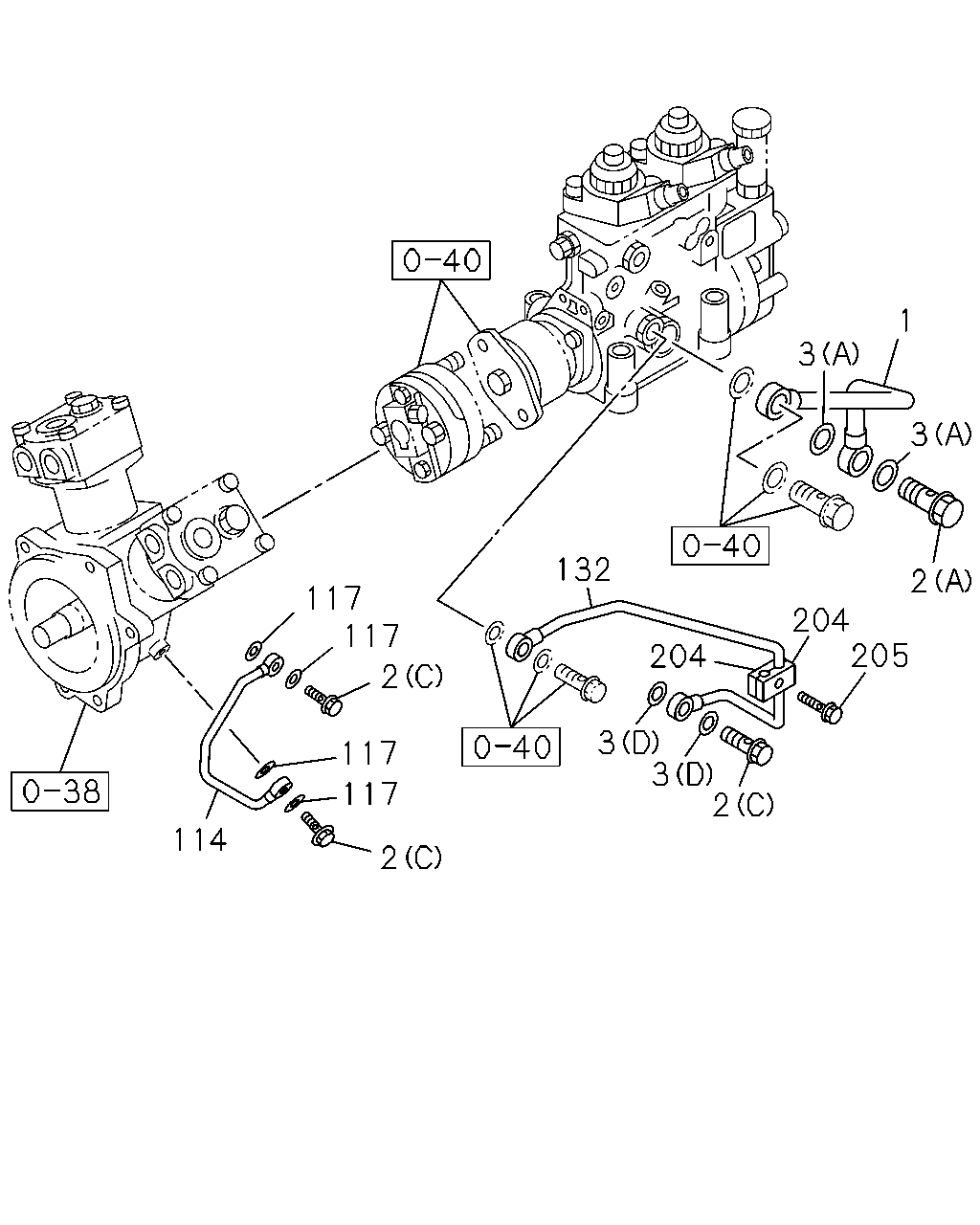

1 3 3 132 2 117 117 204 205 204 2 3 3 2 117 117 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	1-13314-022-0	01	1	0511-
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0511-0710
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	0711-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0511-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	1-09675-077-0	01	1	0511-0805
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	0806-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0511-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0511-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0511-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0511-
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	0511-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0511-
132	PIPE ASM; OIL,INJ PUMP FEED	1-13314-021-0	01	1	0511-
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0511-1210
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-
205	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0511-0512
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-

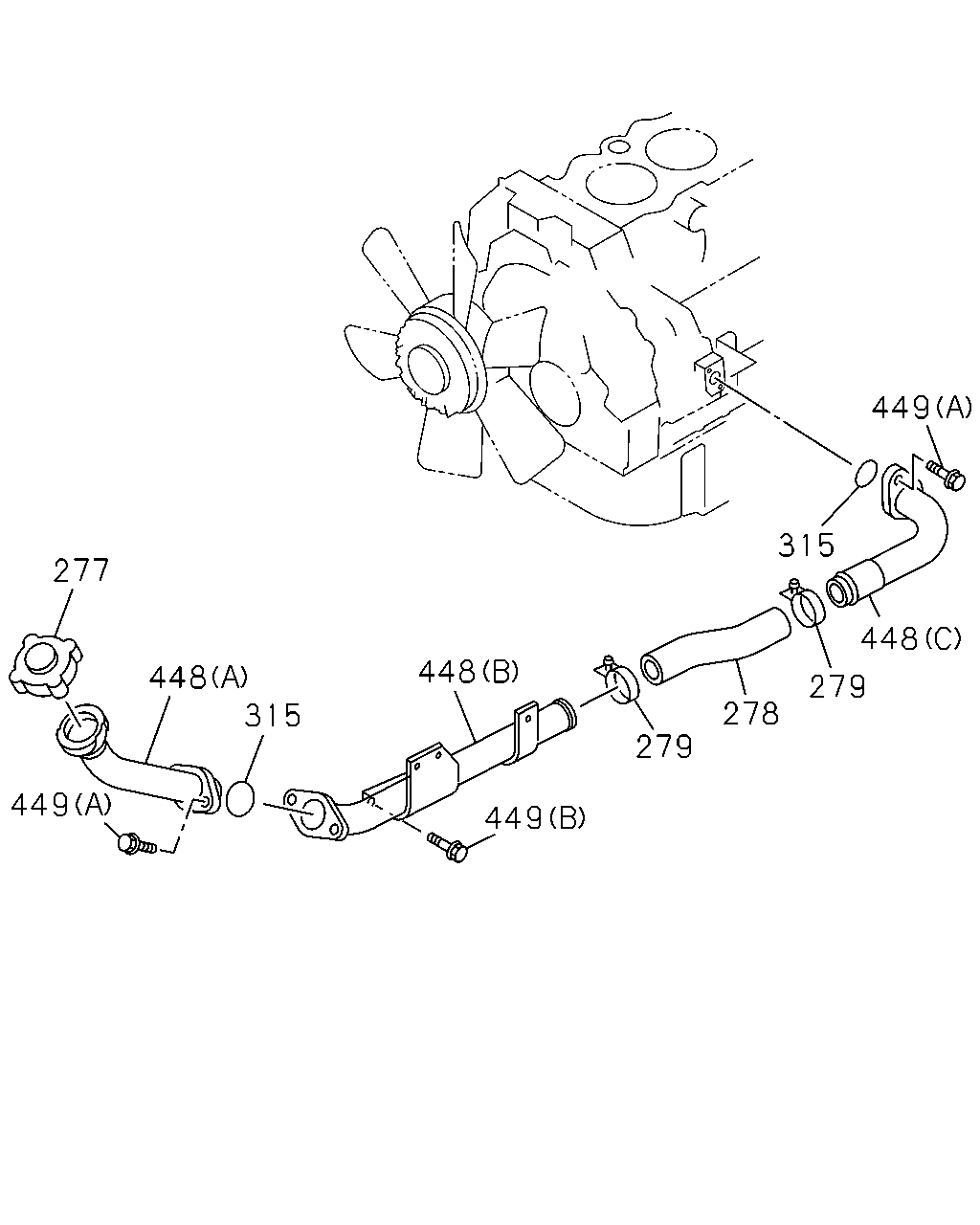

449 315 277 448 448 448 315 279 278 279 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
277	CAP; OIL FILLER	1-11750-020-0	01	1	0511-0611
277	CAP; OIL FILLER	1-11750-028-0	01	1	0612-
278	HOSE; RUBBER,OIL FILLER	1-11749-205-0	01	1	0511-
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	0511-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0511-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	0511-
448	FILLER; OIL (C)	1-11740-227-2	01	1	0511-
448	FILLER; OIL (A)	1-11741-175-4	01	1	0511-1103
448	FILLER; OIL EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-11741-175-4	01	1	1104-
448	FILLER; OIL LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-11741-313-0	01	1	1104-
448	FILLER; OIL (B)	1-11741-304-0	01	1	0511-
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28080-816-0	02	1	0511-0512
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28080-816-0	02	1	0511-0512
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	0511-0512
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
