Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

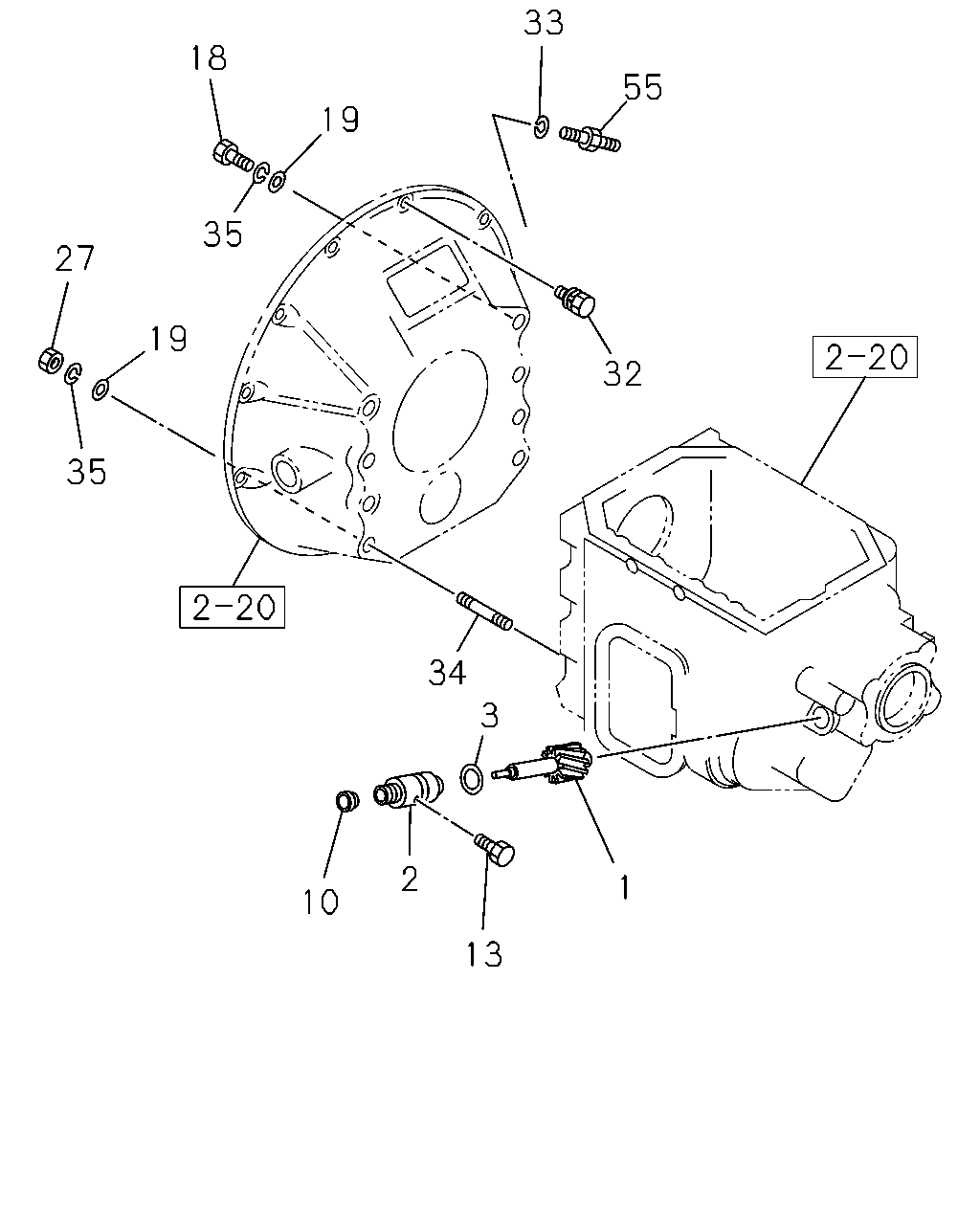

2-25 — SPEEDOMETER DRIVEN GEAR
(#3168) — 25 parça
33
18
55
19
35
27
19
32
35
34
3
2
1
10
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=12
1-33372-069-5
01
1
9104-
1
GEAR; DRIVEN,SPD
Z=12
1-33372-069-5
01
1
0108-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-052-0
01
1
9104-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-052-0
01
1
0108-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-371-0
01
1
9104-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-371-0
01
1
0108-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
9104-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0108-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
9104-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0108-
18
BOLT; CLU HSG TO TRANS
M16X35
0-23801-635-0
06
1
9104-9203
18
BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER
0-50151-640-0
06
1
9204-
18
BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER
0-50151-640-0
06
1
0108-
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
9204-
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
0108-
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
9104-
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
0108-
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK WASHER
0-50051-030-0
09
1
9104-
33
WASHER; LK,CLU HSG
ID=10.2
9-09150-510-0
03
1
9104-
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
9104-
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0108-
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
08
1
9104-9203
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
9204-
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
0108-
55
STUD; FLYWHEEL HSG
1-09029-048-0
03
1
9104-
