◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#31675) — 106 parça

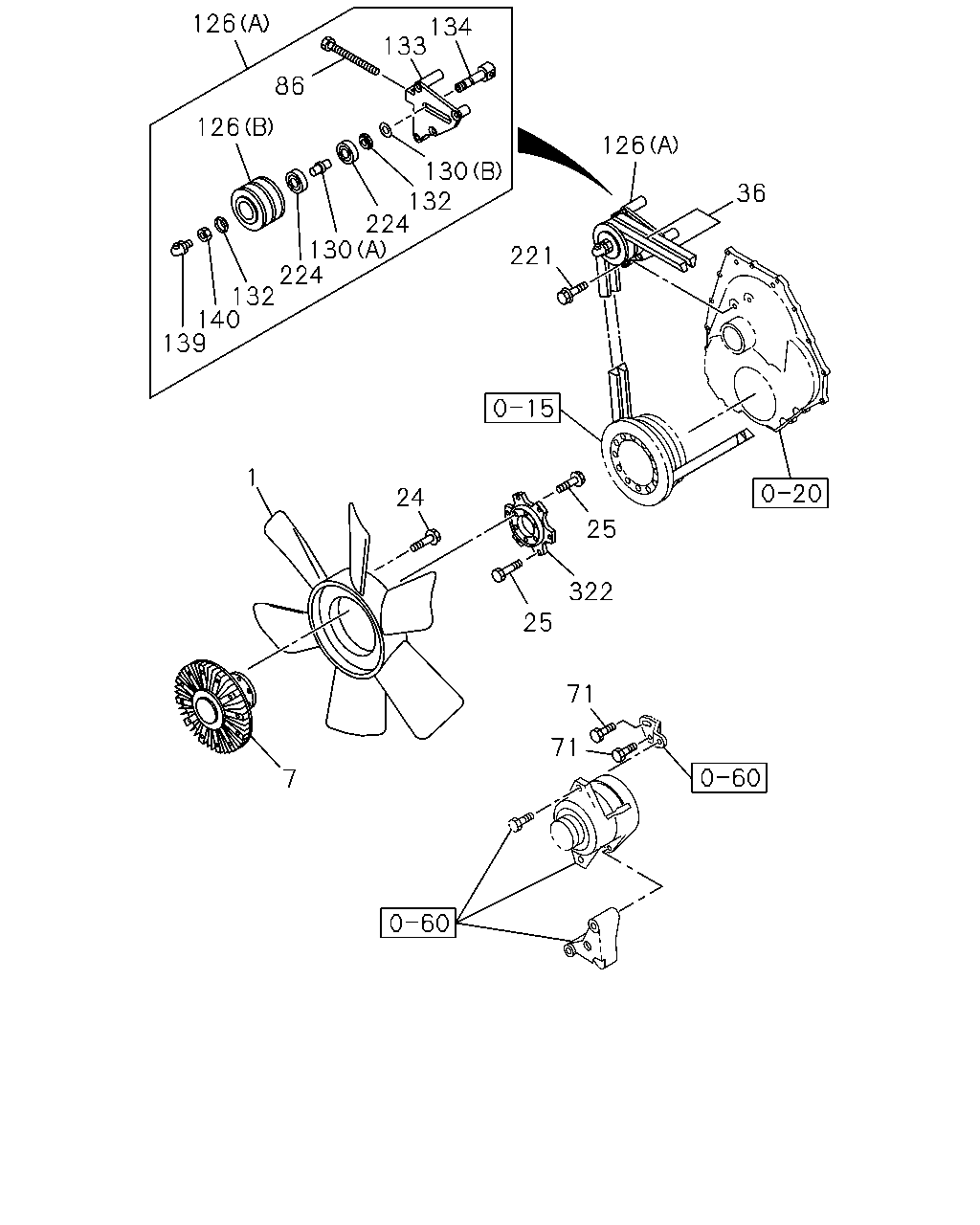

çizim 88756
126 134 133 86 126 126 130 132 224 130 224 132 140 139 36 221 1 24 25 322 25 71 71 7
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING 1-13660-286-1 01 1 0511-
7 COUPLING; FAN
SAUDI ARABIA EQUIPMENT(WH1) 		8-98119-742-0 01 1 0812-0901
7 COUPLING; FAN 8-98119-742-0 01 1 0902-
7 COUPLING; FAN 1-21650-212-1 01 1 0511-0702
7 COUPLING; FAN 8-98071-042-0 01 1 0703-0807
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0808-0901
24 BOLT; FAN
M10X16 FLANGE 		0-28191-016-0 06 1 0511-0512
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0601-
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28191-030-0 12 1 0511-0512
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0601-
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0511-1103
36 BELT; COOLING FAN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS 		1-87610-098-0 01 1 1104-
36 BELT; COOLING FAN
EXC. CHINA EQUIPMENT(YT2) BEST VALUE PARTS 		1-87610-098-0 01 1 1104-
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0511-1103
36 BELT; COOLING FAN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1104-
36 BELT; COOLING FAN
EXC. CHINA EQUIPMENT(YT2) 1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1104-
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X140 FLANGE 		0-28156-014-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X55 FLANGE 		8-97365-449-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28181-025-0 01 1 0511-0512
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0601-1103
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X25 FLANGE 		0-28151-025-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28186-011-0 01 1 0511-0512
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0601-1103
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X110 FLANGE 		0-28156-011-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104-
86 BOLT; ADJ
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X90 		1-09009-151-0 01 1 1104-
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0511-1103
86 BOLT; ADJ
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X135 		1-09009-113-1 01 1 1104-
86 BOLT; ADJ
EXC. CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104-
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 0511-1103
126 PULLEY; IDLE
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		1-13660-352-2 01 1 1104-
126 PULLEY; IDLE
EXC. CHINA EQUIPMENT(YT2) (A) 		1-13660-352-2 01 1 1104-
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0511-1103
126 PULLEY; IDLE
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 		1-13663-067-0 01 1 1104-
126 PULLEY; IDLE
EXC. CHINA EQUIPMENT(YT2) (B) 		1-13663-067-0 01 1 1104-
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0511-1103
130 SPACER; IDLE PULLEY BRG
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		1-13666-007-0 01 1 1104-
130 SPACER; IDLE PULLEY BRG
EXC. CHINA EQUIPMENT(YT2) (A) 		1-13666-007-0 01 1 1104-
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0511-1103
130 SPACER; IDLE PULLEY BRG
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 		1-13666-032-0 01 1 1104-
130 SPACER; IDLE PULLEY BRG
EXC. CHINA EQUIPMENT(YT2) (B) 		1-13666-032-0 01 1 1104-
132 COVER; DUST 1-13664-009-2 02 1 0511-1103
132 COVER; DUST
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-13664-009-2 02 1 1104-
132 COVER; DUST
EXC. CHINA EQUIPMENT(YT2) 		1-13664-009-2 02 1 1104-
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 0511-1103
133 BRACKET; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-13669-197-2 01 1 1104-
133 BRACKET; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		1-13669-197-2 01 1 1104-
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 0511-1103
134 SPINDLE; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-13665-060-1 01 1 1104-
134 SPINDLE; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		1-13665-060-1 01 1 1104-
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0511-0512
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601-1103
139 NIPPLE; GREASE,IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) PT1/8 ELBOW 		0-90301-610-0 01 1 1104-
139 NIPPLE; GREASE,IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) PT1/8 ELBOW 		0-90301-610-0 01 1 1104-
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0511-0512
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0601-1103
140 NUT; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M18 		0-91111-518-0 01 1 1104-
140 NUT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M18 		0-91111-518-0 01 1 1104-
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104-
221 BOLT; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X80 FLANGE 		0-28151-080-0 04 1 1104-
221 BOLT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104-
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28181-080-0 04 1 0511-0512
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0601-1103
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104-
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0511-0907
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 0908-1103
224 BEARING; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		8-97633-017-0 02 1 1104-
224 BEARING; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		8-97633-017-0 02 1 1104-
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0511-

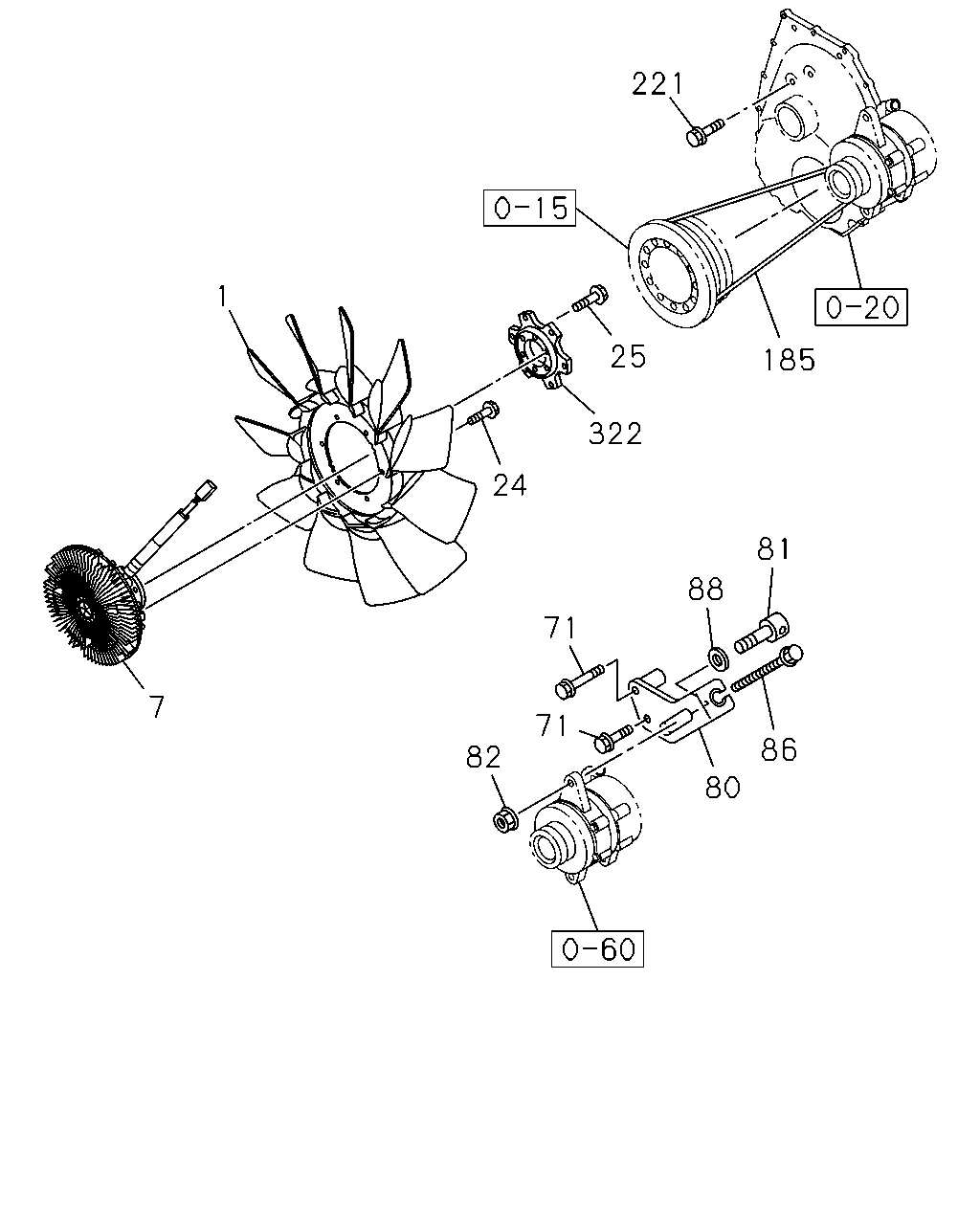

çizim 88757
221 1 25 185 322 24 81 88 71 7 71 86 82 80
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING 1-13660-286-1 01 1 0511-
7 COUPLING; FAN
SAUDI ARABIA EQUIPMENT(WH1) 		8-98119-742-0 01 1 0812-0901
7 COUPLING; FAN 8-98119-742-0 01 1 0902-
7 COUPLING; FAN 1-21650-212-1 01 1 0511-0702
7 COUPLING; FAN 8-98071-042-0 01 1 0703-0807
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0808-0901
24 BOLT; FAN
M10X16 FLANGE 		0-28191-016-0 06 1 0511-0512
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0601-
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28191-030-0 12 1 0511-0512
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0601-
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X140 FLANGE 		0-28156-014-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X55 FLANGE 		8-97365-449-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28181-025-0 01 1 0511-0512
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0601-1103
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X25 FLANGE 		0-28151-025-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28186-011-0 01 1 0511-0512
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0601-1103
71 BOLT; ADJ PLATE,GEN
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X110 FLANGE 		0-28156-011-0 01 1 1104-
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104-
80 PLATE; ADJ
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 		8-97639-550-0 01 1 1104-
81 PIECE; SLIDING
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M12X45 		1-13674-160-0 01 1 1104-
82 NUT; ADJ PLATE
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M12 FLANGE 		0-91180-112-0 01 1 1104-
86 BOLT; ADJ
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) M10X90 		1-09009-151-0 01 1 1104-
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0511-1103
86 BOLT; ADJ
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X135 		1-09009-113-1 01 1 1104-
86 BOLT; ADJ
EXC. CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104-
88 WASHER; PL,ADJ PLATE
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) ID=12.5 OD=32 		0-91614-712-0 01 1 1104-
185 BELT; GEN DRIVE
CHINA EQUIPMENT(YT2) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 		8-97639-551-0 01 1 1104-
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104-
221 BOLT; IDLE PULLEY
CHINA EQUIPMENT(YT2) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M10X80 FLANGE 		0-28151-080-0 04 1 1104-
221 BOLT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104-
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28181-080-0 04 1 0511-0512
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0601-1103
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104-
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0511-
