Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#31674) — 247 parça

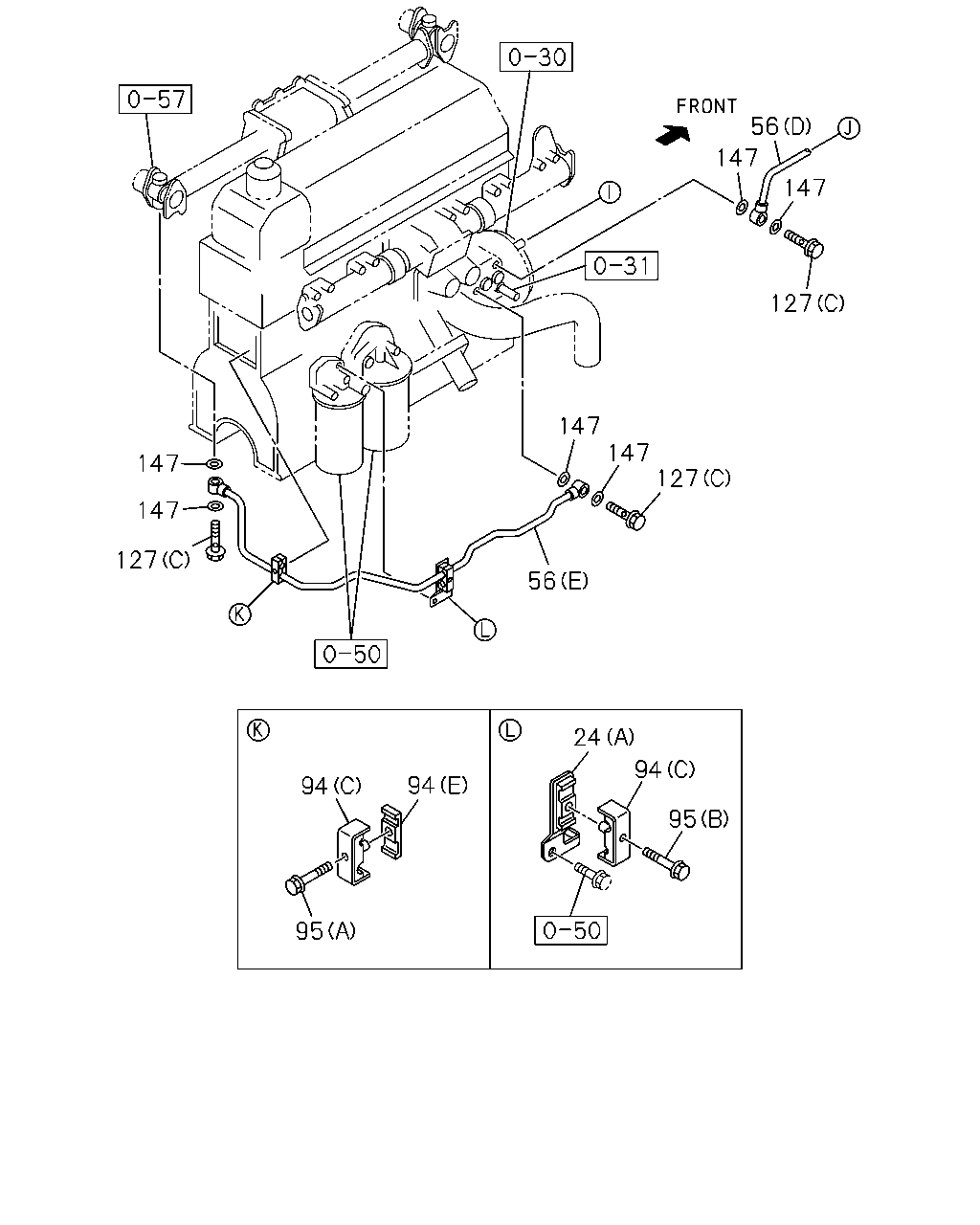

56 147 147 127 147 147 127 147 147 127 56 24 94 94 94 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0511-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13729-024-0	01	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0511-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0511-0706
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13721-747-0	01	1	0707-
94	CLIP; WATER PIPE (B)	1-09701-210-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-09701-282-0	04	1	0707-0806
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0807-
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (C)	8-94393-037-0	02	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0511-0706
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28080-635-0	01	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0511-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0511-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) ID=16.2	1-09630-086-0	16	1	0707-

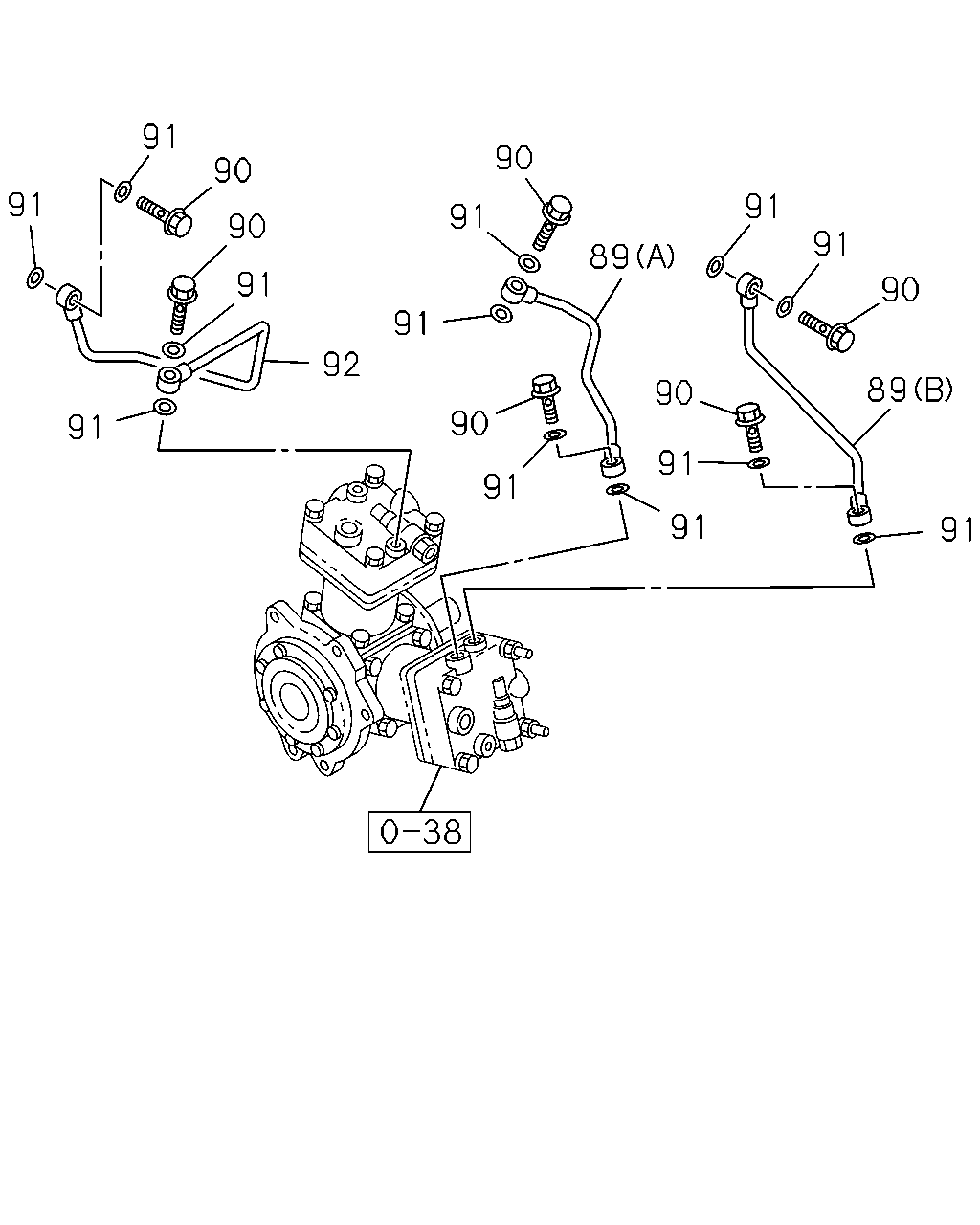

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	0511-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	0511-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0511-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0511-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0511-

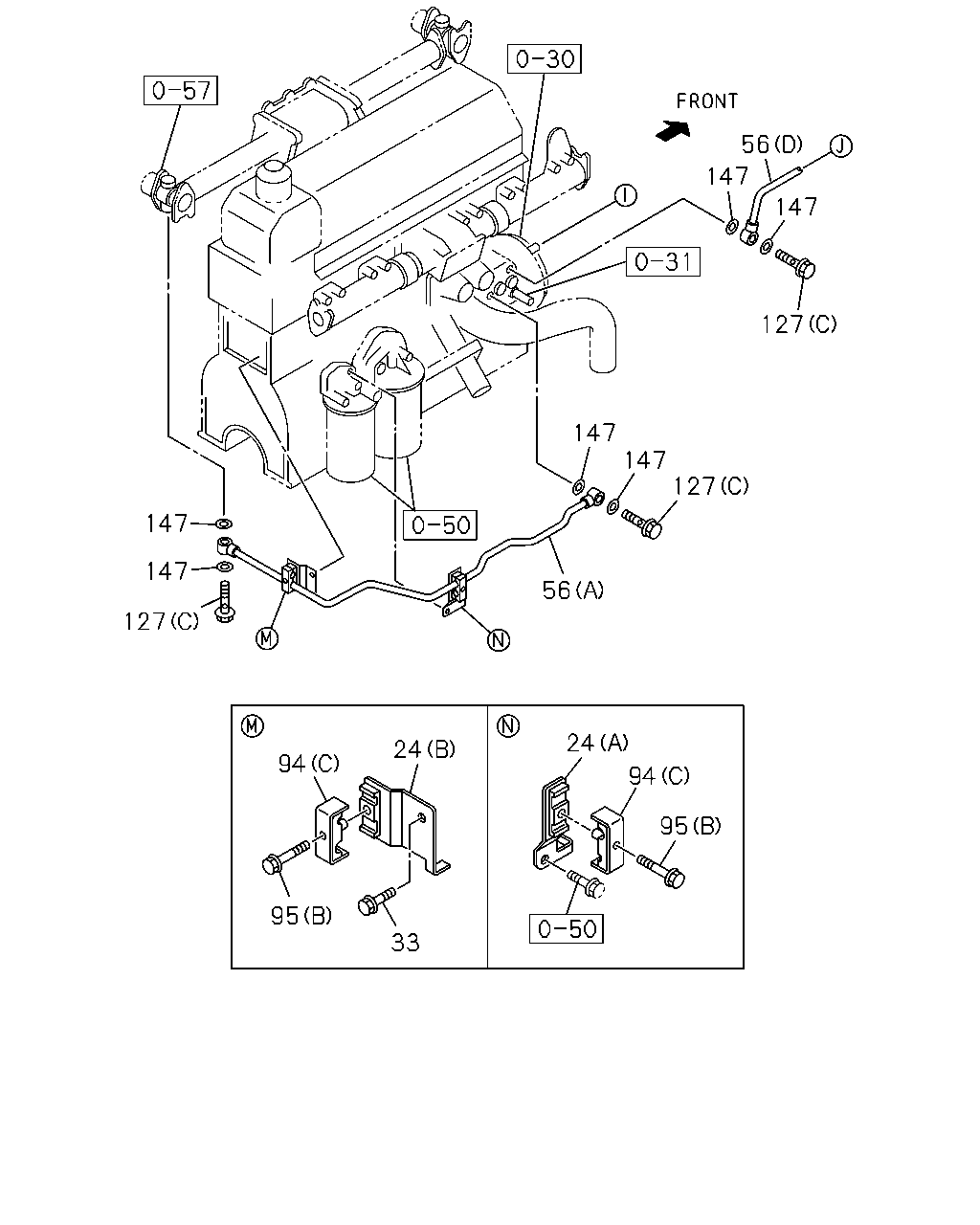

56 147 147 127 147 147 127 147 147 56 127 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0511-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13729-024-0	01	1	0707-
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28981-420-0	01	1	0511-0512
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0601-0706
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) M14X20 FLANGE	0-28951-420-0	01	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0511-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0511-0706
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13721-747-0	01	1	0707-
94	CLIP; WATER PIPE (B)	1-09701-210-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-09701-282-0	04	1	0707-0806
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0807-
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (C)	8-94393-037-0	02	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0511-0706
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28080-635-0	01	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0511-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0511-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) ID=16.2	1-09630-086-0	16	1	0707-

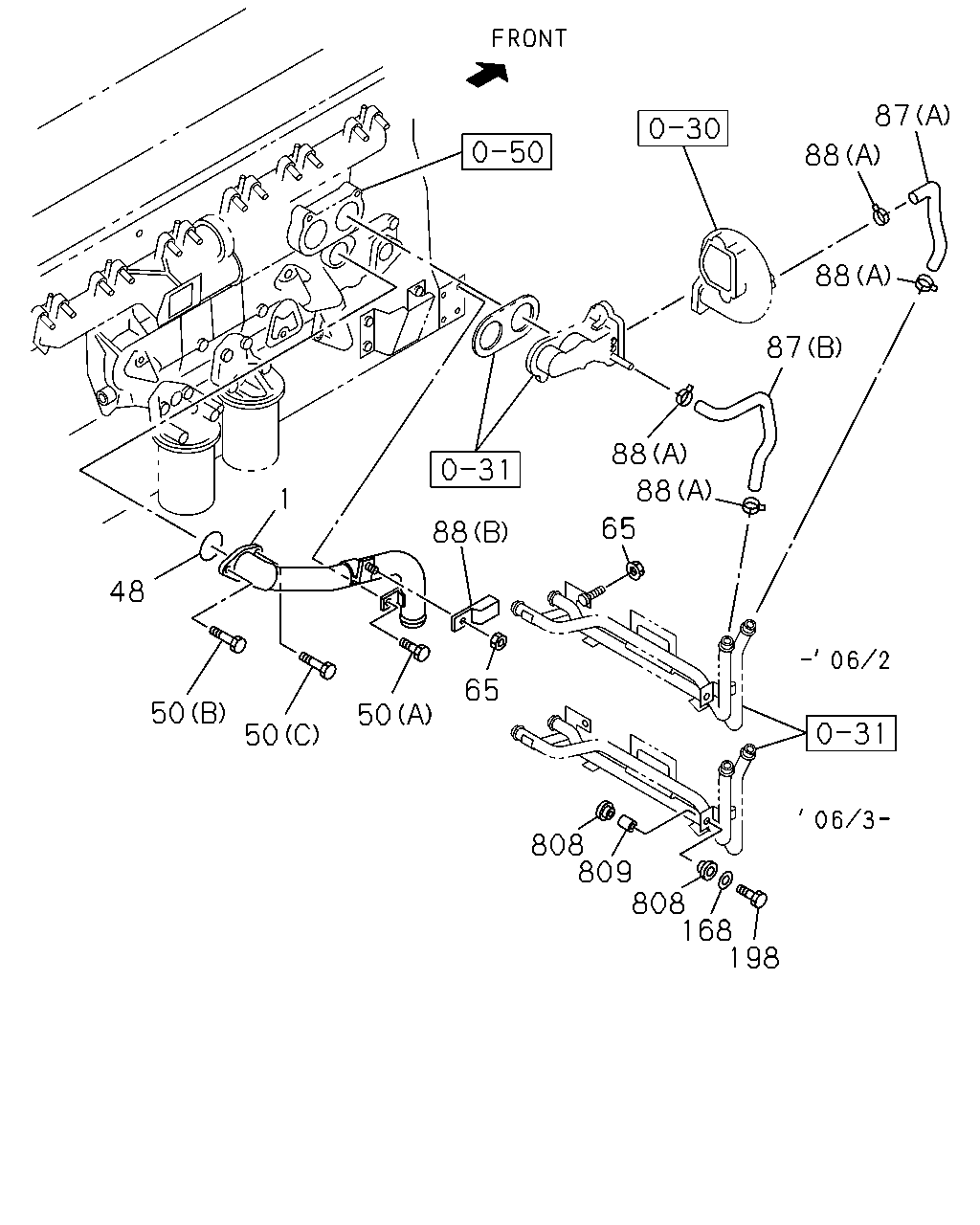

87 88 88 87 88 88 1 65 88 48 65 50 50 50 808 809 808 168 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0511-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0511-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0511-0512
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0511-0512
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0511-0512
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0601-
65	NUT M10 FLANGE	0-91180-110-0	01	1	0603-
65	NUT M10 FLANGE	0-91150-110-0	02	1	0511-0602
65	NUT M10 FLANGE	0-91150-110-0	01	1	0603-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0511-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0511-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0511-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0511-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
168	WASHER; PL,PIPE ID=10.5 OD=26	9-09164-710-0	02	1	0603-0605
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0606-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0603-
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0603-
808	RUBBER; MTG	1-09337-017-0	04	1	0603-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0603-

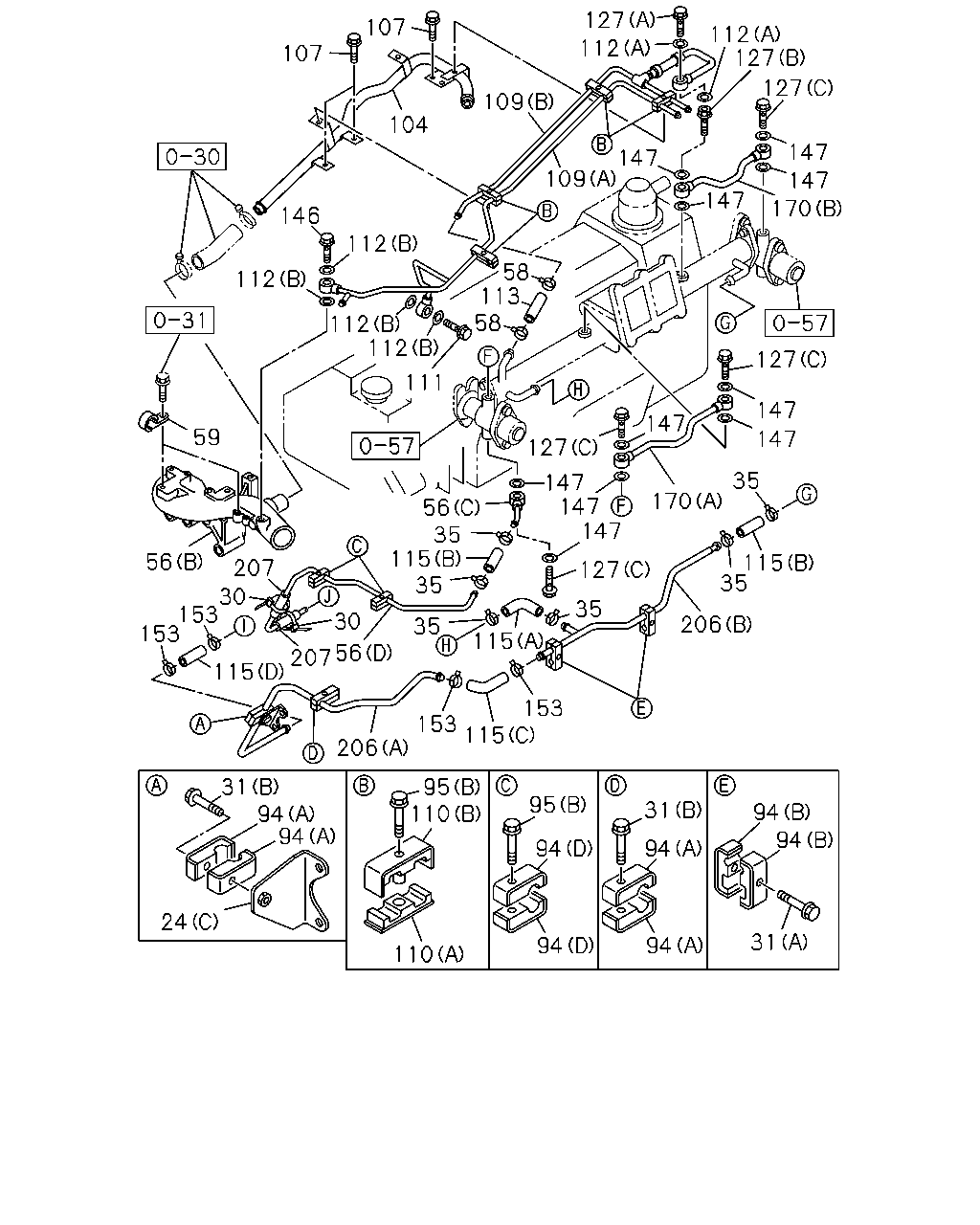

127 107 112 127 112 107 127 109 104 147 147 147 109 147 170 146 112 58 113 58 112 112 112 127 111 147 147 59 147 127 35 147 147 147 170 56 35 115 35 56 115 35 207 127 30 153 153 30 35 206 35 115 56 207 115 153 115 153 206 31 94 94 95 110 95 31 94 94 94 94 24 31 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13729-023-0	01	1	0707-
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0511-
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0511-0706
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13729-024-0	01	1	0707-
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0511-1205
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-
31	BOLT; CLIP (A) M6X70 FLANGE	0-28080-670-0	02	1	0511-0512
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0601-0706
31	BOLT; CLIP EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M6X70 FLANGE	0-28050-670-0	02	1	0707-0806
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0807-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0511-0512
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-0706
31	BOLT; CLIP EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M8X40 FLANGE	0-28050-840-0	02	1	0707-
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0511-0706
35	CLIP; RUBBER HOSE EXC. GENERAL EXPORT EQUIPMENT(TAA)	1-09707-143-0	06	1	0707-
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0511-0606
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	1-13721-855-0	01	1	0707-
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-13721-898-0	01	1	0707-
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0511-0706
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-13721-956-0	01	1	0707-
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0511-0706
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13721-747-0	01	1	0707-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0511-0706
58	CLIP; RUBBER HOSE EXC. GENERAL EXPORT EQUIPMENT(TAA) ID=14	1-09704-102-0	02	1	0707-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0511-0606
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0607-
94	CLIP; WATER PIPE (B)	1-09701-210-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-09701-210-0	04	1	0707-
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (D)	1-09701-282-0	04	1	0707-0806
94	CLIP; WATER PIPE (D)	1-09701-282-0	04	1	0807-
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) ID=17 L=17	1-09701-284-0	04	1	0707-
94	CLIP; WATER PIPE (C)	8-94393-037-0	02	1	0511-0706
94	CLIP; WATER PIPE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	8-94393-037-0	02	1	0707-
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0511-0706
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (E)	1-09701-272-0	01	1	0707-
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0511-0512
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-0706
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1),GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28080-635-0	01	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0511-0512
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-0706
95	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0511-1208
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0511-0512
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-
109	PIPE; AIR,LEAK,THERMOSTAT HSG CHINA EQUIPMENT(YT2) (A)	8-97640-419-0	01	1	1104-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0511-0706
109	PIPE; AIR,LEAK,THERMOSTAT HSG EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13721-834-2	01	1	0707-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0511-0706
109	PIPE; AIR,LEAK,THERMOSTAT HSG EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	8-97606-594-0	01	1	0707-0707
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0707-1103
109	PIPE; AIR,LEAK,THERMOSTAT HSG EXC. CHINA EQUIPMENT(YT2) (A)	8-97606-594-0	01	1	1104-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0511-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0511-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0511-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0511-0706
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0707-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0511-
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0511-0706
113	HOSE; RUBBER,AIR LEAK EXC. GENERAL EXPORT EQUIPMENT(TAA) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0707-
115	HOSE; RUBBER (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0511-0706
115	HOSE; RUBBER EXC. GENERAL EXPORT EQUIPMENT(TAA) (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0707-
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0511-0706
115	HOSE; RUBBER EXC. GENERAL EXPORT EQUIPMENT(TAA) (C)	1-09361-081-1	01	1	0707-
115	HOSE; RUBBER (B) L=60	1-09361-084-0	02	1	0511-0706
115	HOSE; RUBBER EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) L=60	1-09361-084-0	02	1	0707-
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0511-0706
115	HOSE; RUBBER EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13729-039-0	01	1	0707-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0511-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0511-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0511-0706
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GENERAL EXPORT EQUIPMENT(TAA) ID=16.2	1-09630-086-0	16	1	0707-
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0511-0706
153	CLIP; RUBBER HOSE EXC. GENERAL EXPORT EQUIPMENT(TAA) ID=20	1-09707-084-1	04	1	0707-
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0511-0706
170	PIPE; WATER,INL EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13721-744-0	01	1	0707-
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0511-0706
170	PIPE; WATER,INL EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13721-745-0	01	1	0707-
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0511-0706
206	PIPE; WATER,EGR COOLER EXC. GENERAL EXPORT EQUIPMENT(TAA) (B)	1-13721-853-0	01	1	0707-
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0511-0706
206	PIPE; WATER,EGR COOLER EXC. GENERAL EXPORT EQUIPMENT(TAA) (A)	1-13721-899-0	01	1	0707-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0511-

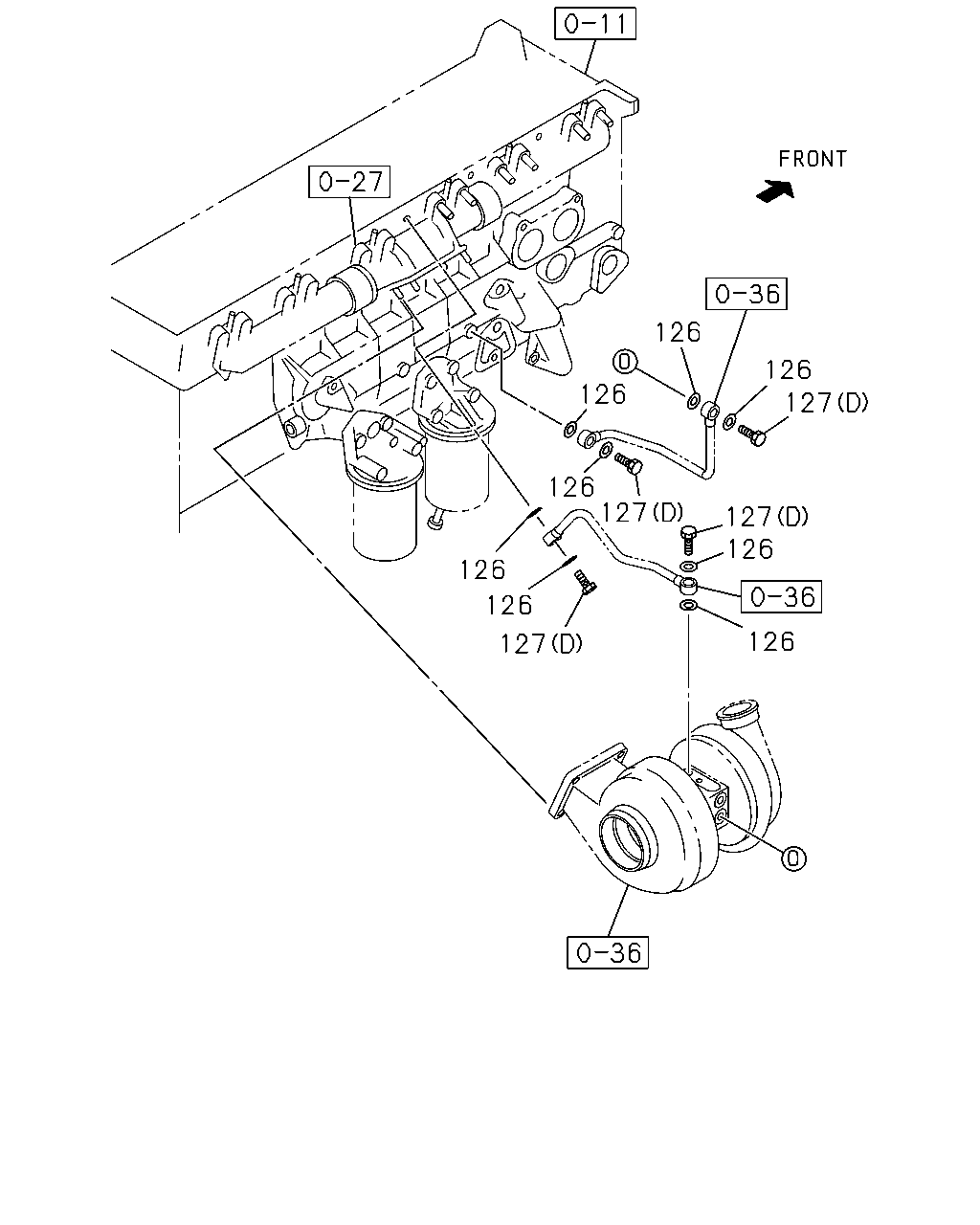

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0511-0703
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0511-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0511-0706
127	BOLT; EYE EXC. GENERAL EXPORT EQUIPMENT(TAA) (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
