◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#31651) — 59 parça

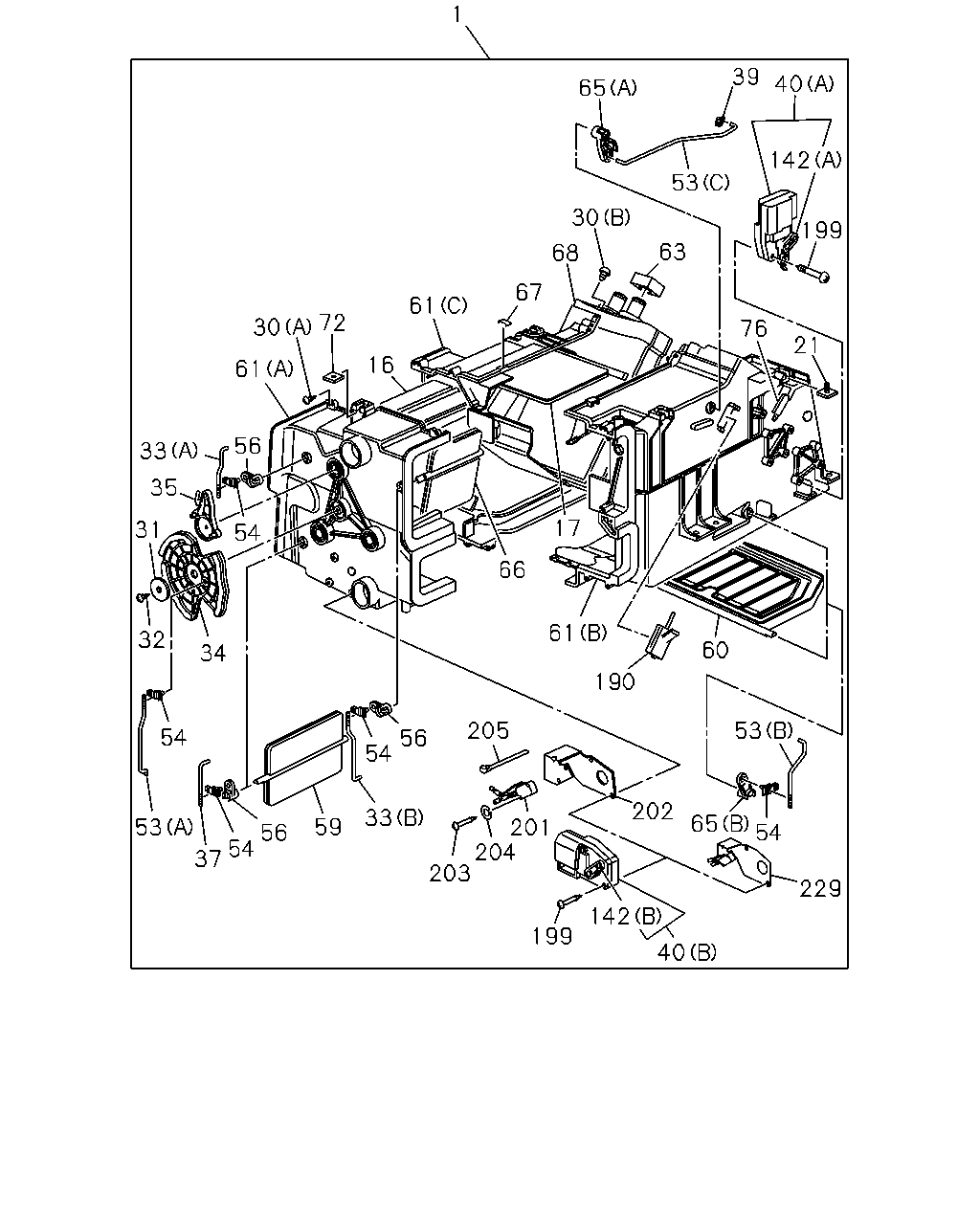

çizim 103561
40 229 54 65 142 203 202 201 204 205 190 61 60 66 56 54 33 59 56 54 37 53 54 34 32 31 35 54 33 56 17 53 21 76 199 142 40 39 65 53 30 63 68 67 61 16 72 30 61 199 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0512-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410-
1 HEATER UNIT 1-83511-184-1 01 1 0507-0511
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0512-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0507-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0507-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0507-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0507-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0507-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0507-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0507-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0507-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0507-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0507-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0507-
37 ROD; LEVER 1-83579-620-1 01 1 0507-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0507-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0512-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 0507-0511
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0512-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0507-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0507-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0507-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0507-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0507-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0507-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0507-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0507-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0512-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0512-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0507-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0507-0511
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0512-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0507-0511
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0512-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0507-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0507-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0507-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0507-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0507-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0507-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0507-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0507-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0512-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0507-0511
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0512-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0507-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0507-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0507-
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410-
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410-
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410-
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410-
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410-
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0512-1409
