8-52 — PIPING; AIR CONDITIONING (#31650) — 135 parça

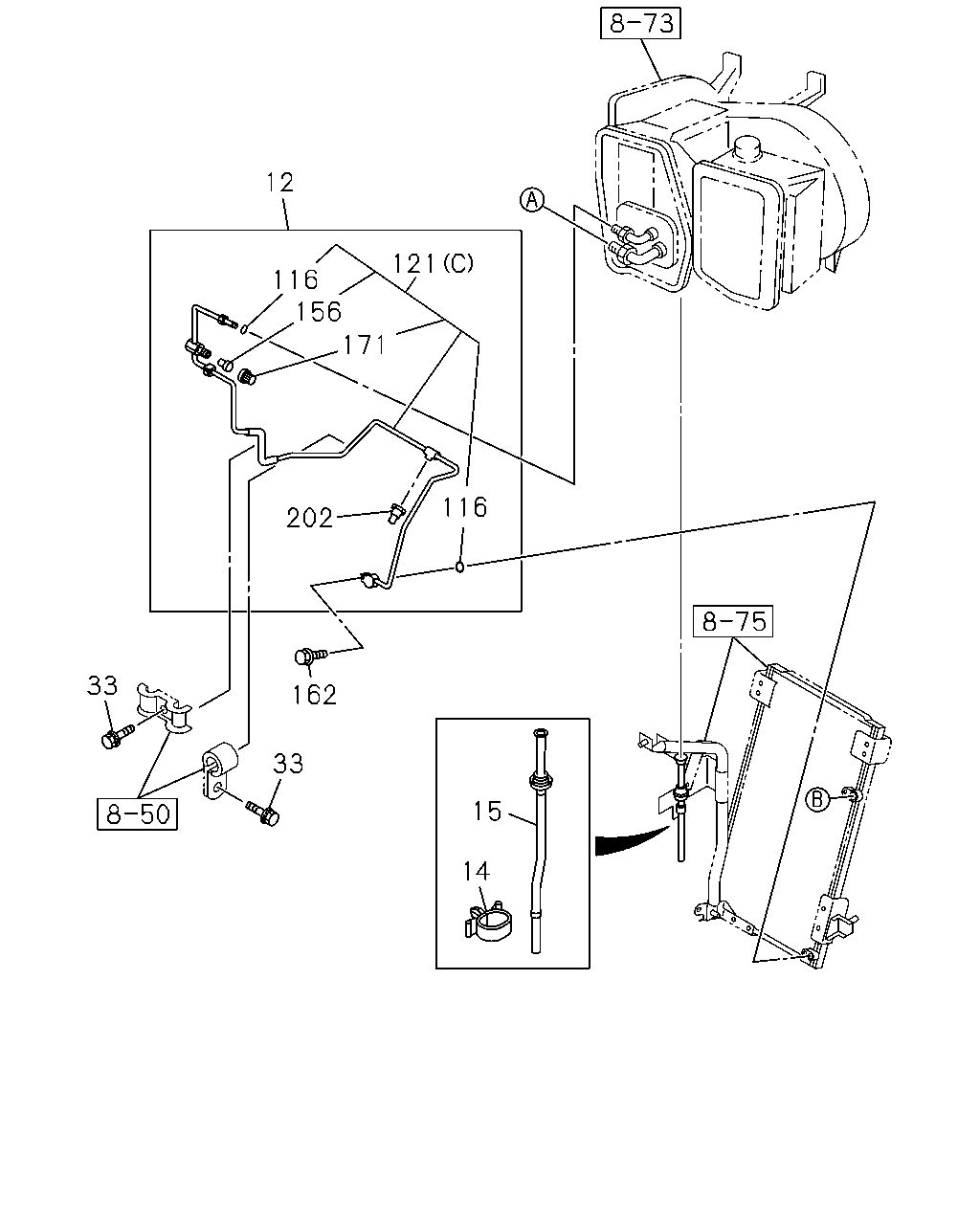

çizim 88665
121 12 116 171 156 116 202 162 33 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0507-
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0507-
15 HOSE; DRAIN 1-83572-635-0 01 1 0507-
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0507-0904
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0507-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-83577-070-0 01 1 0512-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-83577-071-0 01 1 0512-
121 HOSE; COOLER
(A) 		1-83572-953-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
(B) 		1-83572-954-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0507-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0507-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0507-
156 VALVE; PIPE 8-97095-909-0 01 1 0507-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0507-0512
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601-
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0507-
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0507-

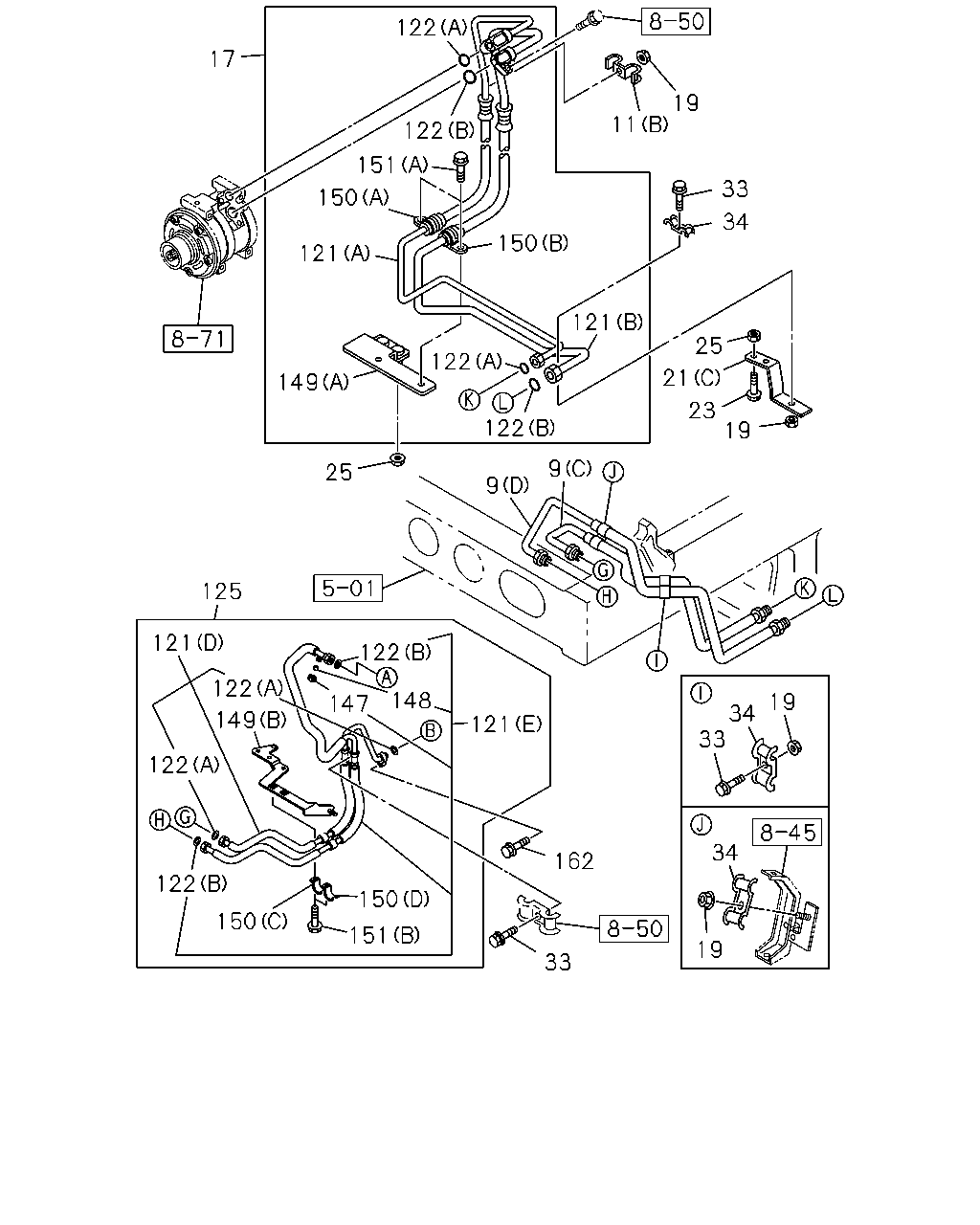

çizim 105086
122 17 19 11 122 151 33 150 34 150 121 121 25 122 21 149 122 23 19 9 25 9 125 121 122 148 122 19 147 34 33 149 121 122 34 162 122 150 150 151 19 33
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83567-888-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-83567-889-1 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-841-0 01 1 0507-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-842-0 01 1 0507-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0512-
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 02 1 0507-0511
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) (A) ID=20 & 20 		1-83574-195-1 02 1 0512-
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0507-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83577-062-1 01 1 0512-
17 HOSE; FLEX,CMPR TO PIPE 1-83572-928-2 01 1 0507-0511
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0512-
19 NUT; CLIP FIX
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
19 NUT; CLIP FIX
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83573-297-0 01 1 0512-
21 BRACKET; COOLER HOSE
(A) 		1-83573-249-0 01 1 0507-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) (A) 		1-83573-249-0 01 1 0512-
21 BRACKET; COOLER HOSE
(B) 		1-83573-282-1 01 1 0507-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) (B) 		1-83573-282-1 01 1 0512-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
23 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 0507-0511
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0507-0904
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
34 CLIP; COOLER PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=20 & 20 		1-83574-195-1 03 1 0512-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-83577-070-0 01 1 0512-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-83577-071-0 01 1 0512-
121 HOSE; COOLER
(A) 		1-83572-953-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
(B) 		1-83572-954-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0507-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0507-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0507-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0507-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0507-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0507-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0507-
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0507-
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0507-
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0507-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0507-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0507-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0507-
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0507-
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0507-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0507-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0507-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0507-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0507-0512
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601-

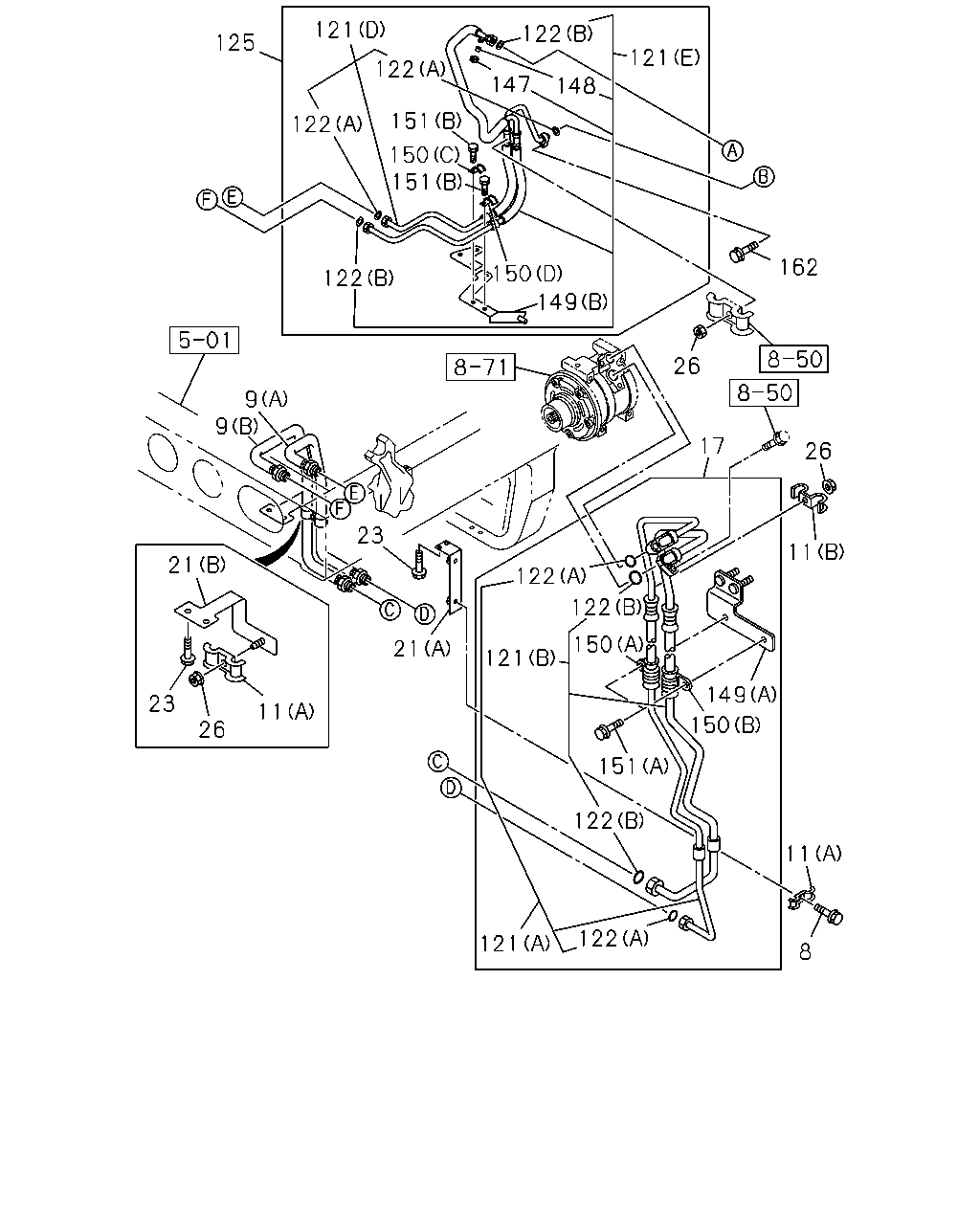

çizim 105301
121 122 125 121 122 147 148 151 122 150 151 150 162 122 149 26 9 17 26 23 11 21 122 122 150 21 121 149 23 11 150 26 151 122 11 122 121 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0511
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83567-888-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-83567-889-1 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-841-0 01 1 0507-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0512-
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-842-0 01 1 0507-0511
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0512-
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 02 1 0507-0511
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) (A) ID=20 & 20 		1-83574-195-1 02 1 0512-
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0507-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83577-062-1 01 1 0512-
17 HOSE; FLEX,CMPR TO PIPE 1-83572-928-2 01 1 0507-0511
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0512-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83573-297-0 01 1 0512-
21 BRACKET; COOLER HOSE
(A) 		1-83573-249-0 01 1 0507-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) (A) 		1-83573-249-0 01 1 0512-
21 BRACKET; COOLER HOSE
(B) 		1-83573-282-1 01 1 0507-0511
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) (B) 		1-83573-282-1 01 1 0512-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
23 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 0507-0511
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0507-0511
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-83577-070-0 01 1 0512-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-83577-071-0 01 1 0512-
121 HOSE; COOLER
(A) 		1-83572-953-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0512-
121 HOSE; COOLER
(B) 		1-83572-954-0 01 1 0507-0511
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0512-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0507-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0507-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0507-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0507-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0507-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0507-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0507-
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0507-
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0507-
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0507-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0507-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0507-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0507-
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0507-
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0507-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0507-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0507-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0507-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0507-0512
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601-
