Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

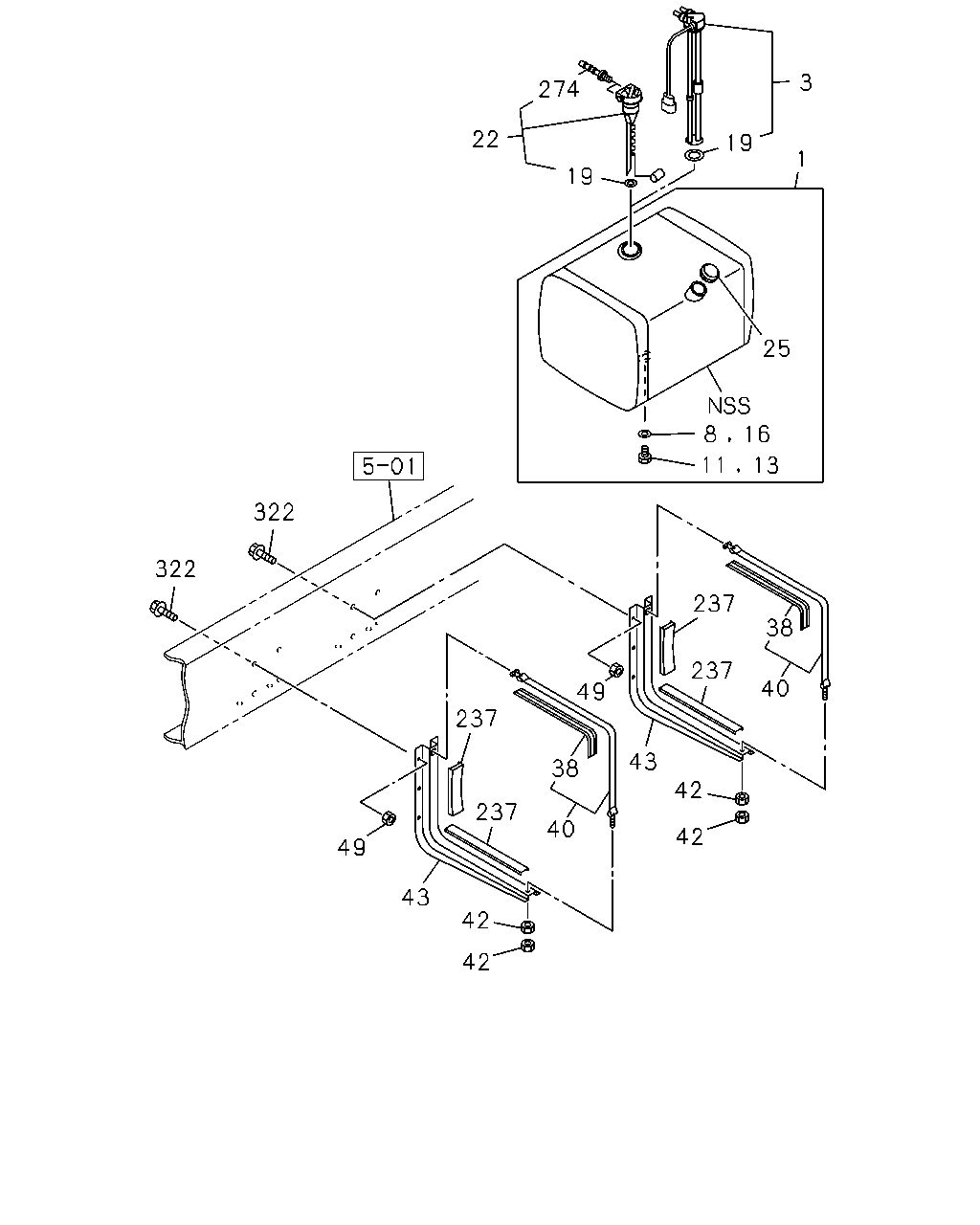

1-40 — FUEL TANK
(#31646) — 28 parça
274
22
19
19
3
1
25
8
16
11
13
322
322
237
49
43
237
42
40
38
49
237
237
38
40
42
43
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-173-1
01
1
0507-0810
1
TANK; FUEL
1050X680X625 400L
1-87411-699-1
01
1
0811-1109
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1110-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1211-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
9-99202-318-0
01
1
0507-0606
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
0607-1210
16
GASKET; PLUG
T=1.60
1-22416-001-0
01
1
0507-0509
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
0510-1210
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0507-1210
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1211-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0507-1210
25
CAP; FILLER,FUEL TANK
1-22440-063-1
01
1
0507-0810
25
CAP; FILLER,FUEL TANK
8-98115-780-0
01
1
0811-1109
25
CAP; FILLER,FUEL TANK
8-98182-306-0
01
1
1110-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0507-
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
0507-1110
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0507-0512
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0507-
49
NUT; BRKT
M12
9-99110-512-0
12
1
0507-0512
49
NUT; BRKT
M12
0-91110-512-0
12
1
0601-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
0507-
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
0507-1210
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28081-245-0
12
1
0507-0512
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28051-245-0
12
1
0601-
