Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

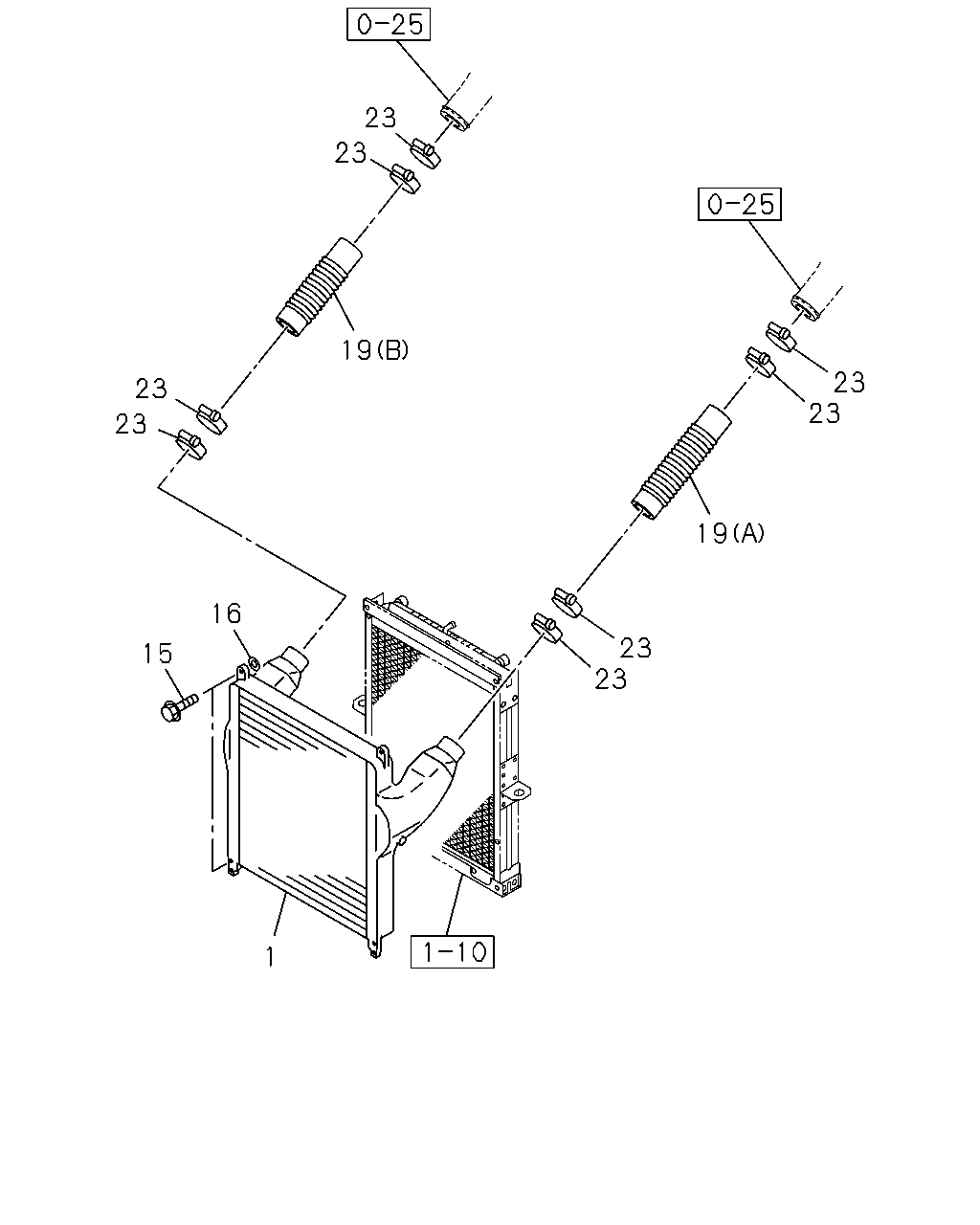

1-35 — CHARGE AIR COOLER
(#31645) — 17 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
C - 6WF1 TC-C
23
23
19
23
23
23
23
19
16
23
23
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COOLER; CHARGE AIR
8-97604-525-4
01
1
0512-
●
●
1
COOLER; CHARGE AIR
1-14431-055-6
01
1
0507-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
1-21469-151-0
04
1
0507-0511
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
1-21469-151-0
04
1
0512-
●
●
●
16
WASHER; PL,CHARGE AIR COOLER
1-21469-132-0
02
1
0507-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-141-1
01
1
0512-1010
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-98170-413-0
01
1
1011-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-142-1
01
1
0512-1010
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-98170-414-0
01
1
1011-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-130-0
01
1
0507-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-131-0
01
1
0507-1402
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-98258-227-0
01
1
1403-
●
23
CLIP; HOSE
ID=87-112
8-97375-040-0
08
1
0512-1001
●
●
23
CLIP; HOSE
ID=87-112
8-97375-040-0
08
1
1002-1010
●
●
●
23
CLIP; HOSE
ID=87-116
1-09707-138-0
08
1
1011-
●
●
●
23
CLIP; HOSE
ID=87-113
1-09707-199-0
08
1
0507-0811
●
23
CLIP; HOSE
ID=90-110
8-98133-365-0
08
1
0812-1001
●
