Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#31636) — 269 parça

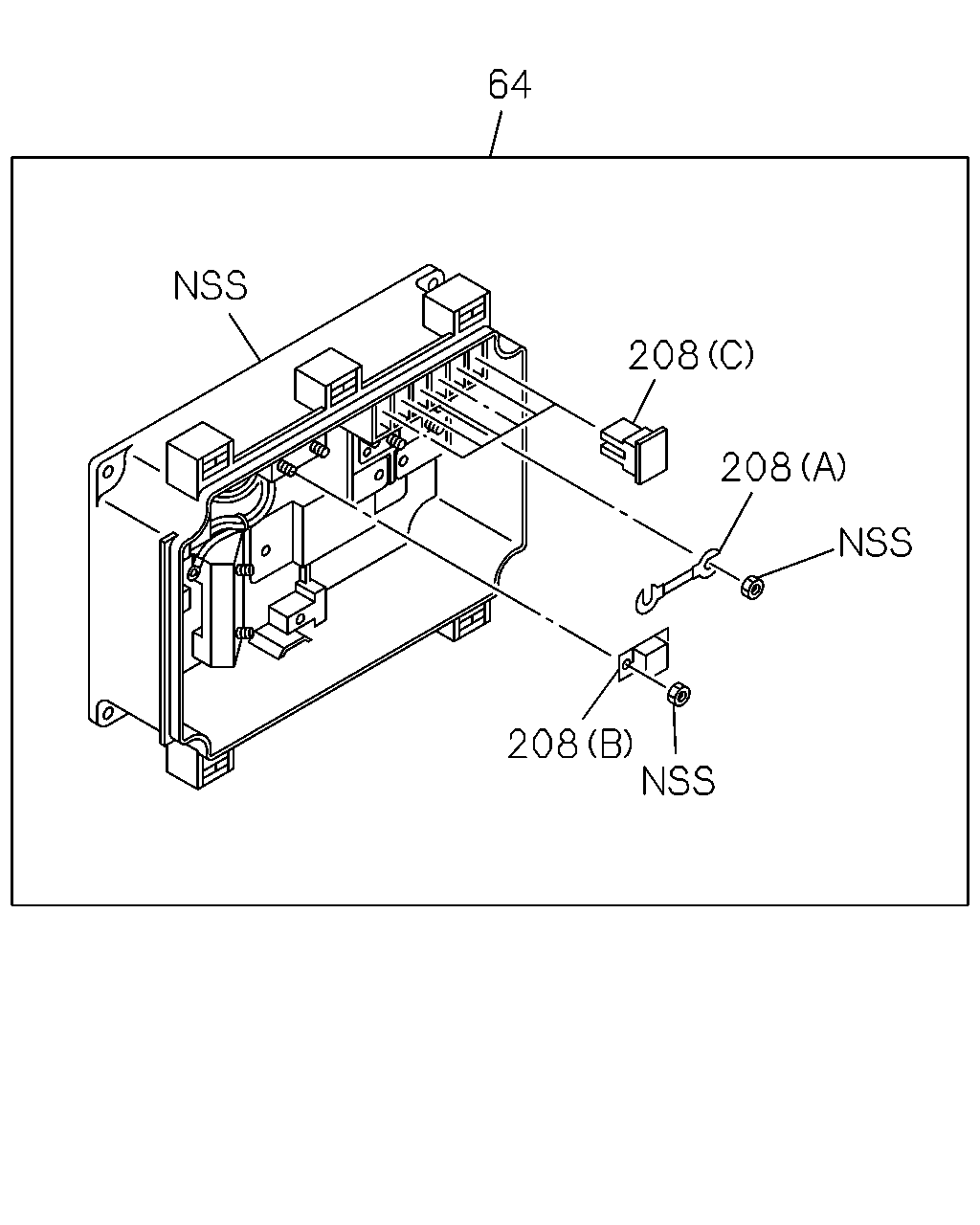

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82510-650-0	01	1	0512-
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0507-0511
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-
208	FUSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 40A GREEN	8-94468-662-0	06	1	0512-
208	FUSE (B) 80A	1-82516-031-0	01	1	0507-
208	FUSE (A) 100A	1-82516-032-0	01	1	0507-
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	0507-0511
208	FUSE 6WF1 TC-C(1B8) (C) 40A GREEN	8-94468-662-0	05	1	0512-

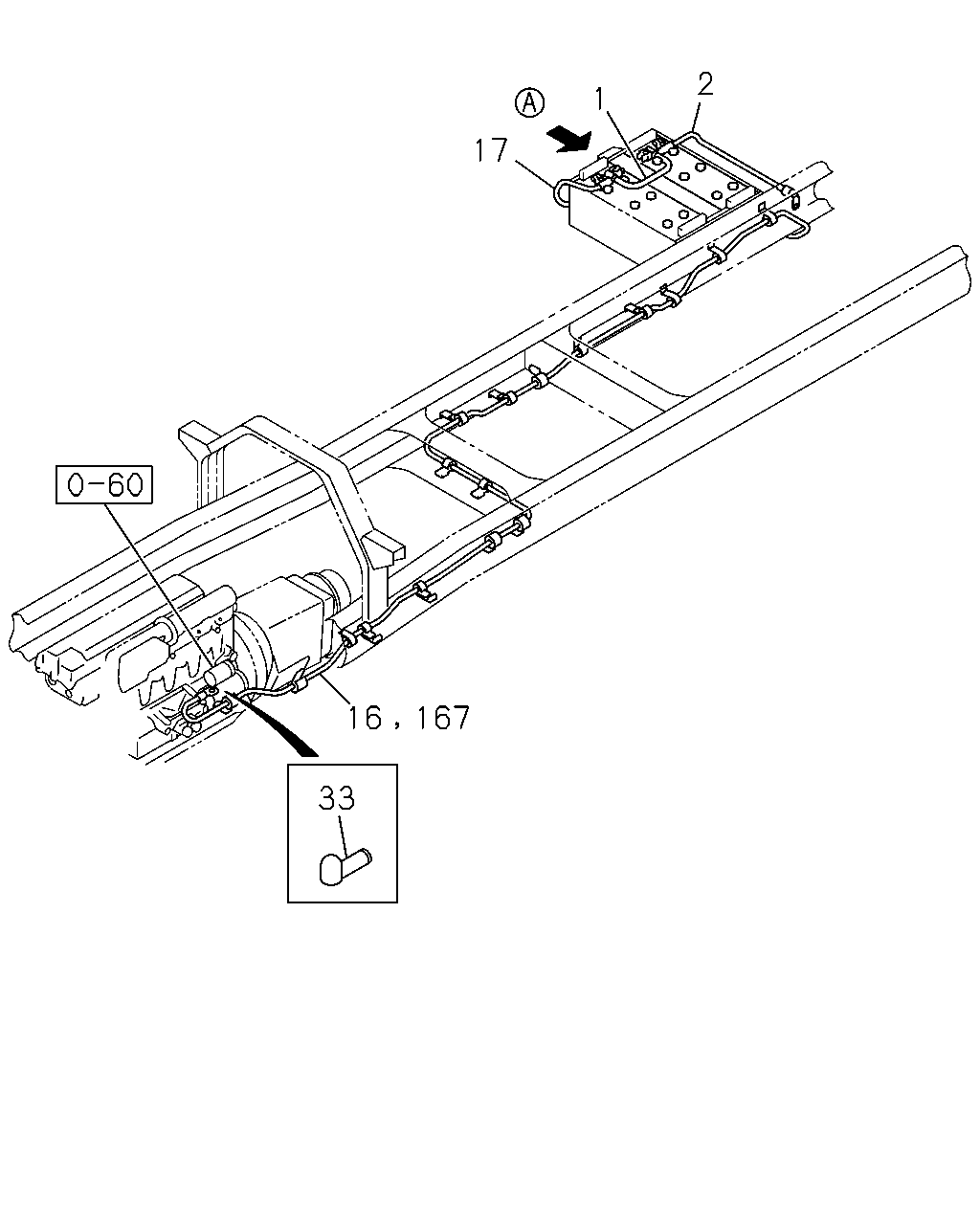

2 1 17 16 167 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0507-
1	CABLE; BATTERY BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-389-1	01	1	0507-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0507-
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) L=6150	1-82652-928-1	01	1	0507-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0507-
33	CAP; INSULATOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97181-965-0	01	1	0604-
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82652-932-3	01	1	0512-

9 22 9 18 22 9 18 22 99 9 9 99 9 158 22 9 99 25 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=18 L=28	1-09701-067-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0512-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606
9	CLIP; BATTERY CABLE (B) ID=19 L=20	0-95235-836-0	01	1	0607-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	02	1	0512-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	02	1	0512-
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0507-0511
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0507-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0507-0511
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0512-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0507-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0507-
25	CLIP; BATTERY CABLE TO BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=18 H=23 L=28	1-09701-070-0	04	1	0512-
25	CLIP; BATTERY CABLE TO BRKT 6WF1 TC-C(1B8) ID=18 H=23 L=28	1-09701-070-0	03	1	0507-
99	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	01	1	0507-0511
99	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=18 L=28	1-09701-067-0	01	1	0512-
99	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-068-0	01	1	0507-
99	CLIP; BATTERY CABLE (C) ID=18 H=23 L=28	1-09701-070-0	03	1	0507-
99	CLIP; BATTERY CABLE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0507-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0507-

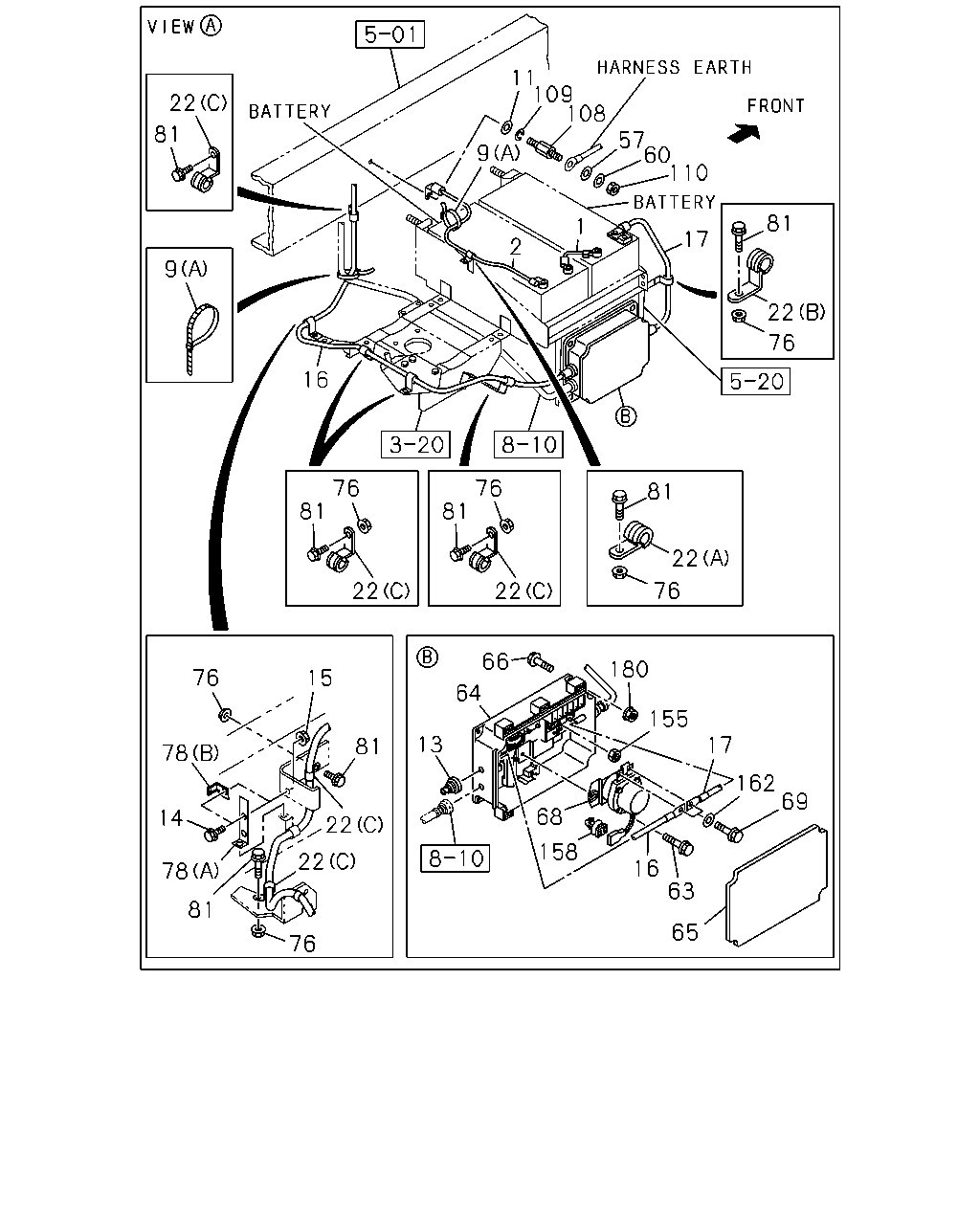

11 109 108 22 81 57 60 110 9 81 1 17 2 9 22 76 16 76 76 81 81 81 22 76 22 22 66 180 76 15 64 155 13 17 81 78 162 69 68 14 22 22 158 16 78 63 81 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0507-
1	CABLE; BATTERY BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-389-1	01	1	0507-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0507-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=18 L=28	1-09701-067-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0512-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606
9	CLIP; BATTERY CABLE (B) ID=19 L=20	0-95235-836-0	01	1	0607-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	02	1	0512-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	02	1	0512-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0507-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0507-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
14	BOLT; BRKT CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
14	BOLT; BRKT CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0601-
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
15	NUT; BRKT CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) L=6150	1-82652-928-1	01	1	0507-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0507-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0507-0511
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0512-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0507-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0507-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0507-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0507-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82510-650-0	01	1	0512-
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0507-0511
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0507-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0507-0512
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
68	RELAY; BATTERY	1-82550-313-0	01	1	0507-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0507-0512
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	03	1	0512-0602
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0603-
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0507-0511
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	05	1	0512-0602
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0603-
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0507-0511
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (A) L=90 B=25	1-47476-630-0	01	1	0512-
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0507-0511
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (B)	8-97304-944-0	01	1	0512-
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	03	1	0601-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0507-0511
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	07	1	0512-0512
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	07	1	0601-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0507-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0507-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0507-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0507-0602
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0507-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0507-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0507-0602
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-

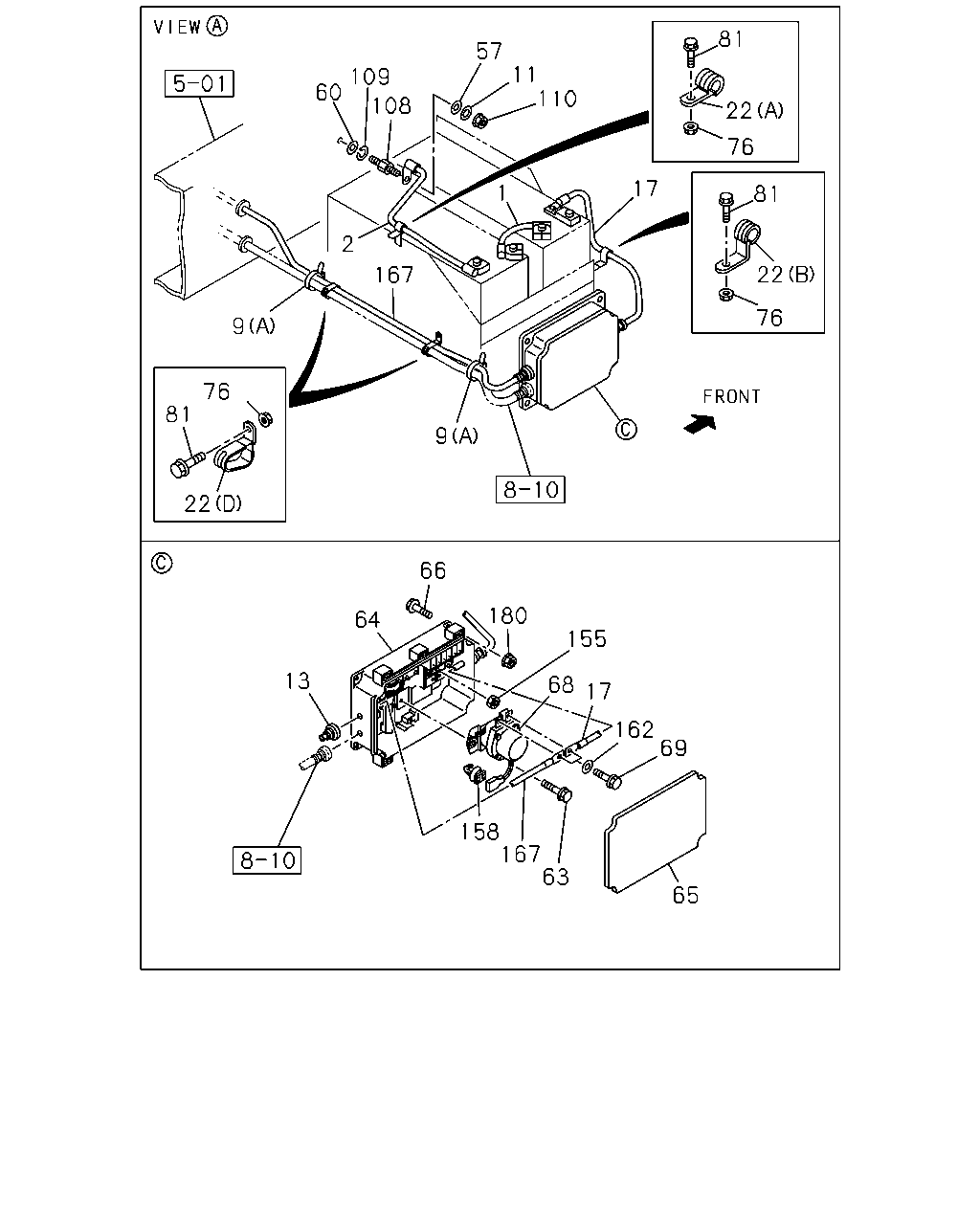

81 57 11 110 109 60 108 22 76 17 1 81 2 22 167 76 9 76 81 9 22 66 180 64 15 13 68 17 162 69 158 167 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0507-
1	CABLE; BATTERY BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-389-1	01	1	0507-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0507-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=18 L=28	1-09701-067-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0512-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0512-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606
9	CLIP; BATTERY CABLE (B) ID=19 L=20	0-95235-836-0	01	1	0607-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	02	1	0512-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0507-0511
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	02	1	0512-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0507-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0507-
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
15	NUT; BRKT CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0507-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0507-0511
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0512-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0507-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0507-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0507-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0507-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82510-650-0	01	1	0512-
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0507-0511
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0507-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0507-0512
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
68	RELAY; BATTERY	1-82550-313-0	01	1	0507-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0507-0512
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	03	1	0512-0602
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0603-
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0507-0511
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	05	1	0512-0602
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0603-
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	03	1	0601-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0507-0511
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	07	1	0512-0512
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	07	1	0601-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0507-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0507-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0507-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0507-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0507-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82652-932-3	01	1	0512-
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0507-0602
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-

23 23 23 23 23 61 23 23 78 10 100 24 66 69 108 110 12 57 11 162 60 109 77 20 23 78 21 75 15 27 28 76 101 155 180 10 63 24 81 26 100 14 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28680-820-0	06	1	0512-0512
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0511
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0507-0605
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	08	1	0512-0602
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	08	1	0603-
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0507-0602
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
14	BOLT; BRKT CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
14	BOLT; BRKT CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0601-
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
15	NUT; BRKT CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
20	NUT; STARTER CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10	8-98011-328-0	01	1	0512-
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
21	BOLT; CLIP CABLE M8X16 FLANGE	0-28050-816-0	02	1	0601-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=40	1-47478-410-0	01	1	0512-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) L=95	1-82698-557-0	01	1	0512-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (F)	1-82698-574-0	01	1	0512-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (G)	1-82698-575-1	01	1	0512-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (H)	1-82698-589-0	01	1	0512-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (A) L=95	1-82699-085-0	02	1	0507-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (C)	1-47476-200-0	01	1	0507-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (B)	8-97304-944-0	01	1	0507-
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
24	BOLT; BRKT TO FRAME (C) M8X30 FLANGE	0-28680-830-0	01	1	0507-0512
24	BOLT; BRKT TO FRAME (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
24	BOLT; BRKT TO FRAME (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	03	1	0507-0512
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28650-820-0	03	1	0601-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	03	1	0507-0602
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	03	1	0512-0602
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0603-
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0507-0602
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0507-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0507-0603
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-
61	BRACKET; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82698-587-0	01	1	0512-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0507-0512
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0507-0512
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
75	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
75	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE	0-28050-816-0	02	1	0601-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	03	1	0512-0602
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0603-
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0507-0511
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	05	1	0512-0602
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0603-
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=10.2	9-09150-610-0	01	1	0512-0603
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=10.2	0-91510-610-0	01	1	0604-
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0507-0511
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (A) L=90 B=25	1-47476-630-0	01	1	0512-
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0507-0511
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (B)	8-97304-944-0	01	1	0512-
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	03	1	0601-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0507-0511
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	07	1	0512-0512
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	07	1	0601-
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0602
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	04	1	0507-0602
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0507-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0507-0603
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0507-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0507-0602
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0507-0605
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0507-0602
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
