Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#31635) — 199 parça
◀

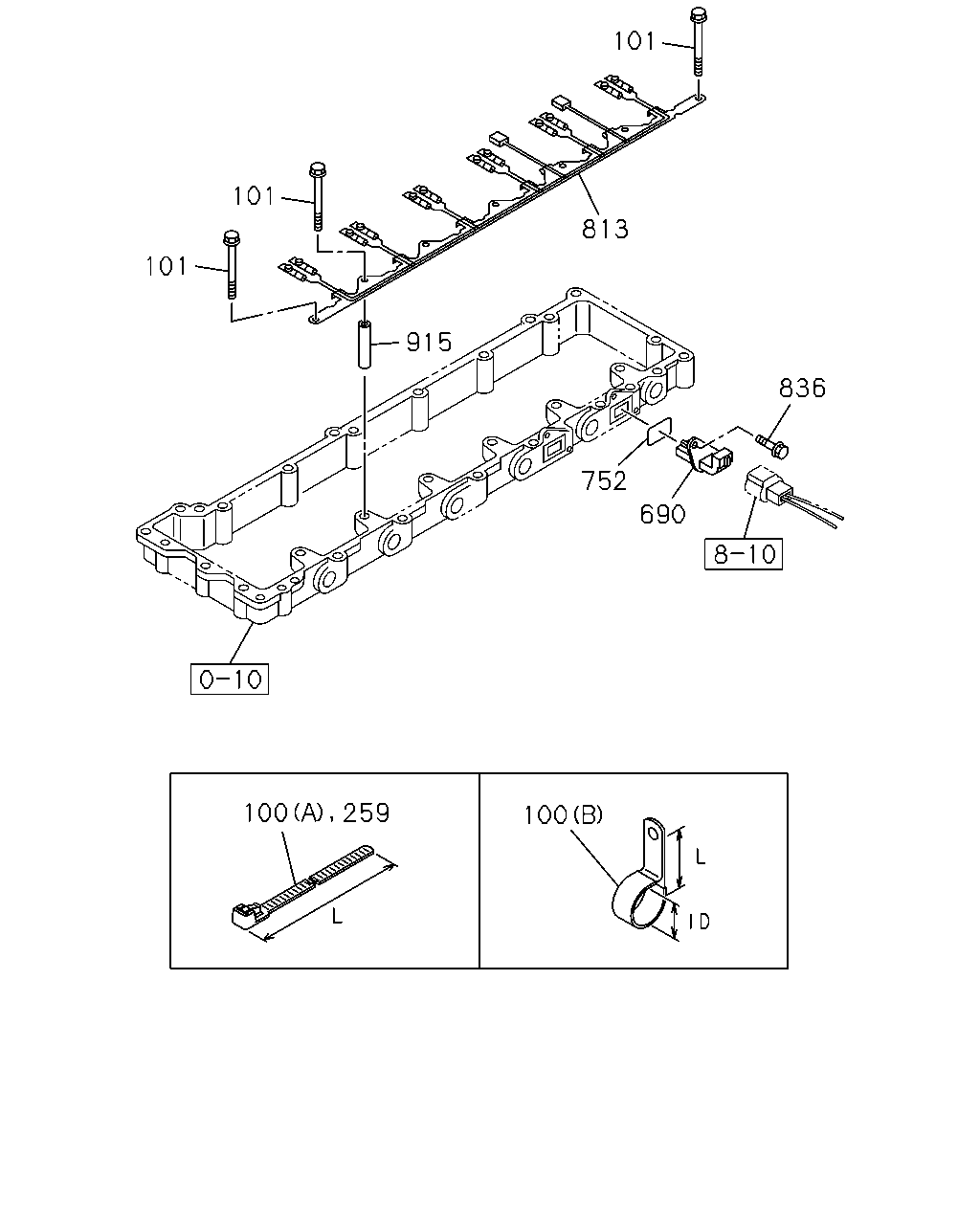

[060A] CYLINDER HEAD SIDE (20 parça)

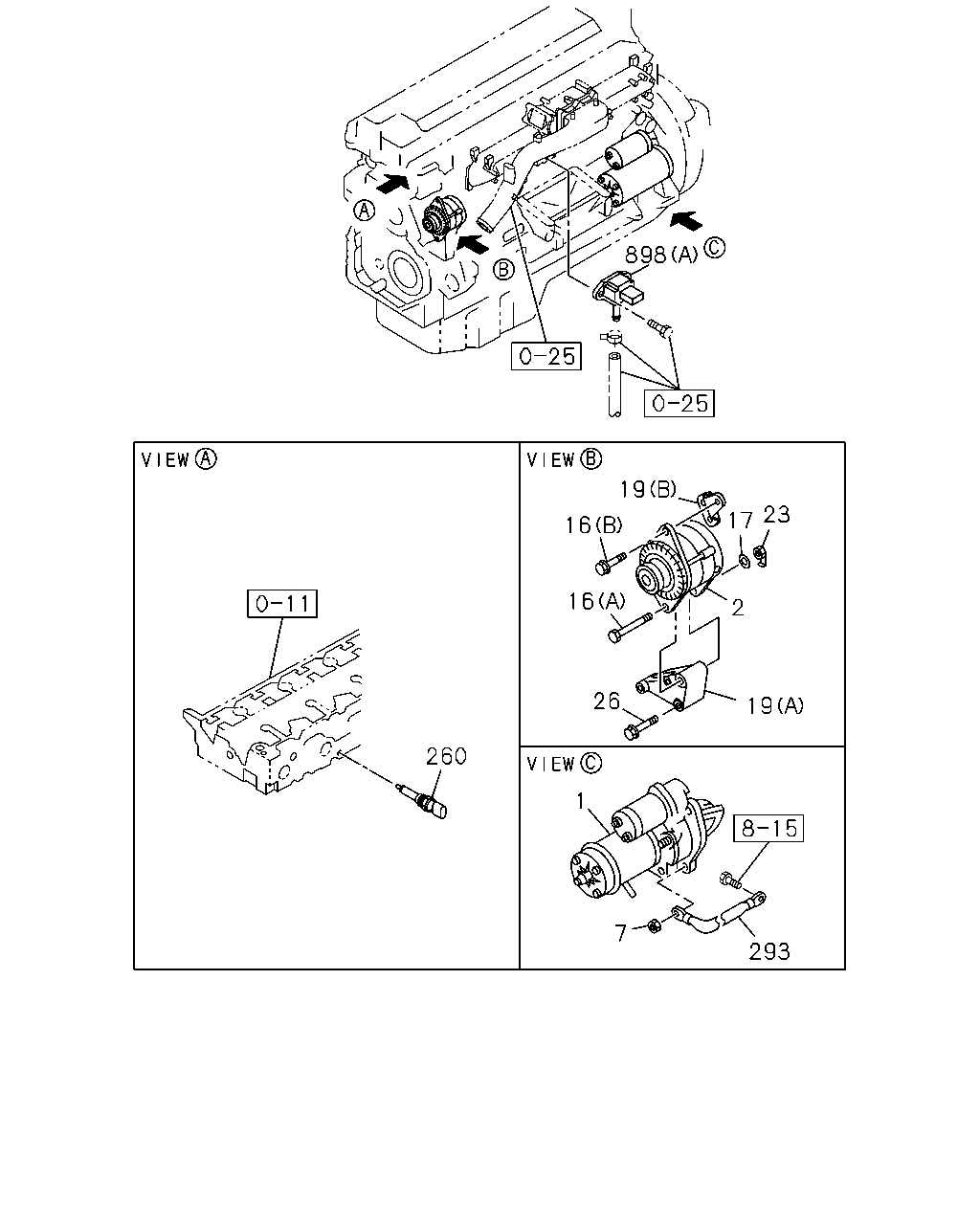

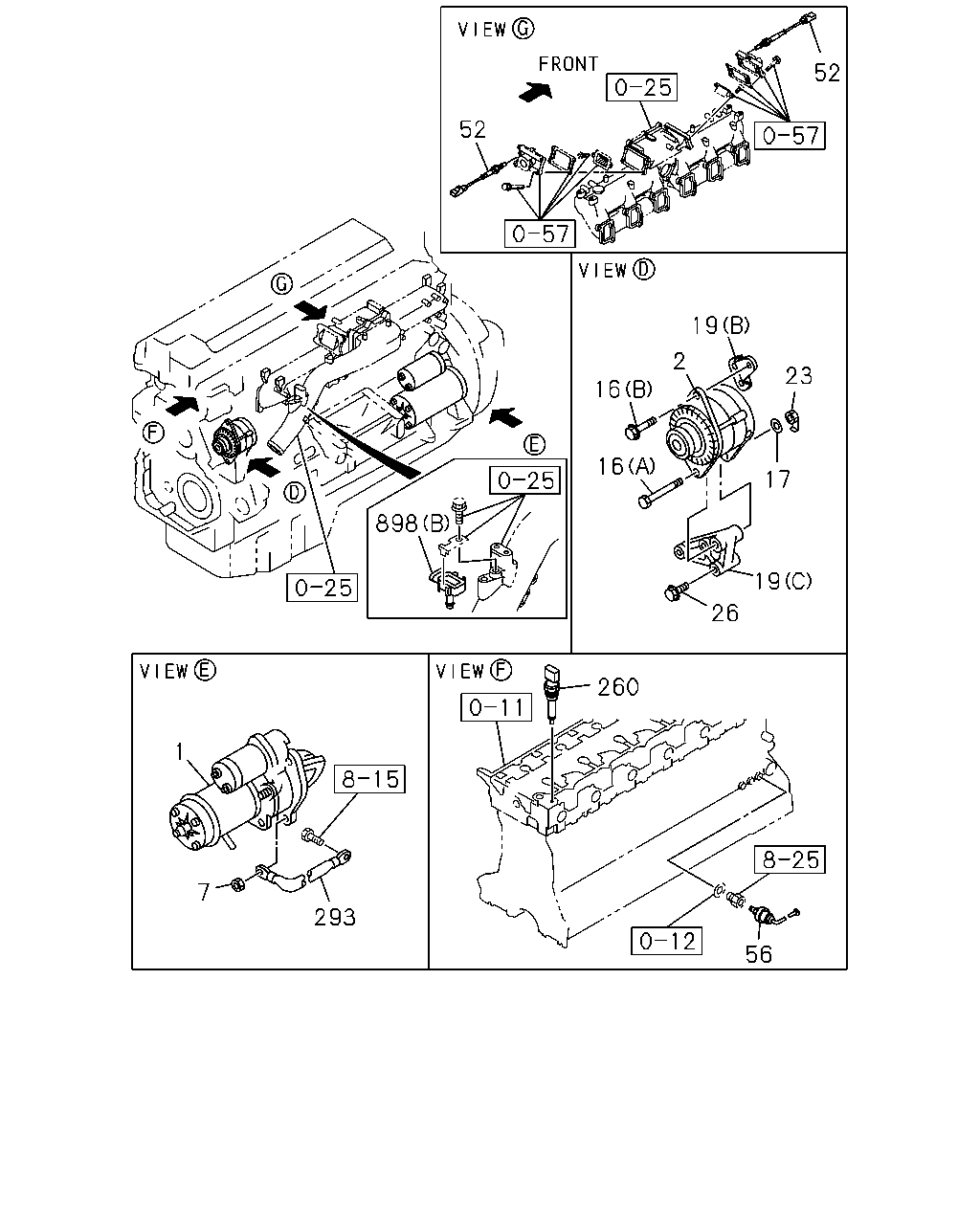

[060A] 6WG1;STARTER,GENERATOR AND SENSOR (29 parça)
[060A] 6WF1;STARTER,GENERATOR AND SENSOR (27 parça)

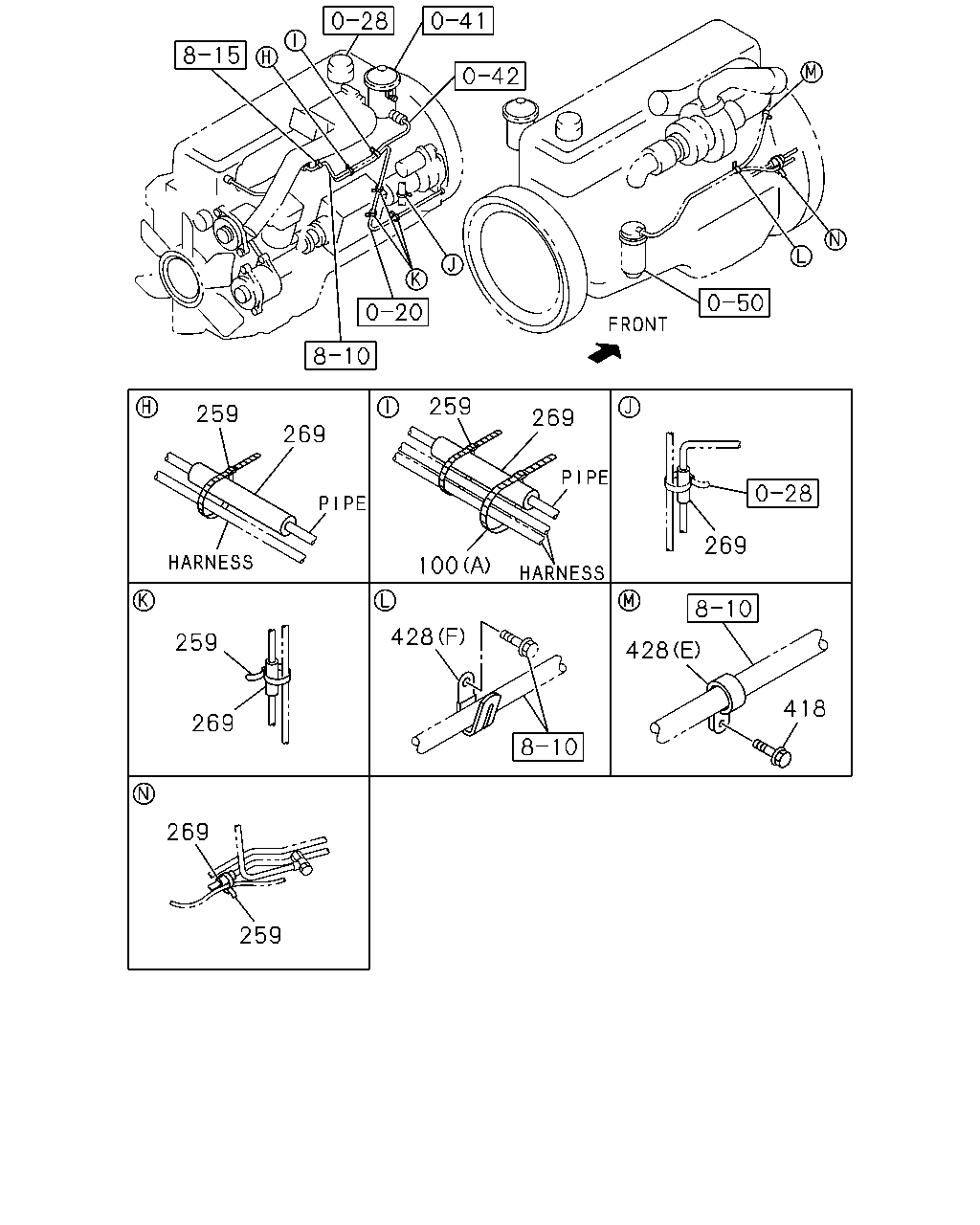

[060A] FIXING;ENG HARNESS (29 parça)

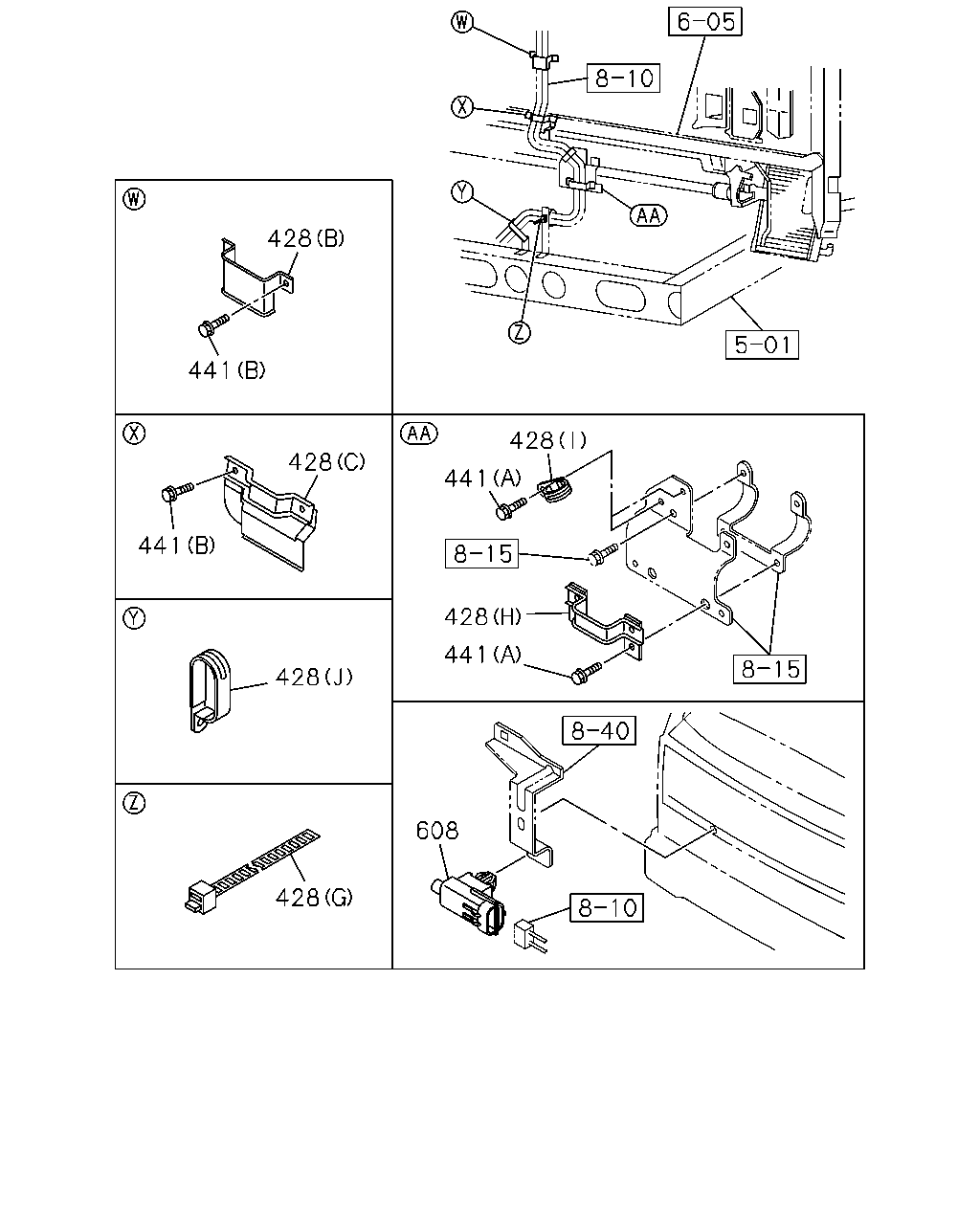

[060A] 6WG1;CAB FRONT SIDE (23 parça)

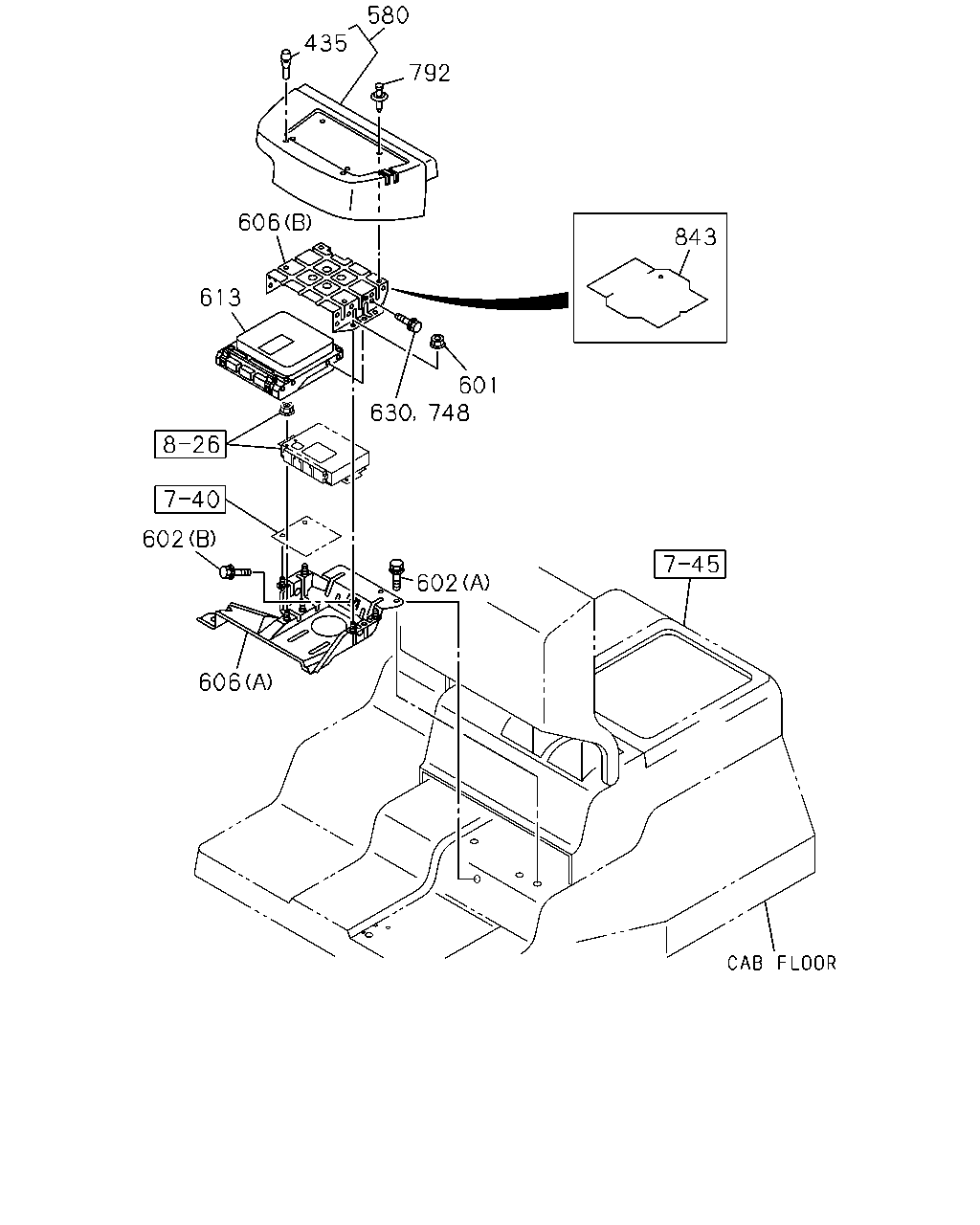

[060A] FIXING;BRKT,ENG CONT UNIT AND COVER (29 parça)

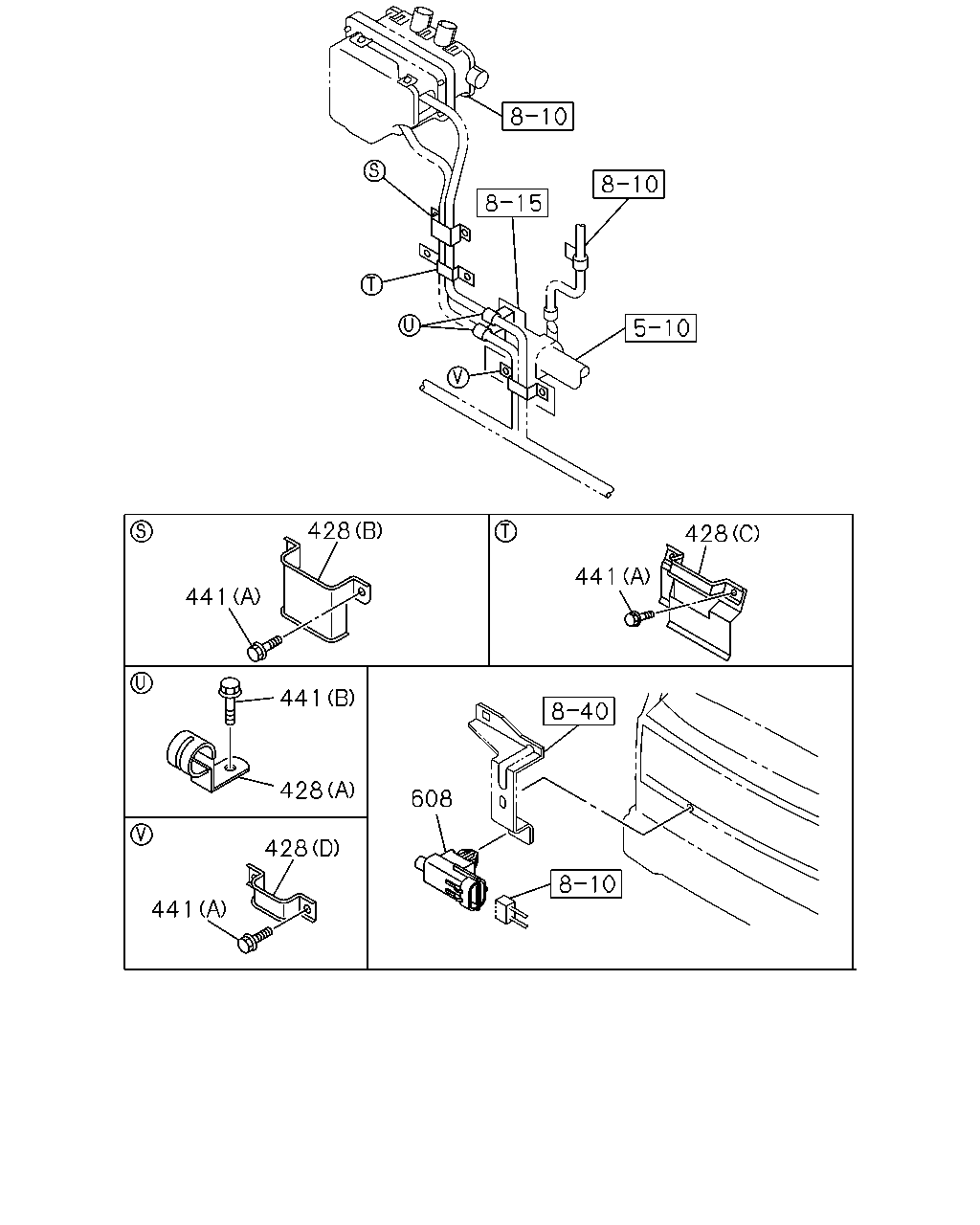

[060A] 6WF1;CAB FRONT SIDE (23 parça)

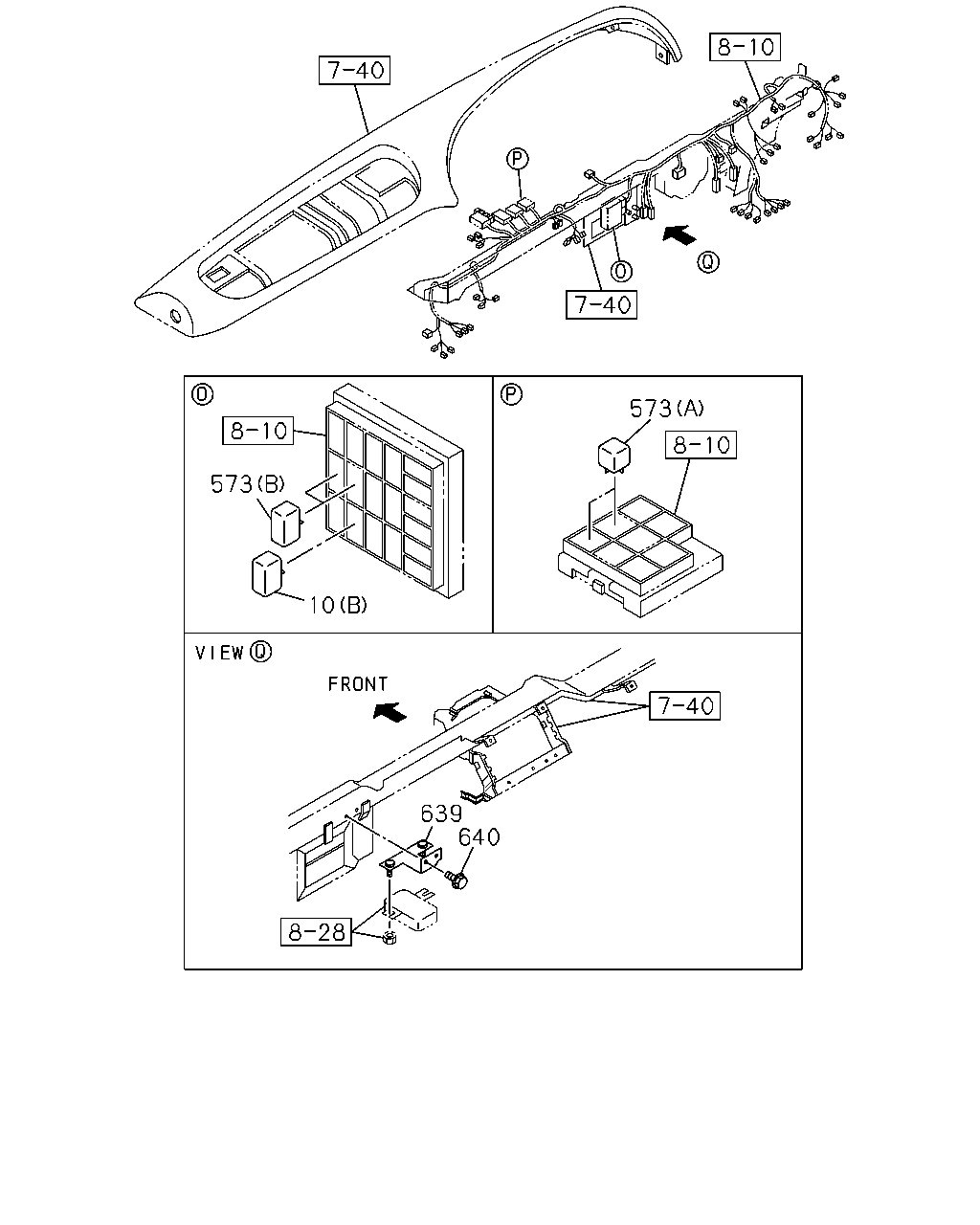

[060A] FACIA HARNESS RELAY AND BRACKET (10 parça)

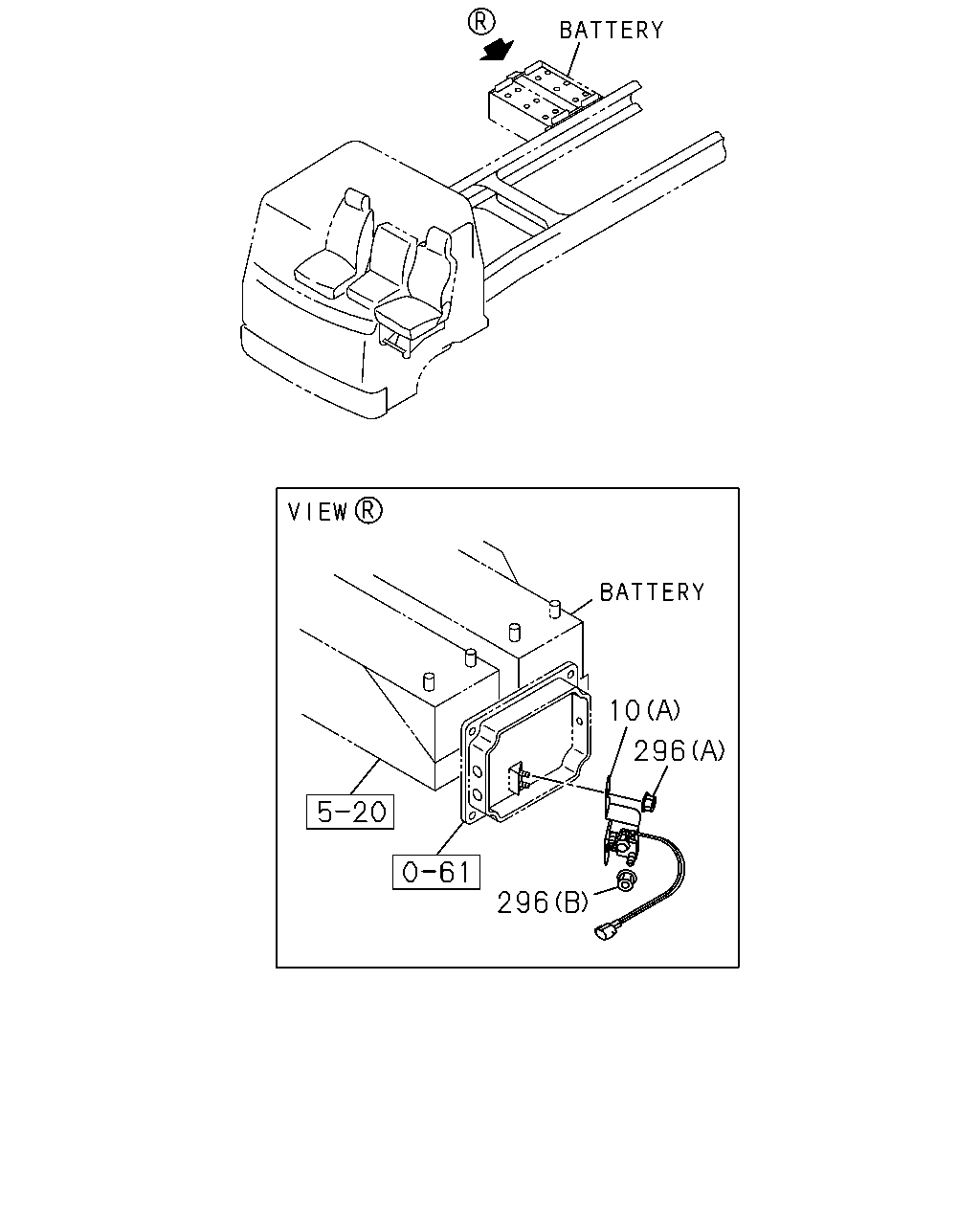

[060A] STARTER RELAY AND FIXING PARTS (9 parça)
▶
101
101
813
101
915
836
752
690
100
259
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(A) L=140
5-09707-031-1
02
1
0507-1205
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1206-
100
CLIP; HARNESS
(B) ID=11 L=20
9-09525-035-0
01
1
0507-0606
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
0607-
101
BOLT; HARNESS
M8X70 FLANGE
0-28080-870-0
07
1
0507-0512
101
BOLT; HARNESS
M8X70 FLANGE
0-28050-870-0
07
1
0601-
259
CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=250
5-09707-030-1
07
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
07
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140
5-09707-031-1
01
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
01
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
5-09707-030-1
05
1
0507-0511
259
CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250
5-09707-030-1
05
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250
8-98216-430-0
05
1
1206-1208
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
06
1
1209-
690
CONNECTOR
8-94390-858-1
02
1
0507-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
0507-
813
HARNESS; INJECTOR
1-82641-338-1
01
1
0507-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28080-812-0
04
1
0507-0512
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
0601-
915
SPACER; HARNESS
L=51
1-11369-157-0
05
1
0507-
52
52
19
2
23
16
16
17
898
19
26
260
1
7
293
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 7.0KW MITSUBISHI
8-97380-508-4
01
1
0512-
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-341-6
01
1
0507-0511
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 7.0KW MITSUBISHI
1-81100-341-6
01
1
0512-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI
1-81200-572-8
01
1
0507-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
1-81200-484-8
01
1
0507-1112
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
8-98200-154-0
01
1
1201-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0507-
16
BOLT; GEN
(B) M12X40 FLANGE
0-28081-240-0
01
1
0507-0512
16
BOLT; GEN
(B) M12X40 FLANGE
0-28051-240-0
01
1
0601-
16
BOLT; GEN
(A) M14X123
1-09040-105-0
01
1
0507-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0507-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0512-
19
BRACKET; GEN
(A)
8-97604-177-0
01
1
0507-0511
19
BRACKET; GEN
6WF1 TC-C(1B8) (A)
8-97604-177-0
01
1
0512-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0507-0511
19
BRACKET; GEN
6WG1 TC-C(72L),6WG1 TC-S(97L) (C)
8-97607-133-0
01
1
0512-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0507-0910
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0911-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28181-060-0
02
1
0507-0512
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0601-
52
SENSOR; EGR GAS
6WG1 TC-C(72L),6WG1 TC-S(97L)
1-81510-758-0
02
1
0512-
56
SWITCH; OIL PRESSURE WARNING
6WG1 TC-C(72L),6WG1 TC-S(97L)
1-82410-163-1
01
1
0512-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0507-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0507-
898
SENSOR; BOOST
6WG1 TC-C(72L),6WG1 TC-S(97L) (B)
8-09373-269-1
01
1
0512-0809
898
SENSOR; BOOST
(B)
8-28139-775-0
01
1
0810-
898
SENSOR; BOOST
(A)
1-80220-014-0
01
1
0507-0511
898
SENSOR; BOOST
6WF1 TC-C(1B8) (A)
1-80220-014-0
01
1
0512-
293
7
1
26
16
16
19
17
23
2
19
260
898
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 7.0KW MITSUBISHI
8-97380-508-4
01
1
0512-
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-341-6
01
1
0507-0511
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 7.0KW MITSUBISHI
1-81100-341-6
01
1
0512-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI
1-81200-572-8
01
1
0507-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
1-81200-484-8
01
1
0507-1112
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
8-98200-154-0
01
1
1201-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0507-
16
BOLT; GEN
(B) M12X40 FLANGE
0-28081-240-0
01
1
0507-0512
16
BOLT; GEN
(B) M12X40 FLANGE
0-28051-240-0
01
1
0601-
16
BOLT; GEN
(A) M14X123
1-09040-105-0
01
1
0507-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0507-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0512-
19
BRACKET; GEN
(A)
8-97604-177-0
01
1
0507-0511
19
BRACKET; GEN
6WF1 TC-C(1B8) (A)
8-97604-177-0
01
1
0512-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0507-0511
19
BRACKET; GEN
6WG1 TC-C(72L),6WG1 TC-S(97L) (C)
8-97607-133-0
01
1
0512-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0507-0910
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0911-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28181-060-0
02
1
0507-0512
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0601-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0507-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0507-
898
SENSOR; BOOST
6WG1 TC-C(72L),6WG1 TC-S(97L) (B)
8-09373-269-1
01
1
0512-0809
898
SENSOR; BOOST
(B)
8-28139-775-0
01
1
0810-
898
SENSOR; BOOST
(A)
1-80220-014-0
01
1
0507-0511
898
SENSOR; BOOST
6WF1 TC-C(1B8) (A)
1-80220-014-0
01
1
0512-
259
259
269
269
269
100
428
259
428
418
269
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(A) L=140
5-09707-031-1
02
1
0507-1205
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1206-
100
CLIP; HARNESS
(B) ID=11 L=20
9-09525-035-0
01
1
0507-0606
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
0607-
259
CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=250
5-09707-030-1
07
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
07
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140
5-09707-031-1
01
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
01
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
5-09707-030-1
05
1
0507-0511
259
CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250
5-09707-030-1
05
1
0512-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250
8-98216-430-0
05
1
1206-1208
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
06
1
1209-
269
SLEEVE; RUBBER,CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=10 OD=14 L=30
9-09956-682-0
03
1
0512-
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
02
1
0507-0511
269
SLEEVE; RUBBER,CABLE
6WF1 TC-C(1B8) ID=10 OD=14 L=30
9-09956-682-0
02
1
0512-
418
BOLT; CLIP
M10X16 FLANGE
0-28181-016-0
01
1
0507-0512
418
BOLT; CLIP
M10X16 FLANGE
0-28151-016-0
01
1
0601-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=39 H=28 L=32
1-09701-263-0
02
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=35X2 L=32
1-09701-314-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) L=350
1-09707-183-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H)
1-82698-555-0
01
1
0512-
428
CLIP; HARNESS
(F) L=36
8-94224-891-1
01
1
0507-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0507-
428
CLIP; HARNESS
(A) ID=39 H=28 L=32
1-09701-263-0
04
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (A) ID=39 H=28 L=32
1-09701-263-0
04
1
0512-
428
CLIP; HARNESS
(C)
1-82698-375-1
01
1
0507-
428
CLIP; HARNESS
(D)
1-82698-477-0
01
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (D)
1-82698-477-0
01
1
0512-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0507-
428
441
428
428
441
441
428
441
428
608
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=39 H=28 L=32
1-09701-263-0
02
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=35X2 L=32
1-09701-314-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) L=350
1-09707-183-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H)
1-82698-555-0
01
1
0512-
428
CLIP; HARNESS
(F) L=36
8-94224-891-1
01
1
0507-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0507-
428
CLIP; HARNESS
(A) ID=39 H=28 L=32
1-09701-263-0
04
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (A) ID=39 H=28 L=32
1-09701-263-0
04
1
0512-
428
CLIP; HARNESS
(C)
1-82698-375-1
01
1
0507-
428
CLIP; HARNESS
(D)
1-82698-477-0
01
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (D)
1-82698-477-0
01
1
0512-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0507-
441
BOLT; HARNESS TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE
0-28680-820-0
03
1
0512-0512
441
BOLT; HARNESS TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE
0-28650-820-0
03
1
0601-
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28680-820-0
02
1
0507-0511
441
BOLT; HARNESS TO FRAME
6WF1 TC-C(1B8) (A) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
441
BOLT; HARNESS TO FRAME
6WF1 TC-C(1B8) (A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
441
BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE
0-28680-825-0
02
1
0507-0512
441
BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0507-0904
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
608
SENSOR; AIR TEMP
8-97177-549-0
01
1
0507-1204
608
SENSOR; AIR TEMP
8-98214-375-0
01
1
1205-
580
435
792
606
843
613
601
748
630
602
602
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
435
RUBBER; CUSHION
1-72537-138-0
02
1
0507-0511
435
RUBBER; CUSHION
CENTER SEAT DELETE(SP9)
1-72537-138-0
02
1
0512-
580
COVER; CONT UNIT
1-72537-279-2
01
1
0507-0511
580
COVER; CONT UNIT
CENTER SEAT DELETE(SP9)
1-72537-279-2
01
1
0512-
601
NUT; UNIT
M6 FLANGE
0-91150-106-0
04
1
0507-0602
601
NUT; UNIT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE
0-91150-106-0
04
1
0507-0602
601
NUT; UNIT
M6 FLANGE
0-91180-106-0
04
1
0603-
601
NUT; UNIT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE
0-91180-106-0
04
1
0603-
602
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0507-
602
BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0507-
606
BRACKET; CONT UNIT
(B)
1-72537-228-0
01
1
0507-0704
606
BRACKET; CONT UNIT
(B)
1-72537-333-0
01
1
0705-
606
BRACKET; CONT UNIT
(A)
1-72537-230-1
01
1
0507-
613
CONTROL UNIT; ENG
6WG1 TC-C(72L)
1-80111-278-0
01
1
0512-0604
613
CONTROL UNIT; ENG
6WG1 TC-C(72L)
1-80111-404-0
01
1
0605-1103
613
CONTROL UNIT; ENG
6WG1 TC-C(72L)
8-98174-820-0
01
1
1104-
613
CONTROL UNIT; ENG
6WG1 TC-S(97L)
1-80111-280-0
01
1
0512-0604
613
CONTROL UNIT; ENG
6WG1 TC-S(97L)
1-80111-405-0
01
1
0605-1103
613
CONTROL UNIT; ENG
6WG1 TC-S(97L)
8-98174-818-0
01
1
1104-
613
CONTROL UNIT; ENG
1-80111-208-0
01
1
0507-0509
613
CONTROL UNIT; ENG
1-80111-314-0
01
1
0510-0511
613
CONTROL UNIT; ENG
6WF1 TC-C(1B8)
1-80111-314-0
01
1
0512-0604
613
CONTROL UNIT; ENG
6WF1 TC-C(1B8)
1-80111-403-0
01
1
0605-
630
SCREW; UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0507-0507
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0507-0604
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
792
FASTENER
D8X13.5
1-09987-270-0
04
1
0507-
843
SEAL; BRKT
1-76770-009-2
01
1
0507-1101
843
SEAL; BRKT
8-98119-974-0
01
1
1102-
428
428
441
441
441
428
608
428
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=39 H=28 L=32
1-09701-263-0
02
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (J) ID=35X2 L=32
1-09701-314-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) L=350
1-09707-183-0
01
1
0512-
428
CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H)
1-82698-555-0
01
1
0512-
428
CLIP; HARNESS
(F) L=36
8-94224-891-1
01
1
0507-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0507-
428
CLIP; HARNESS
(A) ID=39 H=28 L=32
1-09701-263-0
04
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (A) ID=39 H=28 L=32
1-09701-263-0
04
1
0512-
428
CLIP; HARNESS
(C)
1-82698-375-1
01
1
0507-
428
CLIP; HARNESS
(D)
1-82698-477-0
01
1
0507-0511
428
CLIP; HARNESS
6WF1 TC-C(1B8) (D)
1-82698-477-0
01
1
0512-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0507-
441
BOLT; HARNESS TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE
0-28680-820-0
03
1
0512-0512
441
BOLT; HARNESS TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE
0-28650-820-0
03
1
0601-
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28680-820-0
02
1
0507-0511
441
BOLT; HARNESS TO FRAME
6WF1 TC-C(1B8) (A) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
441
BOLT; HARNESS TO FRAME
6WF1 TC-C(1B8) (A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
441
BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE
0-28680-825-0
02
1
0507-0512
441
BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0507-0904
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
608
SENSOR; AIR TEMP
8-97177-549-0
01
1
0507-1204
608
SENSOR; AIR TEMP
8-98214-375-0
01
1
1205-
573
573
10
639
640
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A)
1-81171-100-1
01
1
0512-
10
RELAY; STARTER
(A)
1-81171-097-1
01
1
0507-0511
10
RELAY; STARTER
6WF1 TC-C(1B8) (A)
1-81171-097-1
01
1
0512-
10
RELAY; STARTER
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
0507-0511
10
RELAY; STARTER
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0512-
573
RELAY; ELEC GOV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 24V 10A PANASONIC
8-97173-035-1
02
1
0512-
573
RELAY; ELEC GOV
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0507-
573
RELAY; ELEC GOV
(A) 24V 12.5A PANASONIC
8-97262-933-0
02
1
0507-
639
BRACKET; QOS GLOW TIMER
1-73908-161-0
01
1
0507-
640
BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0507-
10
296
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A)
1-81171-100-1
01
1
0512-
10
RELAY; STARTER
(A)
1-81171-097-1
01
1
0507-0511
10
RELAY; STARTER
6WF1 TC-C(1B8) (A)
1-81171-097-1
01
1
0512-
10
RELAY; STARTER
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
0507-0511
10
RELAY; STARTER
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0512-
296
NUT; RELAY,STARTER
(A) M8 FLANGE
0-91150-108-0
02
1
0507-0602
296
NUT; RELAY,STARTER
(A) M8 FLANGE
0-91180-108-0
02
1
0603-
296
NUT; RELAY,STARTER
(B) M6 FLANGE
0-91150-206-0
02
1
0507-0602
296
NUT; RELAY,STARTER
(B) M6 FLANGE
0-91180-206-0
02
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
