2-05 — CLUTCH PIPING (#3163) — 71 parça

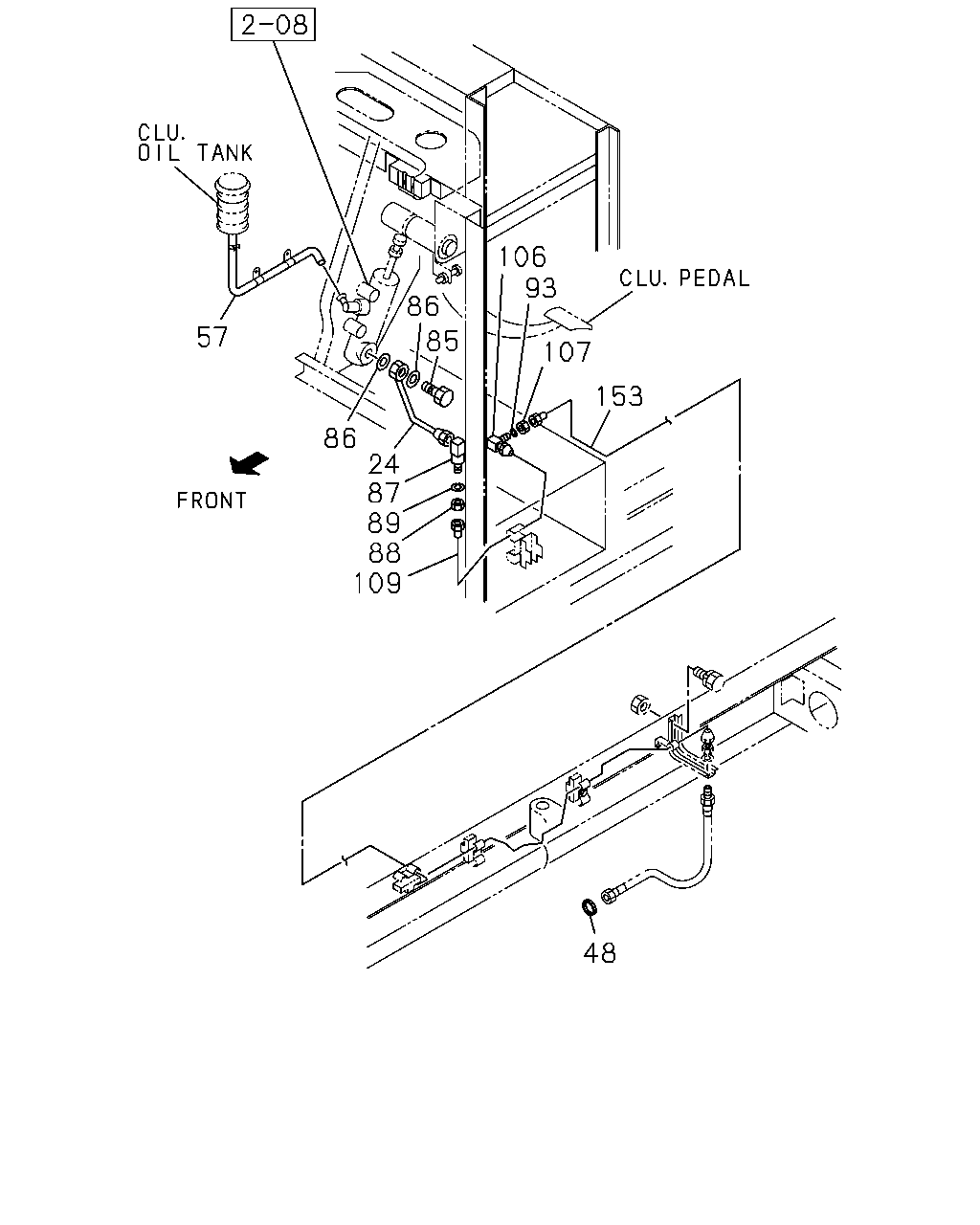

çizim 35495
106 93 86 57 107 85 153 86 24 87 89 88 109 48
BalonParca AdiParca NoAdetTipApplied Date
24 PIPE ASM; CLU,M/CYL TO UNION 1-47417-115-0 01 1 9104-9212
24 PIPE ASM; CLU,M/CYL TO UNION 1-47425-345-0 01 1 9301-0107
24 PIPE ASM; CLU,M/CYL TO UNION 1-47425-345-0 01 1 0108-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9104-0107
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0108-
57 HOSE; CLU M/CYL TO OIL TANK
L=920 SERVICED BY L=1800 		1-09360-320-0 01 1 9104-0107
57 HOSE; CLU M/CYL TO OIL TANK
L=920 SERVICED BY L=1800 		1-09360-320-0 01 1 0108-
85 BOLT; EYE JOINT,CLU M/CYL
M14X29 EYE BOLT 		9-09906-325-1 01 1 9104-0107
85 BOLT; EYE JOINT,CLU M/CYL
M14X29 EYE BOLT 		9-09906-325-1 01 1 0108-
86 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9104-0107
86 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 0108-
87 UNION; OIL PIPE
M14 		9-09225-108-1 01 1 9104-0107
87 UNION; OIL PIPE
M14 		9-09225-108-1 01 1 0108-
88 NUT; PIPE UNION
M14 		9-99111-414-0 01 1 9104-0107
88 NUT; PIPE UNION
M14 		9-99111-414-0 01 1 0108-
89 WASHER; LK,PIPE UNION
ID=14.2 		9-09150-514-0 01 1 9104-9312
93 WASHER; LK,UNION,OIL PIPE
ID=14.2 		9-09150-514-0 01 1 9104-9312
106 UNION; OIL PIPE
M14 		9-09225-108-1 01 1 9104-0107
106 UNION; OIL PIPE
M14 		9-09225-108-1 01 1 0108-
107 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 9104-0107
107 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 0108-
109 PIPE; AIR,UNION TO UNION
L=610 SERVICED BY L=620 		1-47426-380-0 01 1 9104-
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47437-959-0 01 1 9104-9212
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47426-395-0 01 1 9301-0107
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47426-395-0 01 1 0108-

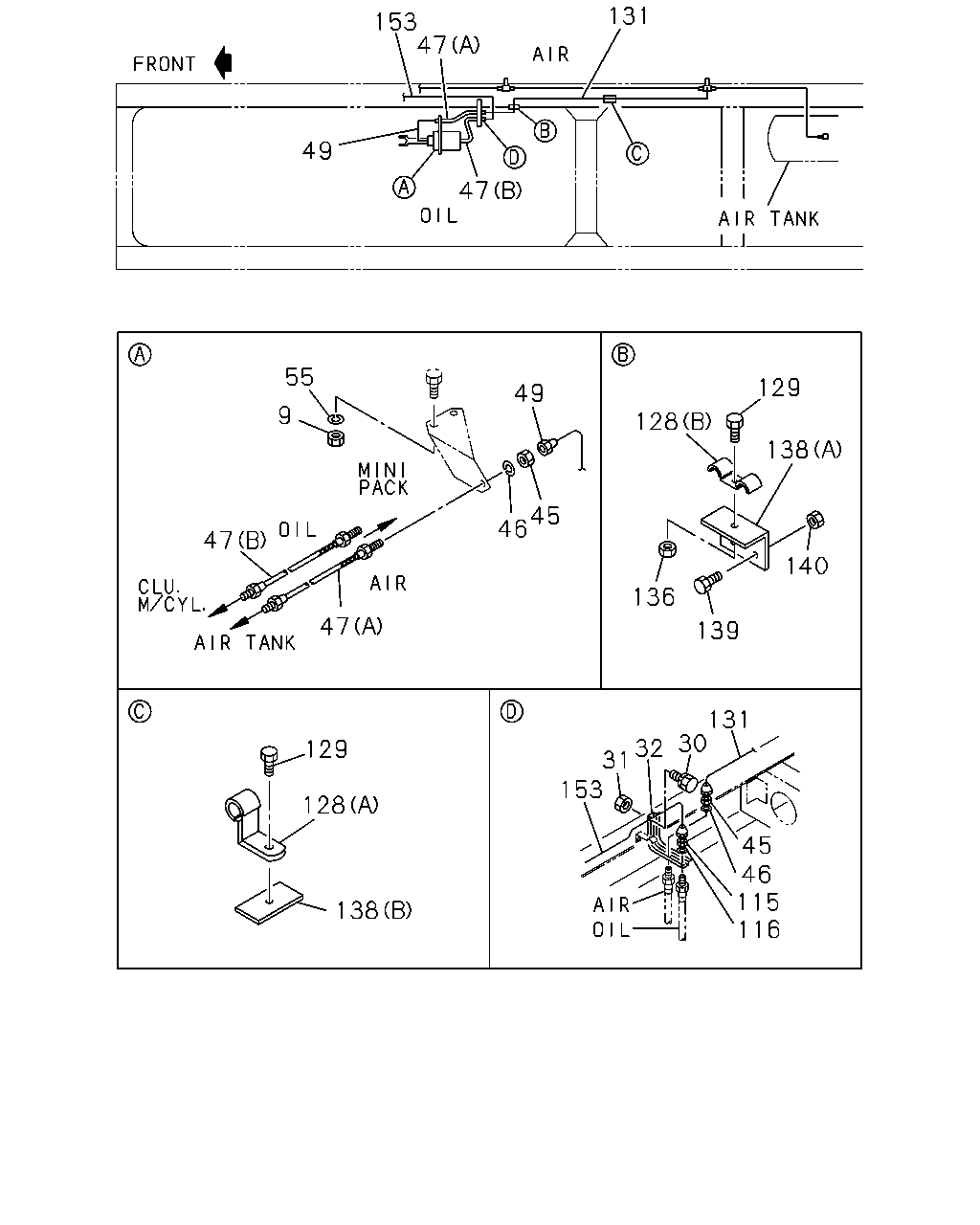

çizim 36968
131 153 47 49 47 55 129 49 9 128 138 45 46 47 140 136 47 139 131 30 32 31 153 129 128 45 46 115 116 138
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M8 		9-09110-408-0 02 1 9104-9205
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-208-0 02 1 9206-0107
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-208-0 02 1 0108-
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-208-0 02 1 0108-
30 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
30 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-0107
30 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
31 NUT; BRKT
M8 		9-09110-408-0 02 1 9104-0107
31 NUT; BRKT
M8 		9-09110-408-0 02 1 0108-
32 BRACKET; CLIP OIL PIPE 1-47475-529-1 01 1 9104-0107
32 BRACKET; CLIP OIL PIPE 1-47475-529-1 01 1 0108-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 02 1 9104-0107
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 02 1 0108-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		9-09150-512-0 02 1 9104-9312
47 HOSE; FLEX,CLU CONT
(A) L=450 		0-07030-450-0 01 1 9104-0107
47 HOSE; FLEX,CLU CONT
L=450 		0-07030-450-0 01 1 0108-
47 HOSE; FLEX,CLU CONT
(B) L=450 		1-09364-369-0 01 1 9104-0107
47 HOSE; FLEX,CLU CONT
L=450 		1-09364-369-0 01 1 0108-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=211 		1-47449-064-0 01 1 9104-0107
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=211 		1-47449-064-0 01 1 0108-
55 WASHER; LK,BRKT,FLEX HOSE
ID=8.2 		9-09150-508-0 02 1 9104-9205
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9104-0107
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0108-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-614-0 01 1 9104-0107
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-614-0 01 1 0108-
128 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9104-0107
128 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0108-
128 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9104-0107
128 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0108-
129 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9104-0107
129 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 04 1 0108-
131 PIPE; AIR,UNION TO FLEX HOSE
L=1794 SERVICED BY L=1820 		1-47434-394-0 01 1 9104-0107
131 PIPE; AIR,UNION TO FLEX HOSE
L=1794 SERVICED BY L=1820 		1-47434-394-0 01 1 0108-
136 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 9104-0107
136 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 0108-
138 BRACKET; AIR PIPE
(A) 		1-47475-272-1 01 1 9104-0107
138 BRACKET; AIR PIPE 1-47475-272-1 01 1 0108-
138 BRACKET; AIR PIPE
(B) M8 W/NUT 		1-47475-729-0 01 1 9104-0107
138 BRACKET; AIR PIPE
M8 W/NUT 		1-47475-729-0 01 1 0108-
139 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9104-0107
139 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
140 NUT; PIPE BRKT
M8 		9-09110-408-0 02 1 9104-0107
140 NUT; PIPE BRKT
M8 		9-09110-408-0 02 1 0108-
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47437-959-0 01 1 9104-9212
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47426-395-0 01 1 9301-0107
153 PIPE ASM; CLU,UNION TO FLEX
L=2262 SERVICED BY L=2400 		1-47426-395-0 01 1 0108-
