0-39 — AIR COMPRESSOR; BRAKE (#31627) — 121 parça

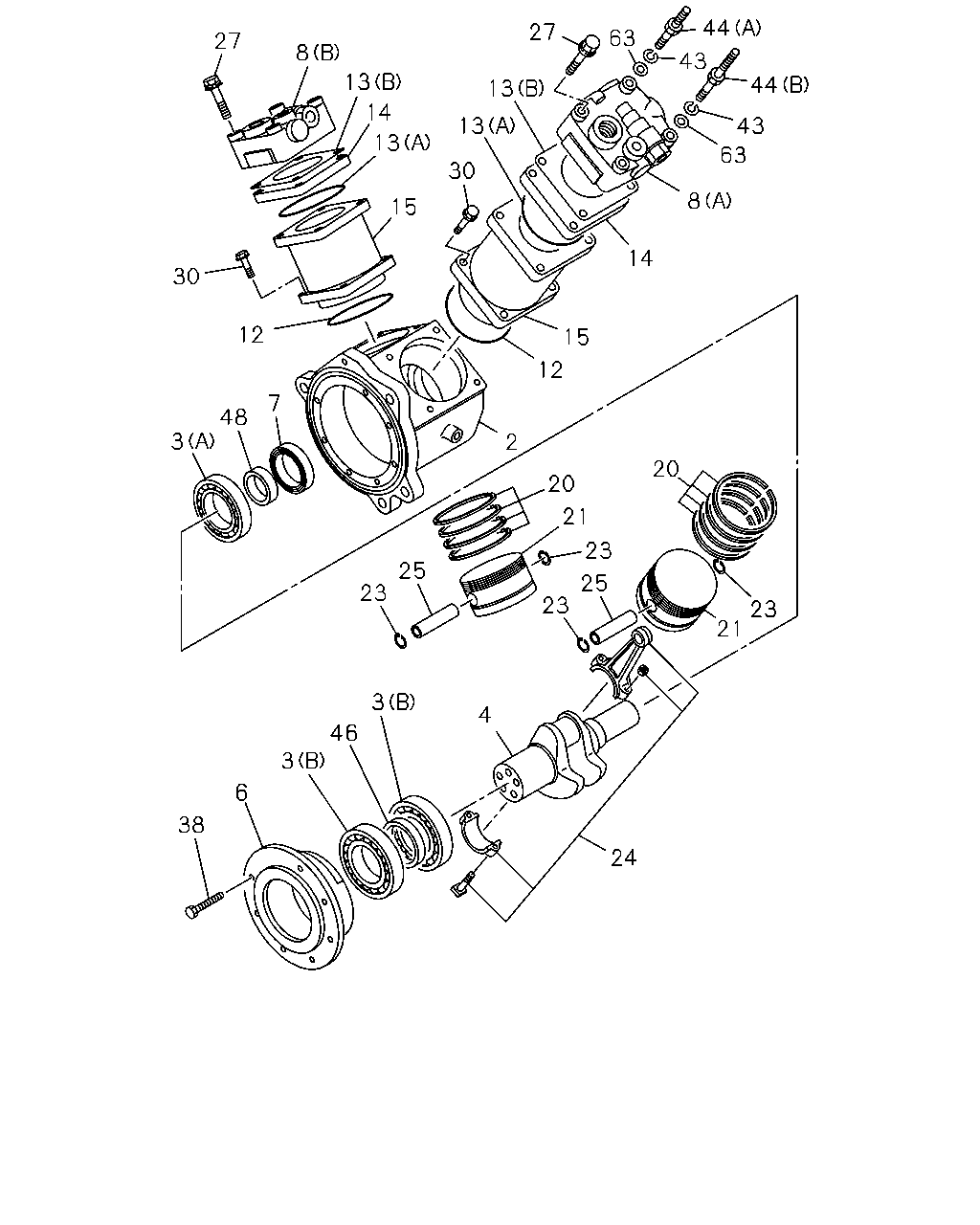

27 8 13 13 14 15 12 30 3 48 7 30 13 13 27 63 44 43 44 43 63 8 14 15 12 2 20 23 21 20 23 21 25 23 25 23 3 46 3 6 38 4 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0507-0511	●
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0512-	●	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0507-0511	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0512-	●	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0507-0511	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0512-1406	●	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-089-0	01	1	0507-0511	●
4	CRANKSHAFT; AIR CMPR	1-19171-089-0	01	1	0512-1406	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0507-0511	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0512-	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0507-0511	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0512-	●	●	●
8	HEAD ASM; CYL,AIR CMPR (B)	1-19110-073-0	01	1	0507-0511	●
8	HEAD ASM; CYL,AIR CMPR (B)	1-19110-073-0	01	1	0512-	●	●	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-074-0	01	1	0507-0511	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-074-0	01	1	0512-	●	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0507-0511	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0512-1112	●	●	●
12	GASKET; AIR CMPR	8-98192-459-0	02	1	1201-	●	●	●
13	GASKET; AIR CMPR (A)	1-09623-615-0	02	1	0507-0511	●
13	GASKET; AIR CMPR (A)	1-09623-615-0	02	1	0512-1112	●	●	●
13	GASKET; AIR CMPR (A)	8-98048-640-0	02	1	1201-	●	●	●
13	GASKET; AIR CMPR (B)	1-19115-012-0	02	1	0507-0511	●
13	GASKET; AIR CMPR (B)	1-19115-012-0	02	1	0512-	●	●	●
14	PLATE; AIR CMPR	1-19130-008-0	02	1	0507-0511	●
14	PLATE; AIR CMPR	1-19130-008-0	02	1	0512-1204	●	●	●
14	PLATE; AIR CMPR	8-98208-785-0	02	1	1205-	●	●	●
15	CYLINDER; AIR CMPR	1-19163-067-0	02	1	0507-0511	●
15	CYLINDER; AIR CMPR	1-19163-067-0	02	1	0512-	●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	02	1	0507-0511	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	02	1	0512-	●	●	●
21	PISTON; AIR CMPR	1-19161-026-0	02	1	0507-0511	●
21	PISTON; AIR CMPR	1-19161-026-0	02	1	0512-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0507-0511	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0512-1012	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	04	1	1101-	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0507-0511	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0512-	●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-006-0	02	1	0507-0511	●
25	PIN; PISTON,AIR CMPR	1-19167-006-0	02	1	0512-	●	●	●
27	BOLT; HD M10X80	1-19119-024-0	06	1	0507-0511	●
27	BOLT; HD M10X80	1-19119-024-0	06	1	0512-1012	●	●	●
27	BOLT; HD M10X75	8-98167-018-0	06	1	1101-	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	08	1	0507-0511	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	08	1	0512-	●	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0507-0511	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0512-	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	02	1	0507-0511	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	02	1	0512-	●	●	●
44	STUD; CYL HD,AIR CMPR (A)	1-19119-025-0	01	1	0507-0511	●
44	STUD; CYL HD,AIR CMPR (A)	1-19119-025-0	01	1	0512-0808	●	●	●
44	STUD; CYL HD,AIR CMPR (A)	8-97614-054-0	01	1	0809-	●	●	●
44	STUD; CYL HD,AIR CMPR (B)	1-19119-038-0	01	1	0507-0511	●
44	STUD; CYL HD,AIR CMPR (B)	1-19119-038-0	01	1	0512-0808	●	●	●
44	STUD; CYL HD,AIR CMPR (B)	8-98119-750-0	01	1	0809-	●	●	●
46	SPACER; BRG	1-19179-016-0	01	1	0507-0511	●
46	SPACER; BRG	1-19179-016-0	01	1	0512-	●	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0507-0511	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0512-	●	●	●
63	WASHER; PL,STUD ID=10.5 OD=18	9-09160-510-0	02	1	0507-0511	●
63	WASHER; PL,STUD ID=10.5 OD=18	9-09160-510-0	02	1	0512-	●	●	●

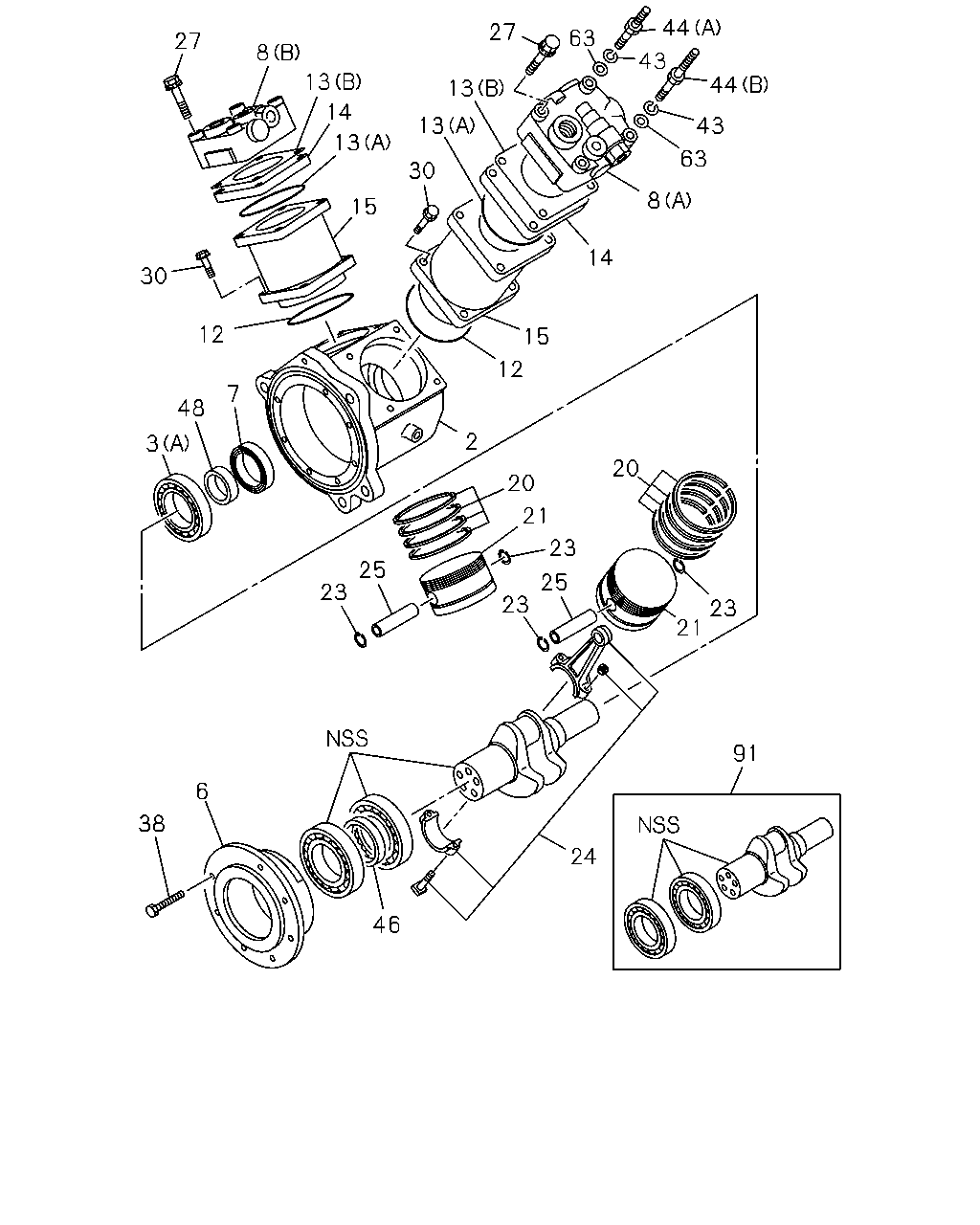

27 8 13 14 13 27 13 13 30 15 14 8 63 43 44 44 43 63 15 12 2 21 20 20 23 21 25 25 23 23 48 3 12 30 7 91 24 46 38 6 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0507-0511	●
2	CRANKCASE; AIR CMPR	1-19151-269-6	01	1	0512-	●	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0507-0511	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0512-	●	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0507-0511	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0512-1406	●	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0507-0511	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0512-	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0507-0511	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0512-	●	●	●
8	HEAD ASM; CYL,AIR CMPR (B)	1-19110-073-0	01	1	0507-0511	●
8	HEAD ASM; CYL,AIR CMPR (B)	1-19110-073-0	01	1	0512-	●	●	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-074-0	01	1	0507-0511	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-074-0	01	1	0512-	●	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0507-0511	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	0512-1112	●	●	●
12	GASKET; AIR CMPR	8-98192-459-0	02	1	1201-	●	●	●
13	GASKET; AIR CMPR (A)	1-09623-615-0	02	1	0507-0511	●
13	GASKET; AIR CMPR (A)	1-09623-615-0	02	1	0512-1112	●	●	●
13	GASKET; AIR CMPR (A)	8-98048-640-0	02	1	1201-	●	●	●
13	GASKET; AIR CMPR (B)	1-19115-012-0	02	1	0507-0511	●
13	GASKET; AIR CMPR (B)	1-19115-012-0	02	1	0512-	●	●	●
14	PLATE; AIR CMPR	1-19130-008-0	02	1	0507-0511	●
14	PLATE; AIR CMPR	1-19130-008-0	02	1	0512-1204	●	●	●
14	PLATE; AIR CMPR	8-98208-785-0	02	1	1205-	●	●	●
15	CYLINDER; AIR CMPR	1-19163-067-0	02	1	0507-0511	●
15	CYLINDER; AIR CMPR	1-19163-067-0	02	1	0512-	●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	02	1	0507-0511	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	02	1	0512-	●	●	●
21	PISTON; AIR CMPR	1-19161-026-0	02	1	0507-0511	●
21	PISTON; AIR CMPR	1-19161-026-0	02	1	0512-	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0507-0511	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	0512-1012	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	04	1	1101-	●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0507-0511	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	0512-	●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-006-0	02	1	0507-0511	●
25	PIN; PISTON,AIR CMPR	1-19167-006-0	02	1	0512-	●	●	●
27	BOLT; HD M10X80	1-19119-024-0	06	1	0507-0511	●
27	BOLT; HD M10X80	1-19119-024-0	06	1	0512-1012	●	●	●
27	BOLT; HD M10X75	8-98167-018-0	06	1	1101-	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	08	1	0507-0511	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	08	1	0512-	●	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0507-0511	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	0512-	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	02	1	0507-0511	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	02	1	0512-	●	●	●
44	STUD; CYL HD,AIR CMPR (A)	1-19119-025-0	01	1	0507-0511	●
44	STUD; CYL HD,AIR CMPR (A)	1-19119-025-0	01	1	0512-0808	●	●	●
44	STUD; CYL HD,AIR CMPR (A)	8-97614-054-0	01	1	0809-	●	●	●
44	STUD; CYL HD,AIR CMPR (B)	1-19119-038-0	01	1	0507-0511	●
44	STUD; CYL HD,AIR CMPR (B)	1-19119-038-0	01	1	0512-0808	●	●	●
44	STUD; CYL HD,AIR CMPR (B)	8-98119-750-0	01	1	0809-	●	●	●
46	SPACER; BRG	1-19179-016-0	01	1	0507-0511	●
46	SPACER; BRG	1-19179-016-0	01	1	0512-	●	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0507-0511	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0512-	●	●	●
63	WASHER; PL,STUD ID=10.5 OD=18	9-09160-510-0	02	1	0507-0511	●
63	WASHER; PL,STUD ID=10.5 OD=18	9-09160-510-0	02	1	0512-	●	●	●
91	SHAFT KIT; CRANK	8-98277-411-0	01	1	1407-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
