6-05 — FRONT PANEL (#31603) — 189 parça

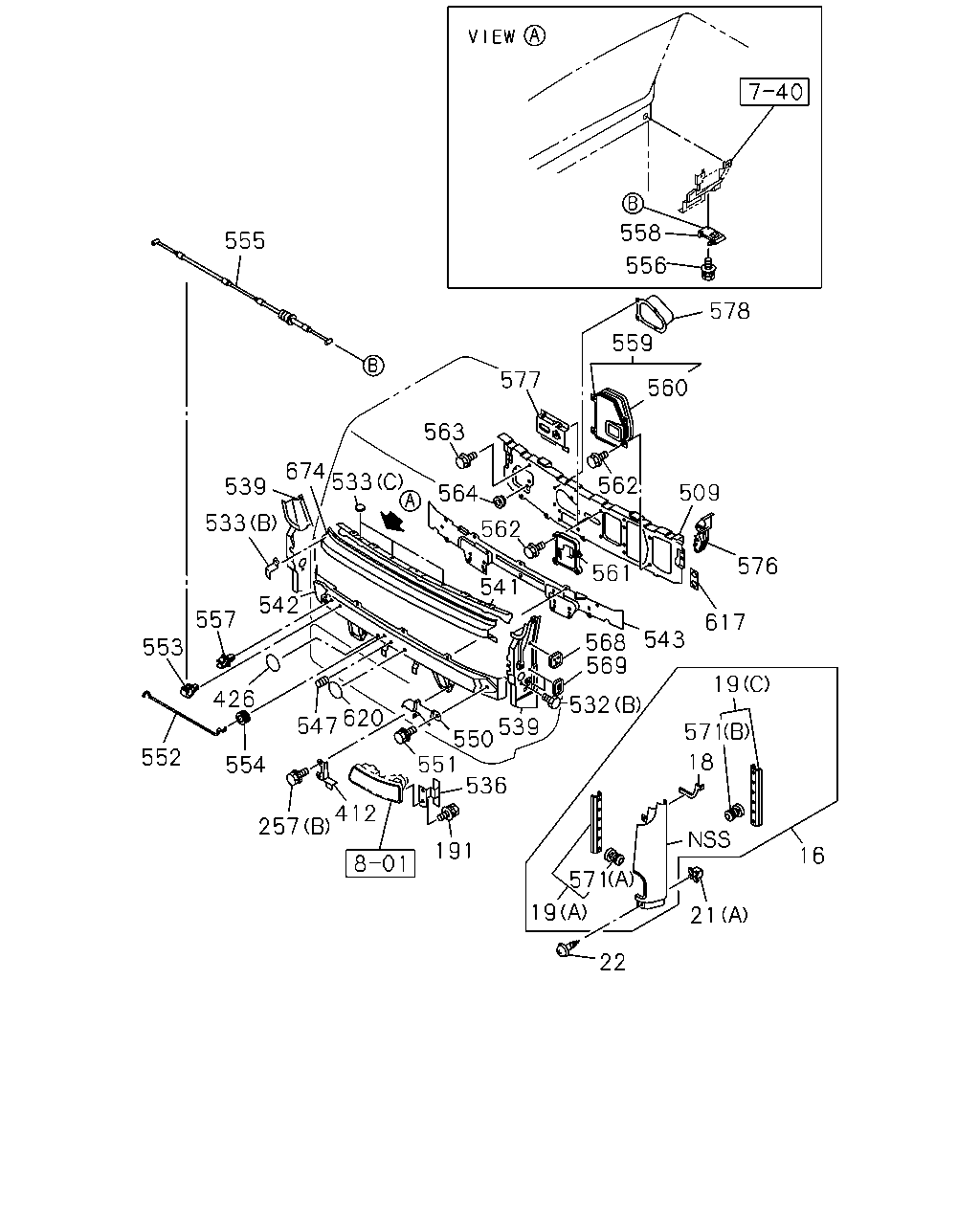

çizim 24174
558 555 556 578 559 577 560 563 674 533 562 539 509 564 533 562 561 541 576 542 557 617 543 568 569 553 19 426 532 620 547 539 550 551 552 18 554 536 412 257 191 16 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0107-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0107-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0107-0207
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0208-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0107-0207
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0208-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0208-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0208-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0208-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0208-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0107-0207
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0208-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0107-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0107-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0107-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0107-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0107-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0107-0112
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0201-
509 PANEL; DASH 1-62280-193-5 01 1 0107-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0107-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0107-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0107-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0107-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0107-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0107-
536 HINGE 1-86830-004-5 01 1 0107-
536 HINGE 1-86830-003-5 01 1 0107-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0107-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0107-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0107-
542 RAIL; FRT MOUNTING 1-61480-825-6 01 1 0107-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0107-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0107-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0107-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0107-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0107-
552 STAY; FRT LID 1-71998-810-2 01 1 0107-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0107-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0107-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0107-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0107-
558 LEVER; FRT LID 1-79338-003-1 01 1 0107-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0107-
560 SEAL; COVER 1-71998-827-1 01 1 0107-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0107-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0107-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0107-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0107-
568 PATCH; INST REINF 1-61480-675-2 02 1 0107-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0107-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0107-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0107-0207
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0208-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0107-0207
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0107-0207
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0107-0604
576 FRAME; INST SIDE 1-62280-176-6 01 1 0107-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0107-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0107-0604
617 SEAL; DASH 1-61281-497-0 02 1 0107-0604
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0107-
674 PANEL; UPR 1-61480-677-4 01 1 0107-

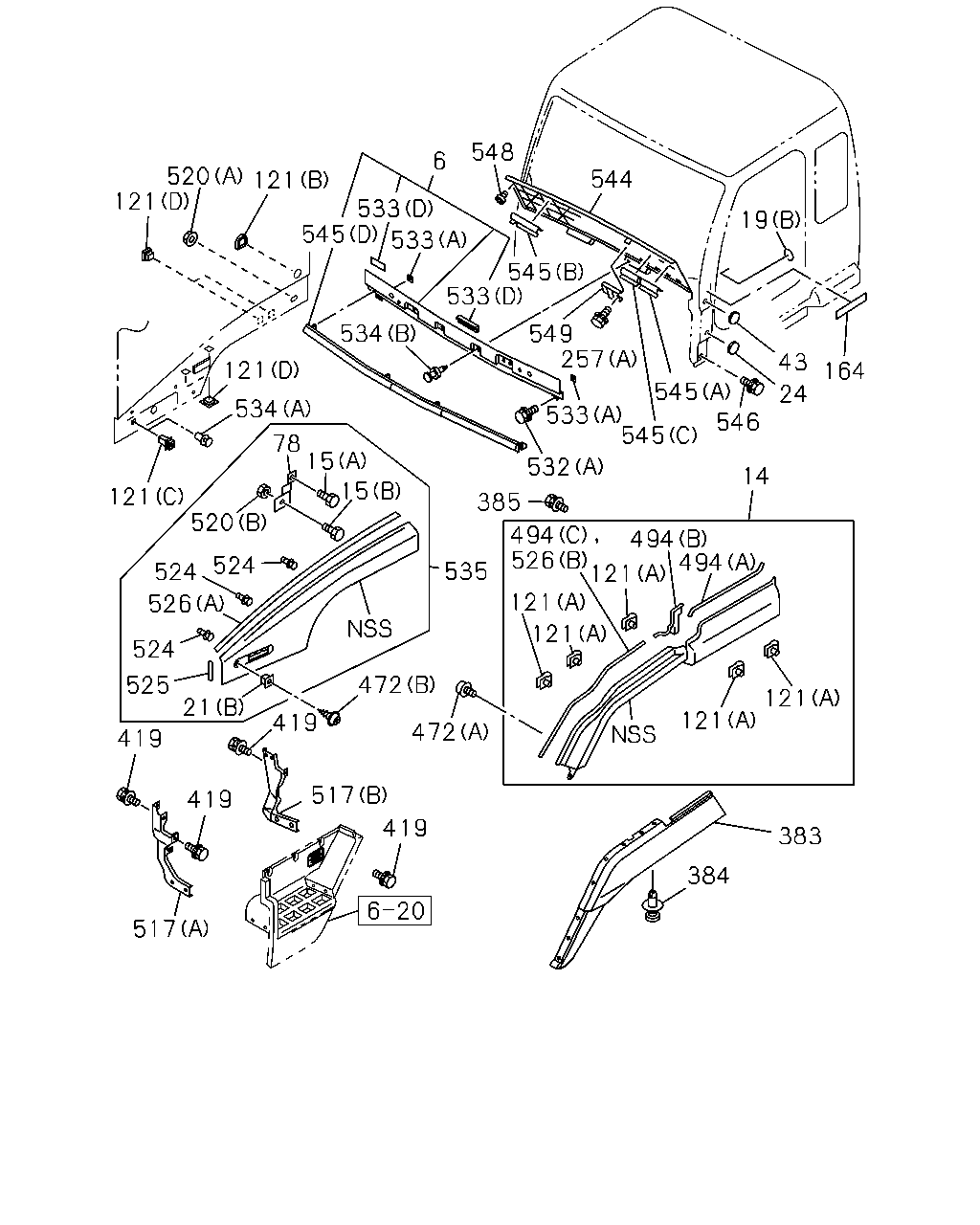

çizim 24199
548 6 520 121 544 121 533 545 19 533 545 533 534 549 257 43 121 164 545 24 534 533 545 546 78 15 532 14 15 121 520 385 494 526 121 494 494 524 535 524 121 526 121 524 472 525 121 21 121 419 472 419 517 419 419 383 384 517
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0107-
14 FENDER; FRT
WHITE 		1-65481-447-1 01 1 0107-0209
14 FENDER; FRT
WHITE 		1-65482-023-0 01 1 0210-
14 FENDER; FRT
WHITE 		1-65481-446-1 01 1 0107-0209
14 FENDER; FRT
WHITE 		1-65482-022-0 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0107-0207
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0208-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0107-0207
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0208-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0208-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0208-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0208-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 0107-0207
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0208-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0107-0207
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0208-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0107-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0107-
78 BRACKET; FENDER 1-71268-323-0 01 1 0107-0207
78 BRACKET; FENDER 1-71268-323-0 01 1 0208-
78 BRACKET; FENDER 1-71268-322-0 01 1 0107-0207
78 BRACKET; FENDER 1-71268-322-0 01 1 0208-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0107-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0107-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0107-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0107-0207
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0208-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0107-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0107-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 0107-
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 0107-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 0107-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 01 1 0107-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0107-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0107-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 0107-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0107-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0107-0207
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0208-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0107-0207
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0208-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71998-900-3 02 1 0107-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0107-0705
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0107-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0107-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0107-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0107-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0107-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0107-0207
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0208-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0107-0207
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0208-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0107-0207
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0208-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(A) 		1-71268-276-1 01 1 0107-0207
526 FINISHER; FENDER
(A) 		1-71268-276-1 01 1 0208-0209
526 FINISHER; FENDER
(A) 		1-71268-275-1 01 1 0107-0207
526 FINISHER; FENDER
(A) 		1-71268-275-1 01 1 0208-0209
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0210-
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR HIGHWAY ORANGE(944) (B) 		1-71998-900-3 04 1 0107-0207
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 0208-0209
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0210-0610
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0107-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0107-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0107-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0107-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0107-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0107-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0107-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0107-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0107-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0107-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210-
544 LID; FRT 1-71108-235-3 01 1 0107-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0107-0411
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0412-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0107-0411
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0412-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0107-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0107-0411
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0412-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0107-
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0107-0411
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0412-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0107-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-0411
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
