0-51 — OIL PUMP AND OIL STRAINER (#316) — 15 parça

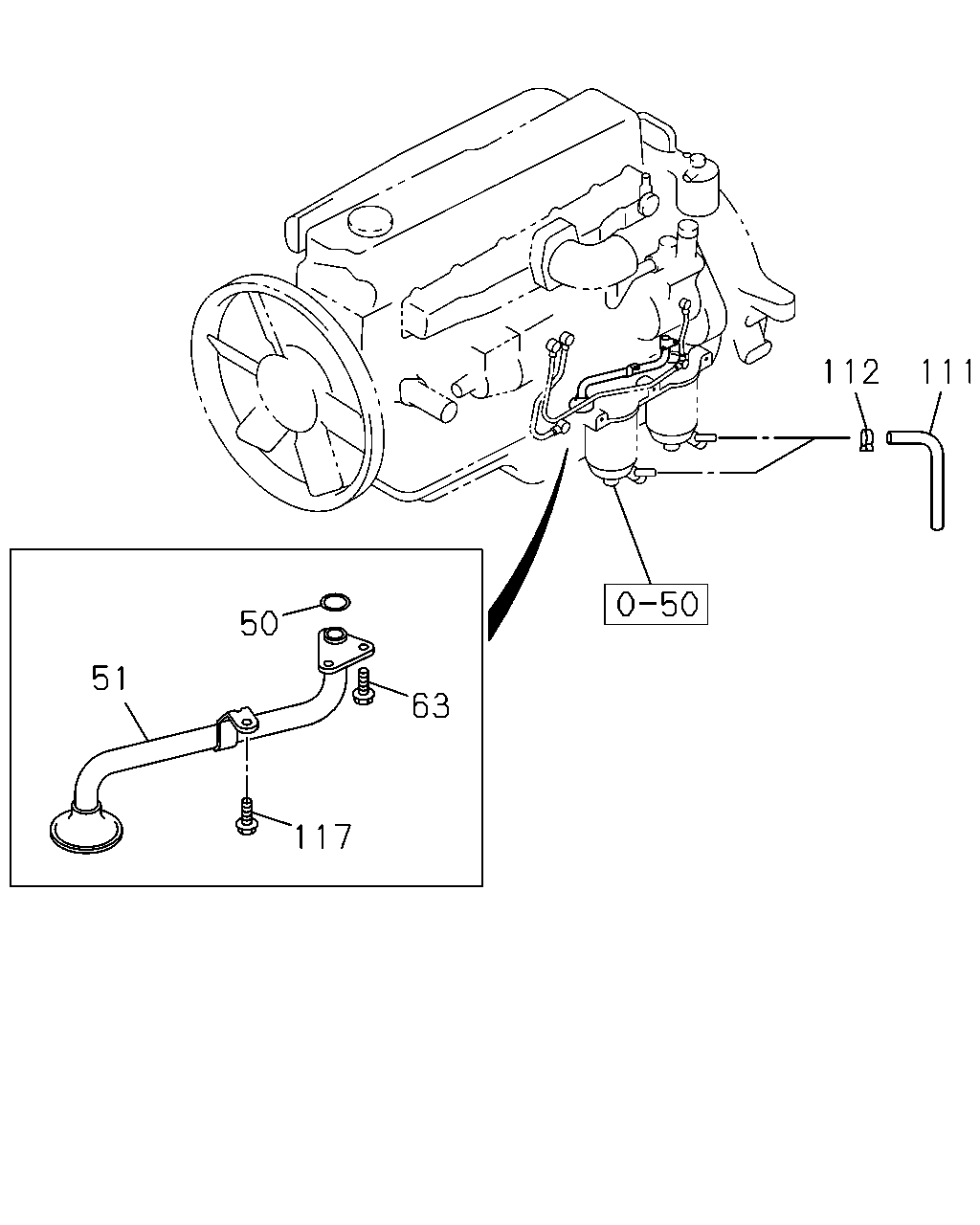

çizim 28596

112 111 50 51 63 117

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9202-	●	●
	51	STRAINER & PIPE ASM; OIL	8-94396-067-0	01	1	9202-	●	●
	63	BOLT; OIL PIPE,STRAINER TO PUMP M8X14 FLANGE	0-28080-814-0	02	1	9202-	●	●
	111	HOSE; OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94396-950-0	02	1	9202-	●	●
	112	CLIP; HOSE,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=14	5-09707-004-1	02	1	9202-	●	●
	117	BOLT; STAY TO CRANKCASE M10X75 FLANGE	8-94399-669-1	01	1	9202-	●	●

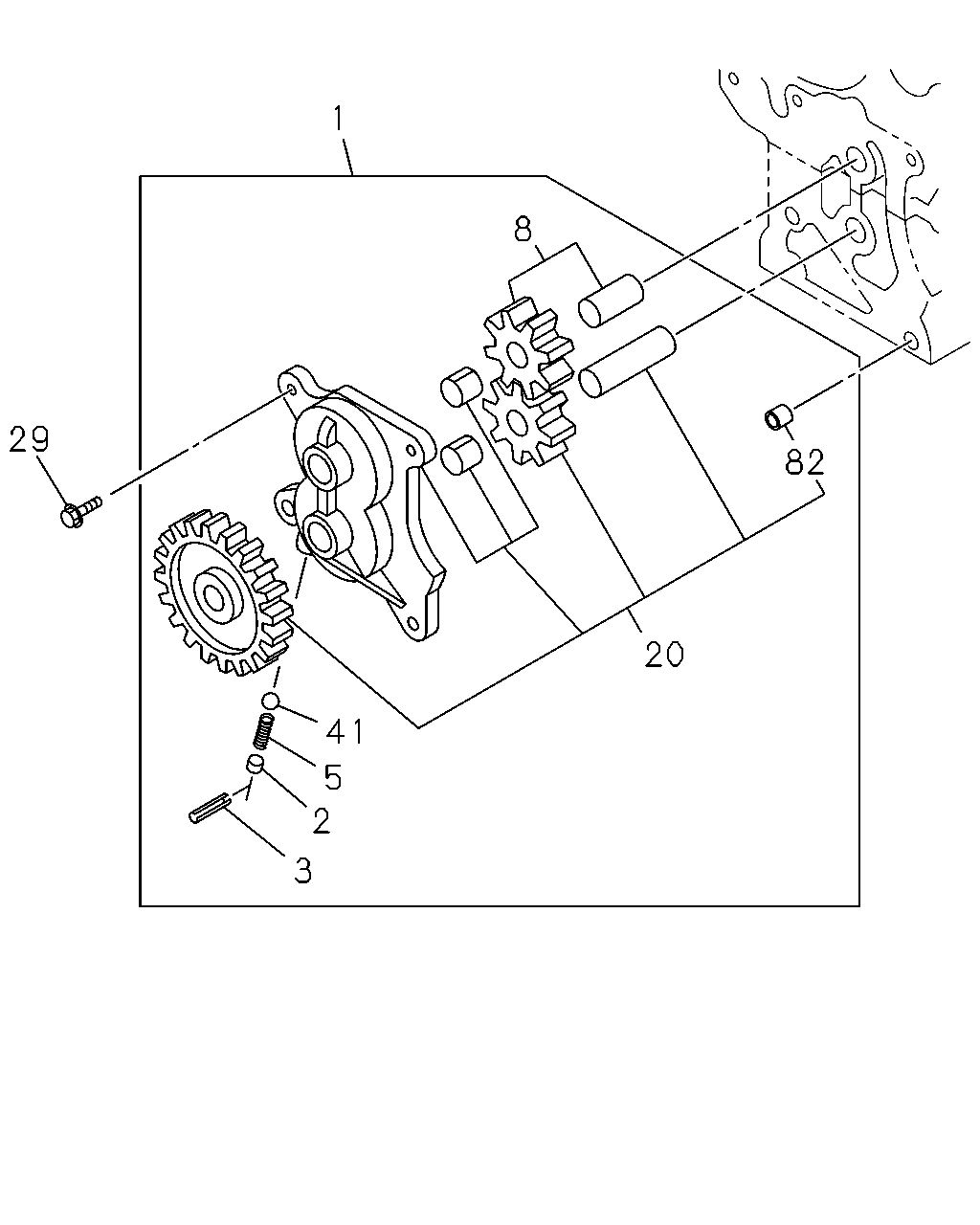

çizim 94701

1 8 29 82 20 41 5 2 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	PUMP ASM; OIL	8-94393-830-3	01	1	9202-	●	●
	2	SEAT; SPR	5-13165-004-0	01	1	9202-	●	●
	3	PIN; SPLIT L=30	9-08104-030-0	01	1	9202-	●	●
	5	SPRING; COIL	5-09580-098-0	01	1	9202-	●	●
	8	GEAR; DRIVEN,OIL PUMP	8-94393-834-0	01	1	9202-	●	●
	20	GEAR; DRIVE,OIL PUMP	8-94393-831-3	01	1	9202-	●	●
	29	BOLT; OIL PUMP M8X25 FLANGE	0-28080-825-0	04	1	9202-	●	●
	41	BALL; OIL RELIEF VLV	5-09843-003-0	01	1	9202-	●	●
	82	DOWEL; OIL PUMP	9-13119-022-0	02	1	9202-	●	●
