Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#31597) — 71 parça
◀

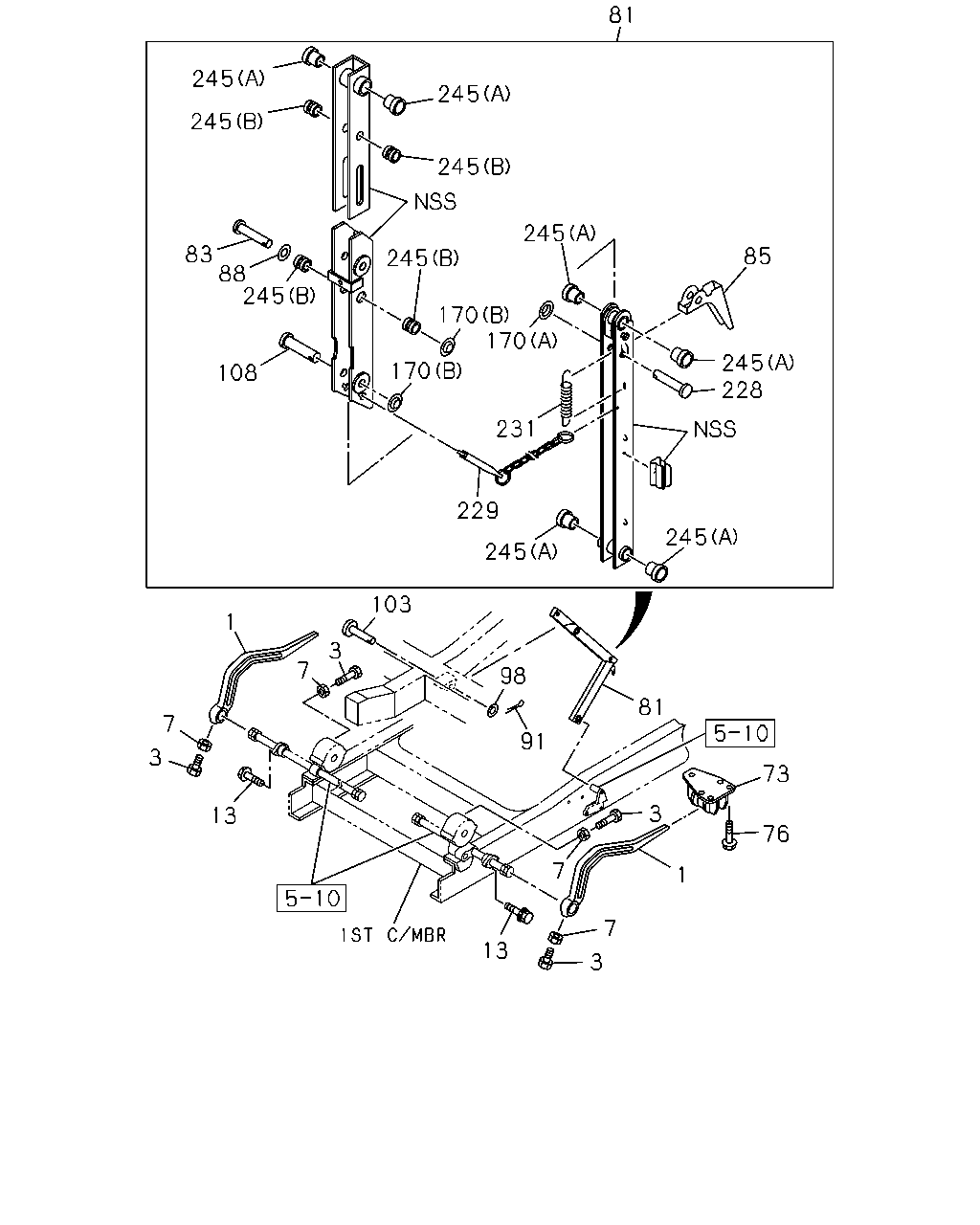

[515A] TORSION BAR LEVER AND CAB TILT STAY (25 parça)
[515A] CAB LOCK AND TILT HANDLE (41 parça)
[515A] BRACKET;CAB RR MTG AND SEAL (5 parça)
▶
81
245
245
245
245
245
83
88
245
85
245
170
170
245
228
170
108
231
229
245
245
103
1
3
7
98
81
7
91
3
73
3
13
76
7
1
7
13
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
1-53458-284-0
01
1
0107-
1
LEVER; TORSION BAR
1-53458-283-0
01
1
0107-
3
BOLT; LEVER
M10X32
1-09000-435-0
04
1
0107-
7
NUT; LK,LEVER
M10
9-09110-510-0
04
1
0107-0512
7
NUT; LK,LEVER
M10
0-91110-510-0
04
1
0601-
13
BOLT; BUSHING,TORSION BAR
M6X12 FLANGE
0-28080-612-0
02
1
0107-0512
13
BOLT; BUSHING,TORSION BAR
M6X12 FLANGE
0-28050-612-0
02
1
0601-
73
PAD; TORSION BAR
1-53459-790-1
02
1
0107-
76
BOLT; PAD
M10X30 W/LK&PL WASHER
8-94279-213-0
06
1
0107-
81
STAY ASM; CAB TILT
1-62500-726-1
01
1
0107-0405
81
STAY ASM; CAB TILT
1-62500-755-0
01
1
0406-
83
PIN; JOINT,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
0107-
85
LEVER; LOCK,CAB STAY
1-62500-503-0
01
1
0107-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0
1-09985-183-0
01
1
0107-
91
PIN; SPLIT,CAB STAY
1-09746-021-0
01
1
0107-
98
WASHER; CAB STAY
ID=10.5 T=2.0
1-09985-183-0
01
1
0107-
103
PIN; JOINT,CAB STAY
1-09744-108-1
01
1
0107-
108
PIN; ADJ,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
0107-
170
NUT
(A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
0107-
170
NUT
(B) ID=9.9 PUSH NUT
8-97022-566-0
02
1
0107-
228
PIN; SAFETY LOCK SPRING,CAB STAY
1-09744-086-2
01
1
0107-
229
PIN ASM; SAFETY
1-62500-517-1
01
1
0107-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
1-09583-244-0
01
1
0107-
245
BUSHING; CAB STAY
(A)
1-62500-587-0
06
1
0107-
245
BUSHING; CAB STAY
(B)
1-62500-588-0
04
1
0107-
314
315
133
208
205
204
150
206
281
209
134
207
212
213
149
124
136
141
119
118
125
110
129
128
111
141
109
238
237
113
222
126
223
236
128
235
141
119
118
226
112
239
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
109
ROD; SAFETY,CAB LK
1-79718-642-1
01
1
0107-
110
BUSHING; SAFETY ROD,CAB LOCK
1-79718-319-1
01
1
0107-
111
WASHER; PL,SAFETY ROD
1-09985-137-0
01
1
0107-
112
SPRING; RETURN,SAFETY ROD
1-79718-655-0
01
1
0107-
113
ROD; CONN,CAB LK
1-79718-583-0
01
1
0107-
118
WASHER; PL,CONNROD
ID=10.5
1-09985-107-0
02
1
0107-
119
WASHER; WAVE,CAB LOCK ROD
1-09985-045-0
02
1
0107-
124
LEVER ASM; HAND,CAB LK
1-79718-585-4
01
1
0107-
125
GRIP; HAND LEVER,CAB LOCK
1-79718-303-2
01
1
0107-
126
PIN; LK,HAND LEVER
1-79718-594-1
01
1
0107-
128
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0107-0904
128
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
129
WASHER; PL,BRKT
ID=17
1-09985-109-0
01
1
0107-
133
LOCK ASM; CAB
1-79718-656-0
01
1
0107-
134
SPRING; CAB LK LEVER
1-79718-538-1
01
1
0107-
136
BOLT; CAB LK
M10X25 W/LK&PL WASHER
1-09980-488-0
05
1
0107-
141
PIN; SNAP,CAB LOCK ROD
(B) L=27.7
1-09987-141-0
01
1
0107-
141
PIN; SNAP,CAB LOCK ROD
(A) L=32.6
1-09987-142-0
02
1
0107-
149
HANDLE; TILT
1-71998-941-0
01
1
0107-
150
BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0107-
204
RUBBER; REBOUND,CAB LK
1-79718-429-1
01
1
0107-
205
PLATE; SUPPORT,REBOUND RUBBER
1-79718-129-1
01
1
0107-
206
SUPPORT; REBOUND RUBBER
1-79718-434-0
01
1
0107-
207
WASHER; PL,SUPPORT PLATE
ID=19 OD=44
1-09985-113-0
01
1
0107-
208
NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE
1-79718-526-0
01
1
0107-
209
PIN; JOINT,SUPPORT
1-79718-523-0
01
1
0107-
212
NUT; BRKT,CAB LOCK
M18 SLOTTED
1-09984-079-0
01
1
0107-
213
PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30
9-08114-030-0
01
1
0107-
222
PIN; JOINT,SAFETY LK
1-09987-159-0
01
1
0107-
223
WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6
1-09985-108-0
01
1
0107-
225
BOLT; SAFETY LK
M8X30
1-09980-277-0
01
1
0107-
226
NUT; SAFETY LK
M8
1-09984-065-0
01
1
0107-
235
PIN; SNAP
1-09987-158-1
01
1
0107-
236
SUPPORT ASM; HAND LEVER,CAB LOCK
1-79718-493-0
01
1
0107-
237
BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0107-
238
LOCK ASM; SAFETY,CAB TILT
1-79718-612-1
01
1
0107-
239
BOLT; SAFETY LK
M8X25 W/PL WASHER
8-94279-166-0
02
1
0107-0304
239
BOLT; SAFETY LK
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0305-
281
NUT; SUPPORT
M12 LOCK NUT W/FLANGE
1-79718-524-1
01
1
0107-
314
COVER; CAB LOCK
1-79718-575-1
01
1
0107-
315
NUT; COVER
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0107-
310
311
310
301
302
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
301
BRACKET; RR MTG,CAB
8-97865-122-0
02
1
0107-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
0107-
302
BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER
1-09980-526-0
08
1
0107-
310
SEAL; BRKT
OD=30 BLACK
1-76798-035-0
04
1
0107-
311
SEAL; CAB LOCK
OD=30 BLACK
1-76798-035-0
02
1
0107-
