Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

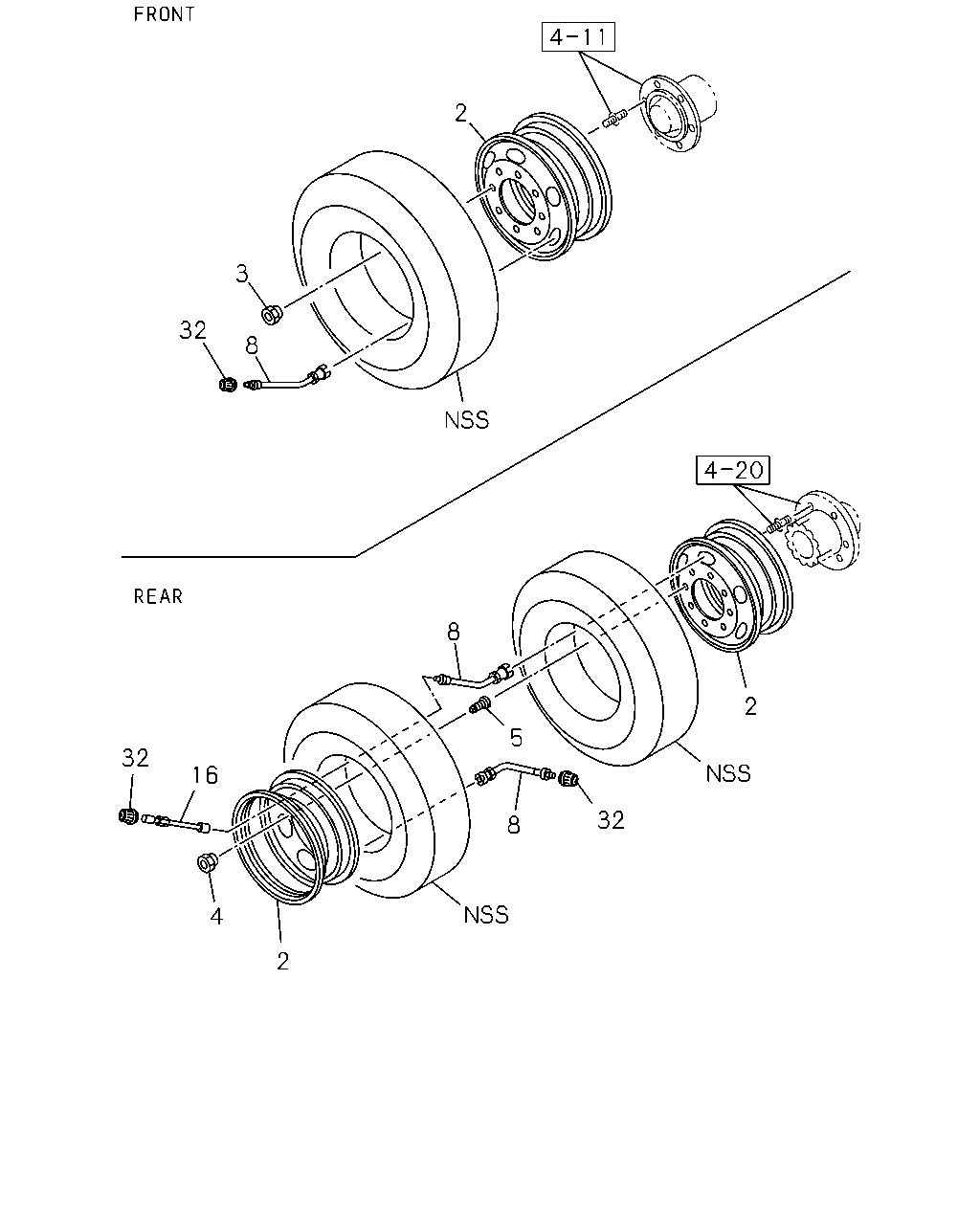

4-80 — ROAD WHEEL
(#31594) — 18 parça
2
3
32
8
8
2
5
32
16
32
8
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
1-42350-628-0
07
1
0107-0204
2
WHEEL; DISC
1-42350-627-0
07
1
0205-0505
2
WHEEL; DISC
1-42350-698-0
07
1
0506-0702
2
WHEEL; DISC
1-42350-770-0
07
1
0703-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
0107-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
0107-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
1-42334-023-0
06
1
0107-0610
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0611-
4
NUT; WHEEL,RR AXLE
M30
1-42333-023-0
06
1
0107-0610
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
1-42336-005-1
06
1
0107-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
1-42335-005-1
06
1
0107-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0611-
8
VALVE; TIRE
1-42370-019-3
07
1
0107-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
1-42370-015-2
02
1
0107-0210
32
CAP; VALVE
1-42374-001-0
05
1
0107-0210
32
CAP; VALVE
1-42374-001-0
07
1
0211-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
