◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10889 - FRR(34) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#31589) — 32 parça

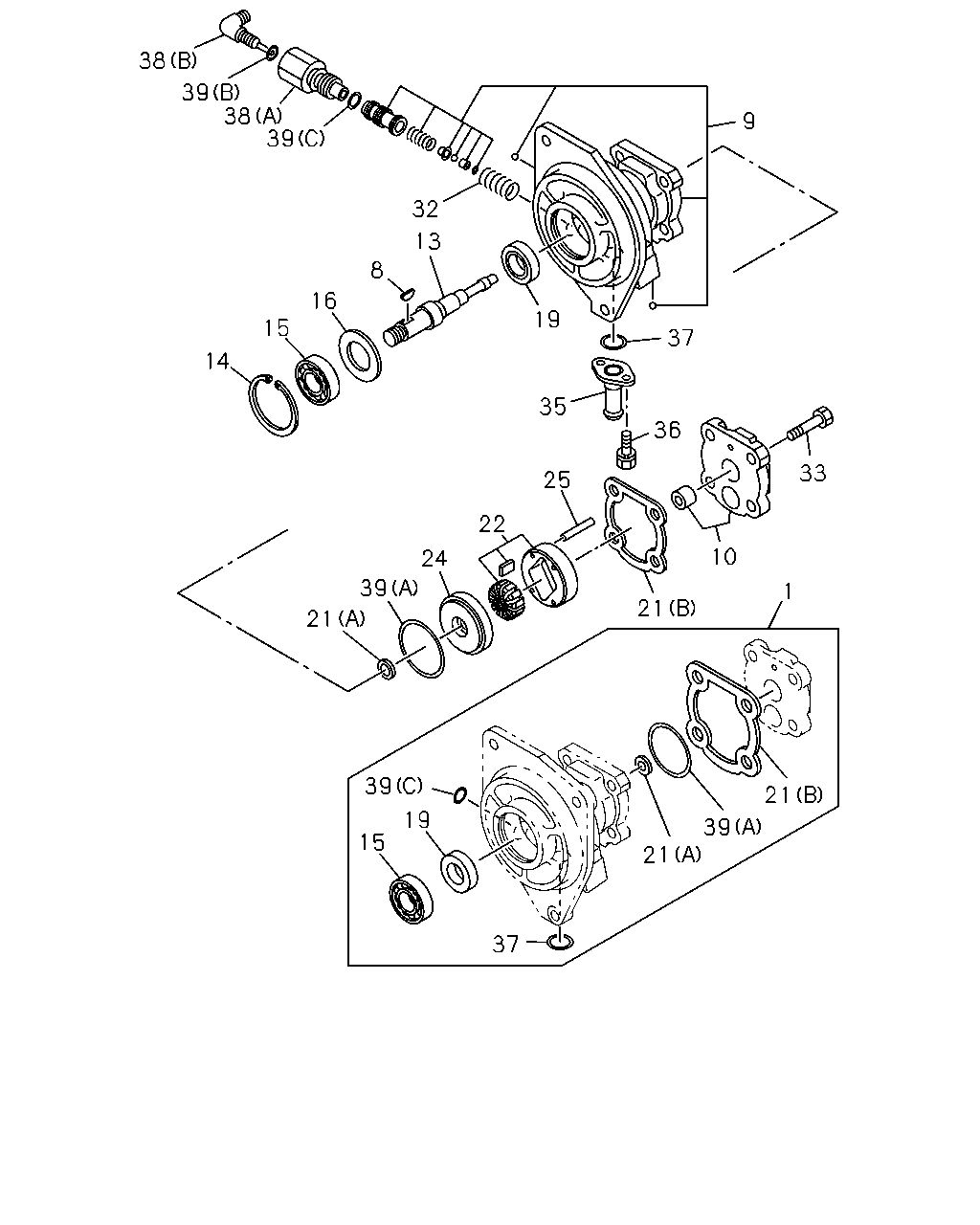

çizim 82919
38 39 38 39 9 32 13 8 16 19 15 37 14 35 36 33 25 22 10 24 39 21 21 21 39 21 39 19 15 37 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-465-0 		1-85574-042-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: B = 1-19500-589-1 		1-85574-080-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-465-0 		1-19511-138-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-589-1 		1-19511-183-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-465-0 		1-19511-102-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 1-19500-589-1 		8-97182-108-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-465-0 		1-19521-030-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 1-19500-589-1 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-258-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-465-0 		8-94475-378-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		8-94475-380-1 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: B = 1-19500-589-1 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-465-0 		1-19519-303-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: B = 1-19500-589-1 		1-19519-341-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-465-0 		1-19515-012-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: B = 1-19500-589-1 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-33739-271-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-48119-054-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		8-94395-492-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		8-94461-139-1 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-307-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-323-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-465-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: B = 1-19500-589-1 		8-94475-379-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-465-0, B = 1-19500-589-1 		9-48429-028-0 01 1 -
