Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

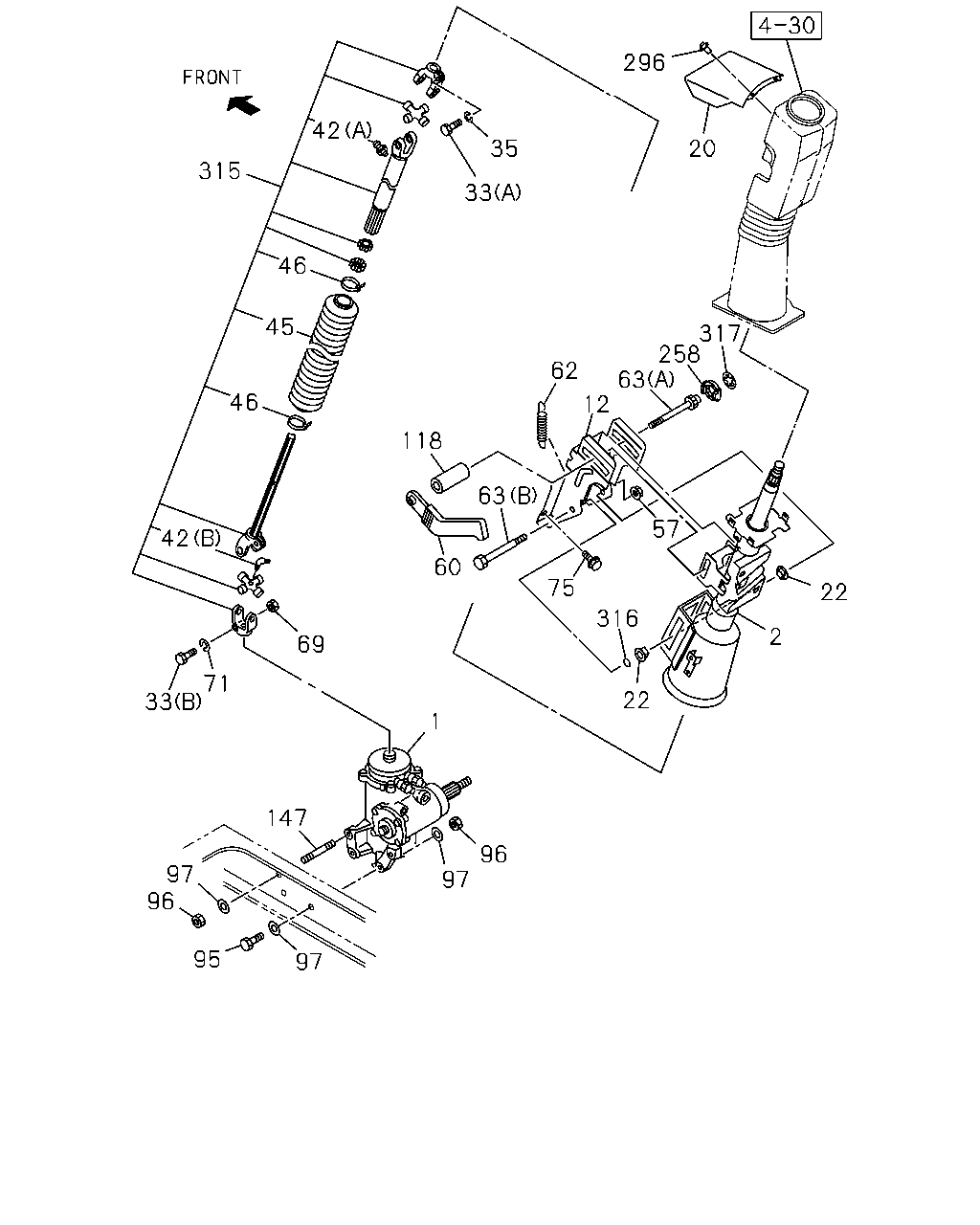

4-31 — STEERING COLUMN AND SHAFT
(#31584) — 41 parça
296
42
35
20
315
33
46
317
258
63
12
45
62
46
118
63
57
42
60
75
22
316
2
69
71
33
22
1
147
96
97
96
97
95
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-838-1
01
1
0107-0205
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-884-2
01
1
0206-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0107-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0107-0811
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0107-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0107-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0107-0707
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0107-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0107-
42
NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT
1-44135-375-0
01
1
0507-
42
NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW
1-44135-376-0
01
1
0507-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0107-
46
CLIP; BOOT
1-44139-156-0
02
1
0107-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0107-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0107-
62
SPRING; LK,LEVER
1-44227-153-0
02
1
0107-0111
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0112-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0107-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0107-
69
NUT; TILT CENTER
M10
9-09110-510-0
01
1
0107-0512
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
0601-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
9-09150-810-0
01
1
0107-0603
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0604-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28680-820-0
04
1
0107-0512
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0601-
95
BOLT; STRG UNIT
M14X50
1-09000-739-1
04
1
0107-0805
95
BOLT; STRG UNIT
M14X50
1-09000-787-0
04
1
0806-
96
NUT; STRG UNIT
M14
1-09440-080-0
05
1
0107-0805
96
NUT; STRG UNIT
M14
1-09440-097-0
05
1
0806-
97
WASHER; PL,STRG UNIT
ID=15
9-09651-069-0
09
1
0107-
118
NUT; LEVER,TILT BOLT
1-44227-146-0
01
1
0107-0506
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0507-
147
STUD; STRG UNIT
M14X37 L=66
1-09300-095-1
01
1
0107-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0107-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0107-
315
JOINT; SPLINE
1-44135-342-0
01
1
0107-0506
315
JOINT; SPLINE
1-44135-377-0
01
1
0507-
316
RING
1-44227-152-0
01
1
0107-
317
NUT; PUSH
1-44227-148-0
01
1
0107-
