3-78 — FIXING PARTS; AIR PIPING (#31577) — 100 parça

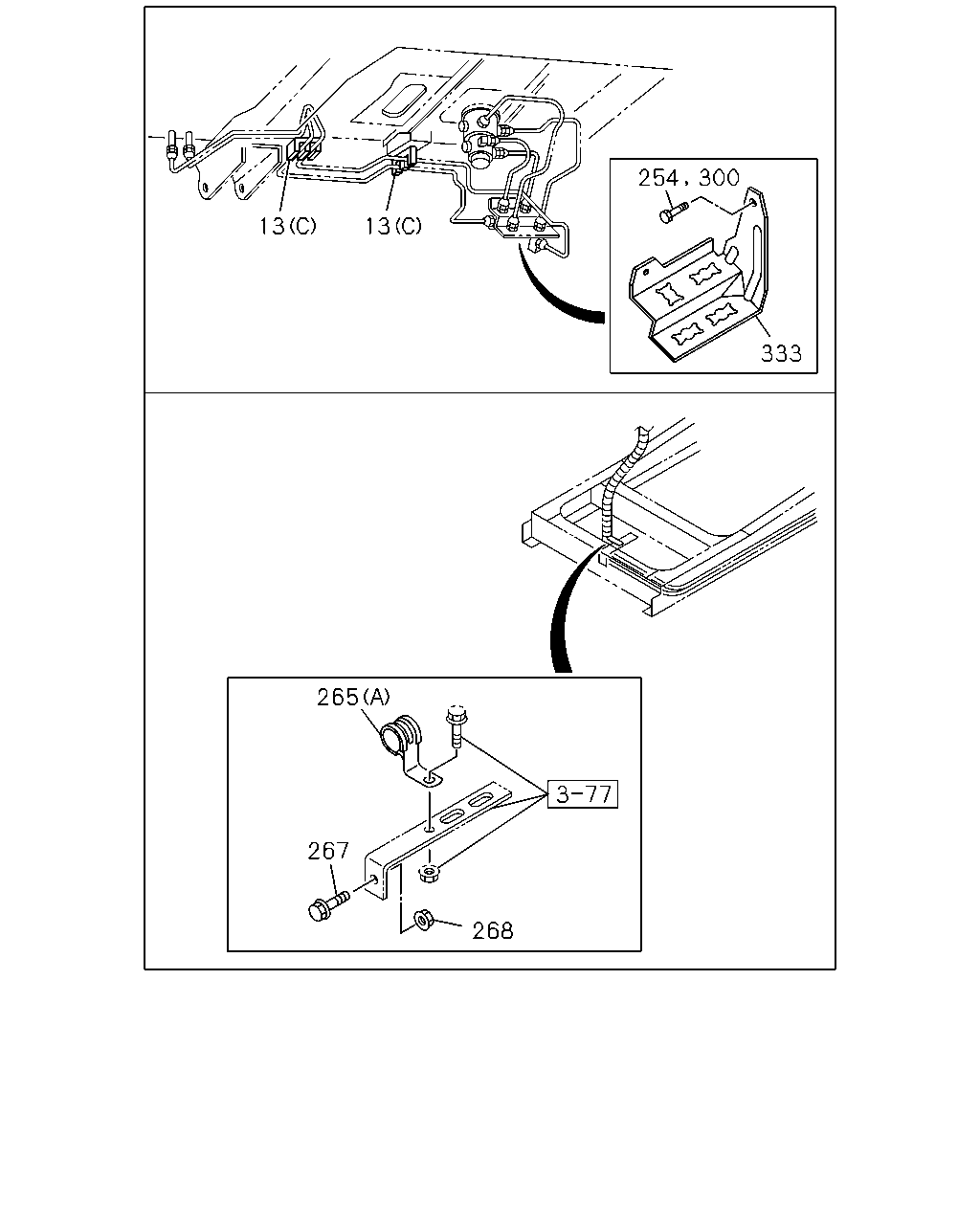

13 13 333 265 267 268 254 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0107-
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0107-
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
265	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	11	1	0107-
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0107
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0107-

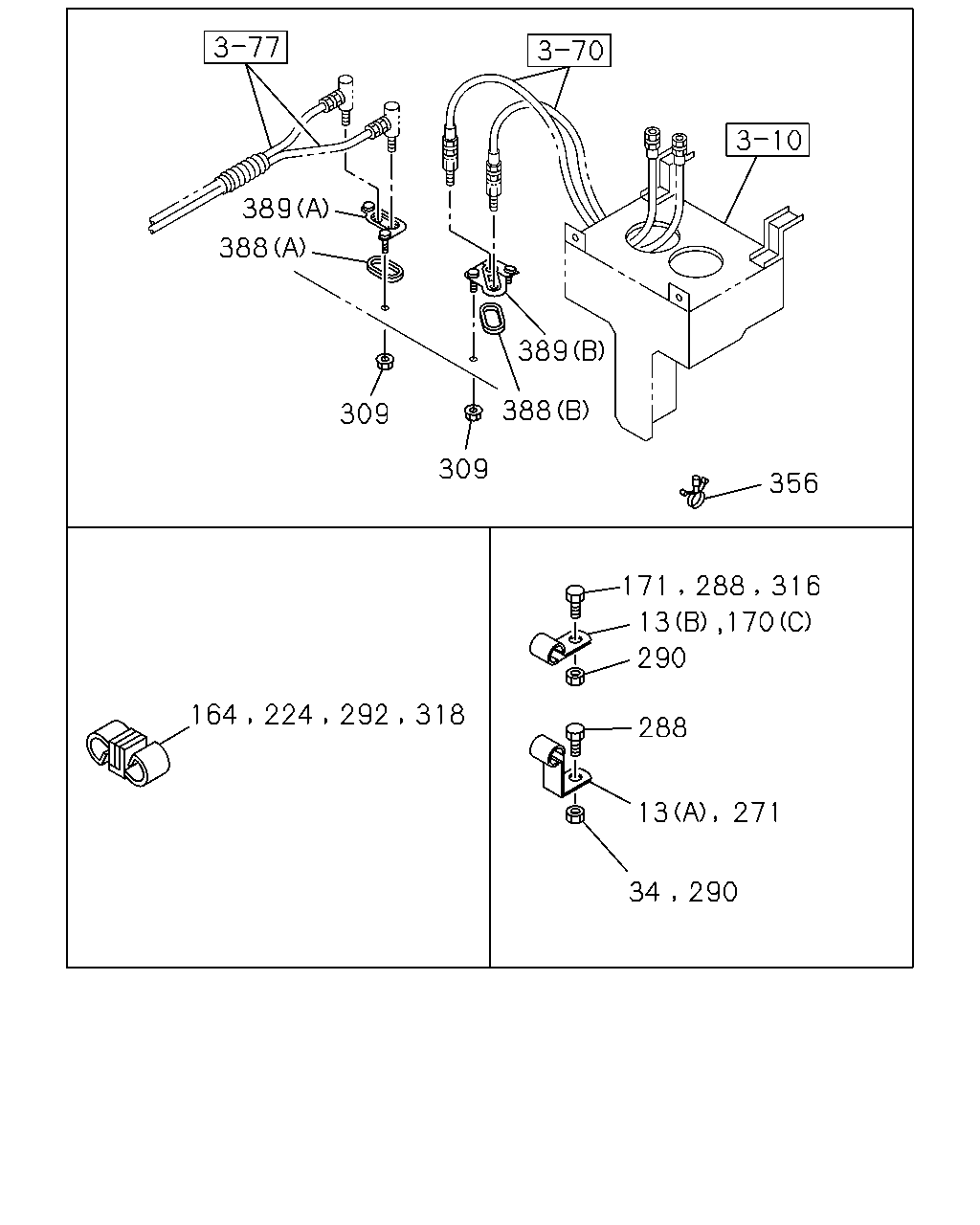

389 388 389 388 309 309 356 171 13 170 290 288 13 271 164 224 292 318 288 316 34 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0107-
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0107-
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0107-0605
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0606-
164	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0107-
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0107-
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0107-0107
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0107-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0107-
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0107-0606
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
224	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0107-
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0107-0107
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0107-
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0107-
271	CLIP; AIR PIPE FIX ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0107-
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0107-
316	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	01	1	0107-0512
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	01	1	0601-
318	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	0107-
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0107-
388	SEAL (A) L=280	1-79738-793-1	01	1	0107-
388	SEAL (B)	1-79738-826-0	01	1	0107-
389	BRACKET; UNION (A)	1-79738-814-2	01	1	0107-
389	BRACKET; UNION (B)	1-79738-827-1	01	1	0107-

172 174 172 173 174 174 172 173 173 173 174 172 393 174 172 170 171 173 20 375 267 322 172 376 268 21 297 170 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0107-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0107-
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0107-0606
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0107-
172	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0107-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0107-
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0107-0107
172	BRACKET; TUBE CLIP (F) L=215	1-47479-288-0	01	1	0107-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	0107-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0107-
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0107-
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0107-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	10	1	0107-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	10	1	0107-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0603-
265	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	11	1	0107-
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0107
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0107-
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0107-
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0107-0602
393	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-
