3-77 — BRAKE PIPING; AIR,REAR
(#31576) — 83 parça
◀

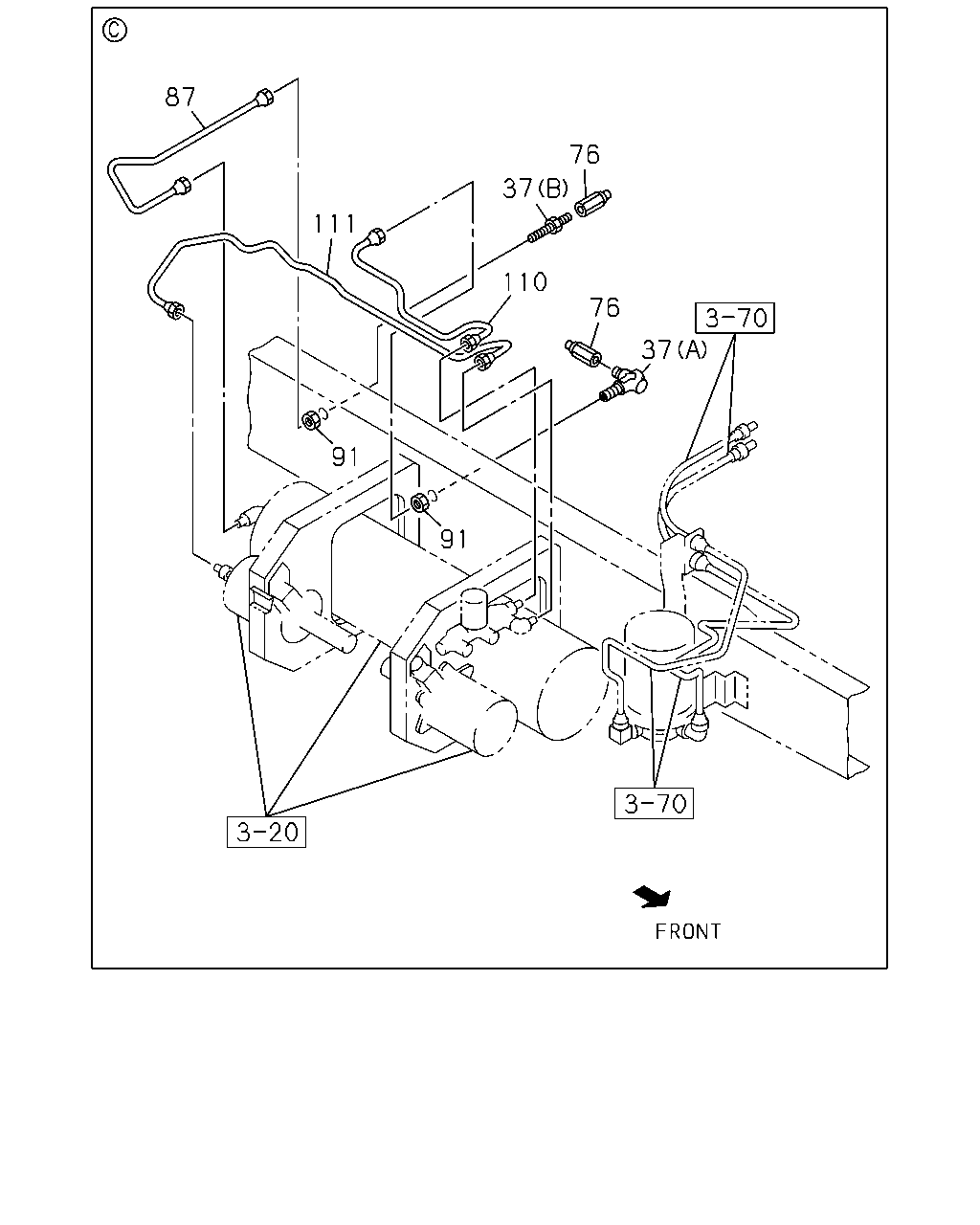

[377A] NO.3 (10 parça)
[377A] NO.2 (20 parça)
[377A] NO.5 (21 parça)
[377A] NO.4 (12 parça)
[377A] NO.1 (20 parça)
▶
87
76
37
111
110
76
37
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(B) M16 L=74
9-09233-310-1
01
1
0107-0607
37
UNION; AIR PIPE
(B) M16 L=74
0-92123-310-0
01
1
0608-
37
UNION; AIR PIPE
(A) M16 ELBOW
9-09235-210-1
01
1
0107-0607
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
01
1
0608-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
87
PIPE; AIR,AIR TANK TO UNION
1-49119-151-1
01
1
0107-
91
NUT; PIPE UNION
M16
9-99111-416-0
02
1
0107-0512
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
0601-
110
PIPE; AIR,UNION TO VLV
1-49122-529-0
01
1
0107-
111
PIPE; AIR,VLV TO AIR MASTER
L=975 SERVICED BY L=1000
1-47428-874-0
01
1
0107-
192
192
74
74
162
21
79
64
163
67
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
WASHER; LK,UNION
ID=14.2
9-09150-514-0
01
1
0107-0603
21
WASHER; LK,UNION
ID=14.2
0-91510-514-0
01
1
0604-
64
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
01
1
0107-
67
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
74
ADAPTER; UNION TO NYLON TUBE
(A)
1-09660-881-0
01
1
0107-
74
ADAPTER; UNION TO NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0107-
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
161
HOSE; FLEX,QUICK RELEASE VLV
L=580
0-07462-580-1
01
1
0107-0605
161
HOSE; FLEX,QUICK RELEASE VLV
L=580
0-57462-580-1
01
1
0606-
162
NUT; FLEX HOSE
M14
9-99111-414-0
01
1
0107-0512
162
NUT; FLEX HOSE
M14
0-91111-514-0
01
1
0601-
163
BRACKET; FLEX HOSE
1-47475-464-0
01
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-0212
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0107-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
85
192
223
192
126
126
316
316
127
181
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
GASKET; NYLON TUBE
100X40
1-72498-022-1
05
1
0107-
126
UNION; NYLON TUBE
(B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0107-
126
UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0107-
126
UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0107-
127
NUT; UNION
M20
9-99111-420-0
01
1
0107-0512
127
NUT; UNION
M20
0-91111-520-0
01
1
0601-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0107-
181
NUT; TUBE UNION
M20
9-99111-420-0
01
1
0107-0512
181
NUT; TUBE UNION
M20
0-91111-520-0
01
1
0601-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-0212
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0107-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0107-
316
WASHER; PL
ID=21
9-09160-520-0
02
1
0107-0605
316
WASHER; PL
ID=21
0-91610-520-0
02
1
0606-
1
206
1
206
7
7
6
6
285
285
10
10
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0107-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0107-0603
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0107-0512
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
0107-
10
CONNECTOR; FLEX HOSE
(A)
1-09656-754-0
01
1
0107-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0107-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0107-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
0107-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-

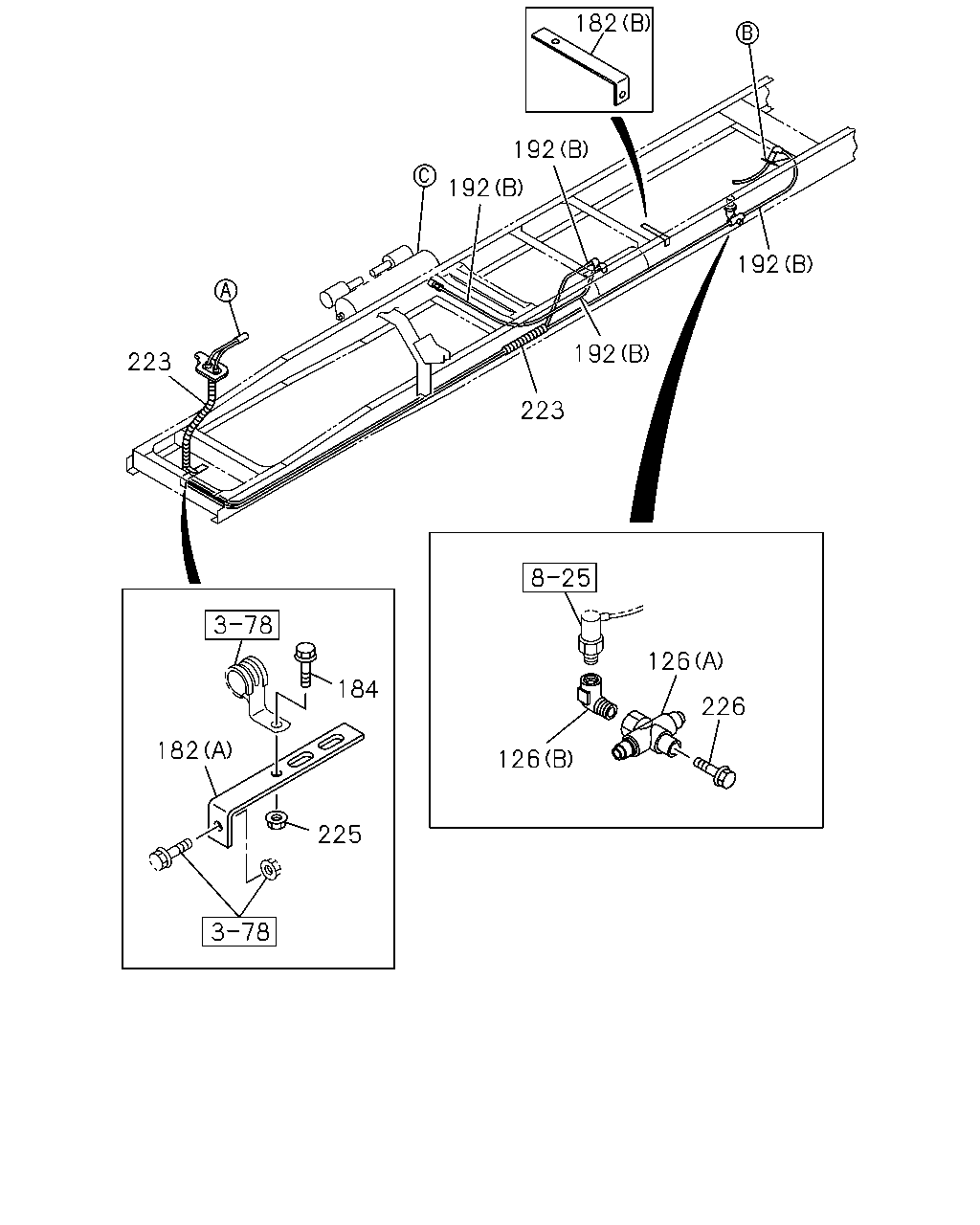

182
192
192
192
192
223
223
126
184
226
182
126
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
UNION; NYLON TUBE
(B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0107-
126
UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0107-
126
UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0107-
182
BRACKET; TUBE CLIP
(A) L=100 H=30
1-47477-645-2
01
1
0107-
182
BRACKET; TUBE CLIP
(B)
1-47479-287-0
01
1
0107-
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-0212
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0107-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0107-
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
226
BOLT; UNION
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
0601-
