Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#31575) — 31 parça
◀
[375A] NO.3 (9 parça)
[375A] NO.1 (13 parça)
[375A] NO.2 (9 parça)
▶

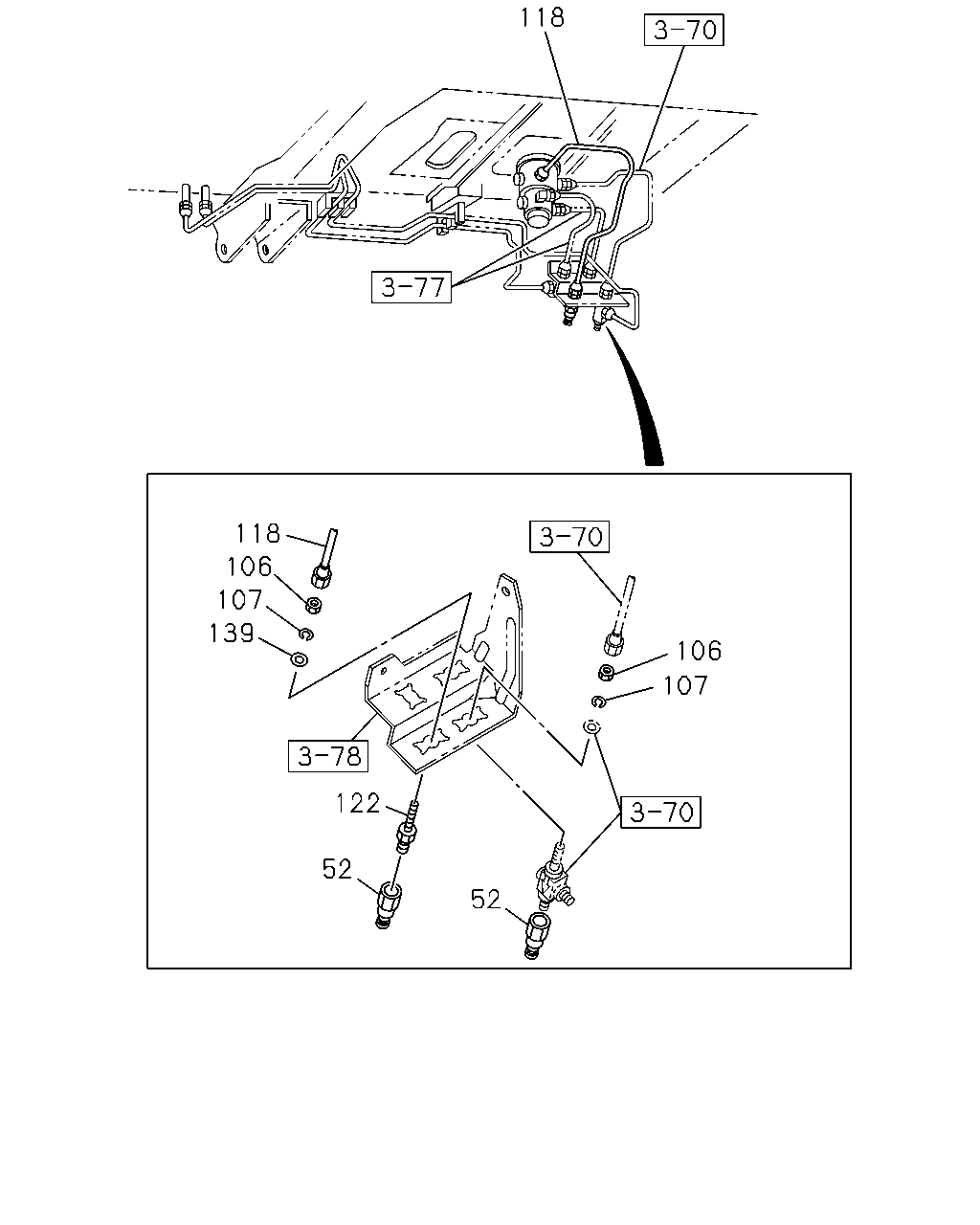

118
118
106
107
139
106
107
122
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
106
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0107-0512
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0107-0603
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0107-
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0107-
139
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0107-0605
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-

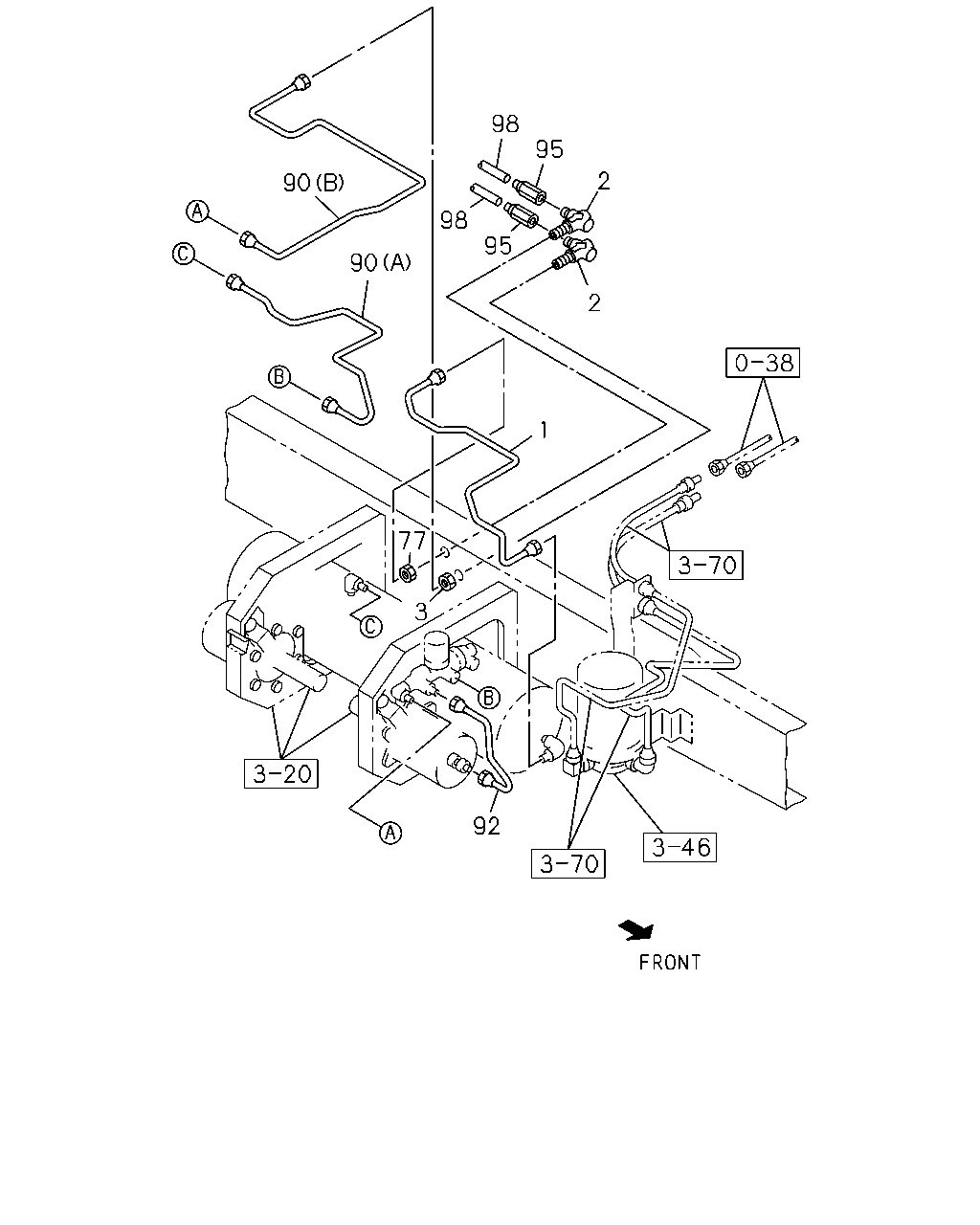

98
95
2
90
98
95
90
2
1
77
3
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
1-49122-527-0
01
1
0107-
2
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
02
1
0107-0607
2
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
0608-
3
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0107-0512
3
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
77
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0107-0512
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
90
PIPE; AIR,UNION TO HSA VLV
(A) L=584 SERVICED BY L=600
1-47428-809-0
01
1
0107-
90
PIPE; AIR,UNION TO HSA VLV
(B)
1-49123-055-0
01
1
0107-
92
PIPE; AIR,HSA VLV TO AIR MASTER
L=356
1-49118-889-0
01
1
0107-
95
ADAPTER; BRKT
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0107-
98
98
90
98
98
98
98
98
98

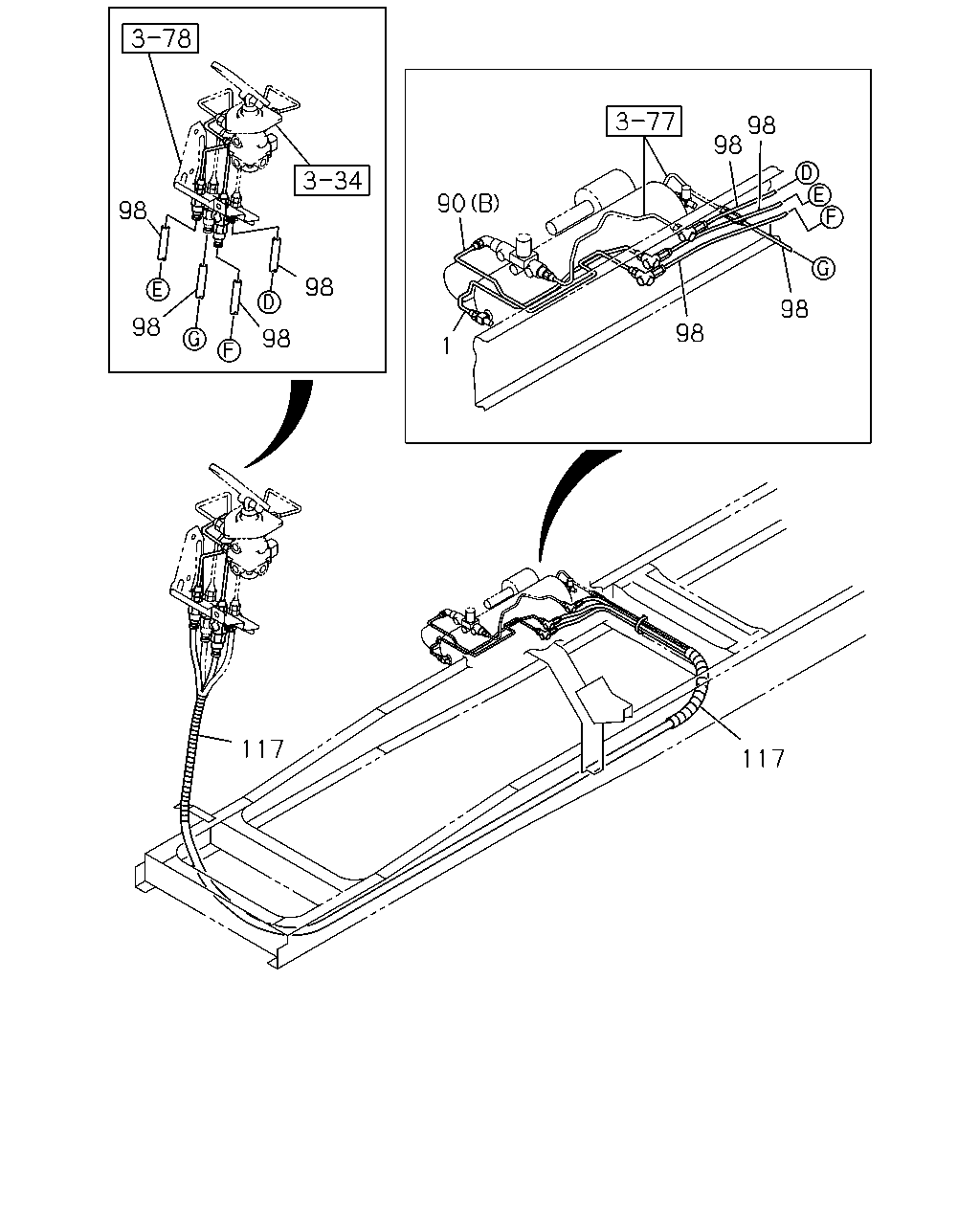

1
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
1-49122-527-0
01
1
0107-
90
PIPE; AIR,UNION TO HSA VLV
(A) L=584 SERVICED BY L=600
1-47428-809-0
01
1
0107-
90
PIPE; AIR,UNION TO HSA VLV
(B)
1-49123-055-0
01
1
0107-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
AR
1
0107-
