3-52 — BRAKE PIPING; OIL,FRONT (#31571) — 21 parça

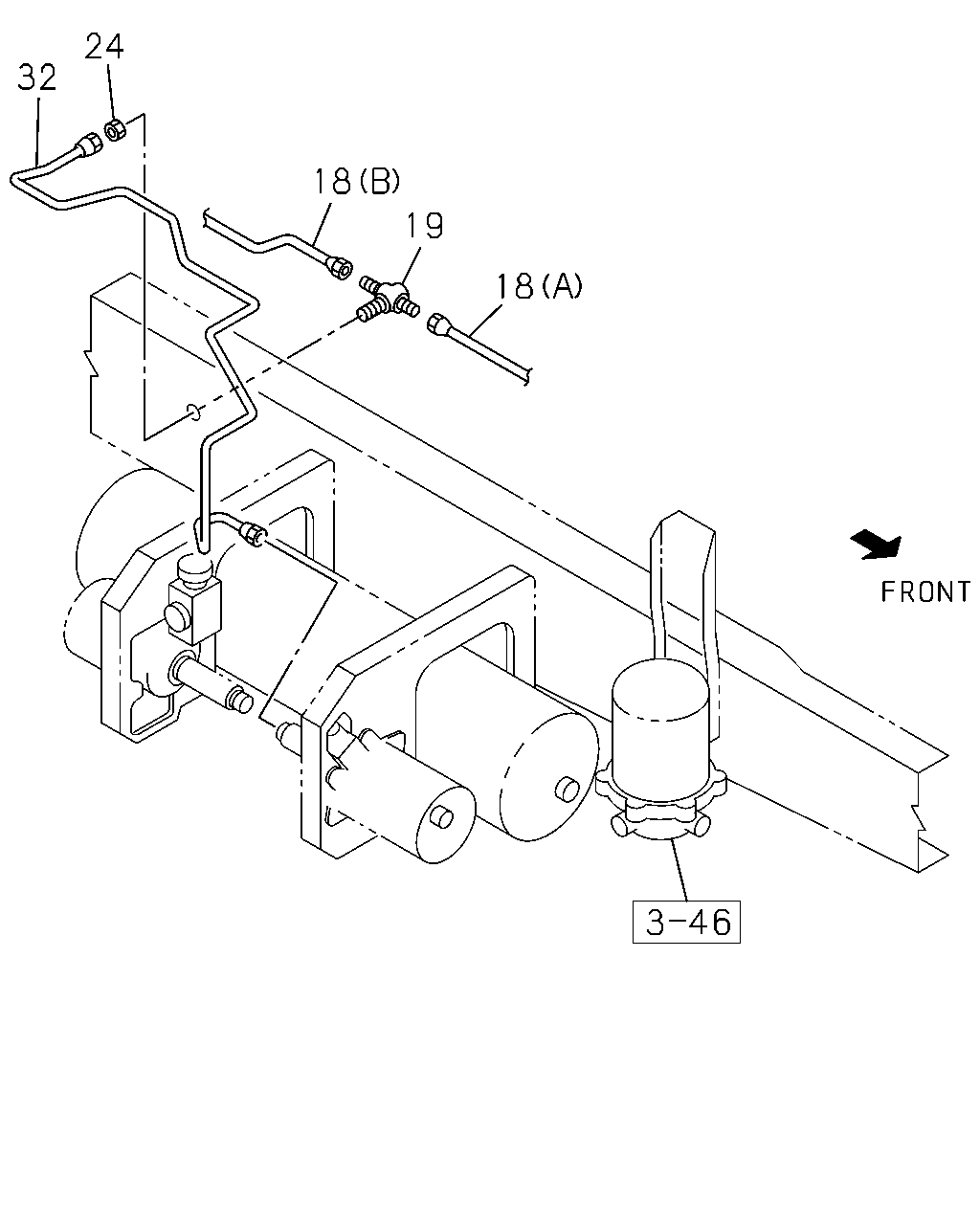

24 32 18 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2917 SERVICED BY L=2900	1-47426-364-0	01	1	0107-0212
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2915 SERVICED BY L=3200	1-47426-365-0	01	1	0301-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1803 SERVICED BY L=1820	1-47426-358-0	01	1	0107-
19	UNION; OIL PIPE M12 3WAY	9-09228-606-1	01	1	0107-0607
19	UNION; OIL PIPE M12 3WAY	0-92138-606-0	01	1	0608-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0107-
32	PIPE; OIL,AIR MASTER TO UNION L=987 SERVICED BY L=1000	1-47426-350-0	01	1	0107-

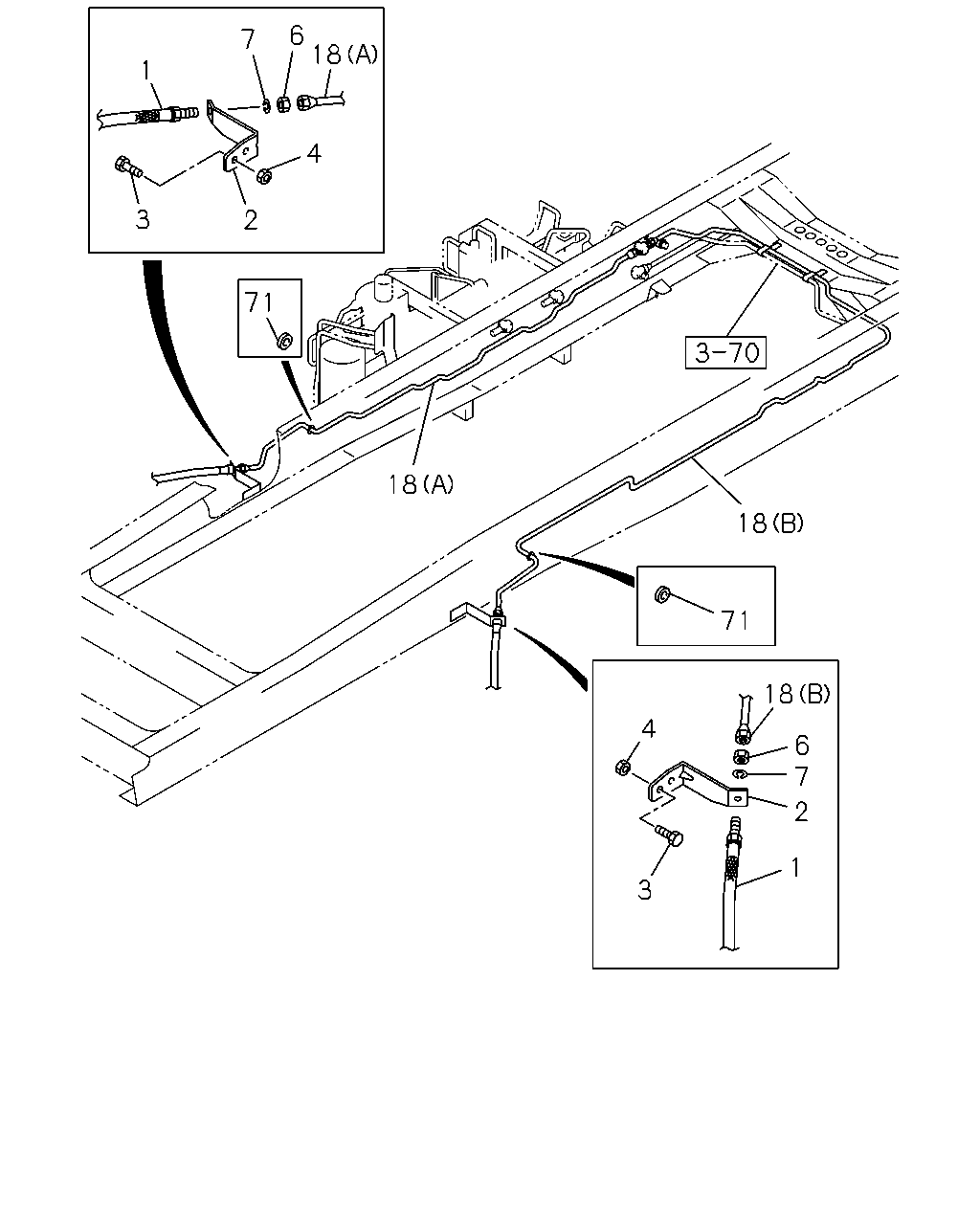

6 18 7 1 4 3 2 71 18 18 71 18 4 6 7 2 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=530	0-05313-530-0	02	1	0107-0511
1	HOSE; FLEX,FRT BRK L=530	0-05213-530-0	02	1	0512-
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-497-1	02	1	0107-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28680-825-0	04	1	0107-0512
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0601-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91150-108-0	04	1	0107-0602
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0603-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0107-
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	9-09150-512-0	02	1	0107-0603
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0604-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2917 SERVICED BY L=2900	1-47426-364-0	01	1	0107-0212
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2915 SERVICED BY L=3200	1-47426-365-0	01	1	0301-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1803 SERVICED BY L=1820	1-47426-358-0	01	1	0107-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0107-
