Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#31570) — 28 parça
◀

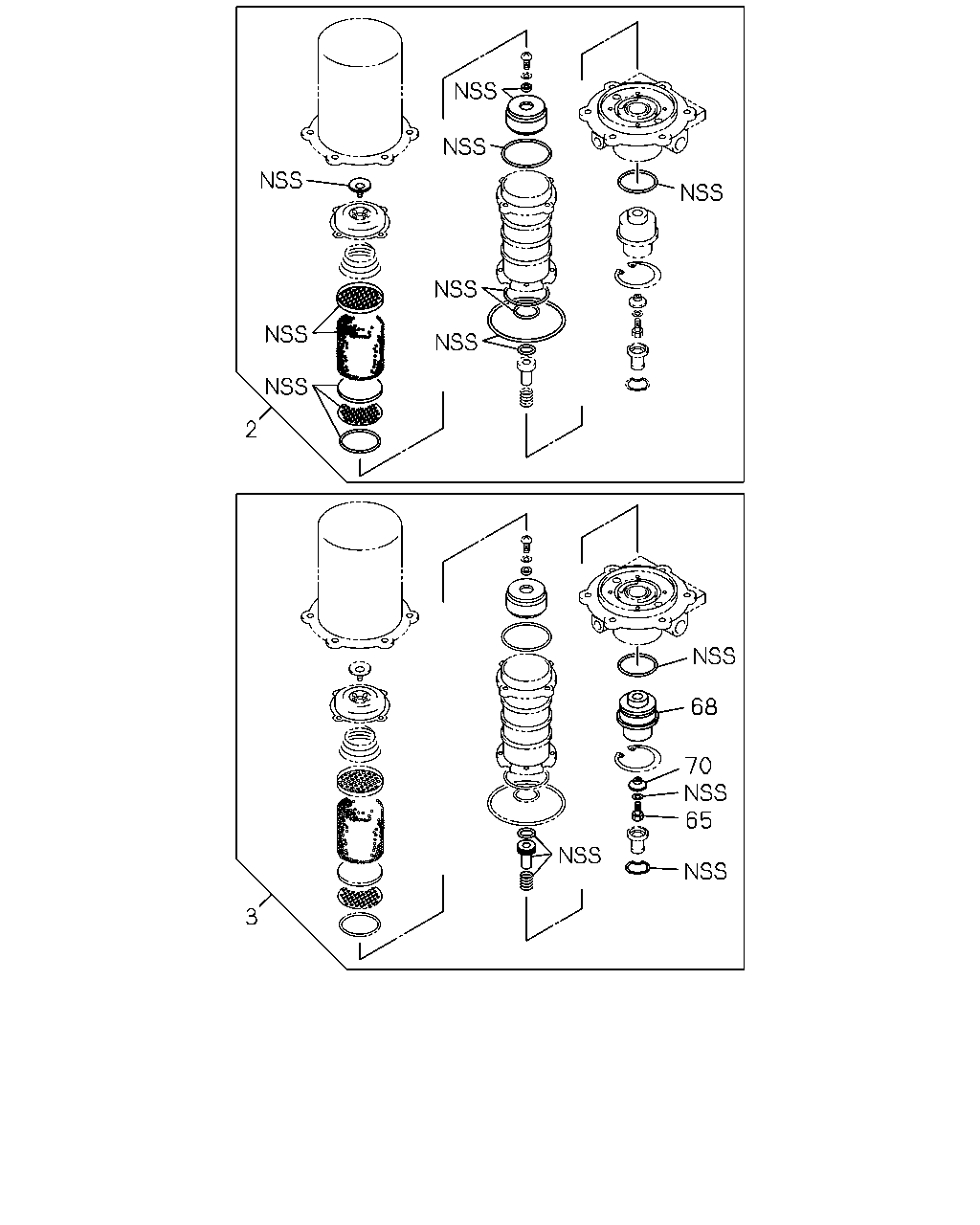

[346A] REPAIR KIT AND PISTON KIT (5 parça)
[346A] FIXING (12 parça)
[346A] COMPONENT (11 parça)
▶
2
68
70
65
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-194-0
01
1
0107-
3
PISTON KIT; AIR DRYER
1-85576-193-0
01
1
0107-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0107-
68
BODY; VALVE
1-48199-408-0
01
1
0107-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-
13
1
10
8
11
10
9
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-200-1
01
1
0107-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(C) PT1/4 & M12 ELBOW
1-09656-665-0
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
0107-
10
BOLT; AIR DRYER
(A) M10X16
0-20801-016-0
03
1
0107-0512
10
BOLT; AIR DRYER
(A) M10X16
0-20851-016-0
03
1
0601-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE
0-28681-035-0
04
1
0107-0512
10
BOLT; AIR DRYER
(B) M10X35 FLANGE
0-28651-035-0
04
1
0601-
11
BRACKET; AIR DRYER
1-48195-066-0
01
1
0107-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0107-0602
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
1
1
81
68
75
84
7
5
70
65
6
4

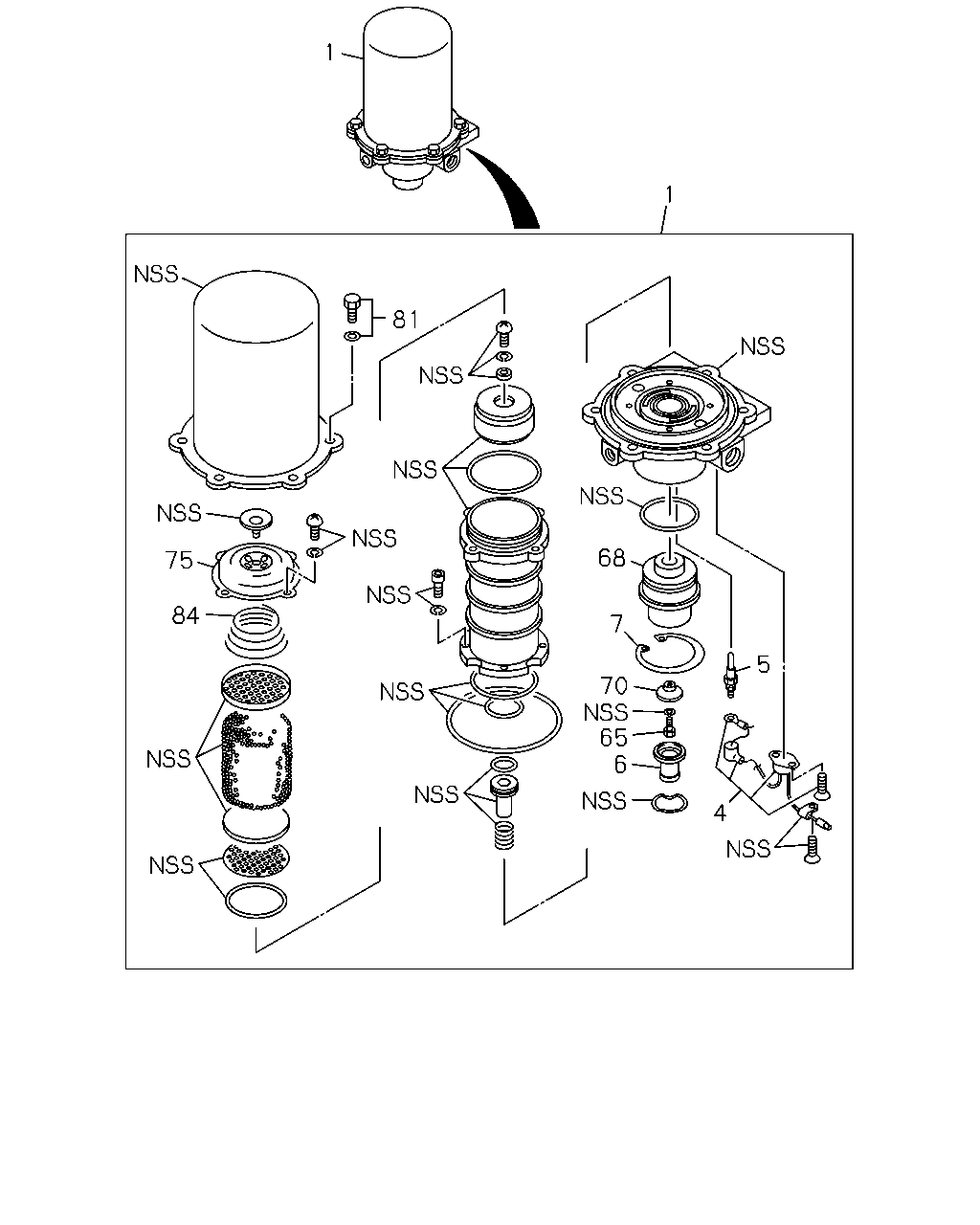

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-200-1
01
1
0107-
4
THERMOSTAT KIT; AIR DRYER
1-85576-152-0
01
1
0107-
5
HEATER ASM; AIR DRYER
1-48199-085-0
01
1
0107-
6
COVER; EXH,AIR DRYER
1-48199-404-0
01
1
0107-
7
RING; SNAP,AIR DRYER
1-48199-403-0
01
1
0107-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0107-
68
BODY; VALVE
1-48199-408-0
01
1
0107-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-
75
COVER; CASE,AIR DRYER
1-48199-395-0
01
1
0107-
81
BOLT; CASE,AIR DRYER
1-48199-365-0
06
1
0107-
84
SPRING; AIR DRYER
1-48199-396-0
01
1
0107-
