◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10889 - FRR(34) RHD ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#31564) — 86 parça

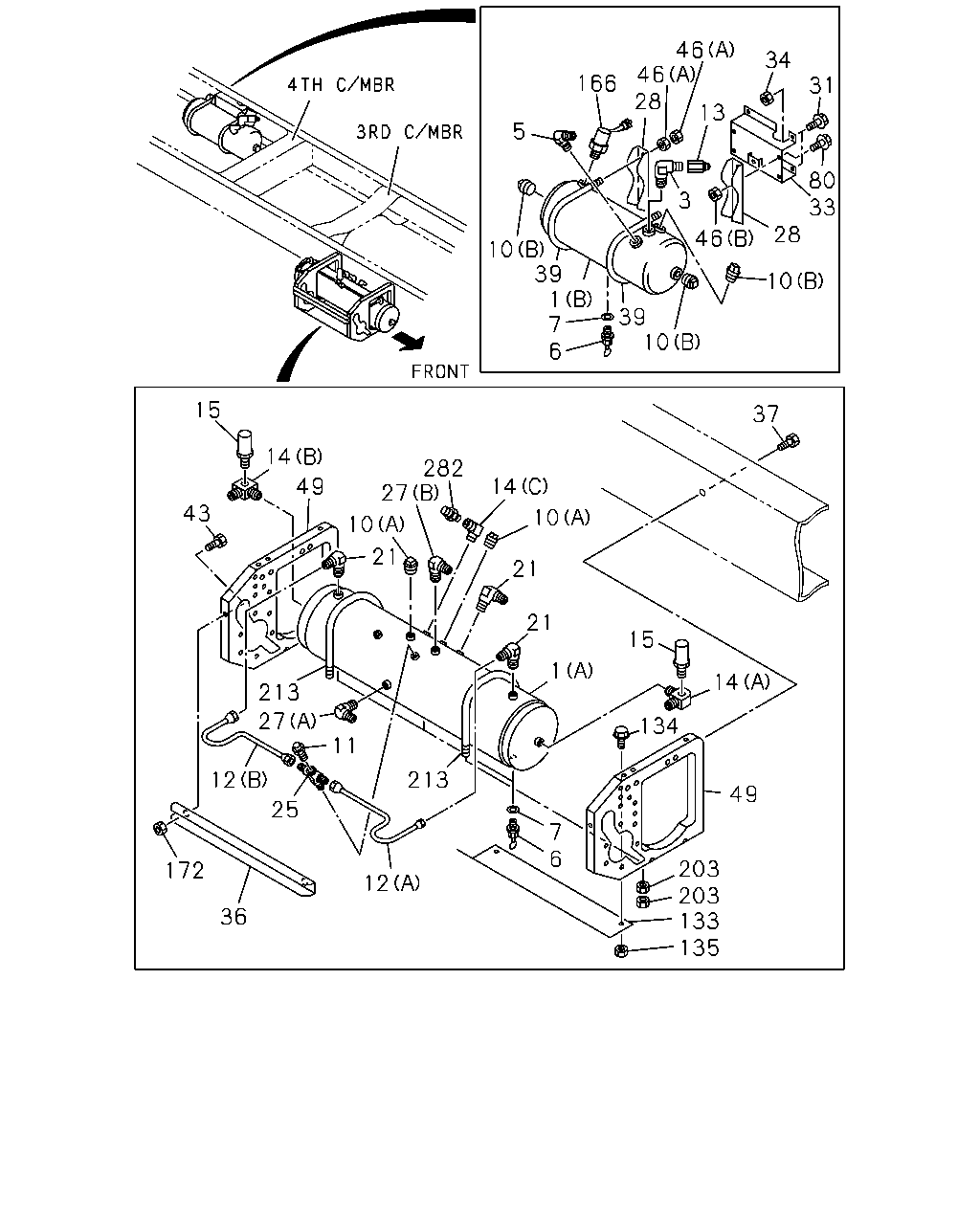

çizim 24990
46 46 28 34 166 31 13 5 80 33 28 3 46 10 39 1 39 7 10 6 10 15 37 14 282 27 49 14 43 10 10 21 21 21 15 1 14 213 27 134 11 12 213 49 25 7 6 203 203 133 135 172 12 36
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0107-
1 TANK ASM; AIR
(B) 		1-48370-719-0 01 1 0107-
3 VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 0107-
5 UNION; AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0107-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 0107-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 02 1 0107-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0107-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0107-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0107-
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0107-
14 UNION; 3 WAY,AIR TANK
(A) M16 & PT1/4X2 3WAY 		1-09656-668-0 01 1 0107-
14 UNION; 3 WAY,AIR TANK
(B) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0107-
14 UNION; 3 WAY,AIR TANK
(C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0107-
15 SWITCH; LOW PRESS,AIR TANK
530KPA 		1-48340-054-1 02 1 0107-
21 VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW 		1-48410-412-0 03 1 0107-
25 UNION; 4 WAY 1-09656-699-0 01 1 0107-
27 UNION; ELBOW,AIR TANK
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0107-
27 UNION; ELBOW,AIR TANK
(B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0107-
28 BRACKET; AIR TANK 1-48317-430-0 02 1 0107-
31 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512
31 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
33 BRACKET; BRKT,AIR TANK 1-48317-431-2 01 1 0107-
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 0603-
36 STAY; MAIN TANK 1-48317-307-2 01 1 0107-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
39 U-BOLT; AIR TANK
L=250 		1-48317-308-0 02 1 0107-
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
46 NUT; U-BOLT
(B) M10 FLANGE 		0-91150-210-0 04 1 0107-0602
46 NUT; U-BOLT
(B) M10 FLANGE 		0-91180-210-0 04 1 0603-
46 NUT; U-BOLT
(A) M8 		9-09110-408-0 08 1 0107-0512
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 0601-
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0107-
80 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0107-0512
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
133 COVER; AIR MASTER 1-48317-641-1 01 1 0107-
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA 		1-48340-054-1 01 1 0107-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0603-
203 NUT
M8 		9-09110-408-0 08 1 0107-0512
203 NUT
M8 		0-91110-508-0 08 1 0601-
213 BOLT; U AIR TANK
L=250 		1-48317-308-0 02 1 0107-
282 UNION; 2 WAY
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-

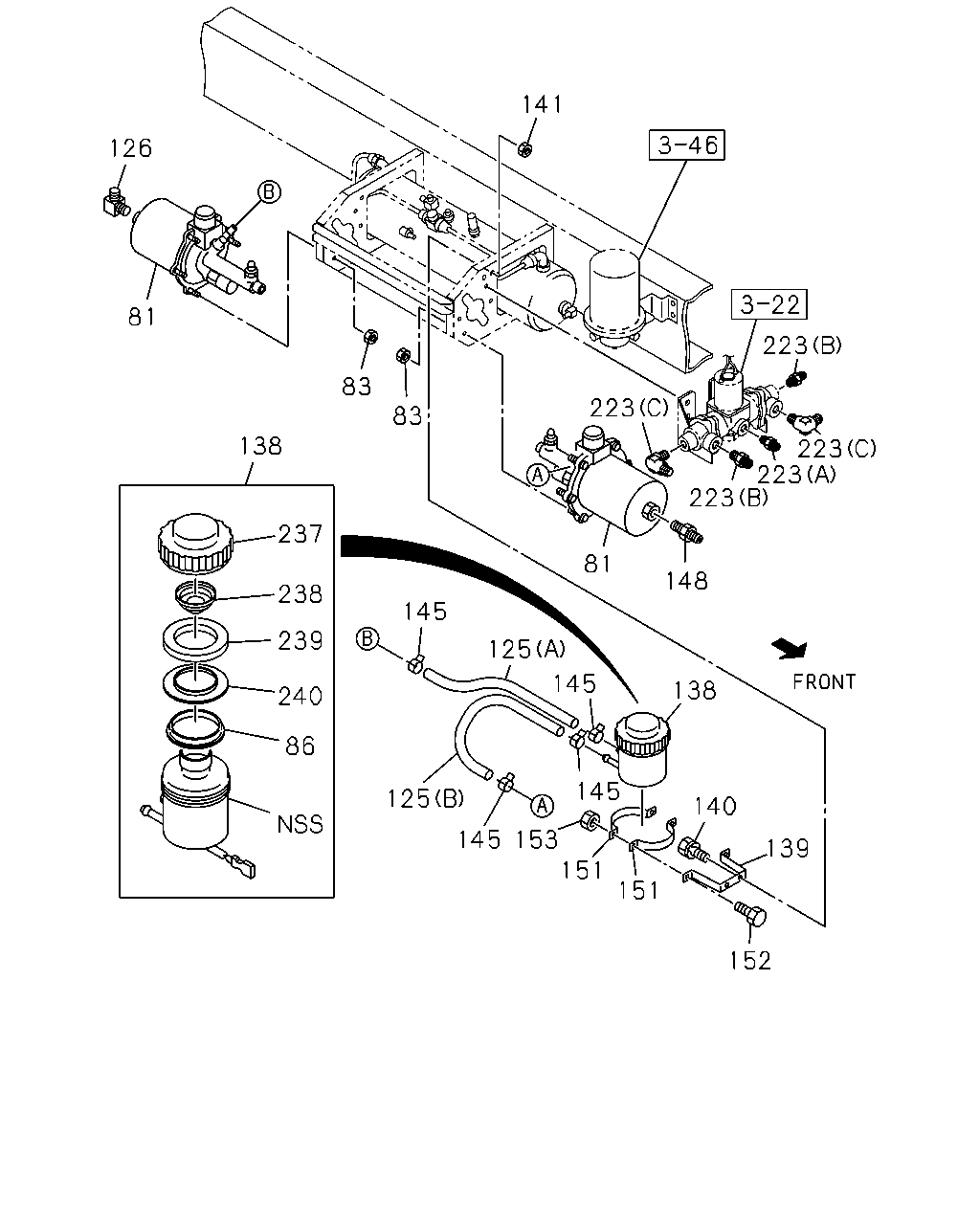

çizim 82993
141 126 81 223 83 223 83 138 223 223 223 237 81 148 238 145 239 125 145 138 240 86 145 125 140 145 153 139 151 151 152
BalonParca AdiParca NoAdetTipApplied Date
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-656-2 02 1 0107-0202
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-789-0 02 1 0203-0901
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-827-0 02 1 0902-
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 0107-0602
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 0107-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=240 SERVICED BY L=1800 		1-09360-320-0 01 1 0107-
125 HOSE; OIL TANK TO AIR MASTER
(B) L=335 		1-47469-045-0 01 1 0107-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0107-
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0107-0206
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207-
139 BRACKET; OIL TANK 1-47537-123-1 01 1 0107-
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0107-
148 CONNECTOR; AIR MASTER
M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0107-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0107-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603-
223 UNION
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-
223 UNION
(B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 0107-
223 UNION
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0107-
237 CAP; OIL TANK 1-47525-030-0 01 1 0107-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0107-
239 FILTER; DUST 1-47529-017-0 01 1 0107-
240 HOLDER; FILTER 1-47529-018-0 01 1 0107-

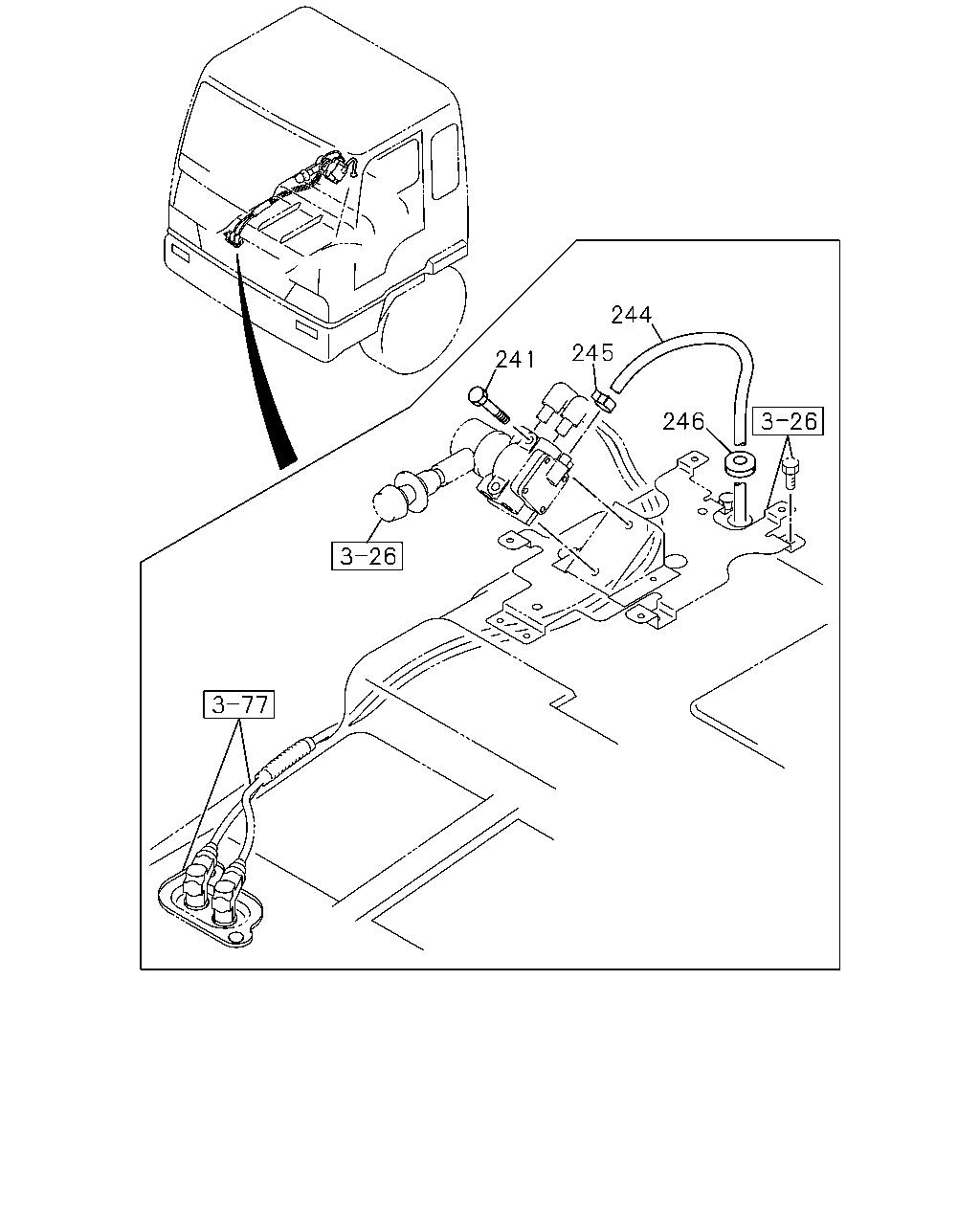

çizim 83228
244 245 241 246
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0107-0512
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0107-
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0107-
